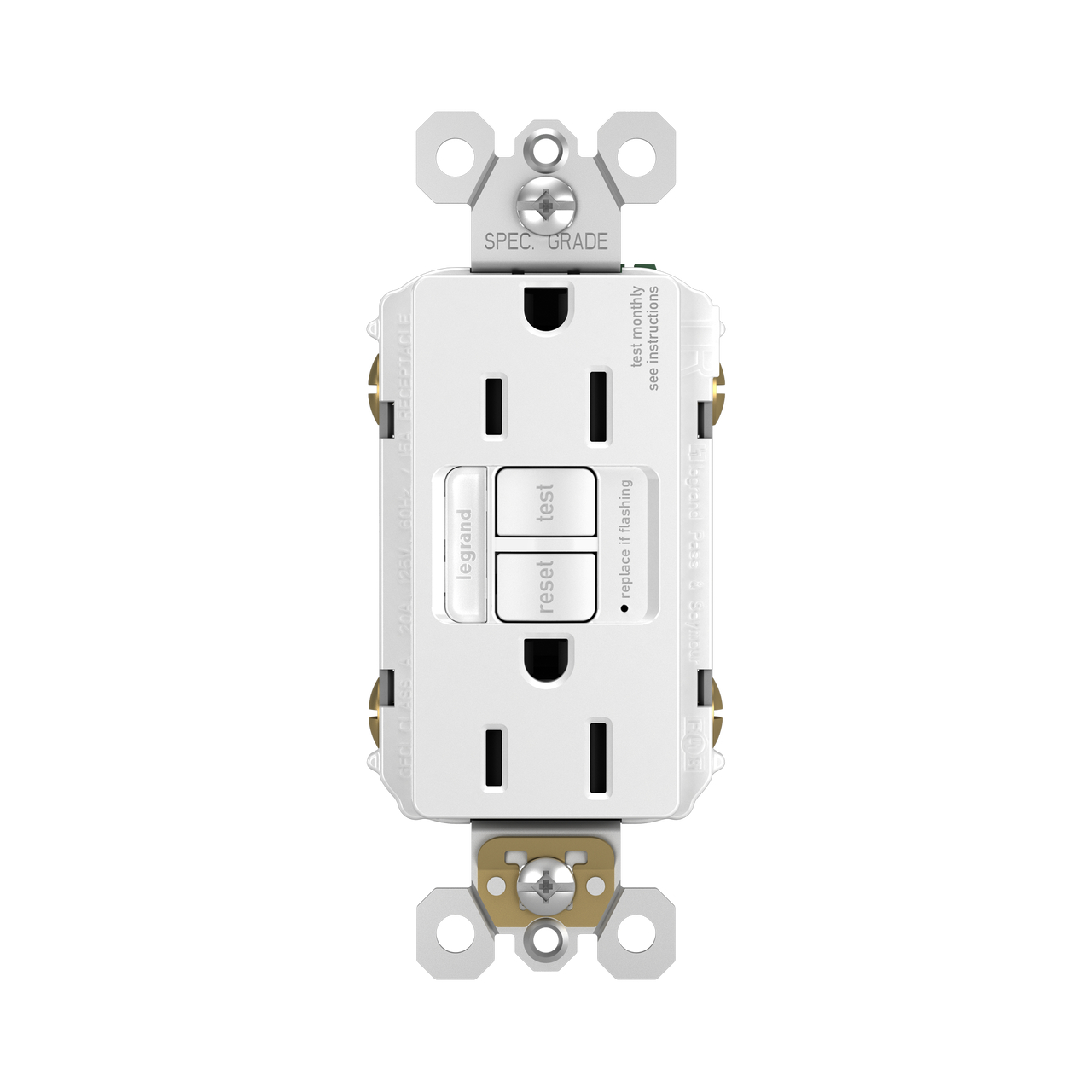

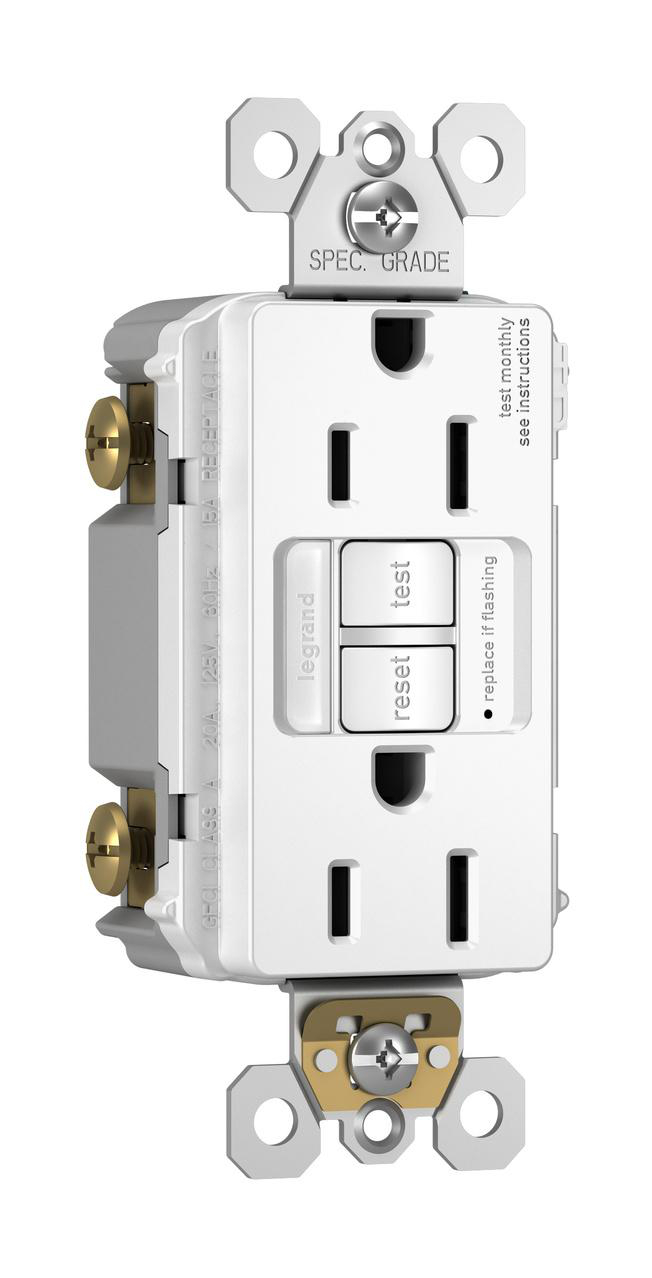

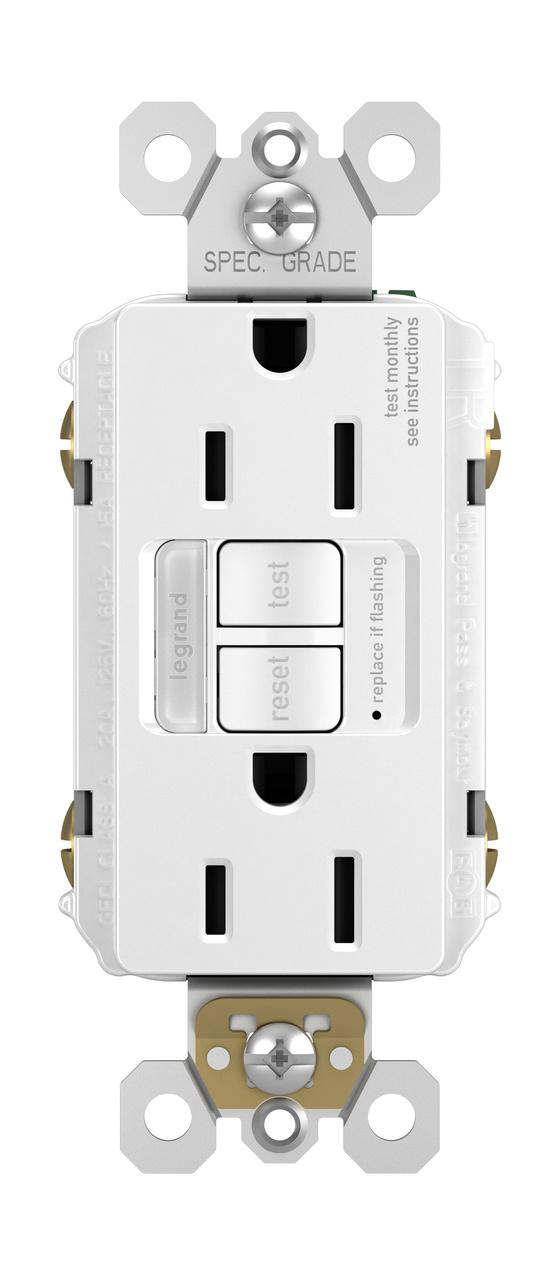

radiant® Tamper-Resistant 15A Duplex Self-Test GFCI Receptacles with SafeLock®

Manufacturer: Pass & Seymour | Legrand | Catalog # 1597NTLTRW | Electrozad South Part # 343161
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 4 to 6 days
Specification Sheet Product Brochure Installation / Instruction Manual
The new Pass & Seymour® Self-Test GFCI receptacle withSafeLock® Protection conducts an automatic test every threeseconds, ensuring it...s always ready to protect. If the device failsthe test, the indicator light flashes to signal that the GFCI shouldbe replaced. It also has our proven SafeLock Protection feature: ifcritical components are damaged and protection is lost, power tothe receptacle is disconnected. For Hospital Grade, refer to SF708R5.

Technical Information

Amperage
15 A
Applications
For Industrial, Healthcare, Education, Institutional, Retail, Office, Hospitality/Lodging and Multiple Dwelling
Conductor Size
14-10 AWG
Connection Type
Back Wire
Contact Material
0.03 in Brass
Dielectric Strength
1500 VAC
Grade
Specification
Material
Nylon Body/Face, Steel Strap
Mounting Type
Box
NEMA
5-15R
Number of Gangs
1
Number of Poles
2
Number of Wires
3
Outlet Type
GFCI,Indoor,Residential,Self-Test,Tamper-Resistant
Temperature Rating
-35 degrees C to 66 degrees C
Type
Self-Test, GFCI
Voltage
125.0 V

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
radiant

General Product Info

12-Digit UPC
785007127690
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
GTIN
00785007127690

Dimensions

Depth
1.03 in
Height
4.2 in
Warranty Length
1 yr
Width
1.73 in

Certifications & Compliance

Certifications
CULUS
Country of Origin
China
