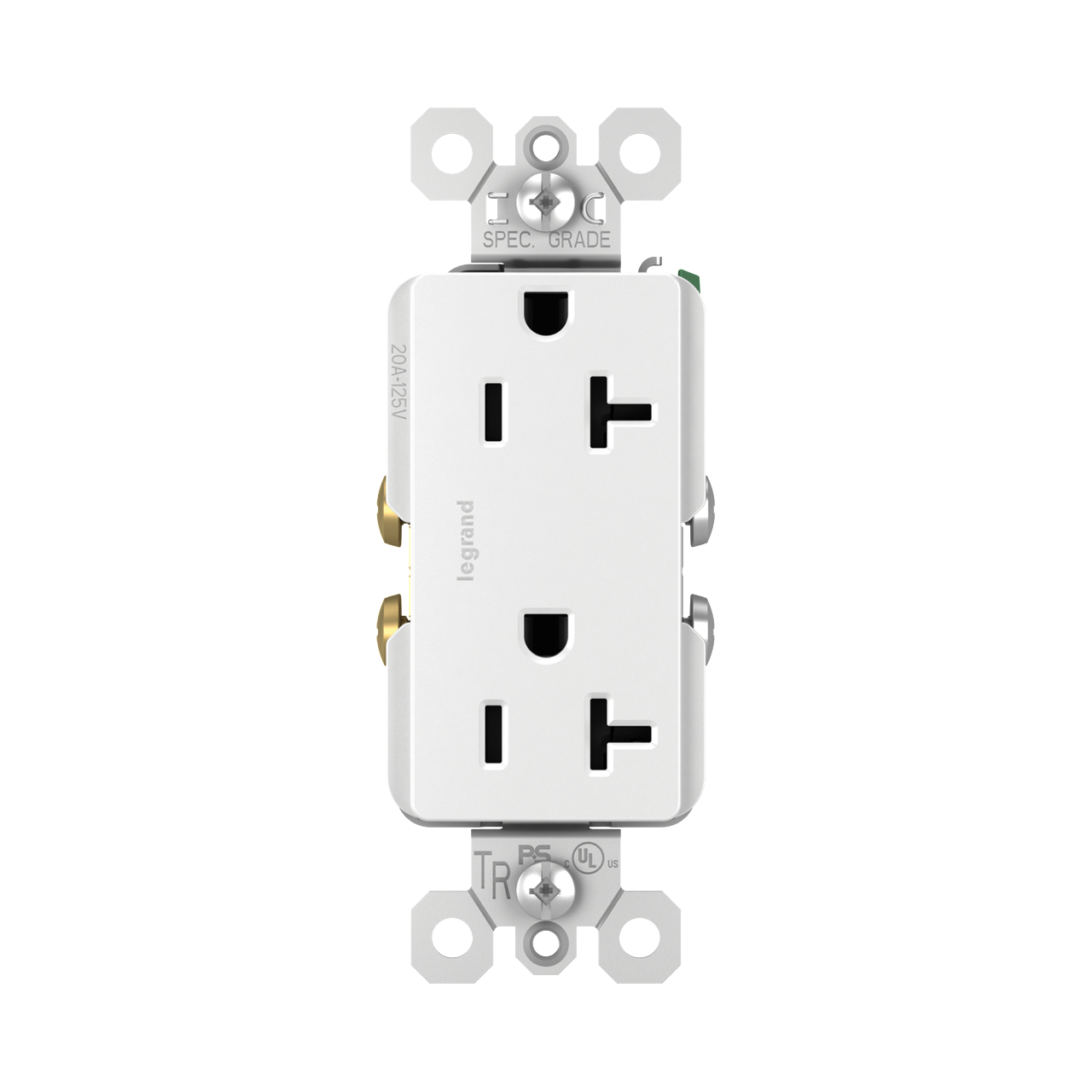

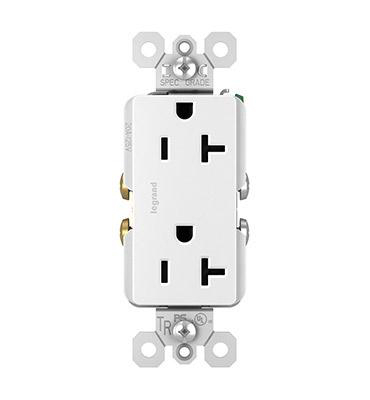

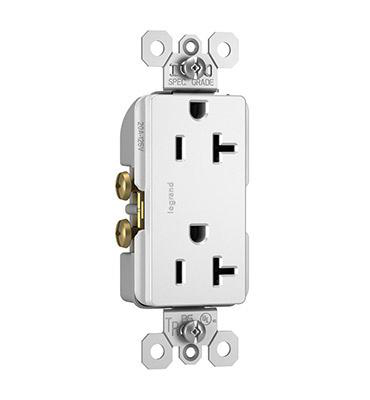

Receptacle duplex decorator back and side wire 125V 20A white

Manufacturer: Pass & Seymour | Legrand | Catalog # TR26352W | Electrozad South Part # 343157

*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 4 to 6 days
Tamper-Resistant heavy-duty decorator Spec grade receptacles, back and side wire, receptacle. Dual mechanical shutter system to help prevent insertion of foreign objects. Auto-ground clip assures positive ground. Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring. Backed-out tri-drive brass terminal screws for faster installation. Internal screw-pressure-plate back and side wire capability. Two back wire holes for additional wiring flexibility. Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly. 0.032 inch thick brass triple-wipe power contacts. Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.

Technical Information

Amperage
20 A
Applications
Commercial
Connection Type
Back and Side Wire
Grade
Specification
Indoor Outdoor
Indoor
Mounting Type
Flush
NEMA
5-20R
Number of Poles
2
Number of Wires
3
Operating Temperature
40 degrees F
Outlet Type
Straight Blade,Tamper-Resistant
Style
Decorator
Type
Tamper-Resistant, Decorator
Voltage
125.0 V
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007008456
Color
White
Finish
Gloss
GTIN
00785007008456

Dimensions

Depth
0.93 in
Height
3.28 in
Warranty Length
1 yr
Width
1.37 in

Certifications & Compliance

Certifications
CULUS
Country of Origin
Mexico
