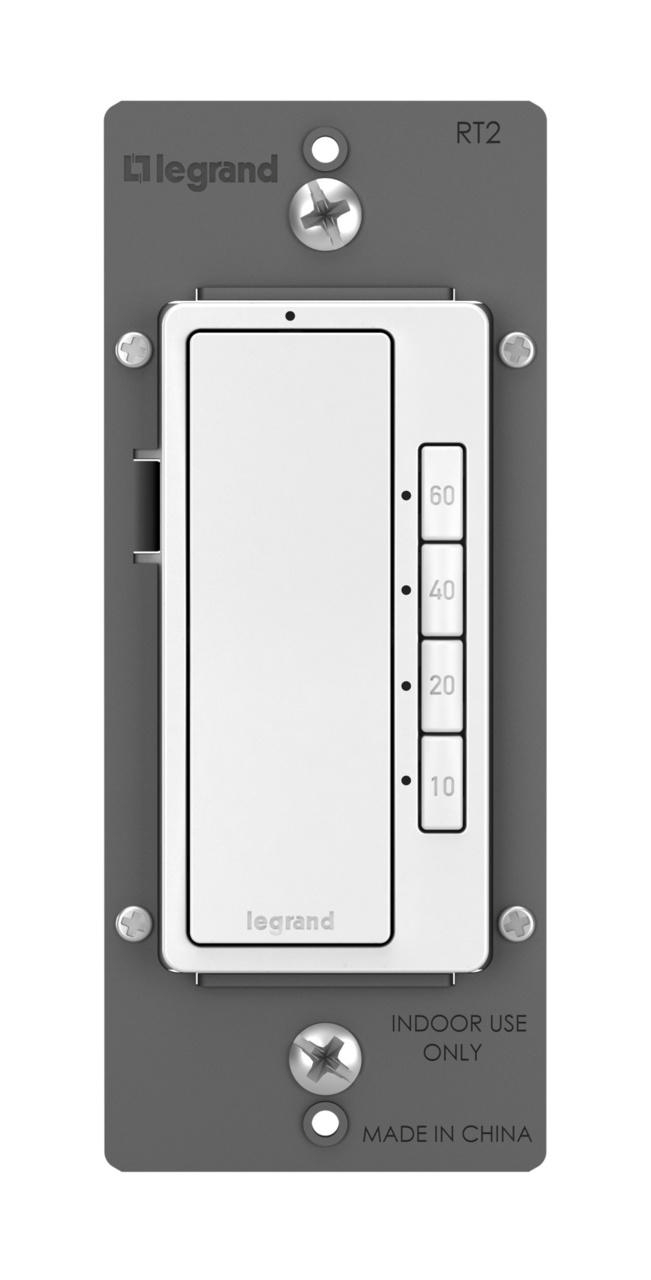

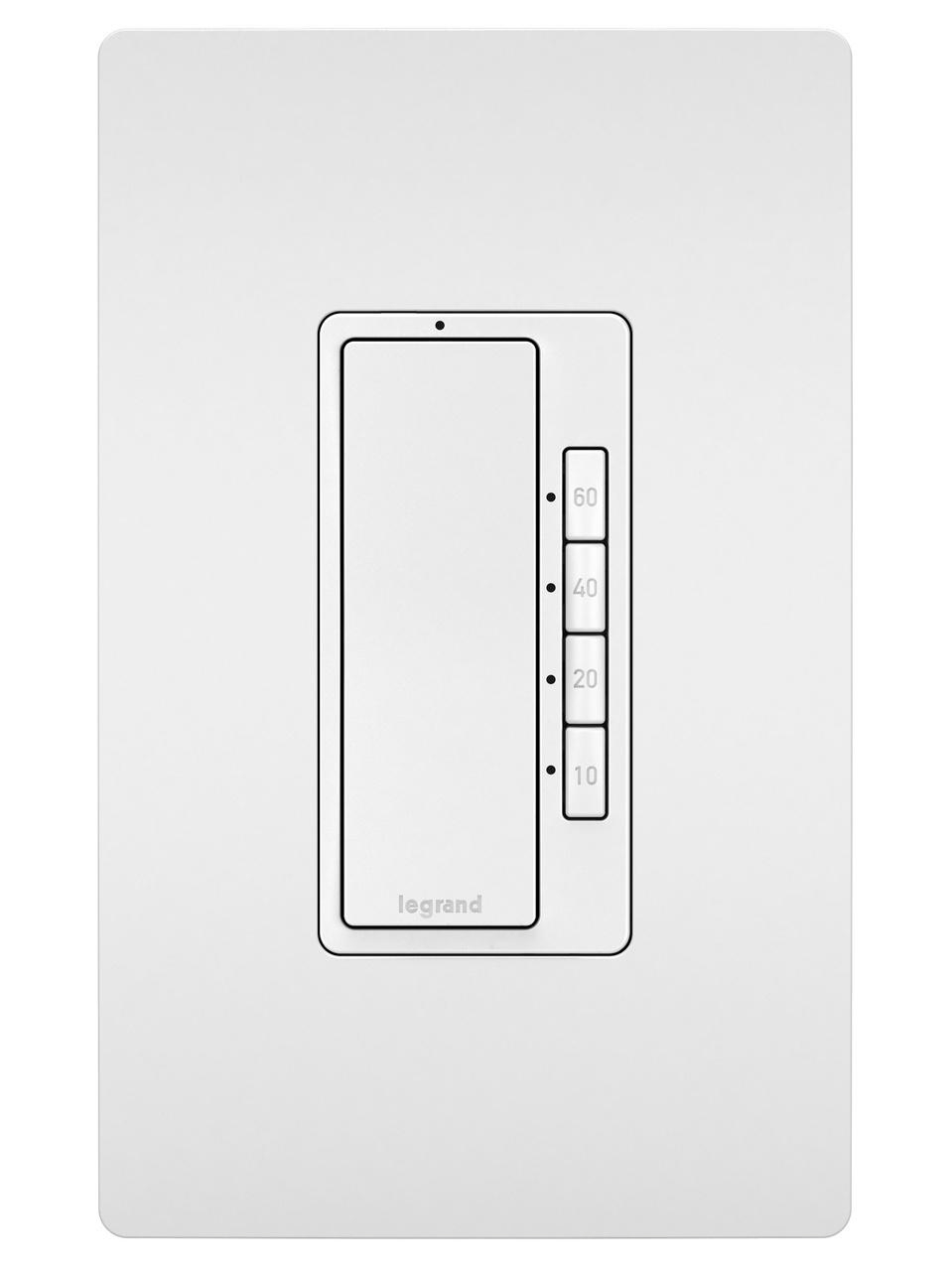

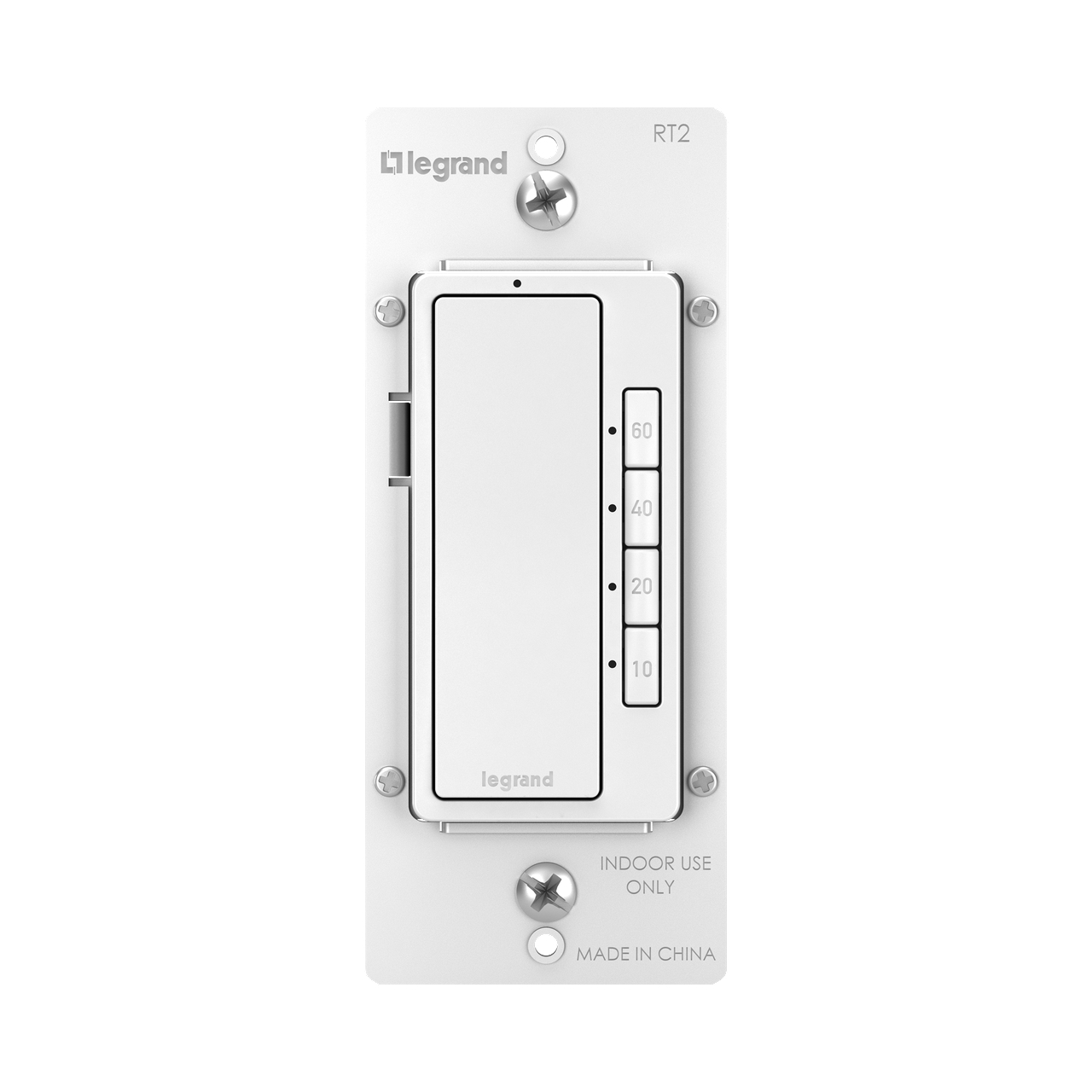

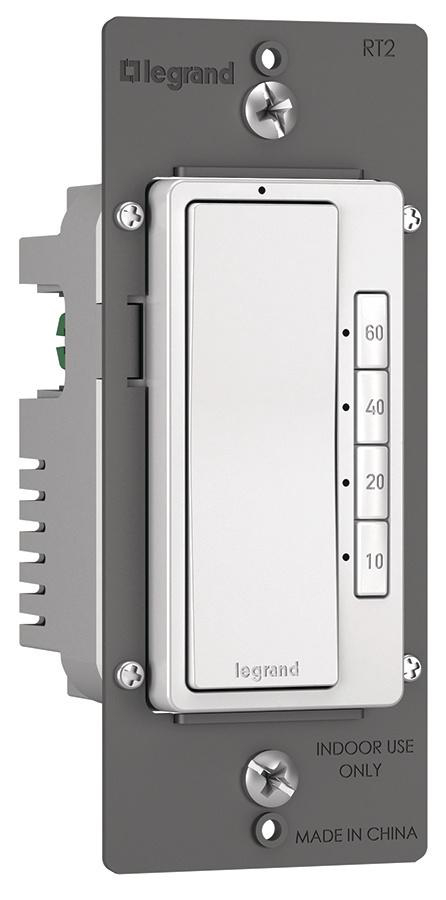

Timer switch 4-button 0-600W 120V AC 1/6 HP white

Manufacturer: Pass & Seymour | Legrand | Catalog # RT2W | Electrozad South Part # 343156
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 4 to 6 days
Specification Sheet Product Brochure Installation / Instruction Manual Manufacturer Warranty
The RT2 timer switch automatically turns OFF a connected light or fan when the user-selected time expires. Adjustable time delays can be set for 10, 20, 40 or 60 minutes, giving end users greater control over energy savings. One minute before each time delay transition, the active button LED will flash, providing the end user with a visual countdown. And now, as part of the radiant® collection, this timer switch offers a better fit, form and finish.

Technical Information

Action
Single Pole
Amperage
15 A
Applications
For Residential/Commercial use
Coil Voltage
120 V
Connection Type
Back Wire,Side Wire
Contact Rating
600 W
Indoor Outdoor
Indoor
Load Type
CFL,Fluorescent,Halogen,Incandescent,LED,Universal,Xenon
Material
Polycarbonate
Mounting Type
Wall Box
Number of Gangs
1
Number of Poles
1
Number of Switches
1
Operating Temperature
Between 0degrees C and 40degrees C
Size
1.88" Depth x 1.69" Width x 3.281" Height
Switch Type
Paddle
TC Connection
Back & Side Wired
Temperature Rating
0 degrees C to 40 degrees C
Type
1-Pole, 4-Button
Voltage
120 V
Wattage
600 W

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
The Radiant®

General Product Info

12-Digit UPC
785007034370
Color
White
Finish
Satin
GTIN
00785007034370

Dimensions

Depth
1.88 in
Height
3.281 in
Warranty Length
1 yr
Width
1.69 in

Certifications & Compliance

Country of Origin
China
