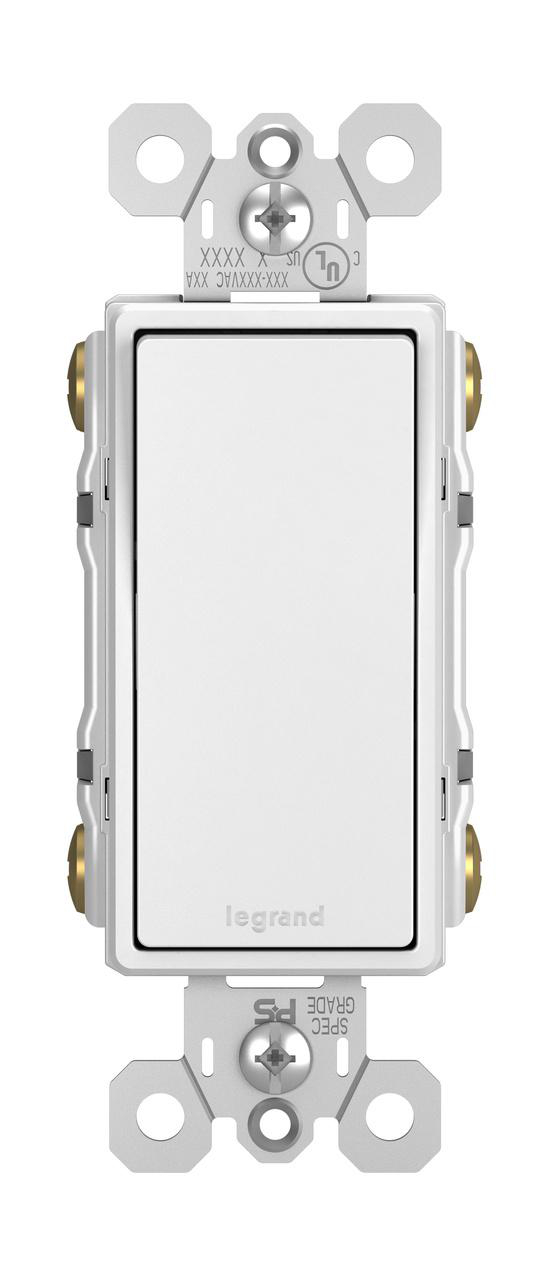

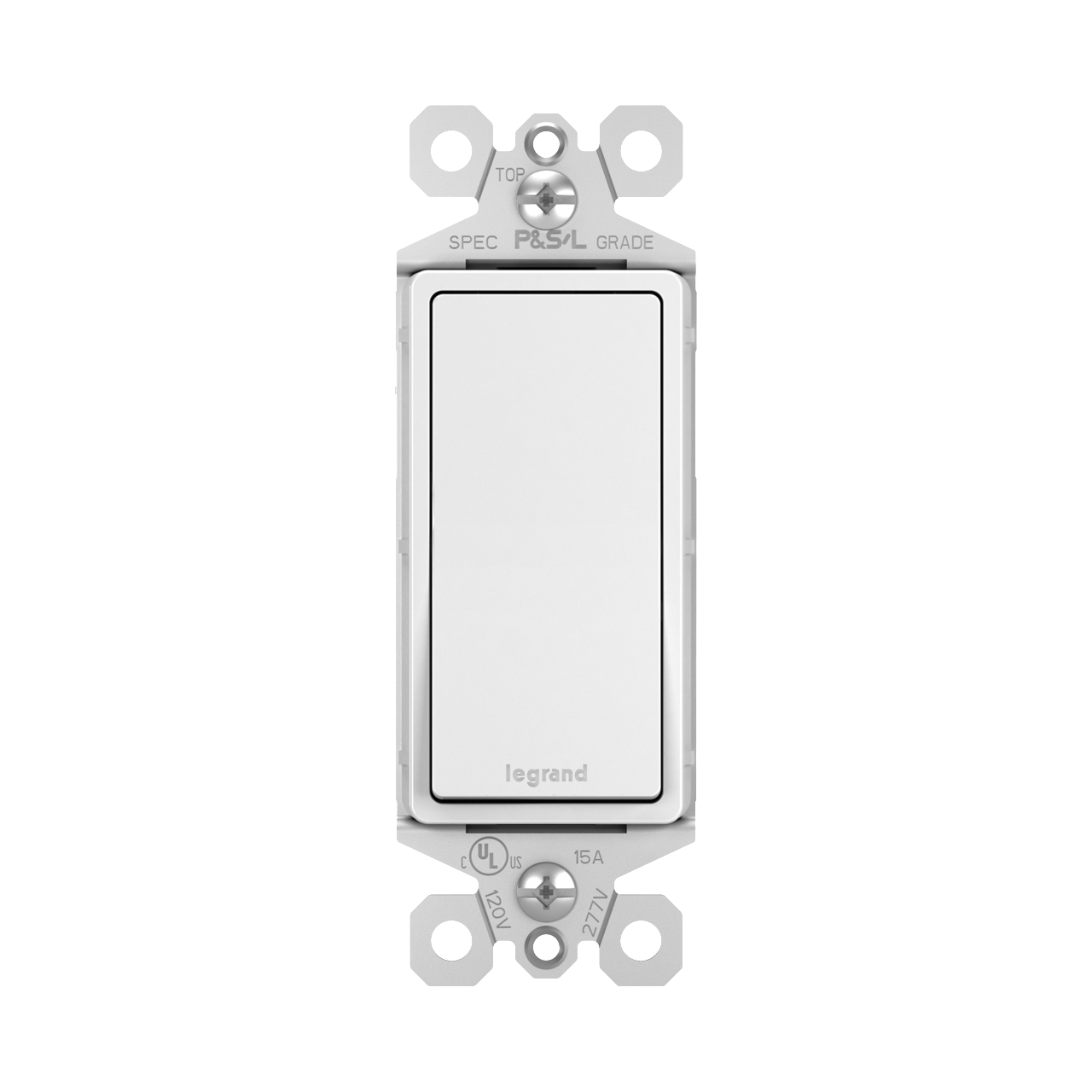

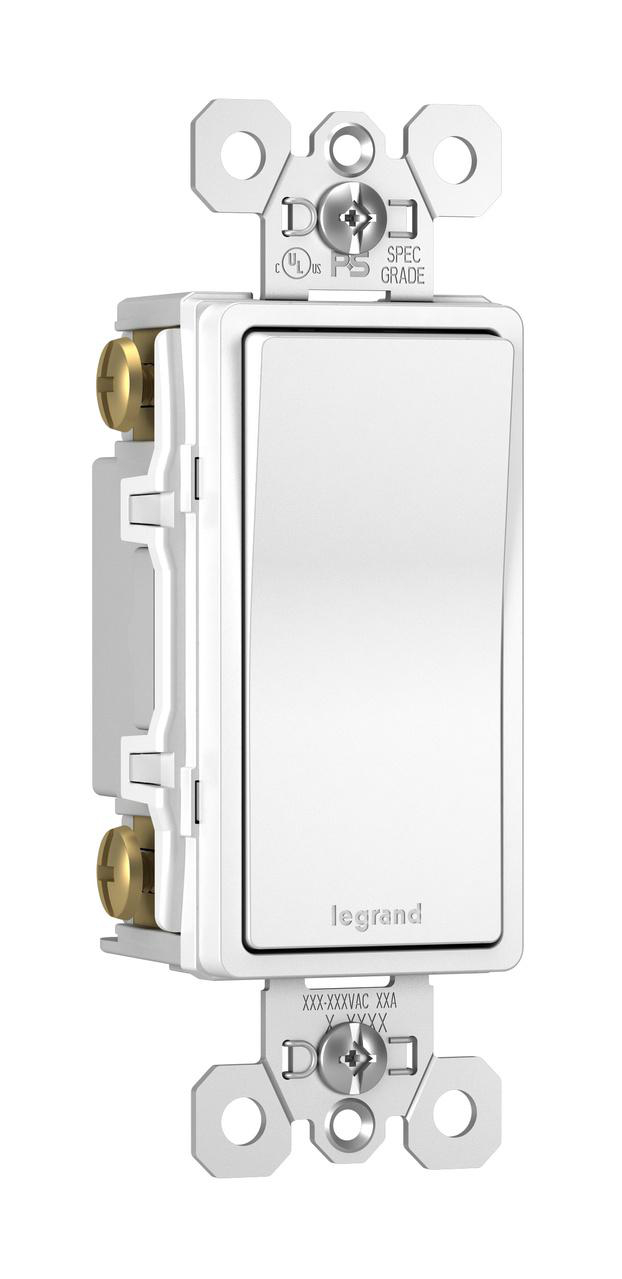

Switch decora grounded 4way 120/277V 15A white

Manufacturer: Pass & Seymour | Legrand | Catalog # TM874W | Electrozad South Part # 343155
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 4 to 6 days

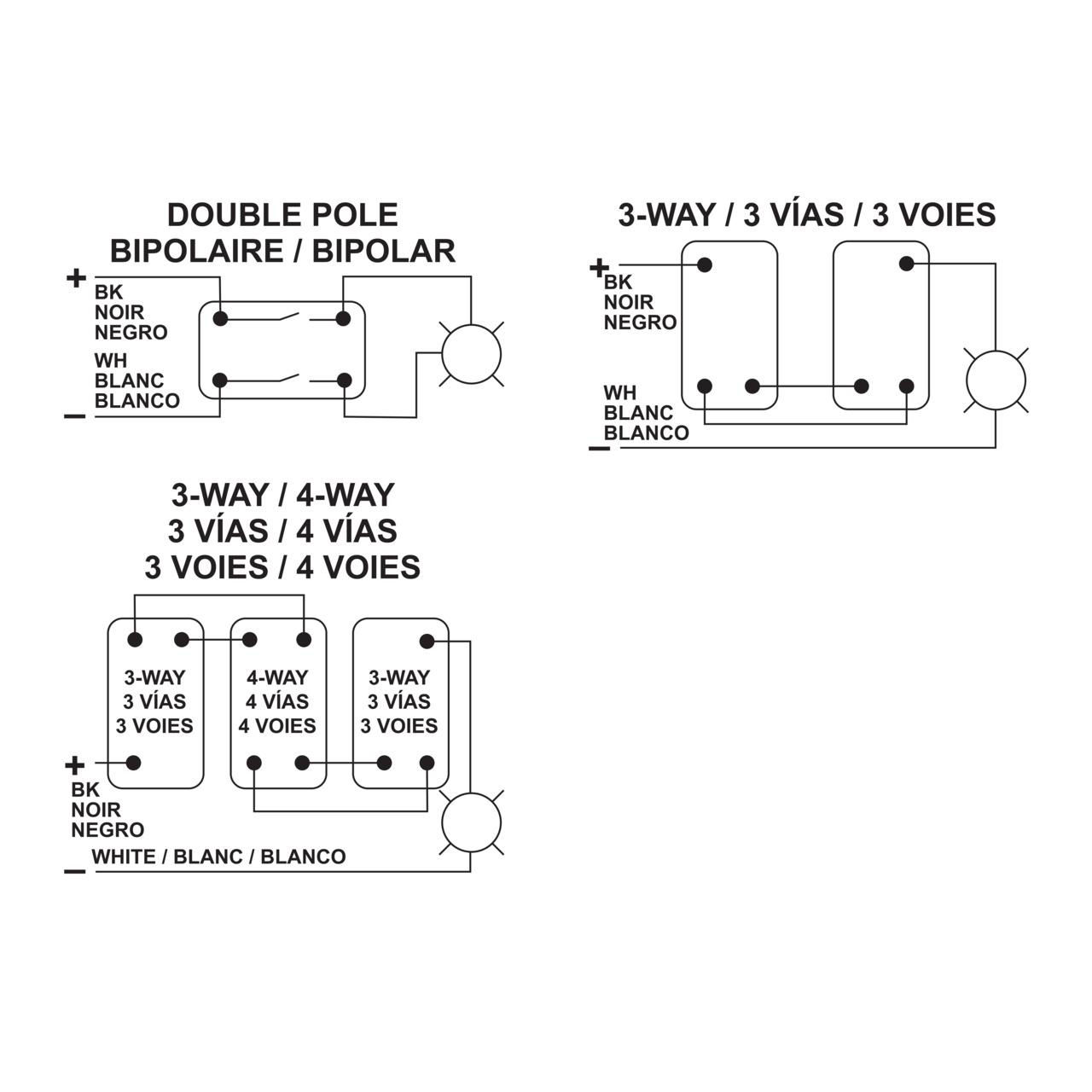

Specification Sheet Product Brochure Installation / Instruction Manual Wiring Diagram Manufacturer Warranty

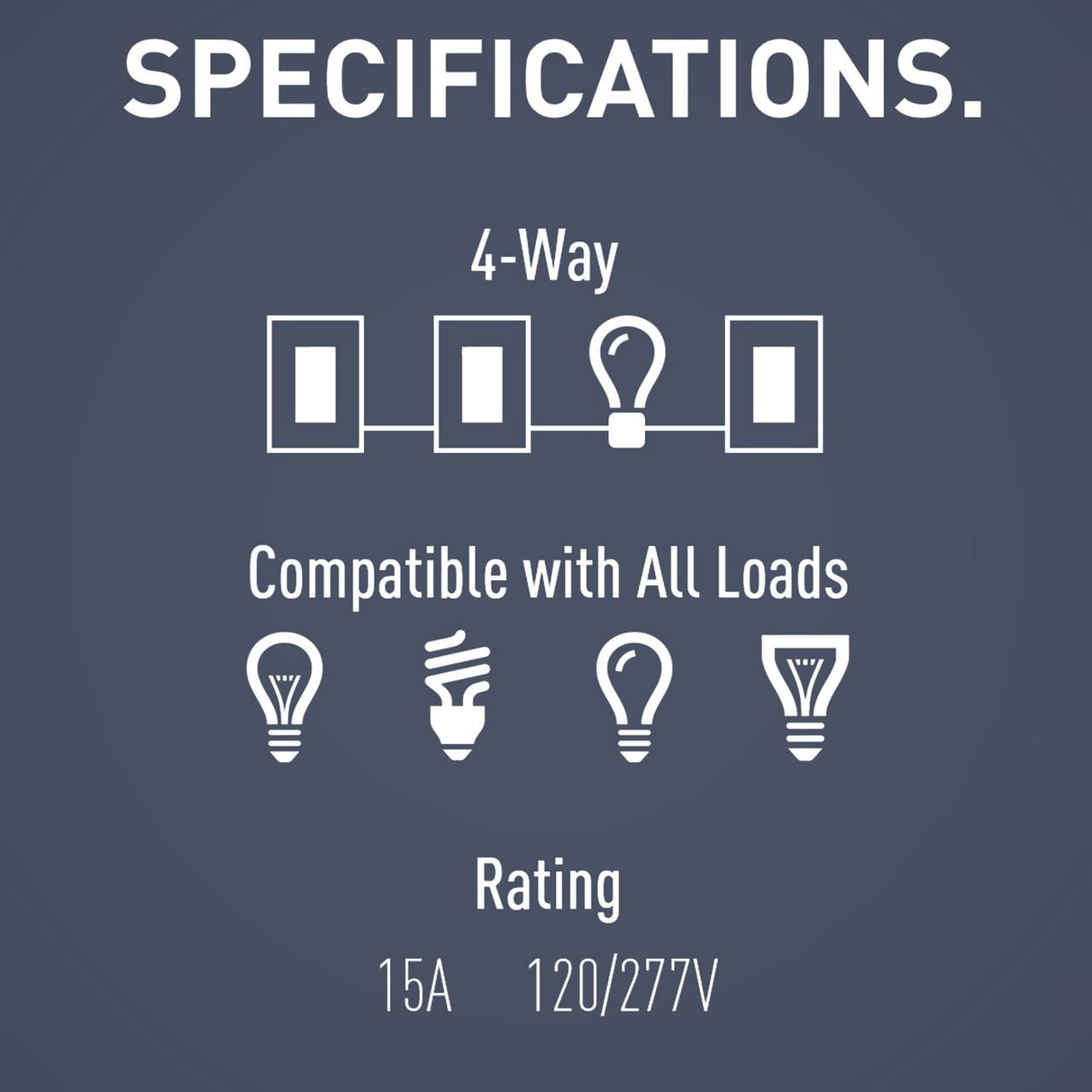

Decorator Switch, 4Way 15Amp 120/277V Grounding, Number Of Poles: 4-way, Special Features: Self-Grounding, Style: Decorator, Amps: 15 Amp, Volts: 120/277VAC, Depth (U S): 1.27 , Height U S: 4.19 , Width U S: 1.43

Technical Information

Actuator
Rocker/Button
Amperage
15 A
Applications
For Residential/Commercial use
Indoor Outdoor
Indoor
Load Type
CFL,Fluorescent,Halogen,Incandescent,LED,Universal,Xenon
Material
Thermoplastic
Mounting Type
Wall, Flush, Screw
Number of Gangs
1
Number of Poles
4
Number of Switches
1
Size
4.2 in
Switch Type
Paddle
Type
4 Gang, 4 Way
Voltage
120 V

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
The Radiant®

General Product Info

12-Digit UPC
785007844993
Color
White
Finish
Satin
GTIN
00785007844993

Dimensions

Depth
1.27 in
Height
4.19 in
Thickness
1.5 in
Warranty Length
1 yr
Width
1.43 in

Certifications & Compliance

Certifications
CULUS
Country of Origin
Mexico
