Terminal ring large cu mtlc 6/6AN 1/4in Sta-Kon

Manufacturer: ABB | Thomas & Betts | Catalog # E10711 | Electrozad South Part # 342522
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page Technical Drawing

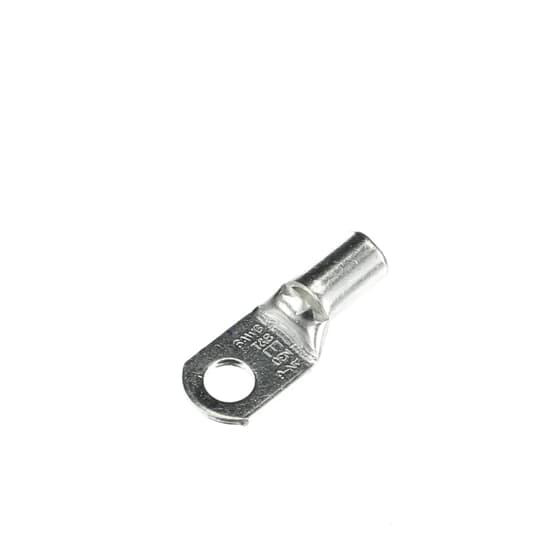

Sta-Kon® non-insulated large ring tubular terminal which is constructed of electrolytic copper for high conductivity. It can be installed with crimping tools having a single indentor or double indentor. Wire range identification on the tongue of each terminal.

Technical Information

Conductor Size
6 AWG
Insulation Type
Non-Insulated - Tubular
Material
Copper
Standard
UL E9809
Stud Size
1/4 in
Temperature Rating
150 degrees C
Type
Long Sleeve
Voltage
600 V
Wire Size
6 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210829616
Color
Metallic
Finish
Tin Plated
GTIN
05414363150367
Used With
Round Conductors
