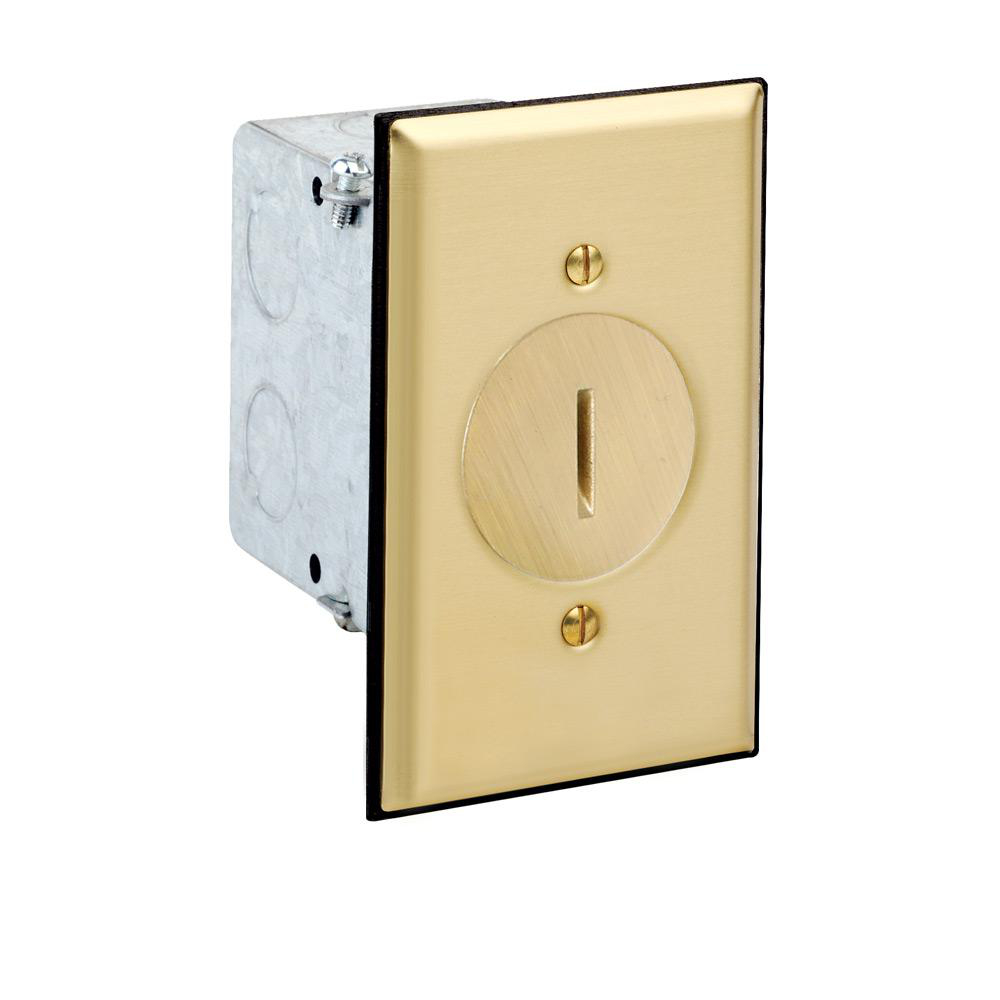

15 Amp 1-Gang Floor Box Receptacle/Outlet Assembly, Tamper-Resistant

Manufacturer: Leviton Manufacturing | Catalog # 5249-TFB | Electrozad South Part # 342078
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Installation / Instruction Manual MSDS | SDS Safety Sheet
1-Gang Floor Box Receptacle Assembly,15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Single Receptacle, Tamper-Resistant, Straight Blade, Brass Floorplate & Screw Cap, Back & Side Wired, Steel Strap - IVORY

Technical Information

Amperage
15 A
Applications
Residential / Commercial
Body Material
Nylon
Dielectric
2000 V
Enclosure
WD-6
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Horsepower
1/2 hp
NEMA
WD-1
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Standard
ANSI C-73,CSA C22.2 No 18.1-04,CSA C22.2 No. 42,UL 498,UL514A
Temperature Rise
150 %
Termination Type
Back Wire,Side Wire
Type
Floor Box Receptacle Assembly
Wire Count
3

Manufacturer Information

Brand
Leviton
Sub Brand
FLOOR BOXES and POKE THROUGHS

General Product Info

12-Digit UPC
078477410929
Color
Ivory
GTIN
00078477410929

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Certifications
NOM-ANCE,cCSAus
Country of Origin
Mexico
