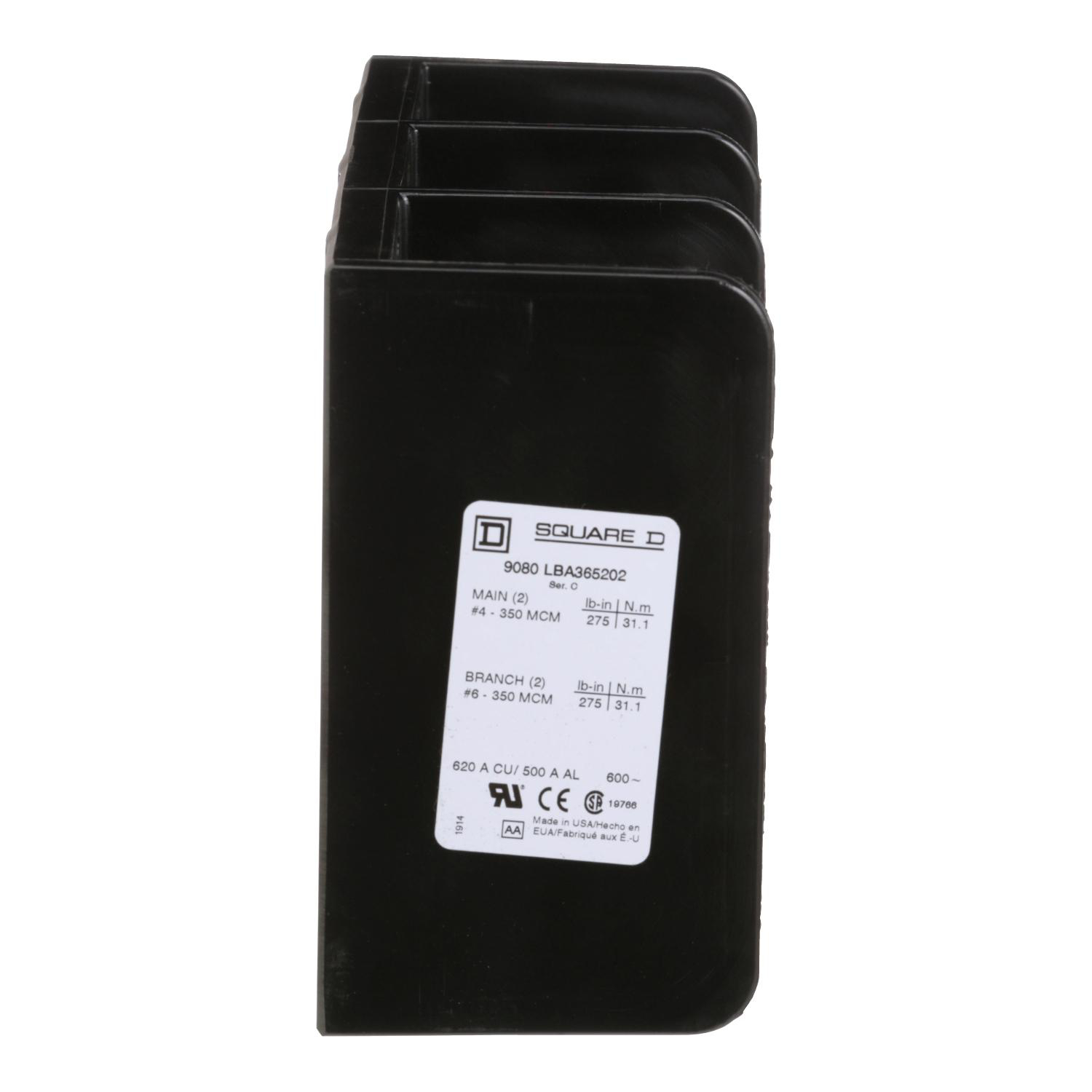

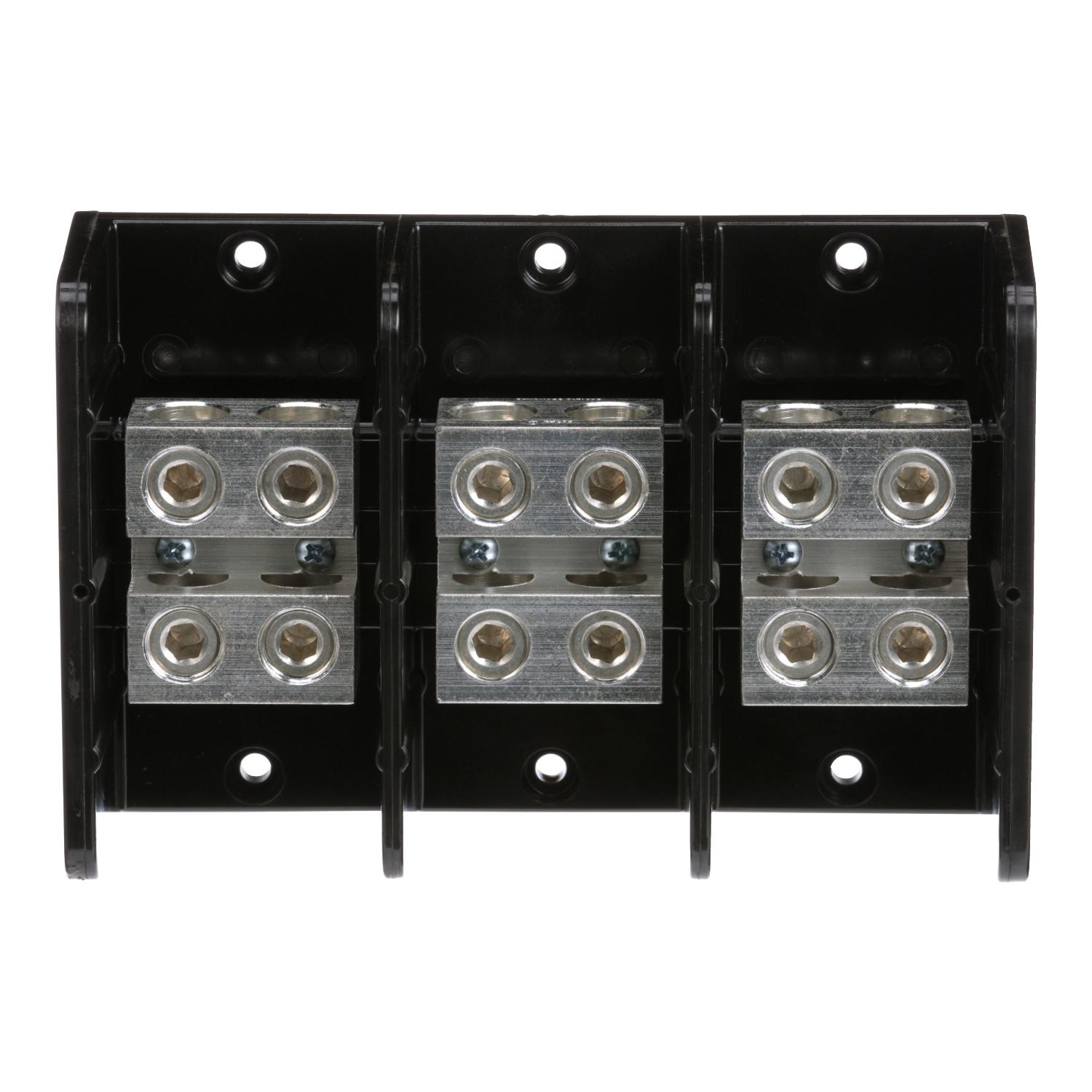

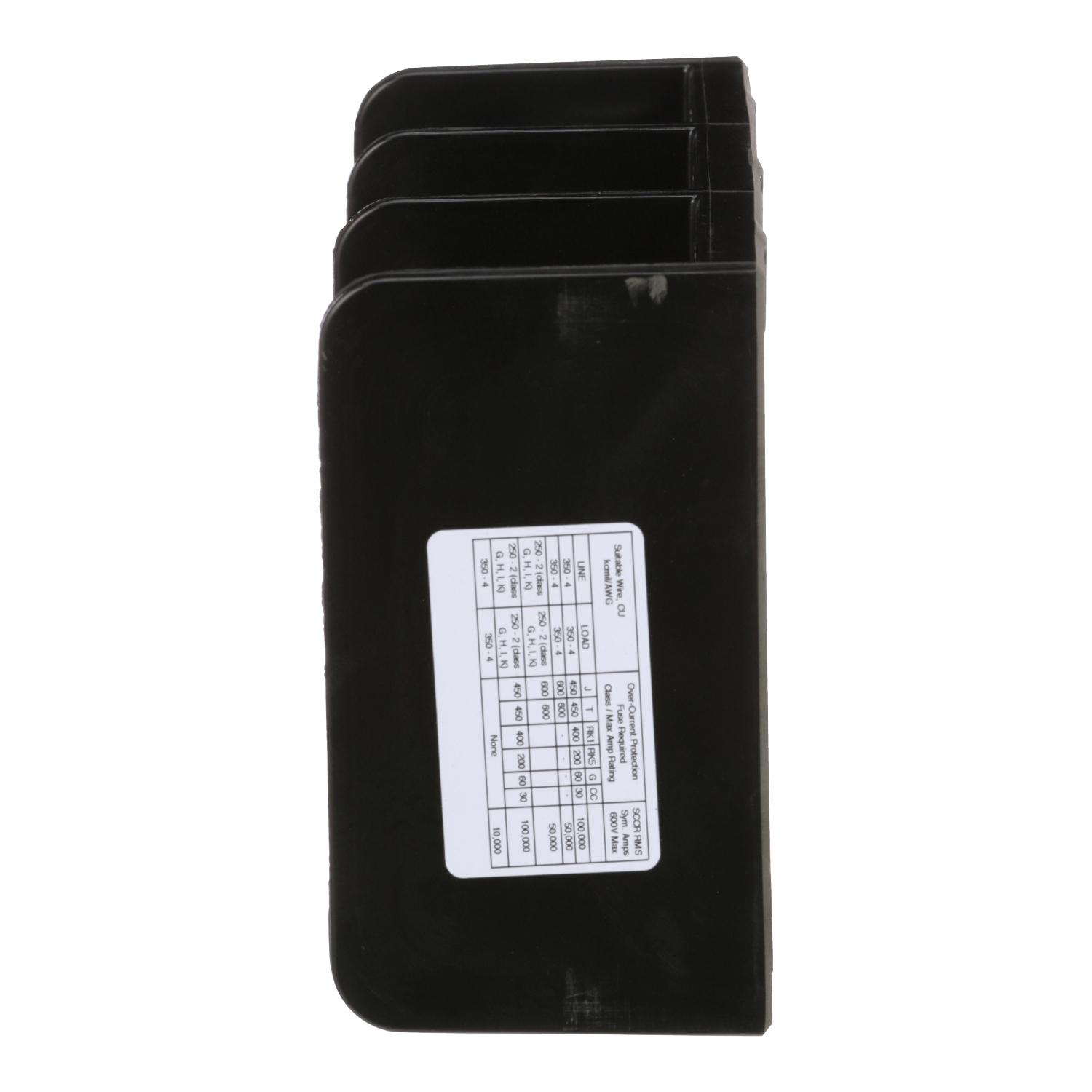

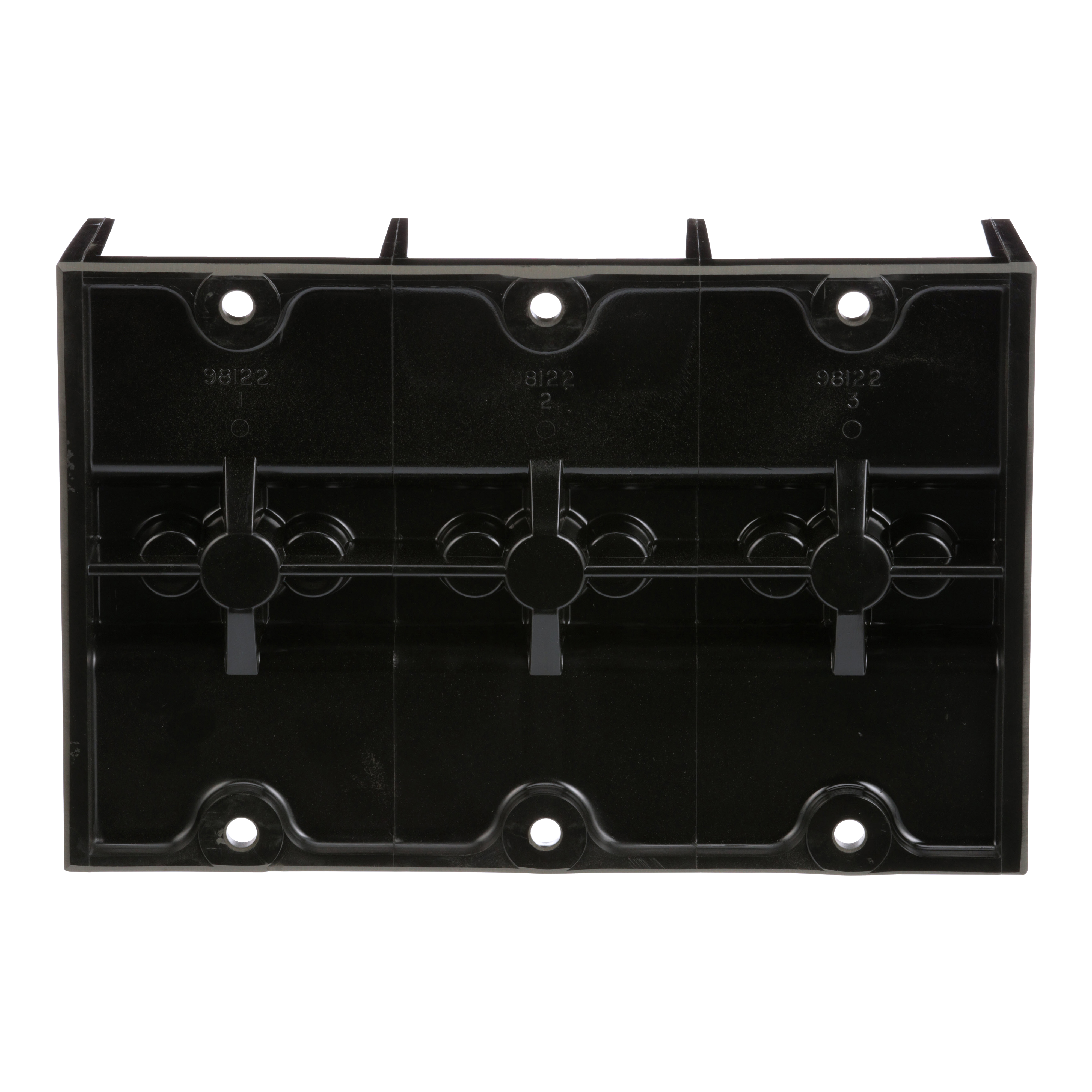

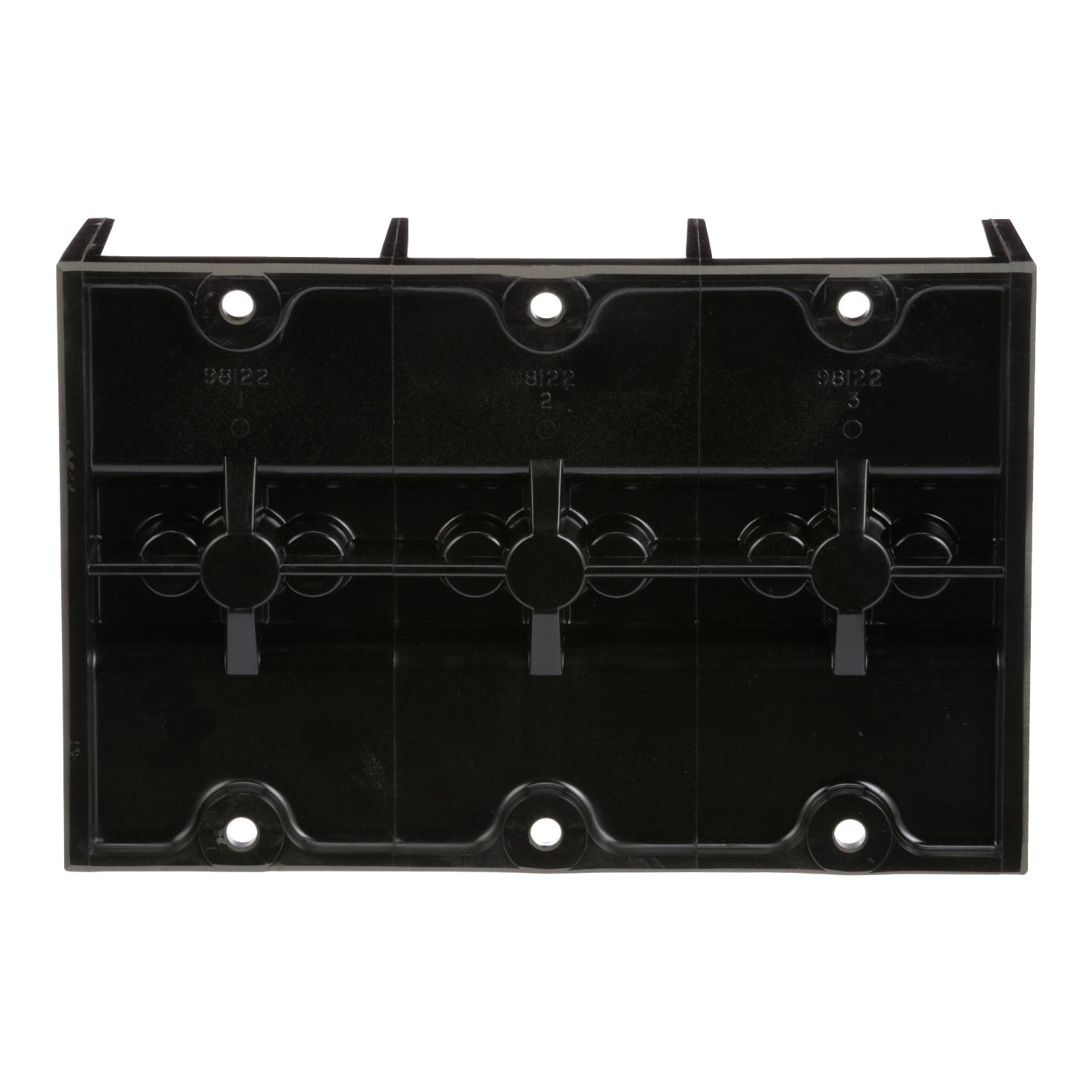

POWER DISTRIBUTION BLOCK, LINERGY, 3 POLE, 2 LINE, 2 LOAD, 620A CU, 500A AL, 600V

Manufacturer: Schneider | Square D | Catalog # 9080LBA365202 | Electrozad South Part # 340094
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Technical Drawing
Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has two lug openings on the line (main) side and two lug openings on the load (branch) side. The line side lug is rated to accept one 4 to 350 kcmil copper or aluminum wire. The load side lugs are rated to accept one 4 to 350 kcmil copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 620 amperes with copper wire and 500 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Technical Information

Applications
9080LB,9080LB53
Current
500 A
Line Rated Current
500-500 A
Material
Phenolic: Block
Mounting Type
Surface Mount
Net Weight
1.40 kg
Number of Poles
3
Number of Terminations
2
Operating Temperature
-40-302 degrees F
Size
3.13 in
Strip Length
1.06 in
TC Connection
LINE LUG 275 LBF.IN AWG 4...350 KCMIL COPPER OR ALUMINIUM-LOAD LUG 275 LBF.IN AWG 4...350 KCMIL COPPER OR ALUMINIUM,TIN PLATED ALUMINIUM LUGS
Type
Power Distribution Block
Voltage
600 V
Wire Size
Line 2, AWG 6...350 kcmil, copper or aluminium;Load 2, AWG 6...350 kcmil, copper or aluminium

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901097532
GTIN
00785901097532
Weight
1.40 kg

Dimensions

Depth
3.13 in
Height
5.5 in
Warranty Length
18 mth
Width
8.54 in

Certifications & Compliance

Certifications
CE,CSA File 70361 Class 6228 01,UL Recognized E60616 CCN XCFR2
Country of Origin
USA
