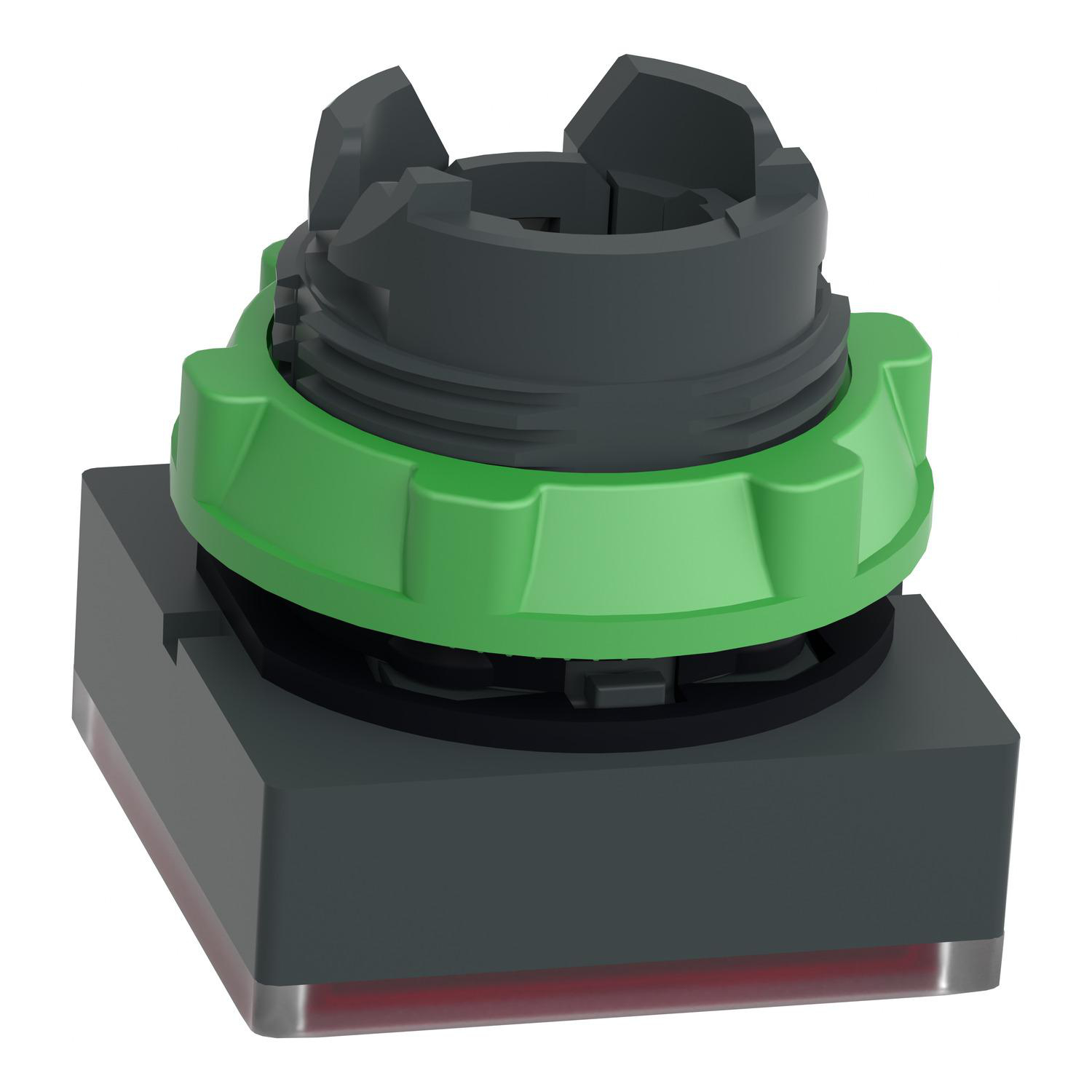

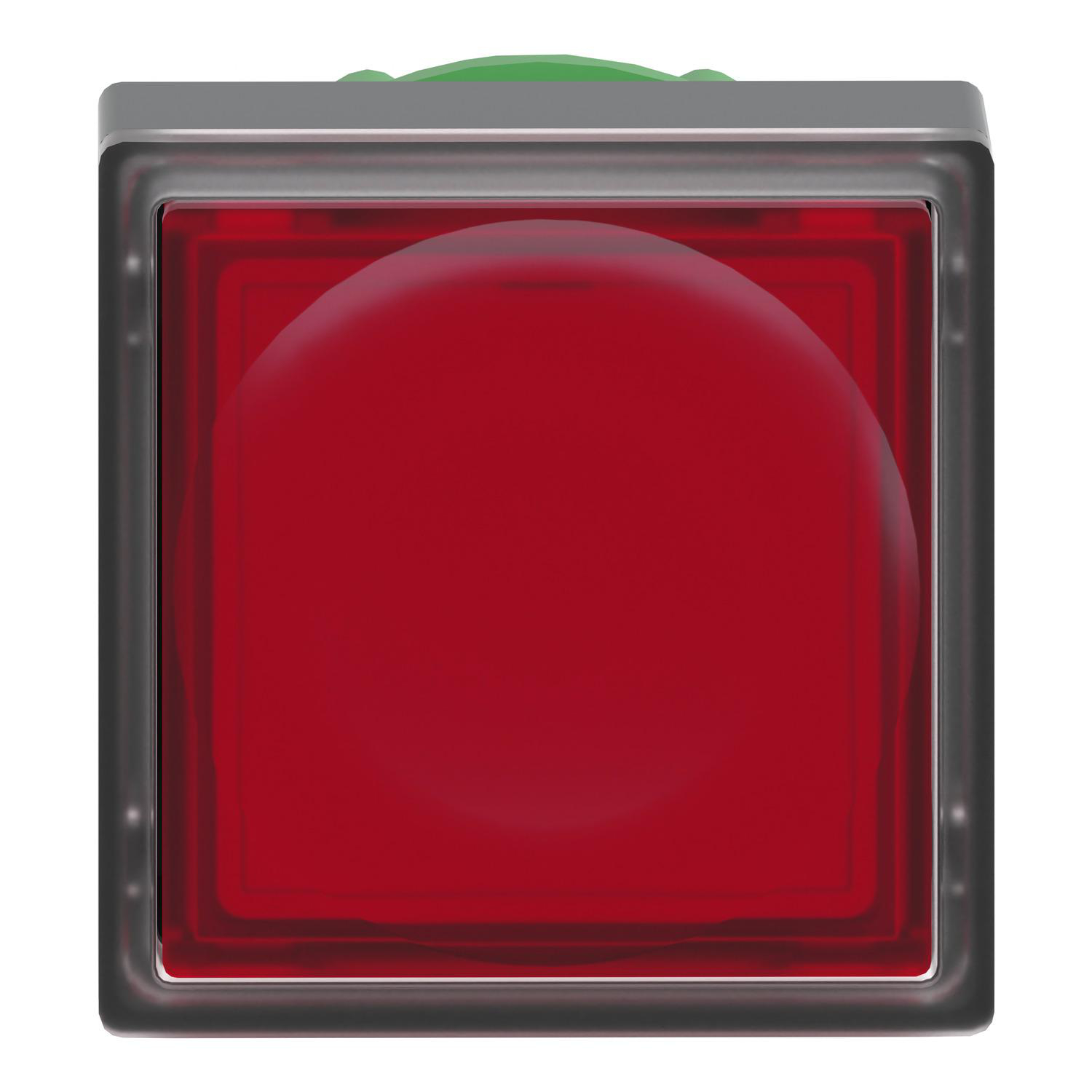

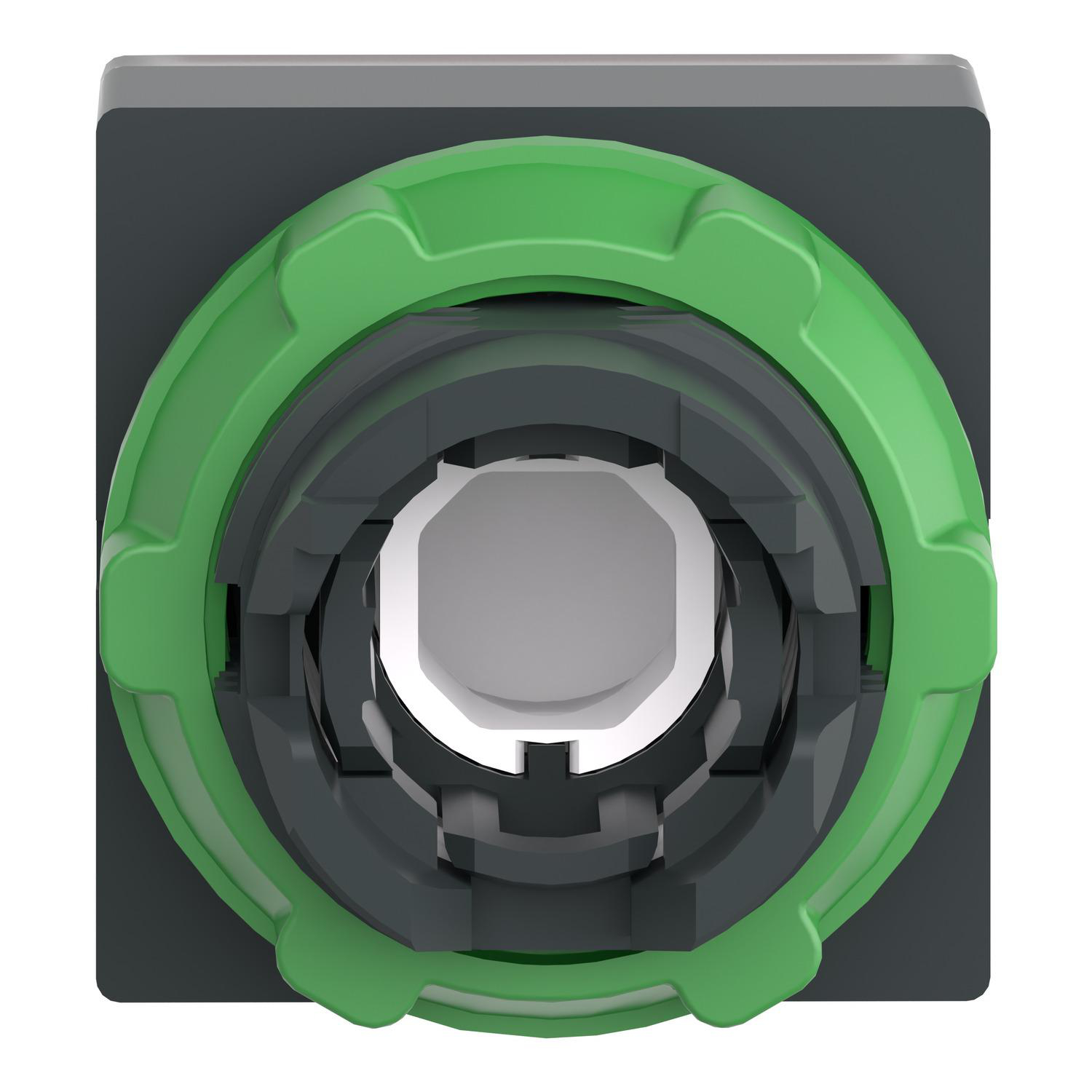

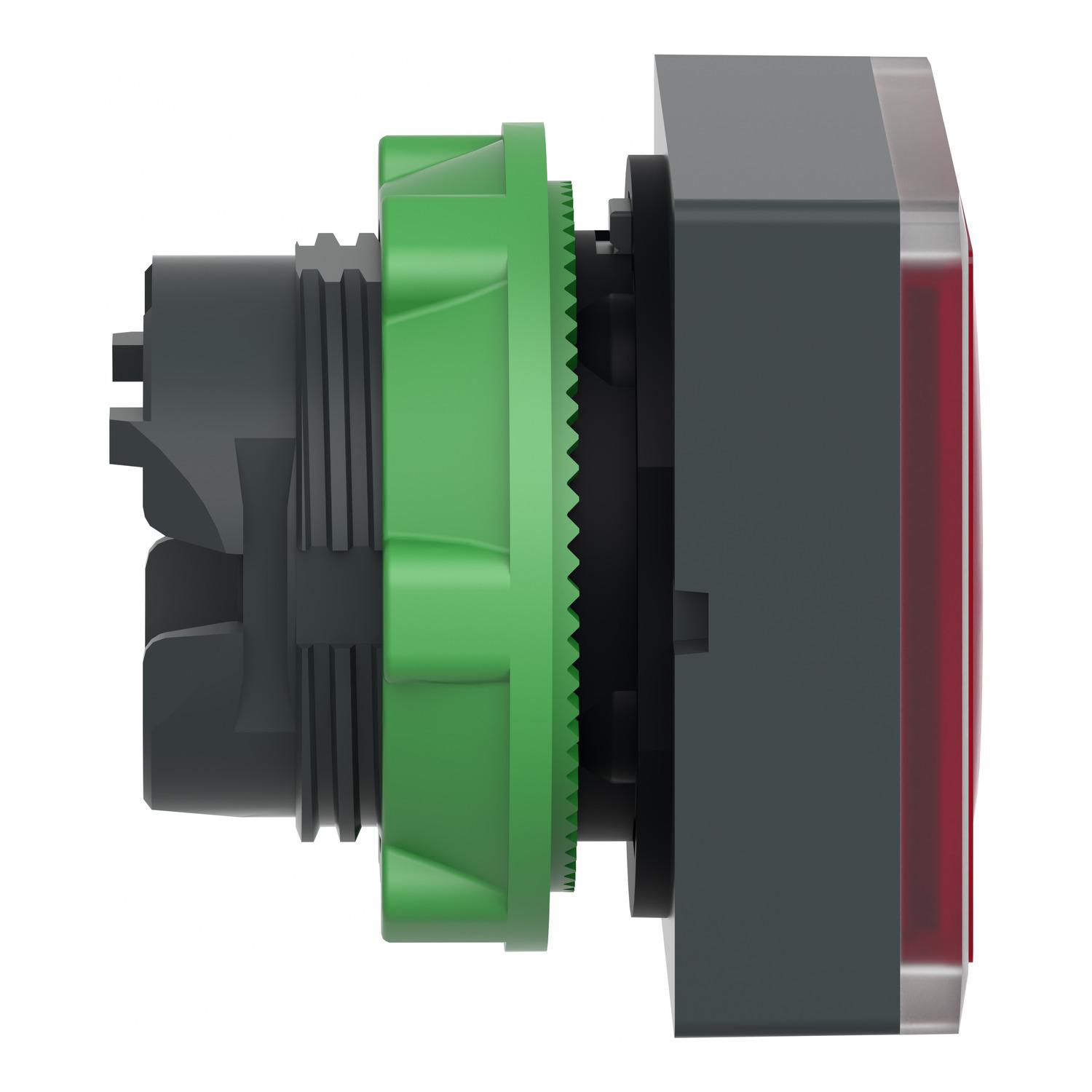

HEAD FOR ILLUMINATED PUSH BUTTON, HARMONY XB5, RED SQUARE SQUARE FLUSH 22MM, UNIVERSAL LED, FOR INSERTION OF LEGEND

Manufacturer: Schneider Kreuznach B & W | Catalog # ZB5CW343 | Electrozad South Part # 339585

*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
This red flush illuminated button head provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is very distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element. It minimizes errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

Technical Information

Action
SPRING RETURN
Actuator
RED FLUSH, UNMARKED,SPRING RETURN
Applications
Integral LED
Bezel Material
Plastic
Enclosure
NEMA 13-NEMA 4X
Head Type
Standard
Indicator
RED
Net Weight
0.023 kg
Operating Temperature
-40-70 Adegrees C
Size
0.87 in
Standard
CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,EN/IEC 60947-5-4,GB 14048.5,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
Type
Head for illuminated push-button

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZB5

General Product Info

12-Digit UPC
389110934840
Color
Red
GTIN
03389110934847
Weight
0.023 kg

Dimensions

Height
30 mm
Warranty Length
18 mth
Width
30 mm

Certifications & Compliance

Certifications
BV,CSA,DNV,GL,LROS (Lloyds Register Of Shipping),UL Listed
Country of Origin
France
