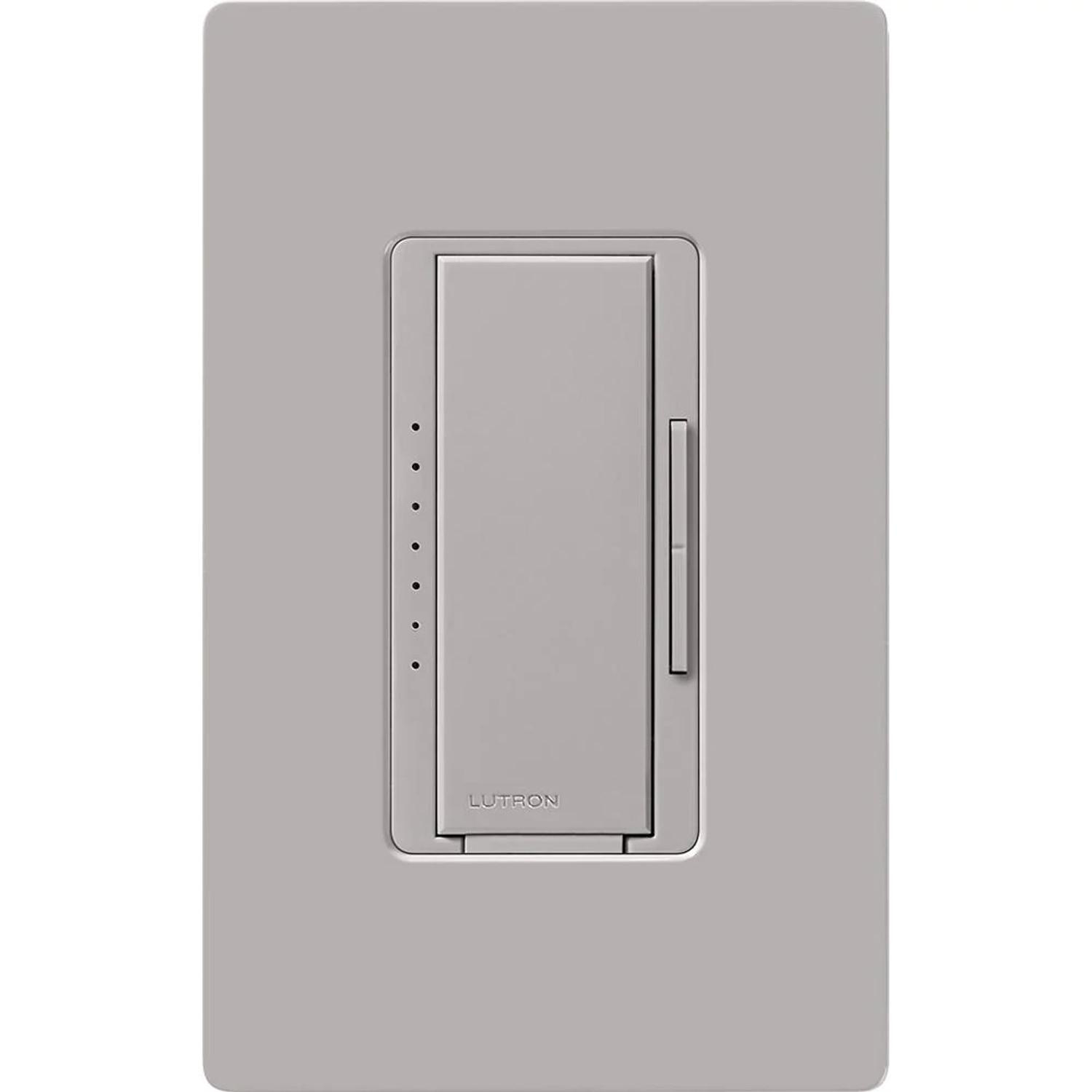

MAESTRO PRO LED DIMMER GR

Manufacturer: Lutron Dimmers | Catalog # MA-PRO-GR | Electrozad South Part # 338619

*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days

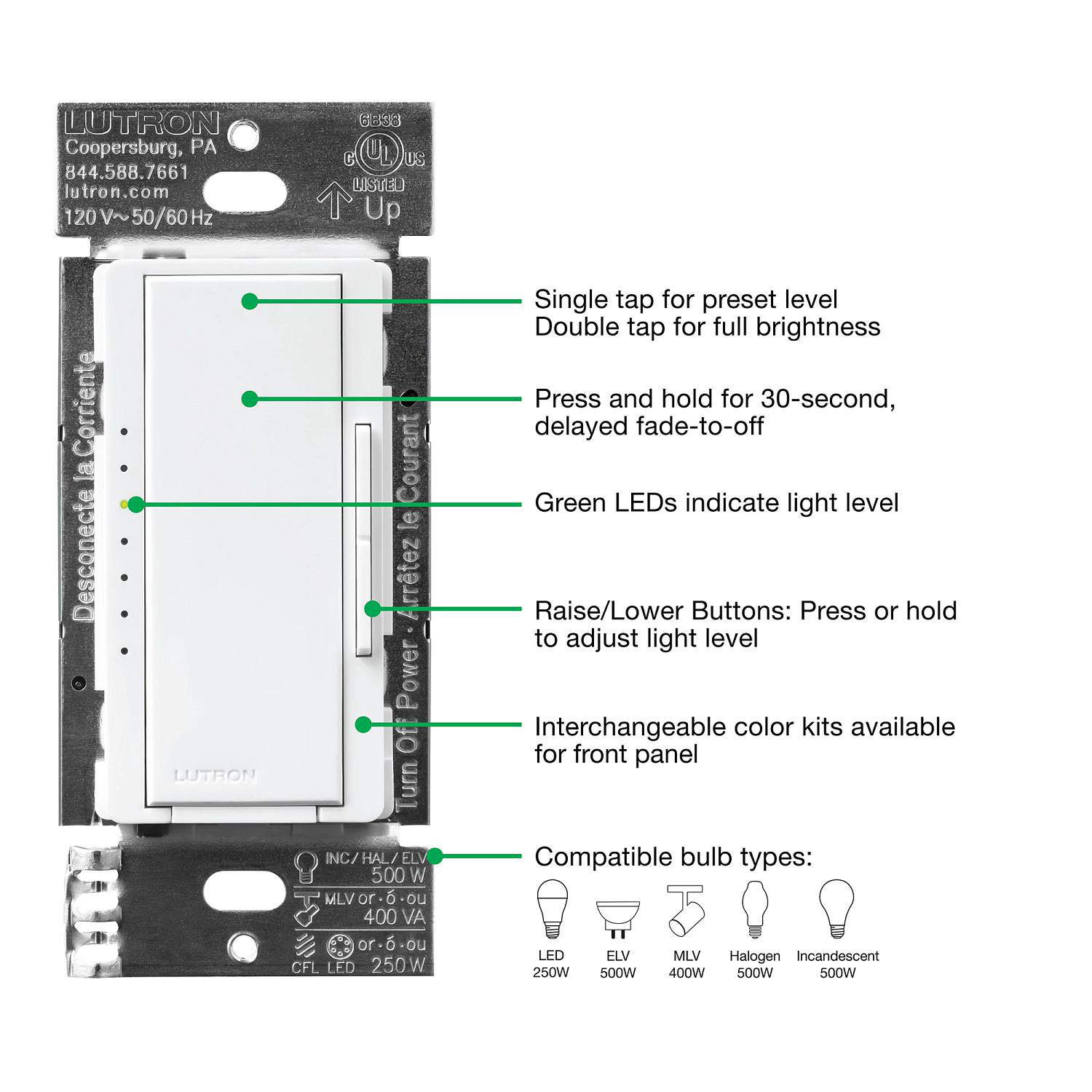

The Maestro PRO LED+ Neutral Optional Dimmer Switch features advanced phase selectable dimming, color change kits, and is designed for a broader compatibility range of high efficiency lighting. UL listed to control dimmable LEDs with integrated drivers, ELV, MLV, incandescent, and halogen loads as well as Phillips Mark 10® ballasts and Lutron Hi-Lume 1% 2-Wire (LTE) LED drivers. The large decorator style tap switch turns lights on/off and the dimming buttons allows for local fine-tune dimming. Works with up to 9 Maestro Companion Dimmer Switches (MA-R-xx) to create a multi-location dimming application. Neutral Optional. Screw terminal installation. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

Technical Information

Actuator
Tapswitch
Applications
For Lighting Control
Connection Type
Screw Terminal
Enclosure Material
Plastic
Frequency
50 Hz
Insulation Material
Plastic
Material
Metal/Plastic
Mounting Type
Wallbox
Number of Poles
1
Operating Temperature
0 - 40 degrees C
Power Rating
600 W
Size
75 in
TC Connection
Screw terminals
Type
Multi-Location, 3-Way, Tapswitch
Voltage
120 V
Wattage
600 W

Manufacturer Information

Brand
Lutron
Sub Brand
Maestro

General Product Info

12-Digit UPC
784276261586
Color
Gray
Environmental Conditions
0 - 90% Non-Condensing Relative Humidity
Finish
Gloss
GTIN
00784276261586

Certifications & Compliance

Country of Origin
Mexico
