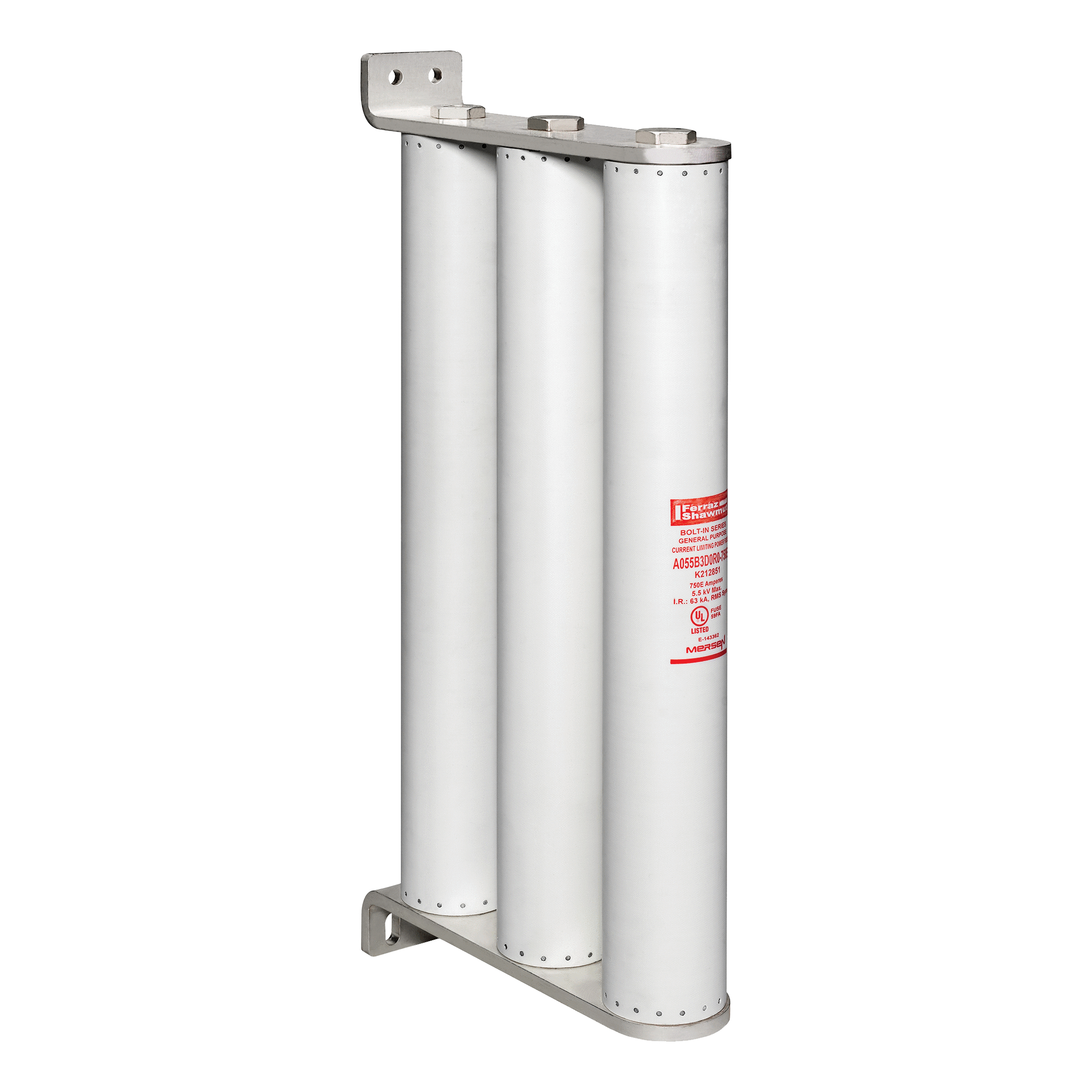

Medium Voltage E-Rated Fuse 5500VAC 750A Bolt-On, Series: D0R0 Visual Indicator Amp-Trap®

Manufacturer: Ferraz Shawmut Mersen | Catalog # A055B3D0R0-750E | Electrozad South Part # 338257
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet

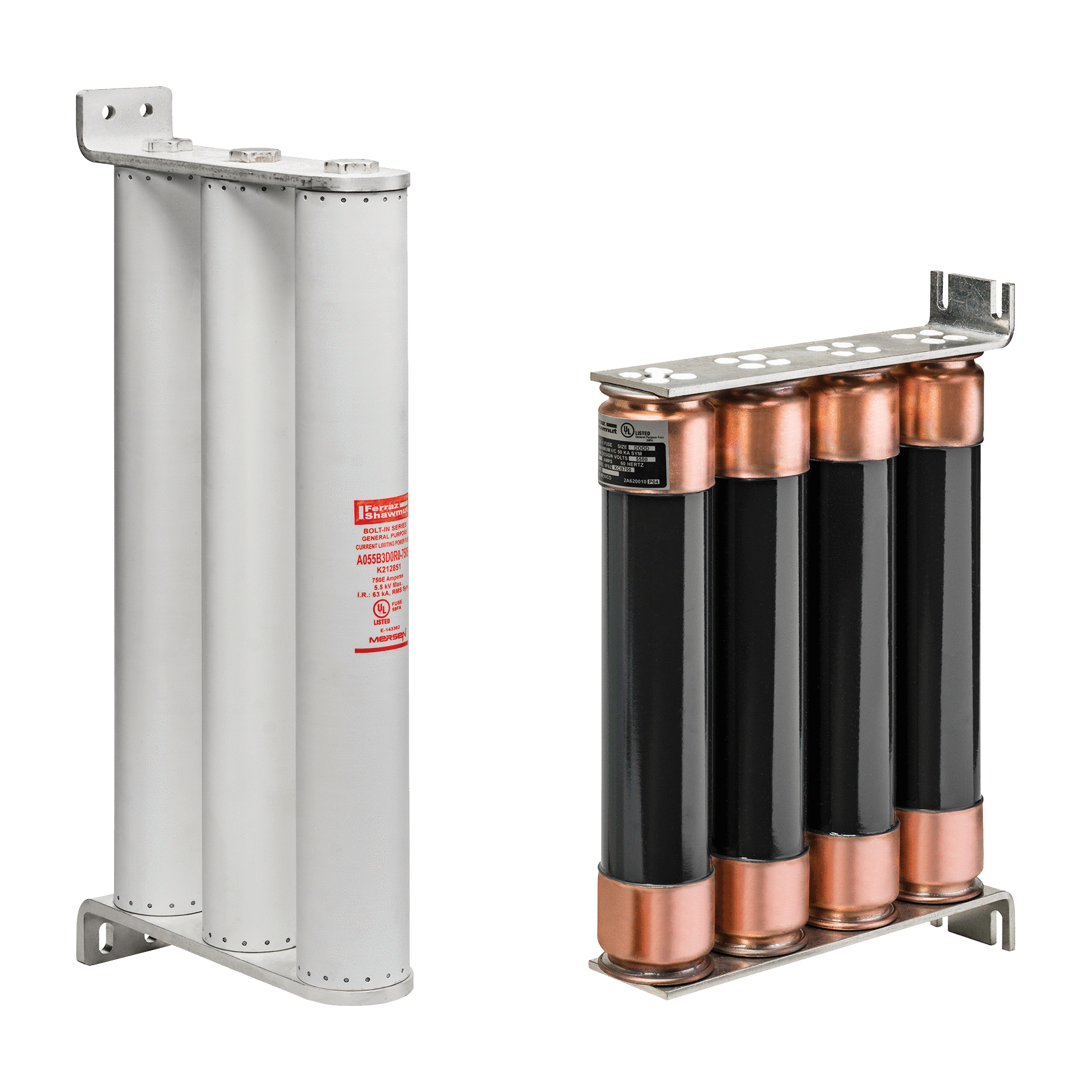

Mersen fuses for the protection of transformers and distribution lines deliver overload and short circuit protection. These current-limiting fuses will melt at current that can be as low as 1.7 times the fuse current ratings up to its maximum interrupting rating. These fuses are designed to withstand the transformer magnetizing inrush current. They are single, double, triple or quadruple barrels 3 inch diameter (size D) with end mounts designed for bolting directly to equipment bus or terminal pads.

Technical Information

Amperage
750 A
Applications
For 2.4 - 5.5 kV Transformers or Distribution Systems
Connection Type
Bolted
Frequency
50/60 Hz
Indicator
Visual Indicator
Insulation Material
PolyTube
Interrupt Rating
63 kA
Max Operating Temperature
80 degrees C
Mounting Type
Bolt-In
Rated Voltage AC
5500 V
TC Connection
Blade
Terminal Material
Silver-Plated Copper
Terminal Type
Blade
Type
General Purpose, E-Rated
Voltage
5500 V

Packaging

Package Qty
1

Manufacturer Information

Brand
Ferraz Shawmut
Sub Brand
Amp-Trap®

General Product Info

12-Digit UPC
782001804022
GTIN
10782001804029
Weight
44 lb

Dimensions

Height
11.62 in
Length
25.11 in
Width
3 in

Certifications & Compliance

Country of Origin
Mexico
