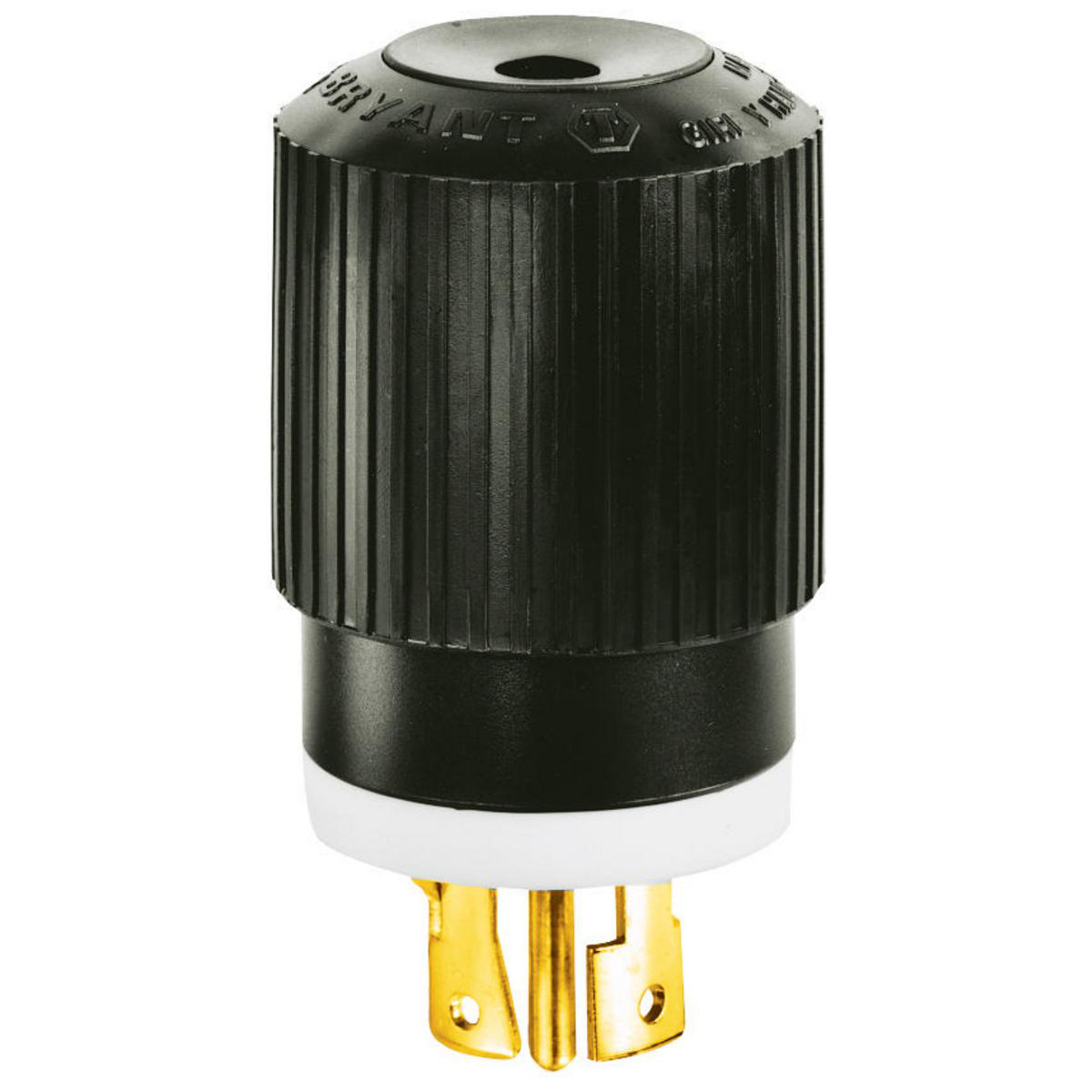

LKG PLUG, 30A 120/208V, L21-30P,B/W

Manufacturer: Bryant Wiring Device | Catalog # 72130NP | Electrozad South Part # 337687
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Locking Devices, Industrial, Male Plug, 30A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, L21-30P, Screw Terminal, Black and White.

Technical Information

Amperage
30 A
Applications
Extra Heavy Duty Industrial
Cord Type
All Listed Portables
Current
30 A
Material
Composite
NEMA
L21-30P
Number of Phases
3
Number of Poles
4,4
Number of Wires
5,5
Size
Standard Sized
Style
Internal Cord Clamp
TC Connection
Screw Terminal
Type
Tripple Gripper Cord Grip
Voltage
120/208 V
Wattage
6240 W
Wire Size
18-8 AWG

Manufacturer Information

Brand
Hubbell
Sub Brand
Bryant

General Product Info

12-Digit UPC
781786701526
Color
Black,White
GTIN
00781786701526
Product UPC
78178670152

Dimensions

Height
2.86 in
Length
2.13 in
Width
2.13 in

Certifications & Compliance

Country of Origin
USA
Overview
  • Neutral blade is nickel-plated for easy identification
  • Captive, combination Slot/Phillips assembly screws
  • Configuration-specific plug face surrounds blades to prevent infiltration of contaminants
  • Hand grip features wide-rib, non-slip design
  • Internal self-centering Triple Gripper® cord grip with radius teeth design provides secure cord retention
  • Double wall construction for extra durability
