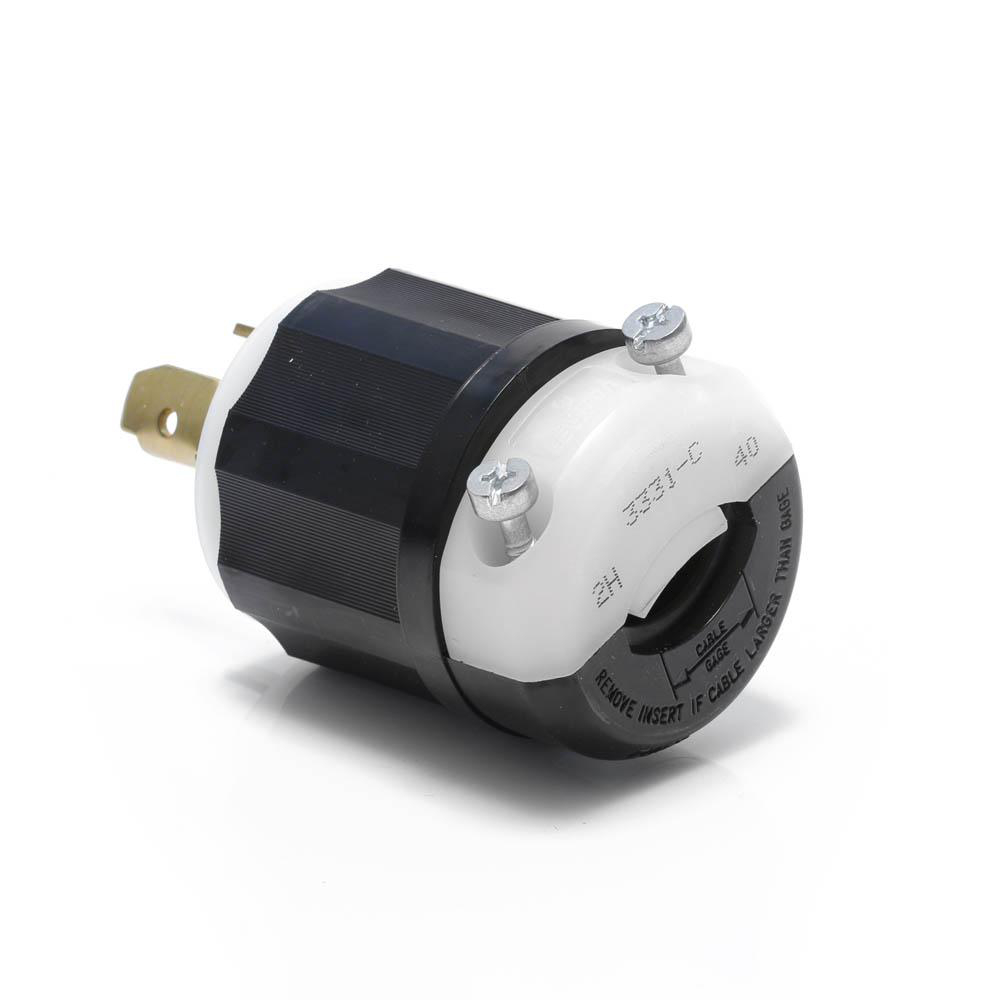

Plug locking 3P 3W 125/250V 30AMP black/white

Manufacturer: Leviton Manufacturing | Catalog # 3331-C | Electrozad South Part # 336776
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet
Leviton's industrial grade locking devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of locking devices of unmatched flexibility and dependability.

Technical Information

Amperage
30 A
Applications
For Industrial use
Blade Type
Solid Brass
Body Material
Impact Modified Nylon
Conductor Size
18-10 AWG
Contact Material
Solid Brass
Dielectric
2000 V
Flamability Class
Rated HB Or Better UL94
Grounding
Non-Grounding
Material
Super Tough Nylon
Mounting Type
Cable
NEMA
WD-6
Number of Poles
3
Number of Wires
3
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Brass
Screw Type
Steel,Zinc-Plated
Size
28 Dia x 2.47 H IN
Standard
ANSI C-73
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Terminal Size
18-10 AWG
Torque
10 lb-in
Type
Locking Plug
Voltage
125/250 V
Wire Count
3
Wire Size
16 - 8 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Black & White

General Product Info

12-Digit UPC
078477816820
Color
Black,White
Environment
Dry
Environmental Conditions
Operating Temperature Range (-40 to 60) °C
GTIN
00078477816820

Dimensions

Warranty Length
Lifetime Limited

Certifications & Compliance

Country of Origin
Mexico
