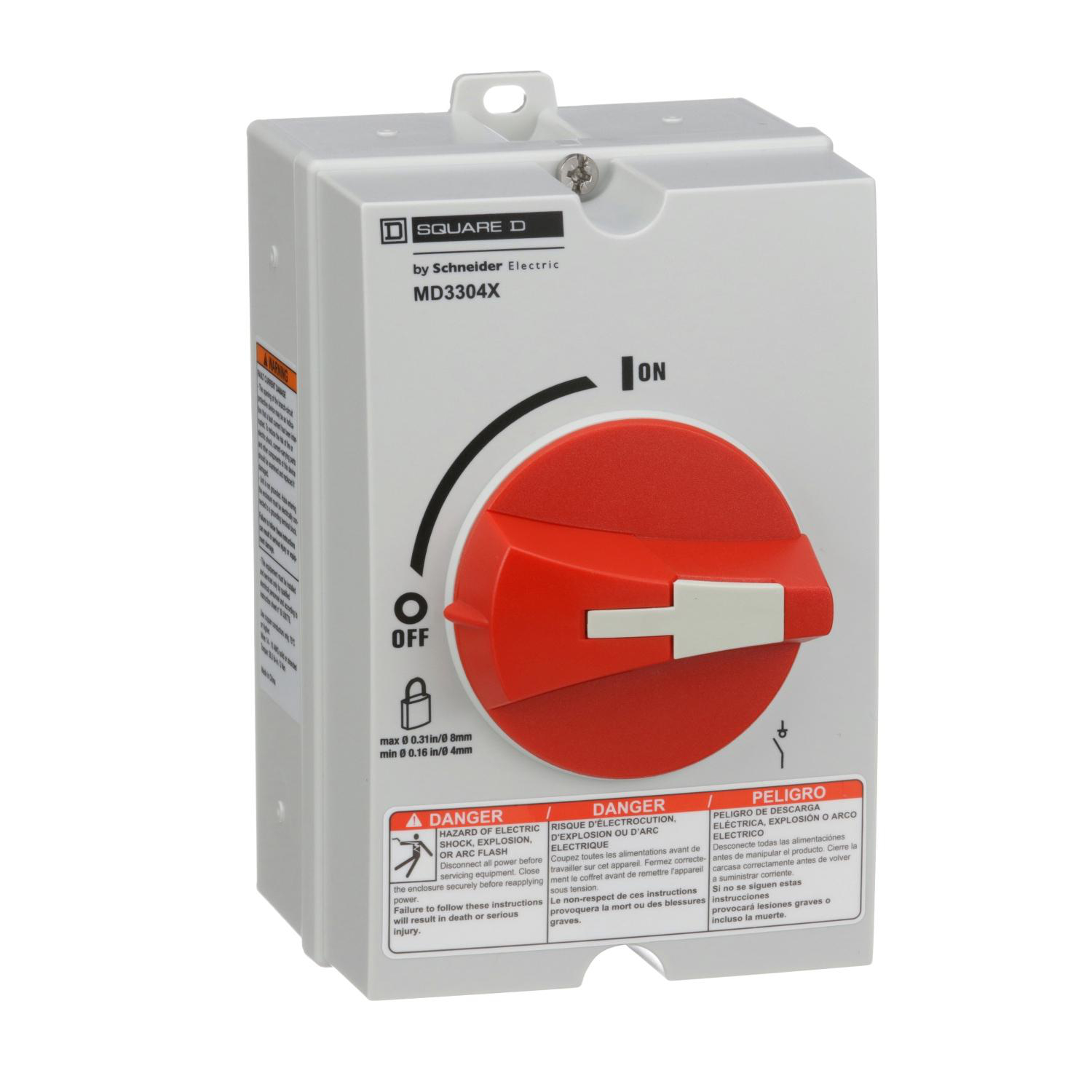

MOTOR DISCONNECT SWITCH, 3P, 30A, NEMA 1, 3, 3R, 4, 4X AND 12 ENCLOSURE

Manufacturer: Schneider | Square D | Catalog # MD3304X | Electrozad South Part # 336275
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Installation / Instruction Manual Technical Drawing
The MD enclosed motor disconnect switch is a listed UL508 switch suitable for use as a motor disconnect. This switch serves as a local on/off switch for a motor when the motor branch circuit protection is provided in a central enclosure.

Technical Information

Applications
7.5 HP 220/240 V AC-20 HP 440/480 V AC-25 HP 600 V AC
Enclosure
NEMA 4X
Line Rated Current
30 A
Type
MOTOR DISCONNECT SWITCH

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
360648019025
GTIN
03606480190223

Dimensions

Warranty Length
18 mth

Certifications & Compliance

Country of Origin
China
