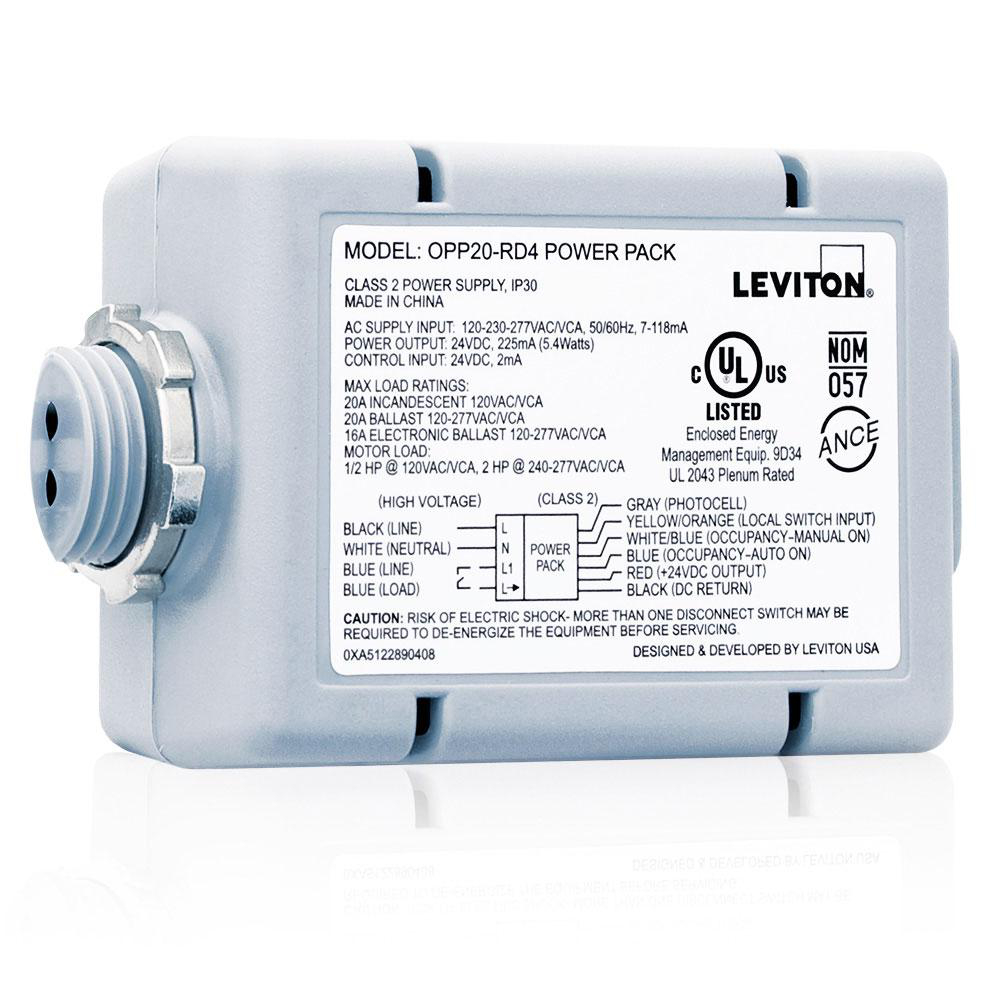

Power pack with auto-ON manual-ON local switch and photocell input

Manufacturer: Leviton Manufacturing | Catalog # OPP20-RD4 | Electrozad South Part # 335946
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Installation / Instruction Manual MSDS | SDS Safety Sheet
The Leviton super duty power pack is the first power pack designed to control virtually any lighting or receptacle circuit load to meet today...s challenges for solid state lighting control and tougher code requirements for unmatched performance and durability. The Power Pack models are cost-effective with simplified energy management tools for daylight harvesting and energy management. The OPP20 line features robust and reliable mechanical latching relays, exclusive fail-safe circuitry, daylight harvesting, bi-level switching, and is configurable for energy code requirements (CA Title 24, ASHRAE 90.1, NYC LL48).

Technical Information

Amperage
225 A
Applications
Industrial use
Cable Size
18-14 AWG
Frequency
50 Hz
Grade
Commercial
Material
High Impact Plastic
Operating Temperature
0 degrees
Power Rating
5.4 W
Sensor Type
Power Pack
Size
1.43 in
Standard
CUL\UL Listed,NOM Certified (057),ROHS Complaint
Type
Auto On, Manual On and Local Switch, Photocell Input
Voltage
24 V
Wattage
5.4 W

Manufacturer Information

Brand
Leviton
Sub Brand
C/I OCCUPANCY SENSORS

General Product Info

12-Digit UPC
078477634028
Color
Gray
Environmental Conditions
Relative Humidity (0% To 90%, Non-Condensing)
GTIN
00078477634028

Dimensions

Depth
1.432 in
Height
2.400 in
Length
1.432 in
Warranty Length
5 yr
Width
3.811 in

Certifications & Compliance

Country of Origin
China
