Tamper-Resistant Duplex Receptacle, 15 Amp, 125 Volt

Manufacturer: Leviton Manufacturing | Catalog # T8200-R | Electrozad South Part # 335168
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page Installation / Instruction Manual MSDS | SDS Safety Sheet

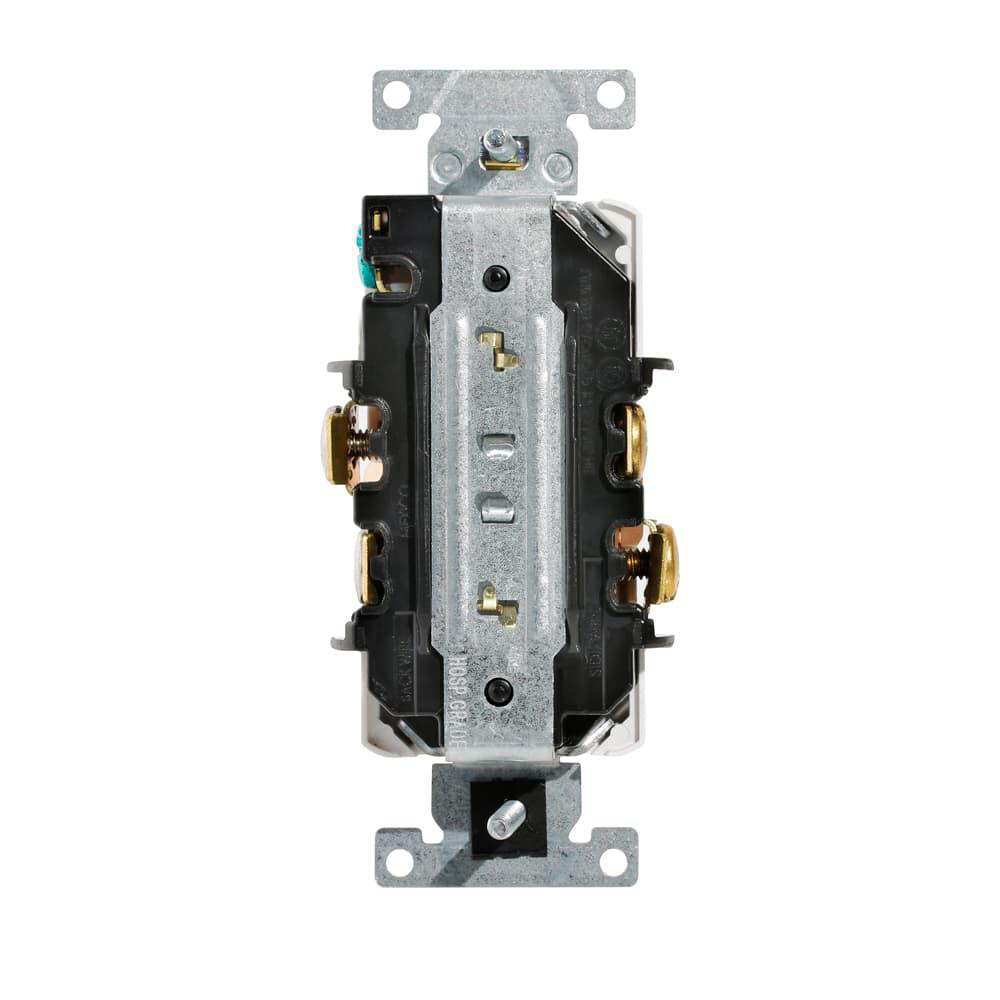

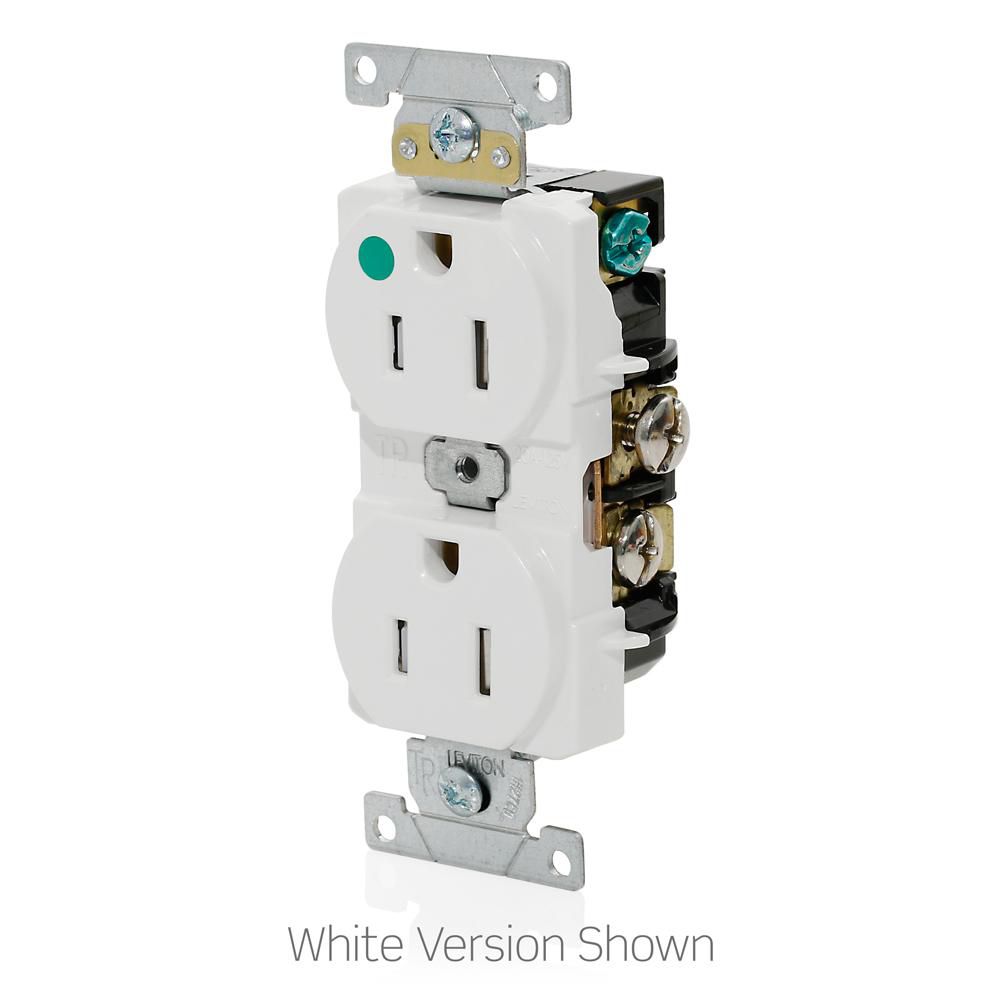

Duplex Receptacle Outlet, Heavy-Duty Hospital Grade, Tamper-Resistant, Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Red

Technical Information

Amperage
15 A
Applications
Hospital
Body Material
PBT,PBT,Polyester Blend,Polyester Blend
Device Type
Duplex Receptacle Outlet
Dielectric
3000 V
Face Material
PBT,PBT,Polyester Blend,Polyester Blend
Flamability Class
Rated V-0 Per UL 94,Rated V-0 Per UL 94
Grade
Heavy-Duty Hospital
Grounding
Self-Grounding,Self-Grounding
Horsepower
1/2 hp
Number of Poles
2
Number of Wires
3
Operating Temperature
75 degrees C
Standard
C,US UL
Temperature Rise
30 degrees C
Termination Type
Back Wire,Back Wire,Side Wire,Side Wire
Type
Receptacle
Wire Count
3,3
Wire Type
Stranded or Solid

Manufacturer Information

Brand
Leviton
Sub Brand
INDUSTRIAL RECEPTACLES

General Product Info

12-Digit UPC
078477896037
Color
Red
GTIN
50078477896032

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Certifications
CULus,CULus,NOM-ANCE,NOM-ANCE
Country of Origin
Mexico
