GAR3907

Manufacturer: Burndy | Catalog # GAR3907 | Electrozad South Part # 333803
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Technical Drawing

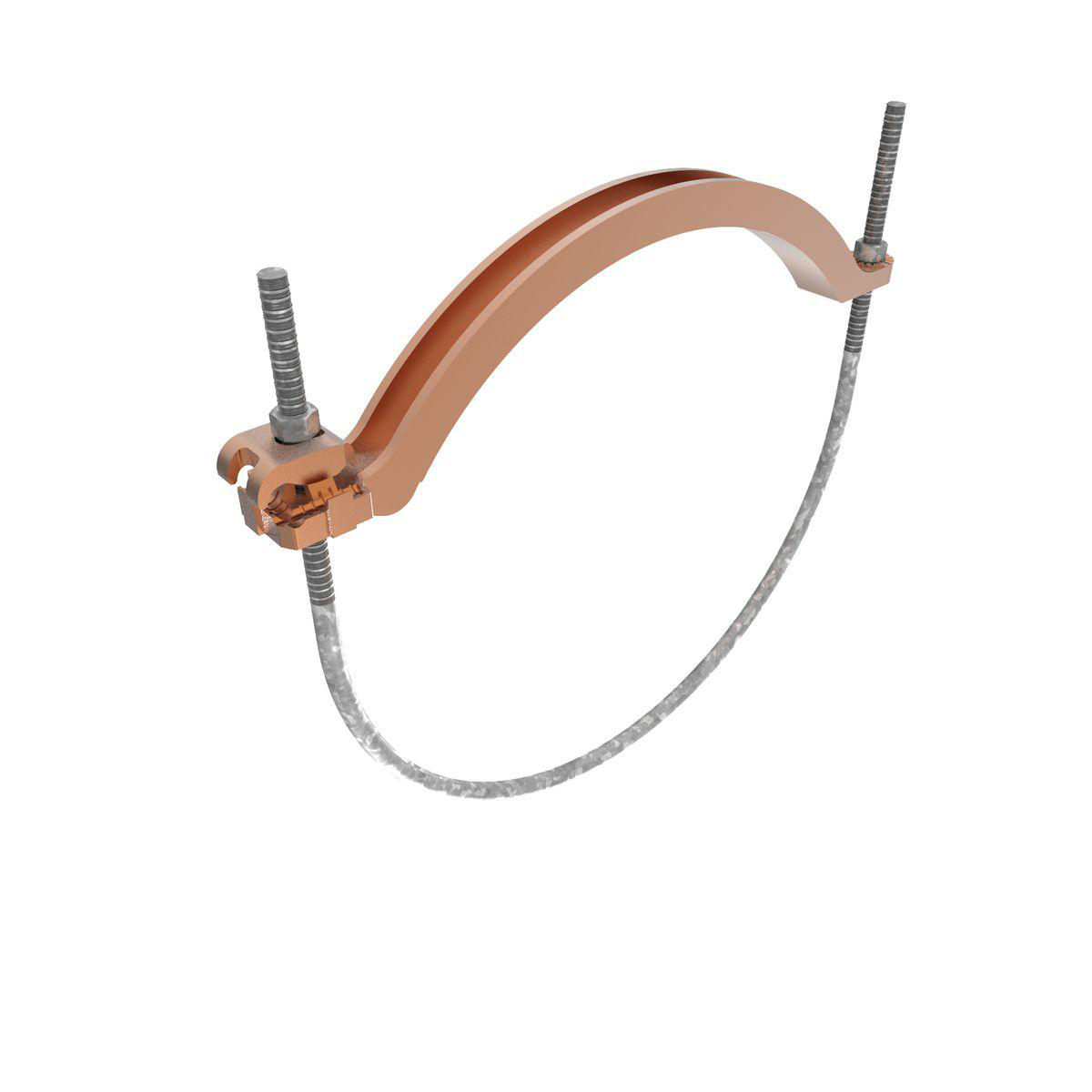

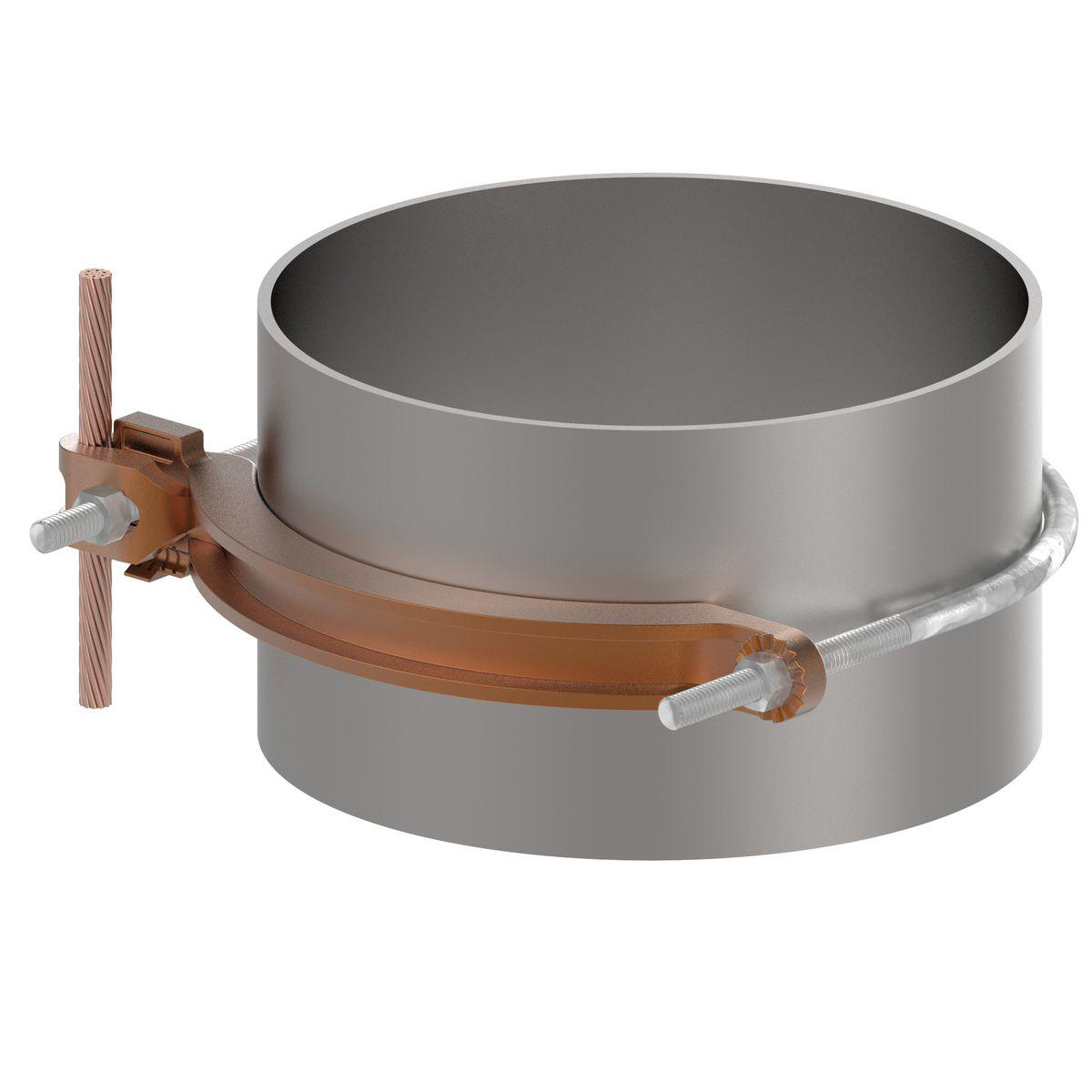

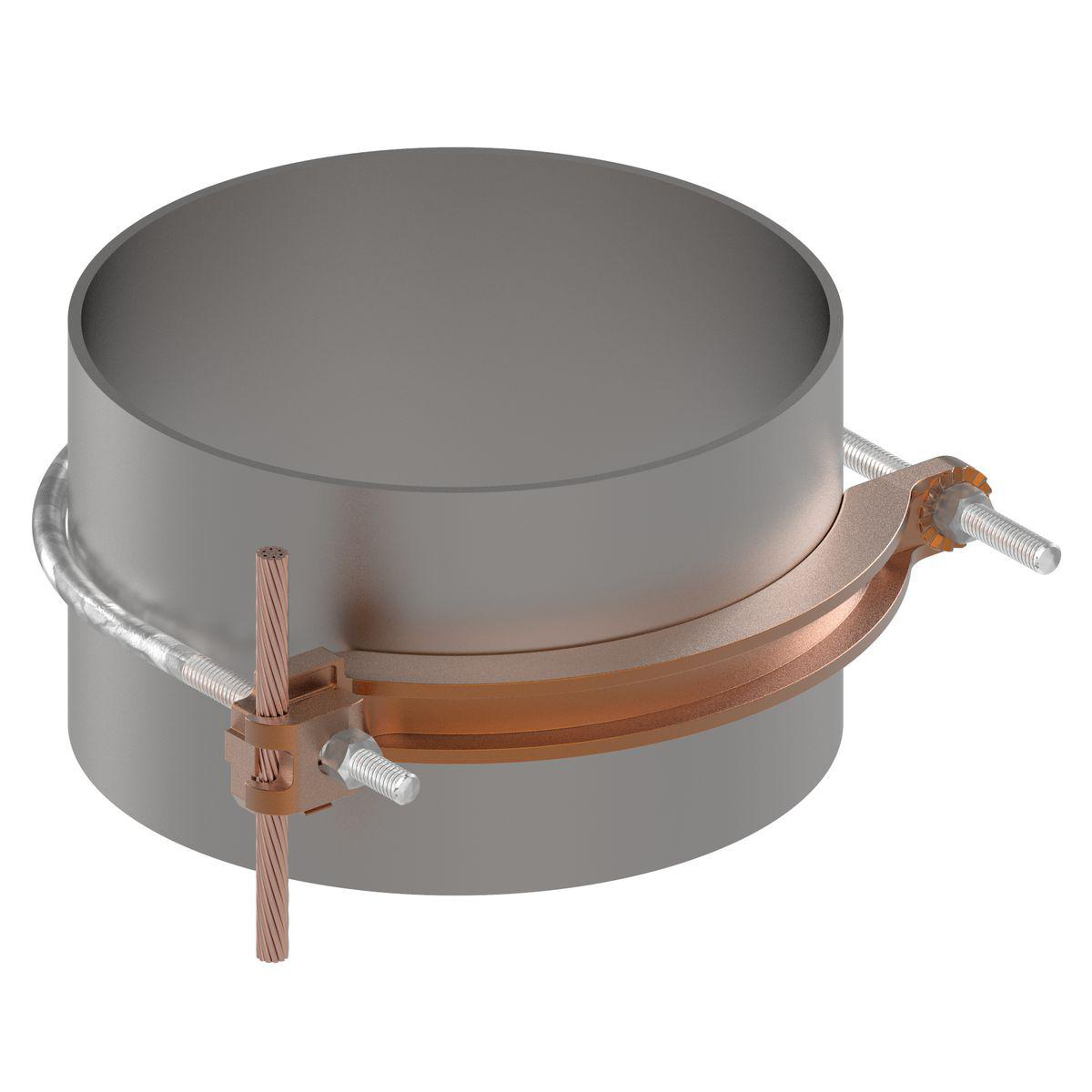

Mechanical Grounding Connector, Conductor to Water Pipe, 4-4/0 AWG, 8" Pipe, 3/8" Stud.

Technical Information

Applications
For use with 0.50 inch FM8 conduit bodies. Seals and protects.
Bolt Size
3/8-16
Material
Copper Alloy
Plated?
No
Plating Type
Unplated
Standard
3R,C22.2 No. 0.4,C22.2 No. 18,C22.2 No. 94 Enclosures Types 1,UL 514C,UL467,UL50 Enclosures Types 1
Type
GAR3902

Manufacturer Information

Brand
Burndy
Sub Brand
MECHANICAL CONNECTOR

General Product Info

12-Digit UPC
781810234068
Finish
Galvanized
GTIN
00781810234068
Product UPC
78181023406

Dimensions

Height
10 in
Length
1.75 in
Overall Length
1.75 in
Width
10.62 in

Certifications & Compliance

Country of Origin
Mexico
CSA
No
Overview
  • Provides quality assurance to recognized industry NEC standards from an independent part
  • Rated for Direct Burial in earth or concrete
  • One-wrench installation for simplified installation

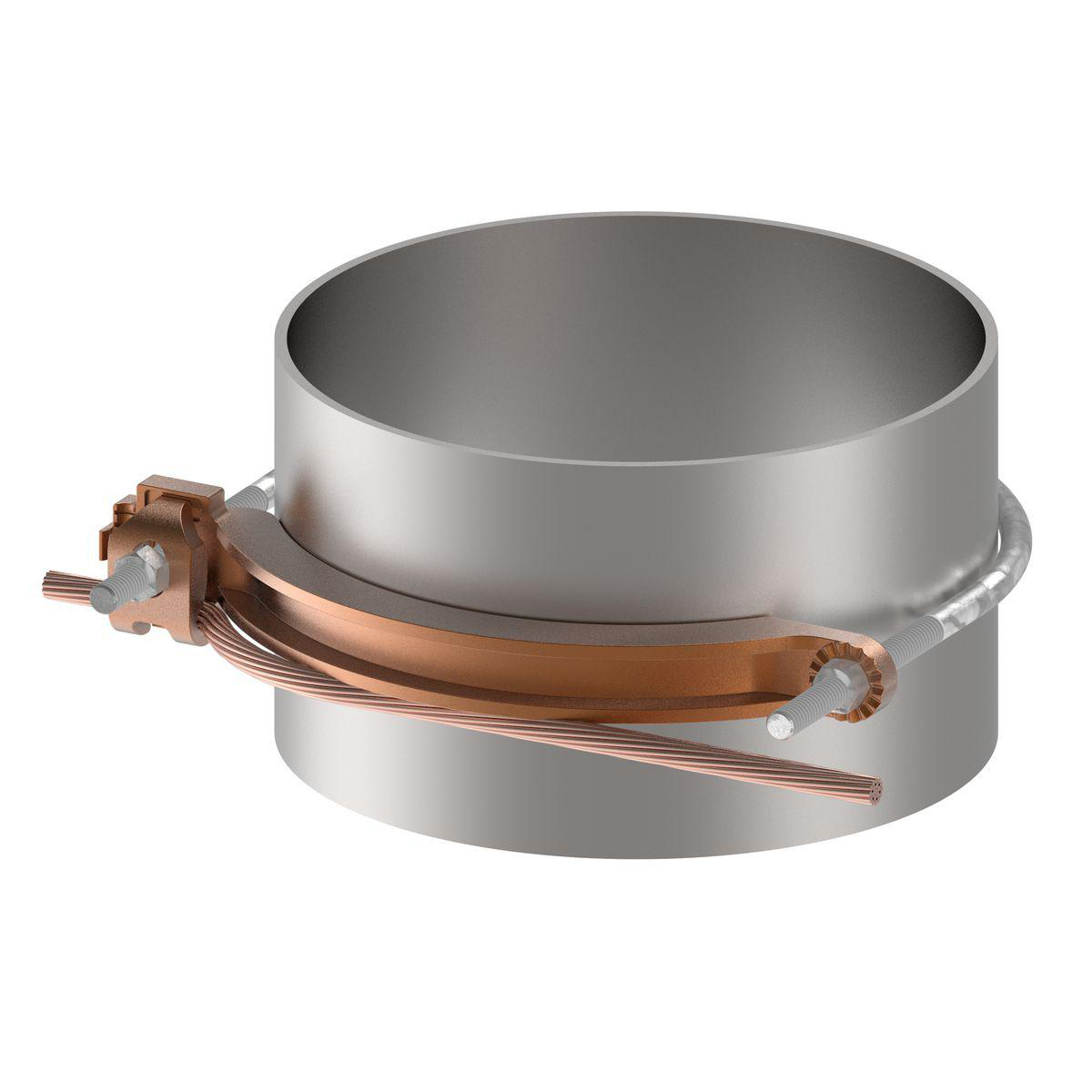

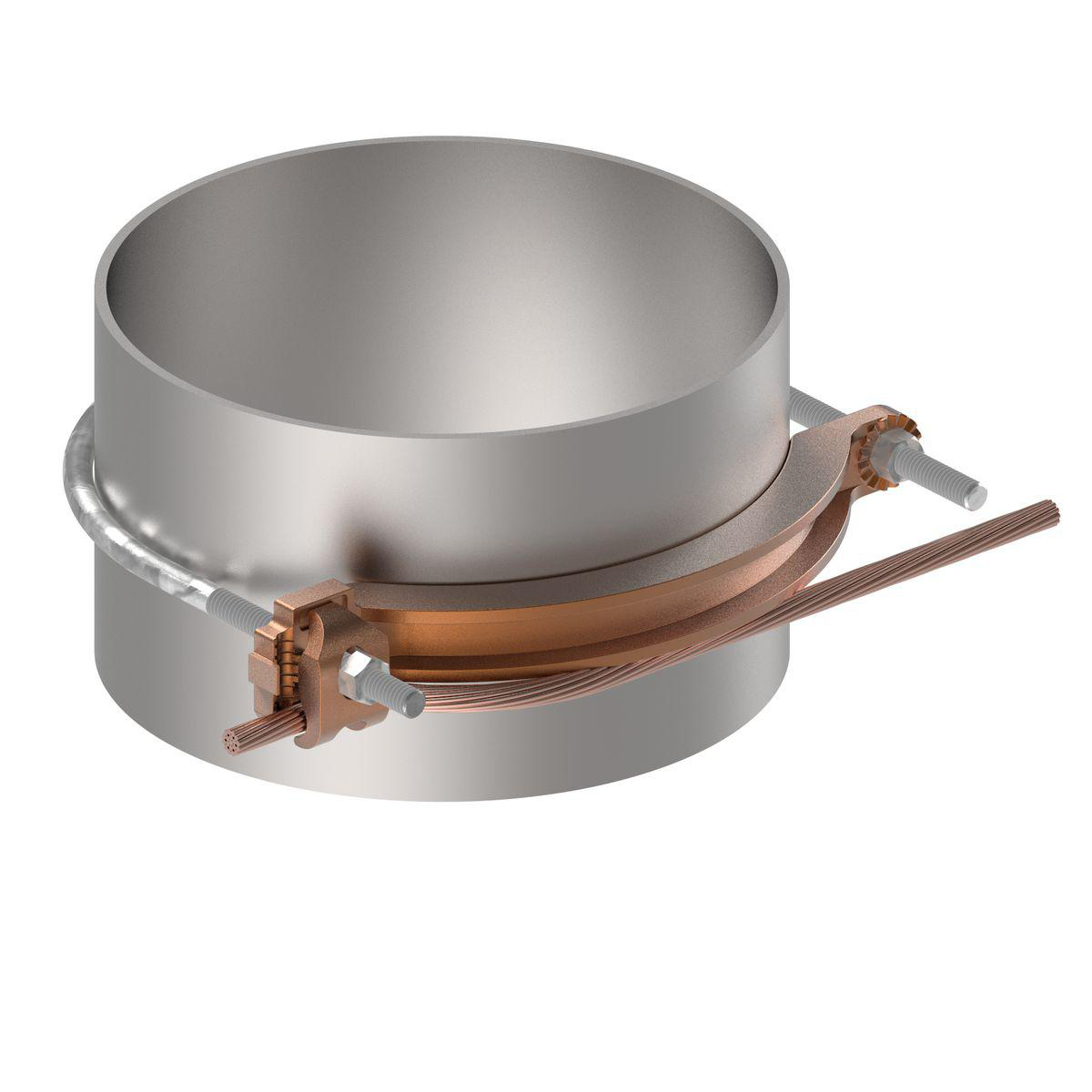

  • Cable clamp swivels at 90°, permits parallel grounding of one pipe on a 90° cable run for grounding several parallel pipes
  • UL467 Listed for the US and Canadian Markets
