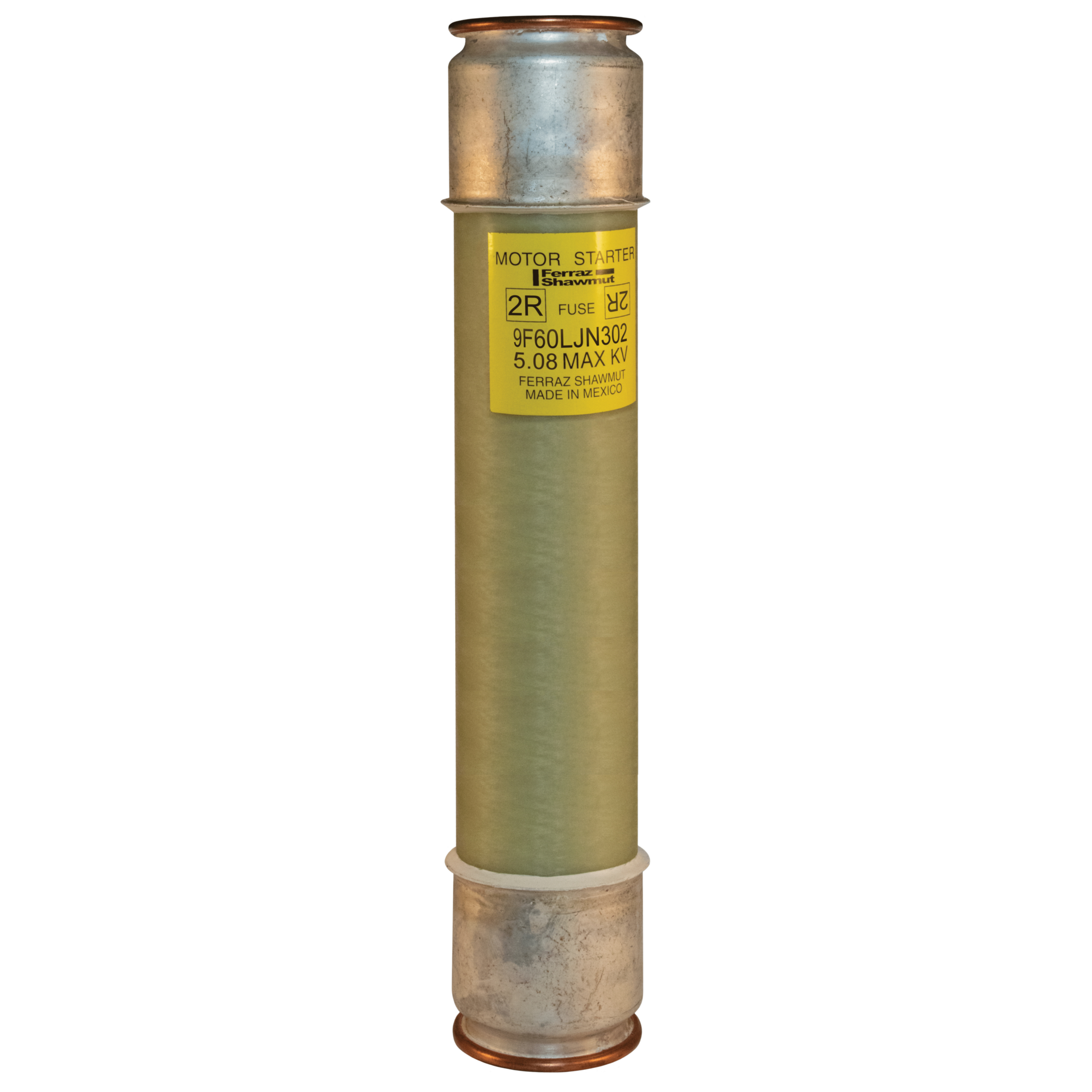

Back-Up R-Rated Medium Voltage Fuse 5080VAC 2R Mounting: Ferrule Style: LJN Amp-Trap®

Manufacturer: Ferraz Shawmut Mersen | Catalog # 9F60LJN302 | Electrozad South Part # 331755
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Mersen R-Rated fuses are current-limiting, high interrupting rating fuses intended for the short circuit protection of medium voltage motors and motor controllers. R-Rated fuses are back-up fuses that have a minimum interrupting rating, and must be coordinated with overload relays in combination motor starters. The motor starter manufacturer generally specifies the R-Rated fuse size. These fuses come with a 3 (size D) or 4 (size E) inch diameter barrels with ferrules and are mounted in spring reinforced clips

Technical Information

Applications
Short circuit protection of medium; voltage motors and motor; controllers.
Connection Type
Ferrule
Frequency
50/60 Hz
Insulation Material
Epoxy
Interrupt Rating
50 kA
Max Operating Temperature
80 degrees C
Mounting Type
Clip
Rated Voltage AC
5080 V
Response Time
R-Rated
Size
3 x 15.97 Inches
TC Connection
clips
Terminal Material
Silver-Plated Copper
Terminal Type
Ferrule
Type
Back-up current-limiting fuses R-Rated
Voltage
5080 V

Packaging

Package Qty
1

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001400712
GTIN
10782001400719
Weight
8 lb

Dimensions

Diameter
3 in
Height
3 in
Length
15.97 in
Width
3 in

Certifications & Compliance

Country of Origin
Mexico
