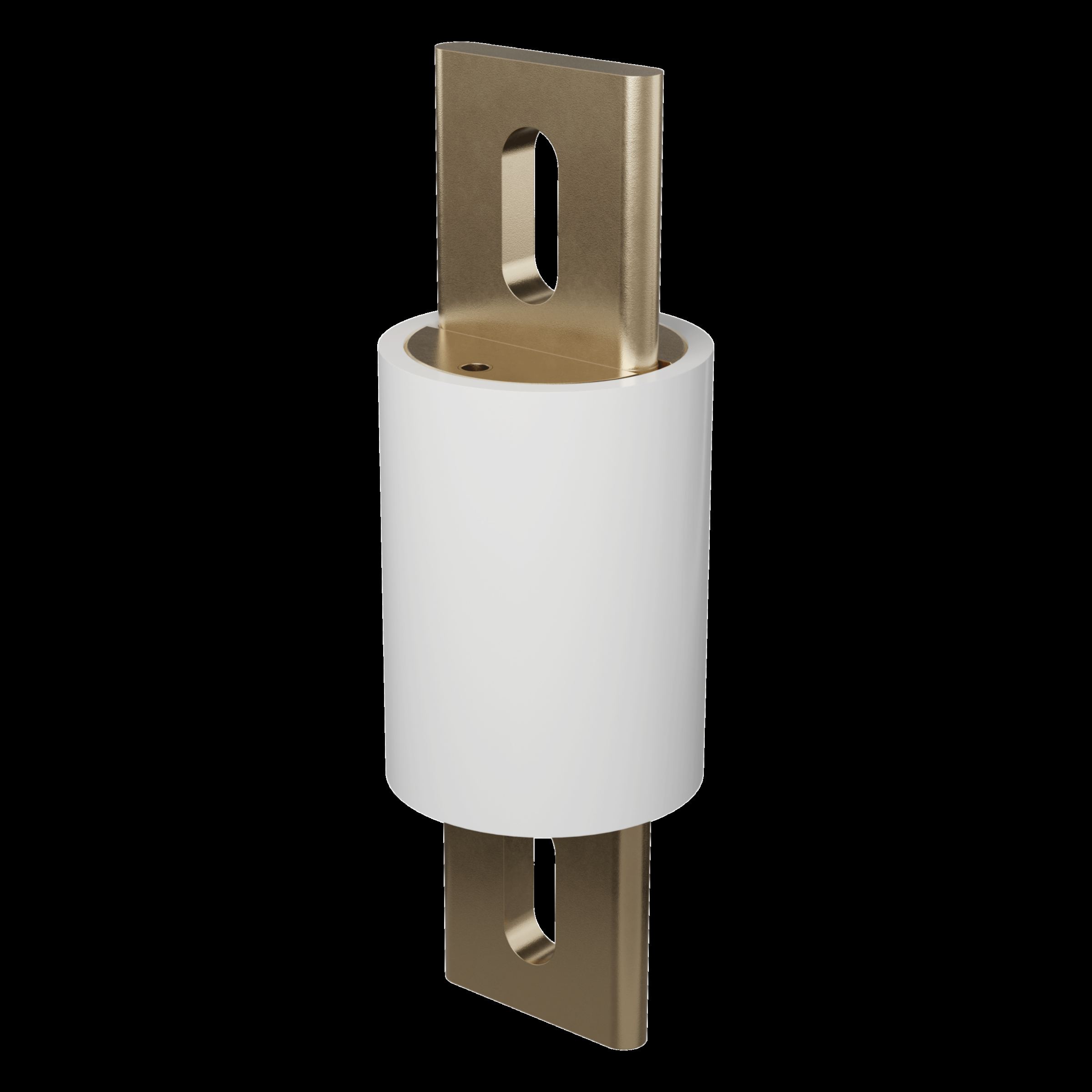

High Speed Fuse Amp-Trap® A100P 1000VAC 750VDC 600A Bolted Blade

Manufacturer: Ferraz Shawmut Mersen | Catalog # A100P600-4 | Electrozad South Part # 331435
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
A100P Amp-Trap® Form 101 high speed fuses are rated 1000V, extending the range of protection for UPS systems, AC and DC drives, reduced voltage motor starters and similar applications where lower I2t and superior reliability are needed. With ratings from 15 through 1000 amperes, a wide range of high voltage applications can be served.

Technical Information

Amperage
600 A
Applications
Protection of UPS systems AC/DC drives, reduced voltage motor starters and other 1000V or less semiconductor devices
Connection Type
Blade
Contact Material
Silver-Plated Copper
Frequency
50/60 Hz
Insulation Material
GMG
Interrupt Rating
100 kA
Max Operating Temperature
80 degrees C
Mounting Type
Bolt
Rated Voltage AC
1000 V
TC Connection
Bolted
Temperature Rating
80 degrees C
Terminal Material
Silver-Plated Copper
Terminal Type
Bolted
Type
Semi Conductor
Voltage
1000 V

Packaging

Package Qty
1

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001948481
Construction
GMG
GTIN
10782001948488
Weight
2.88 lb

Dimensions

Diameter
2.5 in
Length
7.72 in

Certifications & Compliance

Country of Origin
Mexico
