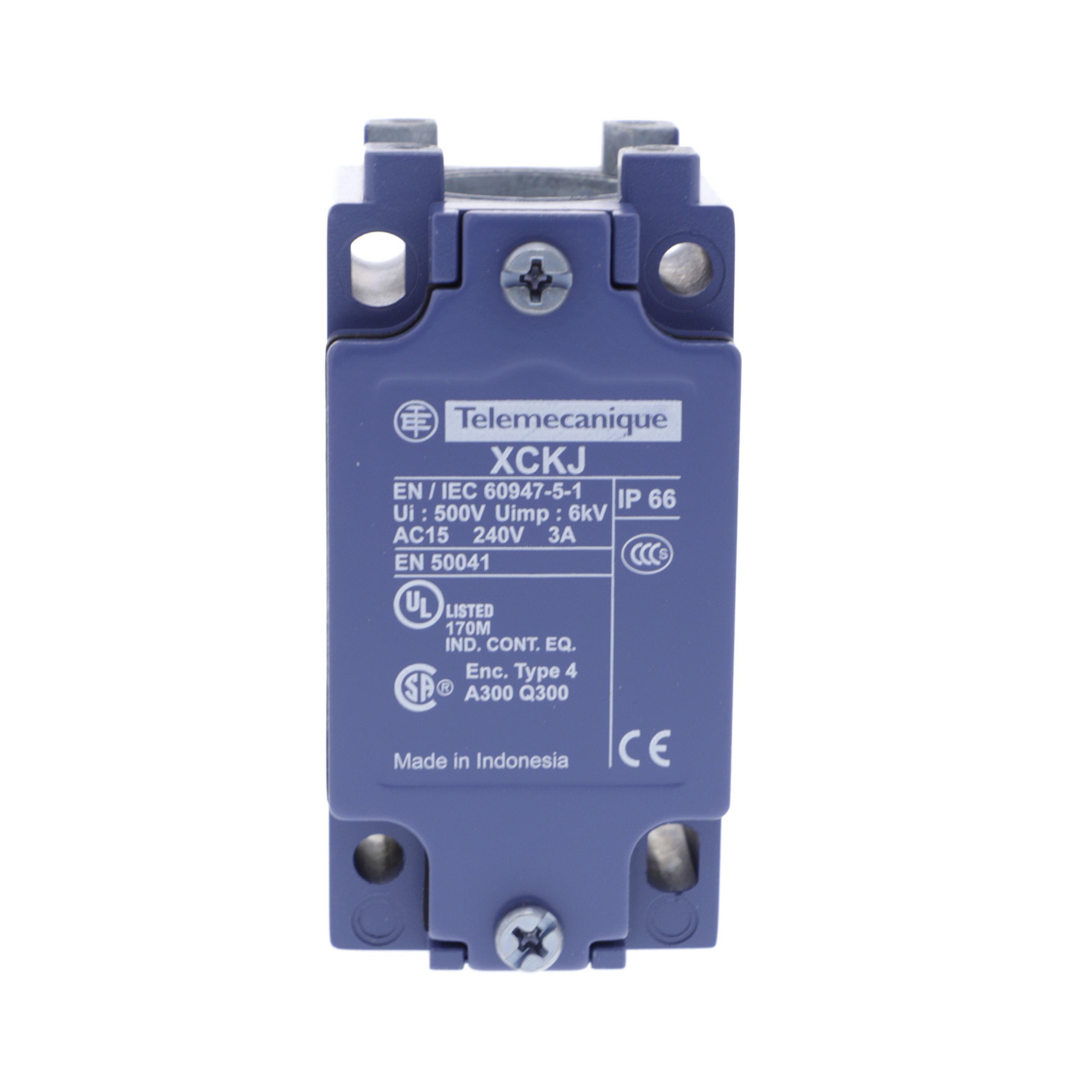

Image thumbnail 1

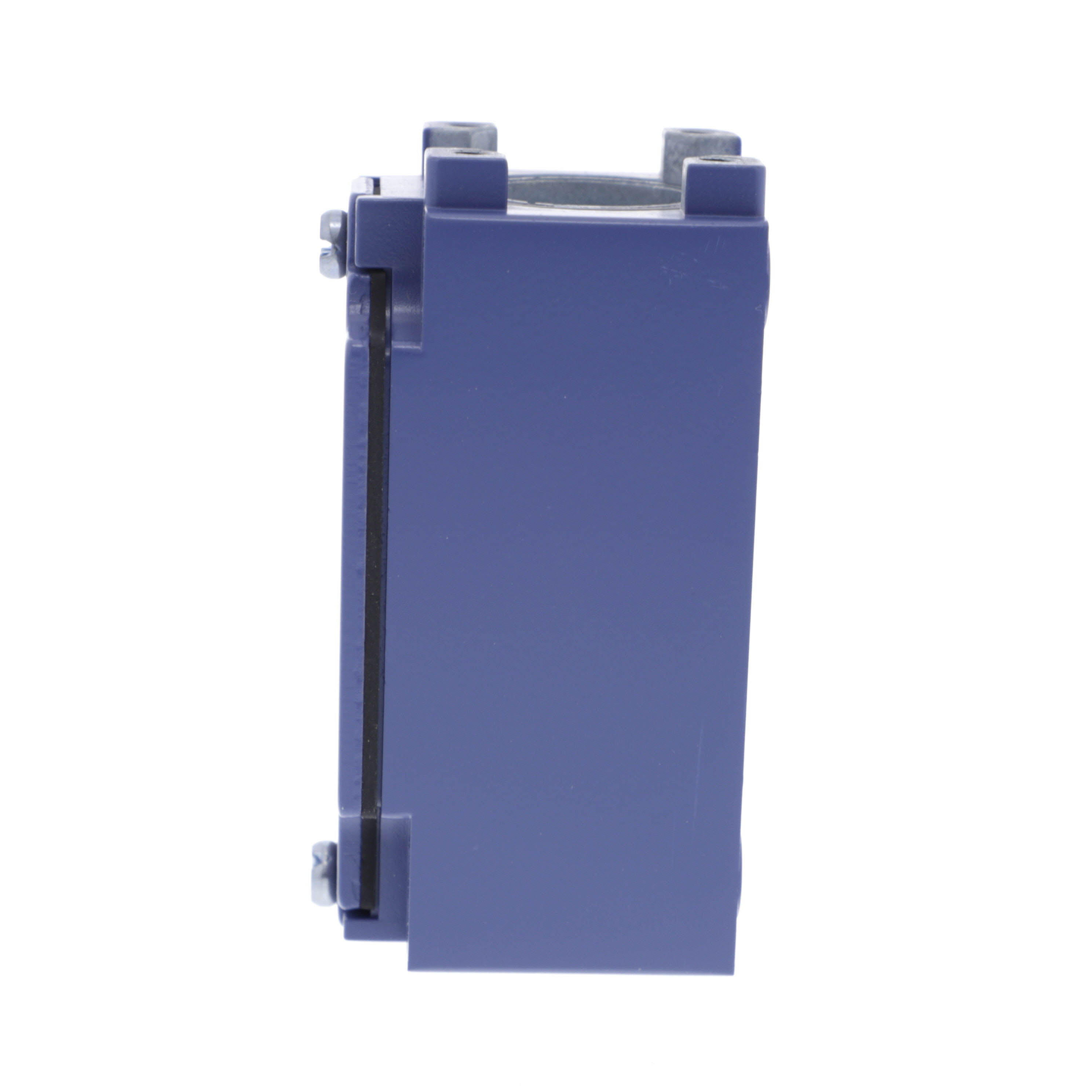

Image thumbnail 2

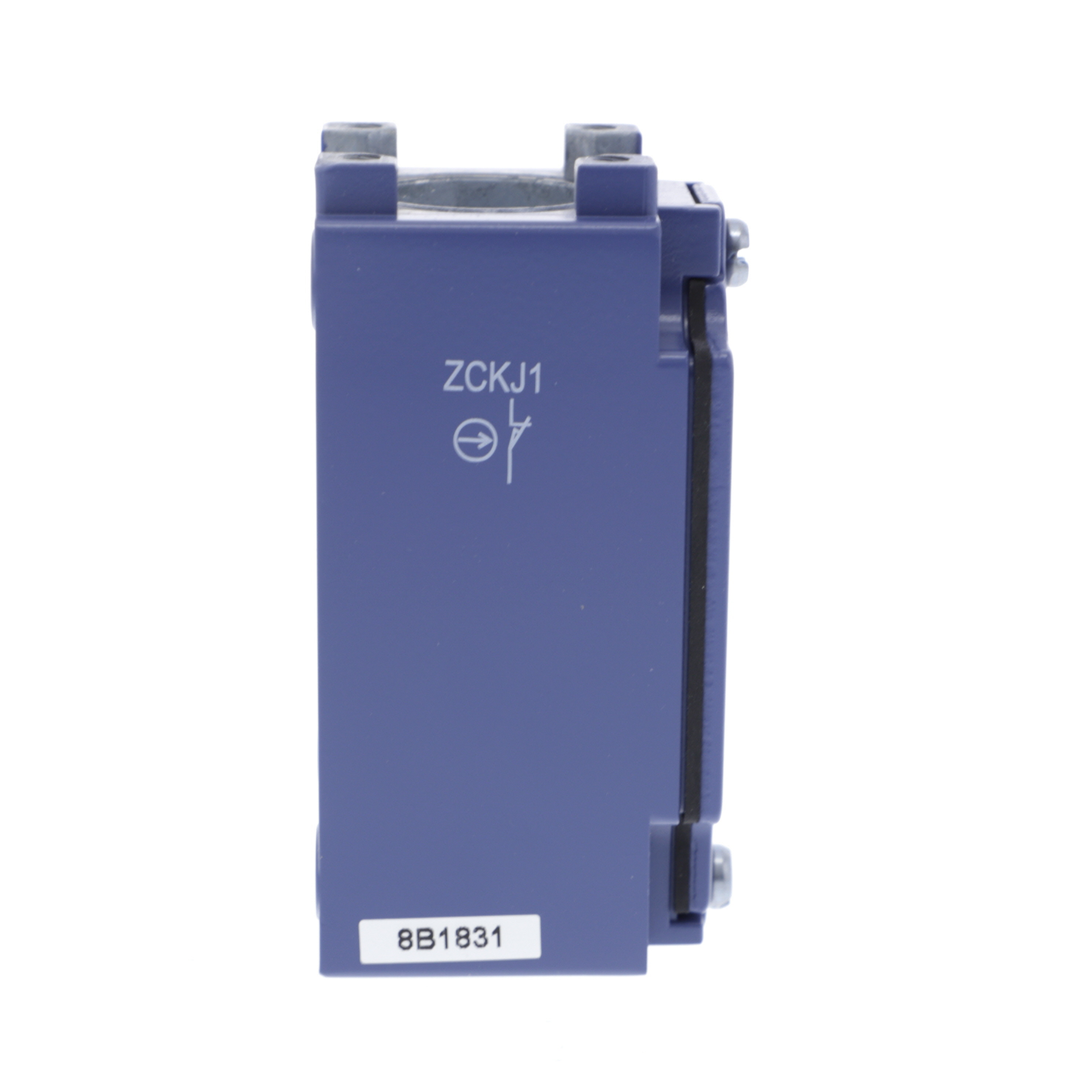

Image thumbnail 3

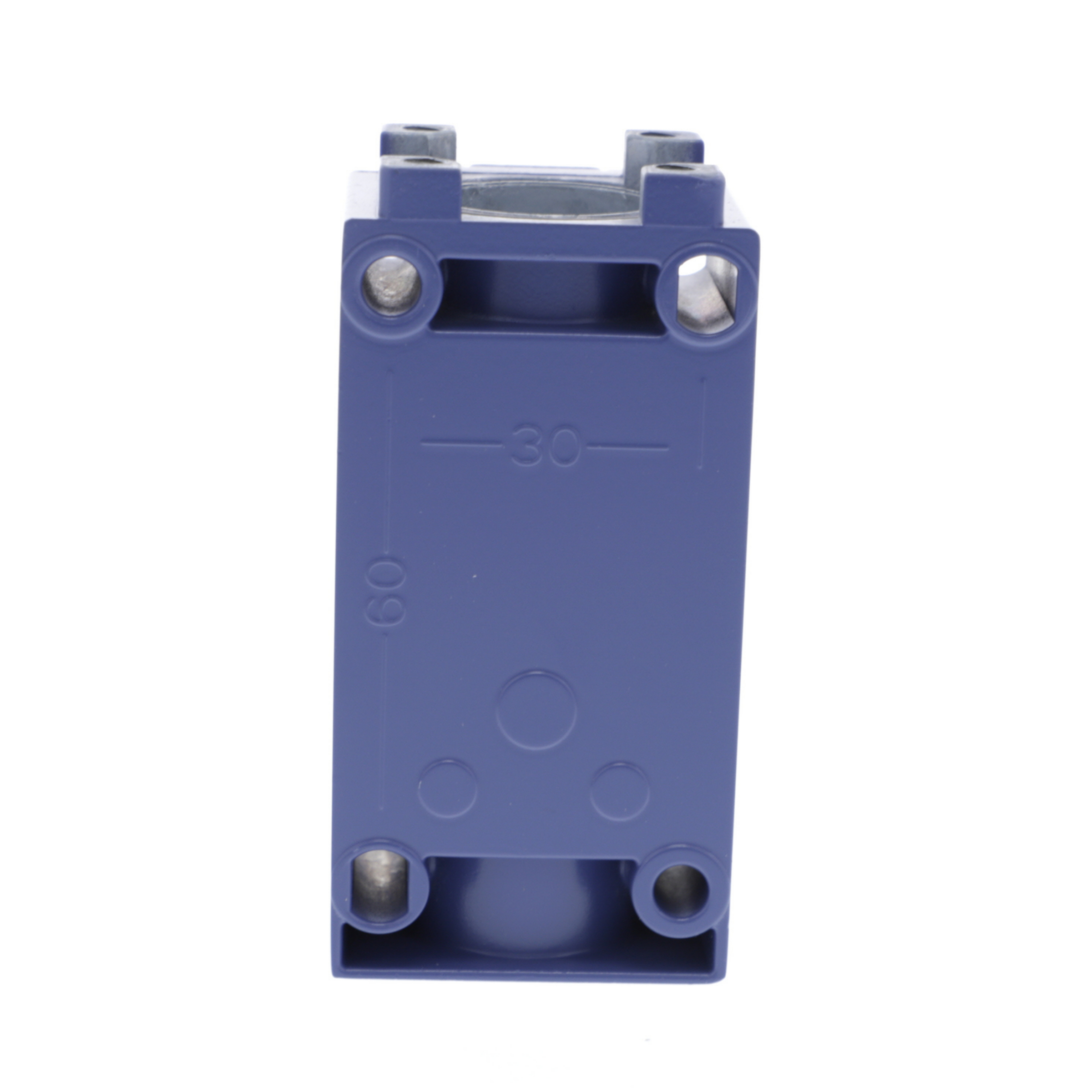

Image thumbnail 4
To:
CC:

LIMIT SWITCH BODY, LIMIT SWITCHES XC STANDARD, ZCKJ, FIXED, W/O DISPLAY, 1NC+1 NO, SNAP ACTION, 1/2"NPT

Manufacturer: Telemecanique Controls | Catalog # ZCKJ1H7 | Electrozad South Part # 330928
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This ZCK body/contact assembly with connector has a fixed body and a Zamak body. It has 1 x NO + 1 x NC snap action contacts and a 1/2" NPT cable entry. It can be matched with any head, levers or actuator from the XCKD, XCKP and XCKT ranges.

Technical Information

Action
SNAP ACTION
Applications
XCKJ
Body Material
Metal
Body Type
Fixed
Cable Entry
1 entry tapped for 1/2" NPT conduit
Contact Configuration
1 NC + 1 NO
Contact Material
Silver Plated Contacts
Enclosure
IP66
Net Weight
0.3 kg
Number of Poles
2
Number of Steps
1 1
Operating Cycles
5000000 CYCLES, DC-13 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Operating Temperature
10-120 Adegrees C HIGH TEMPERATURE
Size
36 MM,43 MM,84-84 MM
Storage Temperature
10-120 degrees C
TC Connection
SCREW-CLAMP TERMINALS 1 X 0.34...2 X 1.5 MMA²
Type
LIMIT SWITCH BODY

Manufacturer Information

Brand
Telemecanique Sensors
Sub Brand
ZCKJ

General Product Info

12-Digit UPC
389110646156
Environmental Conditions
HIGH TEMPERATURE
Weight
0.66 lb

Dimensions

Depth
36 mm
Height
84-84 mm
Warranty Length
18 mth
Width
43 mm

Certifications & Compliance

Country of Origin
Indonesia
