REVERSING CONTACTOR, TESYS K, 3P, AC-3, LT OR EQ TO 440V 12 A, 1 NC, 24VDC COIL

Manufacturer: Telemecanique Controls | Catalog # LP2K1201BD | Electrozad South Part # 330833
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

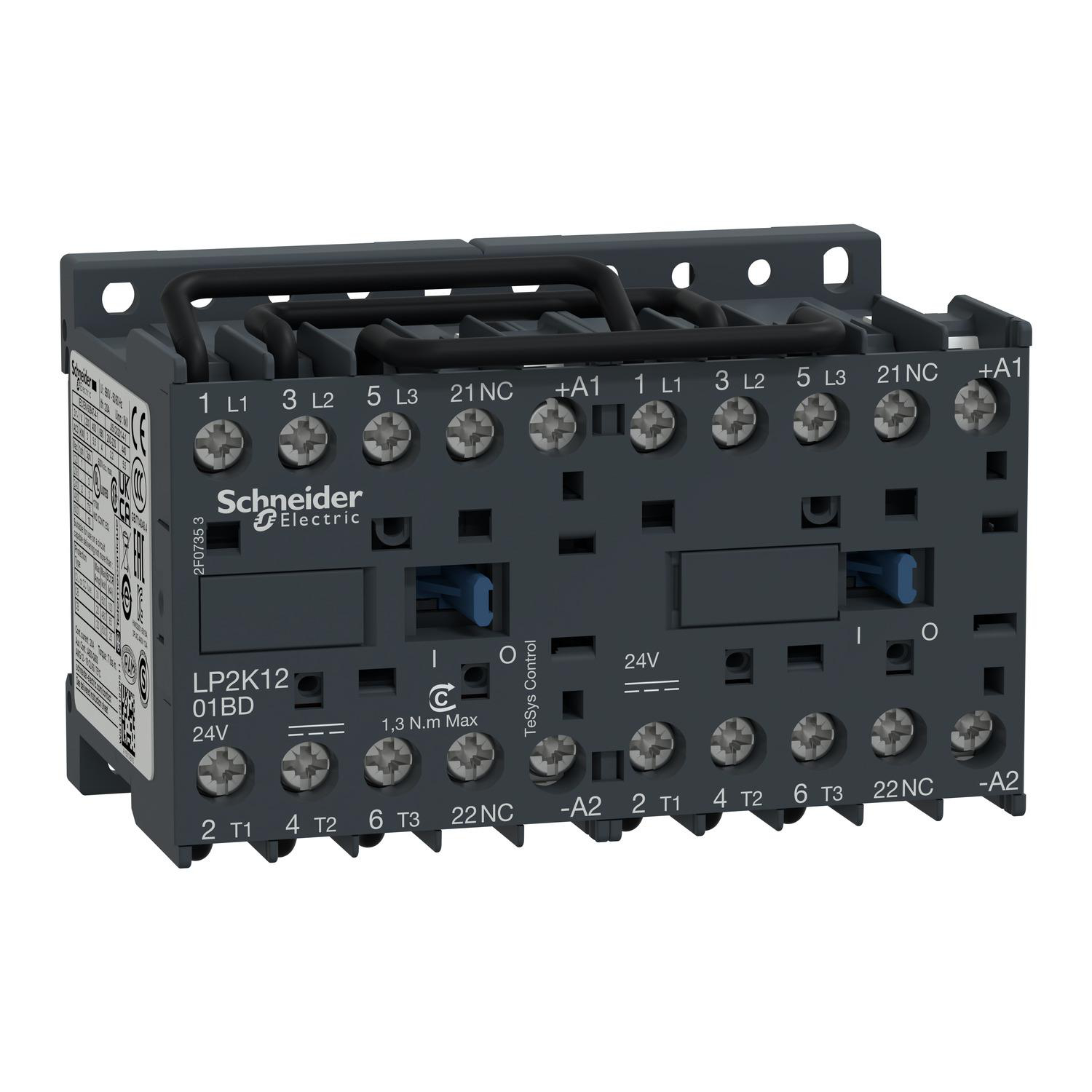

LP2K1201BD is a compact 3-pole TeSys K reversing contactor from Schneider Electric for motor applications. Rated 12A AC-3 5.5kW@400V, it includes a 24V DC coil, 1NC auxiliary contact, a mechanical interlock and a pre-wired reversing circuit. LP2K1201BD is a 3-pole TeSys K reversing contactor from Schneider Electric for simple motor applications rated up to 5.5kW@400V. Very compact, DIN-rail compatible, it is assembled with a mechanical interlock and a pre-wired reversing circuit. It can be easily integrated into all control systems thanks to its 24V DC coil and 1NC built-in auxiliary contact. Available worldwide, it complies with multi-standards (IEC, UL, CSA, CCC, EAC, Marine). Very compact, 90mm wide, for DIN-rail and panel mounting. Assembled with mechanical interlock and pre-wired reversing circuit. Ready for connection to all control systems thanks to a 24V DC control voltage and 2NC built-in auxiliary contact. Can be completed with auxiliary contact blocks (LA1K, LA2K) and thermal relays (LR2K).

Technical Information

Applications
CONTROL,MOTOR CONTROL-RESISTIVE LOAD
Coil Voltage
24 V DC,POWER CIRCUIT 690 V AC 50/60 HZ-SIGNALLING CIRCUIT <= 690 V AC 50/60 HZ
Contact Configuration
1 NC,3 NO
Contact Rating
20 A 50 A°C POWER CIRCUIT-10 A 50 A°C SIGNALLING CIRCUIT
Impedance
3 MOhm - Ith 20 A 50 Hz For Power Circuit
Net Weight
0.48 kg
Operating Cycles
3600 cyc/h
Operating Temperature
-25-50 Adegrees C
Range
TeSys
Size
57 MM,58 MM,90 MM
Standard
CSA C22.2 No 60947-4-1,EN/IEC 60947-4-1,GB/T 14048.4,JIS C8201-4-1,UL 60947-4-1
Storage Temperature
-50-80 degrees C
TC Connection
SCREW CLAMP TERMINALS 1 1.5-4 MMA²SOLID- SCREW CLAMP TERMINALS 1 0.75-4 MMA²FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 1 0.34-2.5 MMA²FLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 1.5-4 MMA²SOLID- SCREW CLAMP TERMINALS 2 0.75-4 MMA²FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 0.34-1.5 MMA²FLEXIBLE WITH CABLE END
Type
MECHANICAL,REVERSING CONTACTOR
Voltage
690 V

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TESYS K

General Product Info

12-Digit UPC
389110791061
GTIN
03389110791068
Weight
0.48 kg

Dimensions

Depth
57 mm
Height
2.28 in
Warranty Length
18 mth
Width
3.54 in

Certifications & Compliance

Certifications
CB Scheme,CCC,CE,CSA,EAC,UKCA,UL
Country of Origin
France
