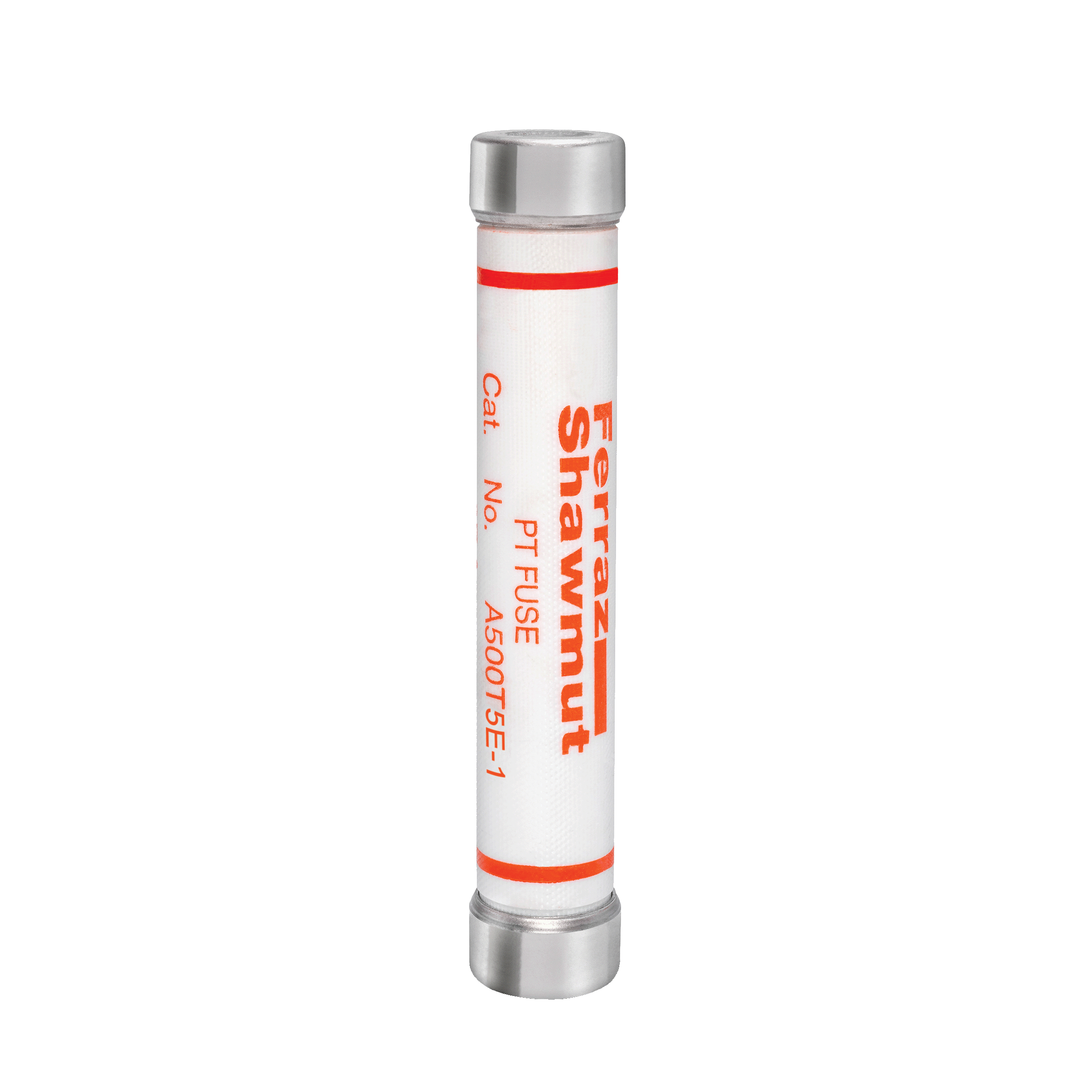

Product image for Medium Voltage Potential Transformer Fuse 5000VAC 5A Ferrule Amp-Trap®
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
To:
CC:

Medium Voltage Potential Transformer Fuse 5000VAC 5A Ferrule Amp-Trap®

Manufacturer: Ferraz Shawmut Mersen | Catalog # A500T5E-1 | Electrozad South Part # 330226
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Mersen PT fuses are current-limiting fuses with high interrupting rating, used for the primary winding protection of potential transformer. They are small dimension ferrule type fuses and mount in standard clips. Current ratings are from 0.25A to 5A

Technical Information

Amperage
5 A
Applications
Primary protection for potential transformers or control power transformers
Connection Type
Ferrule
Contact Material
Tin-Plated Brass
Frequency
50/60 Hz
Insulation Material
GMG
Interrupt Rating
50 kA
Max Operating Temperature
80 degrees C
Mounting Type
Clip
Rated Voltage AC
5000 V
TC Connection
Ferrule
Temperature Rating
80 degrees C
Terminal Material
Tin-Plated Brass
Terminal Type
Ferrule
Type
Current Limiting
Voltage
5000 V

Packaging

Package Qty
2

Manufacturer Information

Brand
Ferraz Shawmut
Sub Brand
Amp-Trap®

General Product Info

12-Digit UPC
782001800369
Construction
GMG
GTIN
30782001800360
Weight
0.5 lb

Dimensions

Diameter
1 in
Length
5.63 in

Certifications & Compliance

Country of Origin
Mexico
