MACL FAN LIGHT BLACK

Manufacturer: Lutron Dimmers | Catalog # MACL-LFQ-BL | Electrozad South Part # 330199

*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days

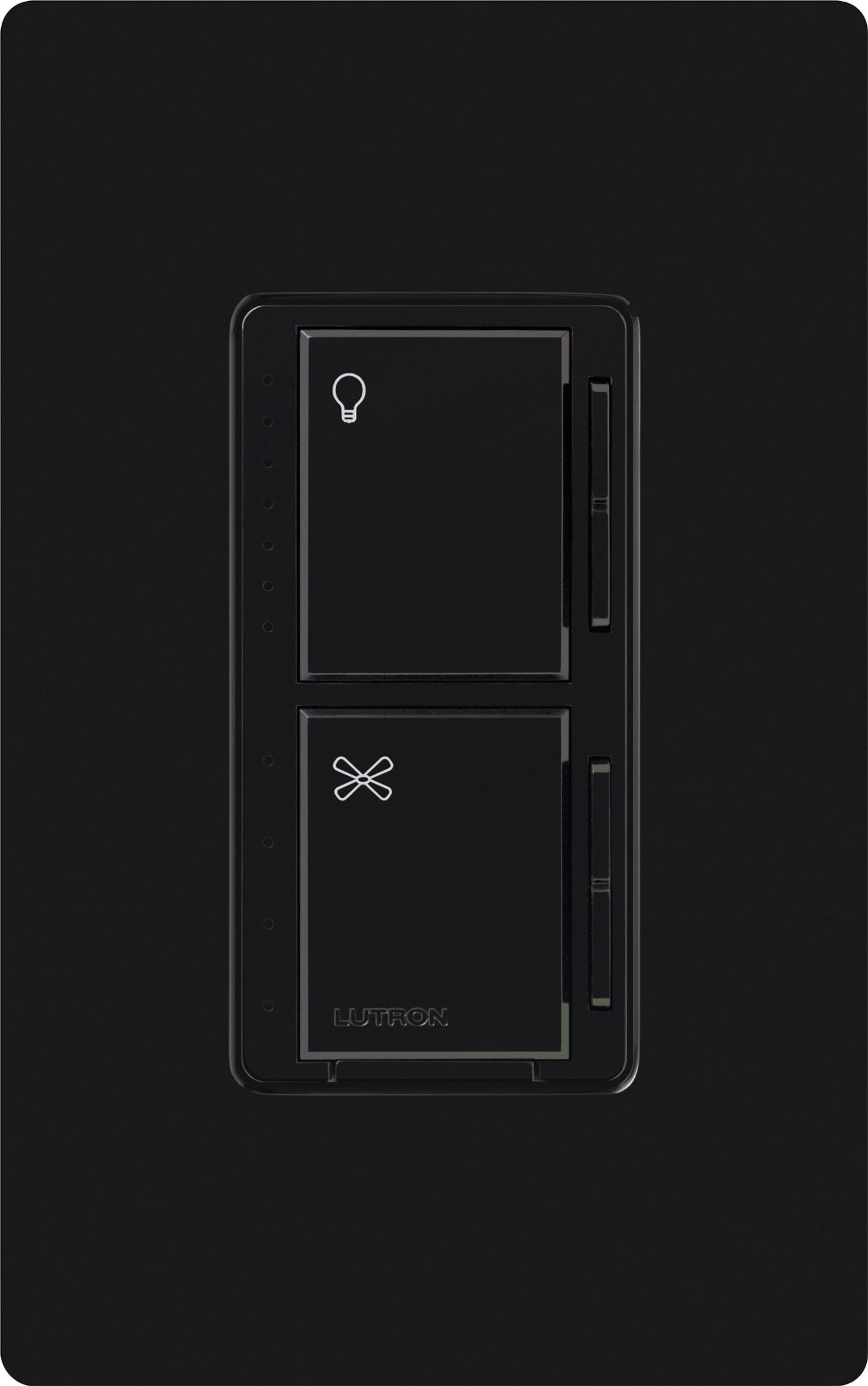

The Lutron Maestro Dual LED+ Dimmer and 4-Speed Fan Control helps you achieve the ideal comfort level for your home. It includes the most advanced technology for superior dimming and adjust the fan speed all from one wall control. The top section is a LED+ Dimmer that works with up to 75W of dimmable LEDs or up to 250W of Incandescent/Halogen bulbs. The bottom section is a 4-speed fan control for a single ceiling paddle fan up to 1.5A. Press the tap switch once to toggle the light or fan ON to a programmed preset, press again to toggle OFF; Double press the tap switch to turn light or fan ON to full intensity/speed. Use the raise/lower button next to the tap switch to dim/brighten lights or increase/decrease fan speed. This Fan/Light control is only available in single pole. Screw terminal and wire lead installation. No neutral or canopy module required. LED+ dimmer portion has easy low-end trim programming. Available in 10+ colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

Technical Information

Actuator
Tapswitch
Amperage
1.5 A
Applications
Fan,Lighting
Connection Type
Screw-Type Terminals
Contact Configuration
N-O
Contact Rating
1.5 A
Enclosure
Plastic
Enclosure Material
Plastic
Mounting Type
Wallbox
Number of Poles
1
Size
2.94 in
TC Connection
Screw terminal
Type
Digital Preset Fan/light Control
Voltage
120 V
Wattage
250 W

Manufacturer Information

Brand
Maestro
Sub Brand
Maestro

General Product Info

12-Digit UPC
784276239301
Color
Black
Finish
Gloss
GTIN
00784276239301

Certifications & Compliance

Country of Origin
China
