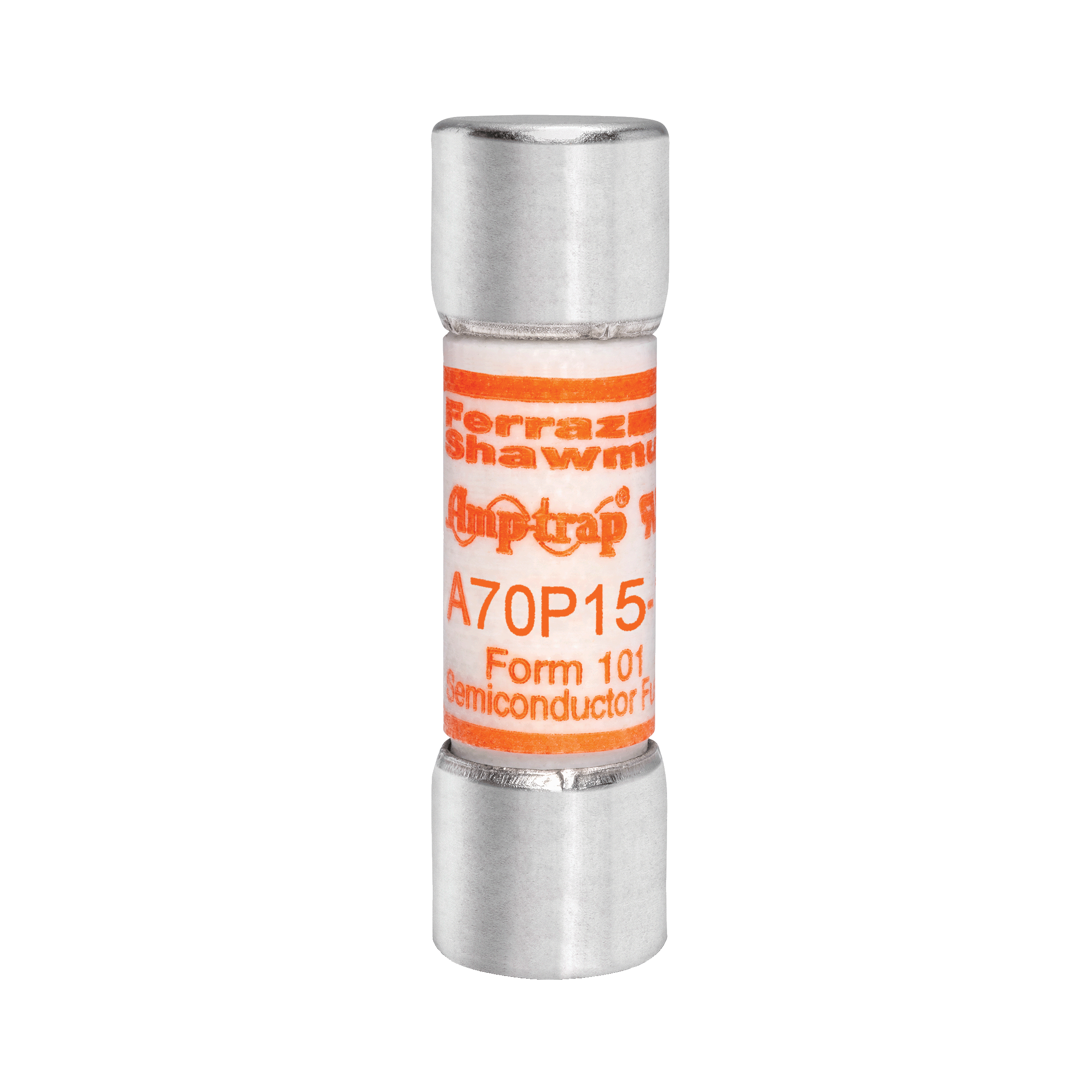

High Speed Fuse Amp-Trap® A70P 700VAC 650VDC 15A Ferrule

Manufacturer: Ferraz Shawmut Mersen | Catalog # A70P15-1 | Electrozad South Part # 33002
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
A70P Amp-Trap® Form 101 high speed fuses were developed for higher voltage AC and DC drives, UPS systems, reduced voltage motor starters and similar applications where lower l2t and superior reliability are needed. A70P is a very popular fuse, available in a wide range of ratings. Typically used for replacement.

Technical Information

Amperage
15 A
Applications
Protection of 700V or less DC drives, UPS, inverters, reduced voltage starters, etc.
Connection Type
Ferrule
Contact Material
Tin-Plated Copper
Frequency
50/60 Hz
Insulation Material
GMG
Interrupt Rating
100 kA
Max Operating Temperature
80 degrees C
Mounting Type
Clip
Rated Voltage AC
700 V
TC Connection
Ferrule
Temperature Rating
80 degrees C
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
Semi Conductor
Voltage
700 V

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut
Sub Brand
Amp-Trap®

General Product Info

12-Digit UPC
782001947088
Construction
GMG
GTIN
30782001947089
Weight
0.41 lb

Dimensions

Diameter
0.56 in
Length
2 in

Certifications & Compliance

Country of Origin
Mexico
