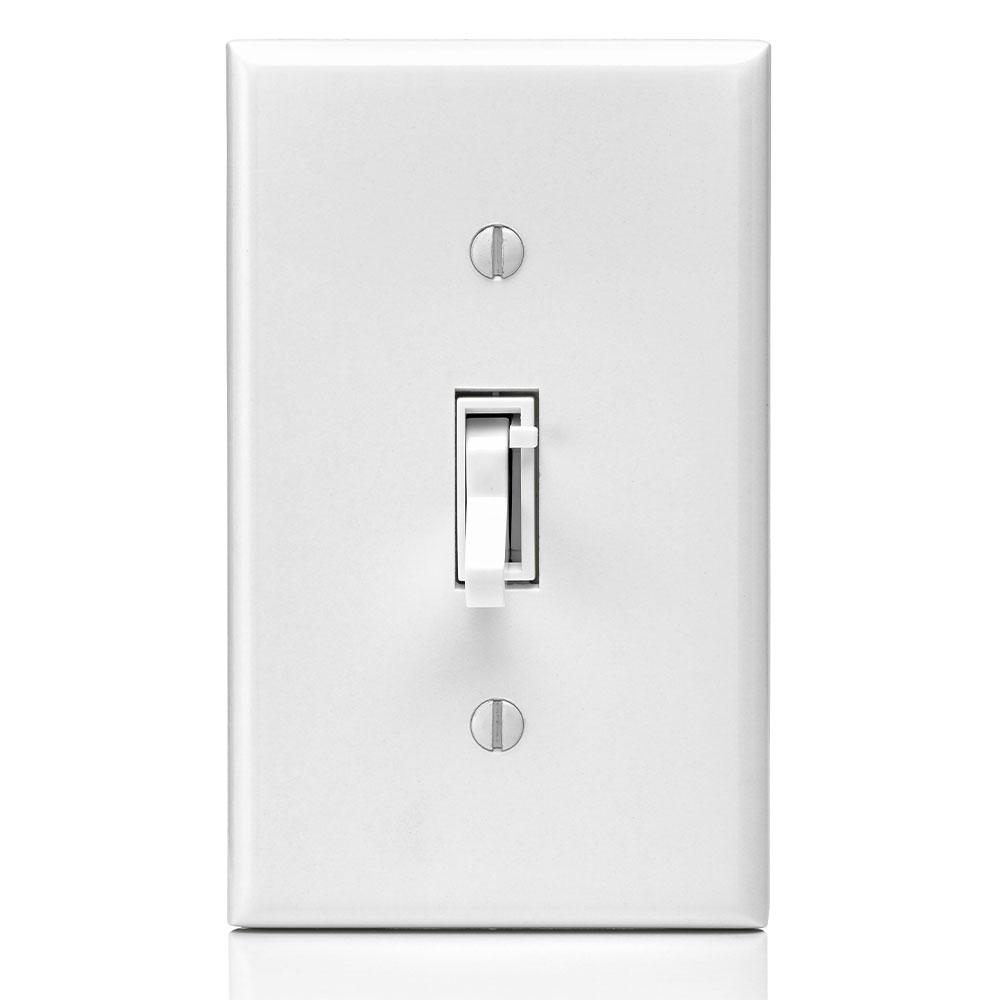

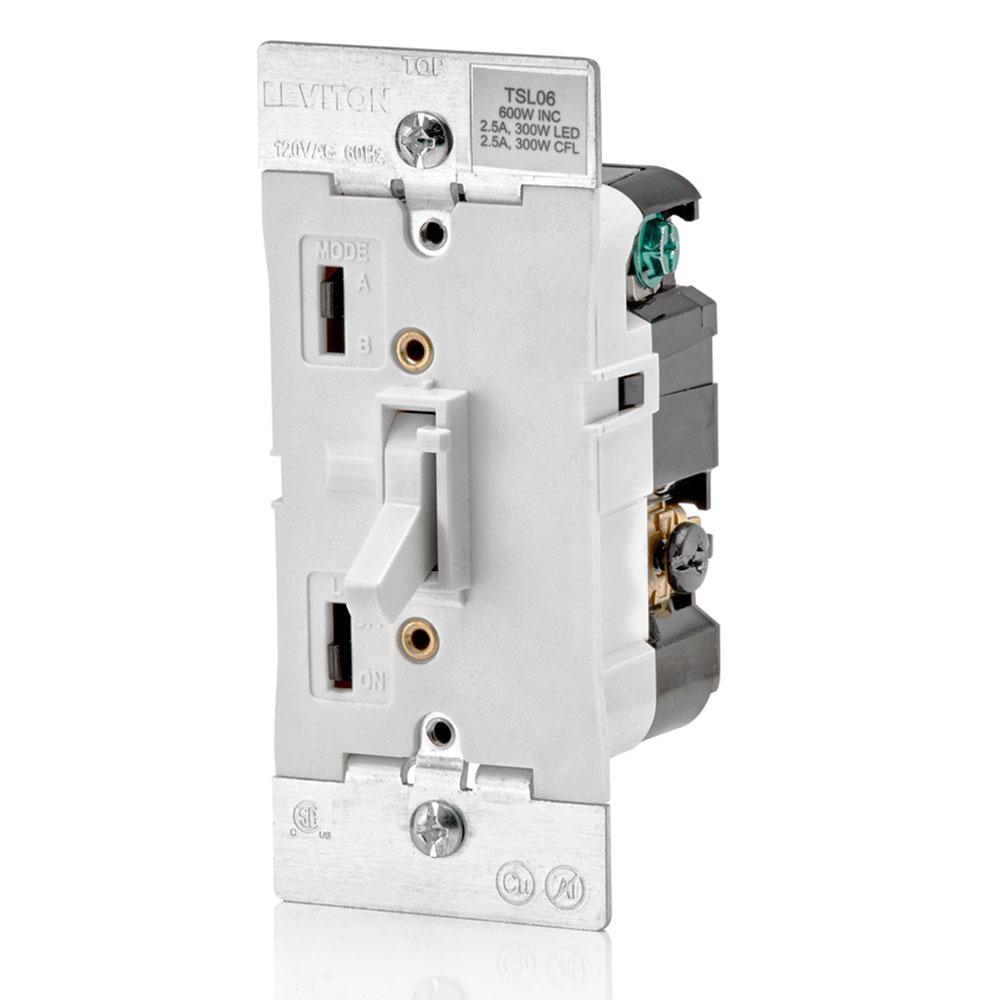

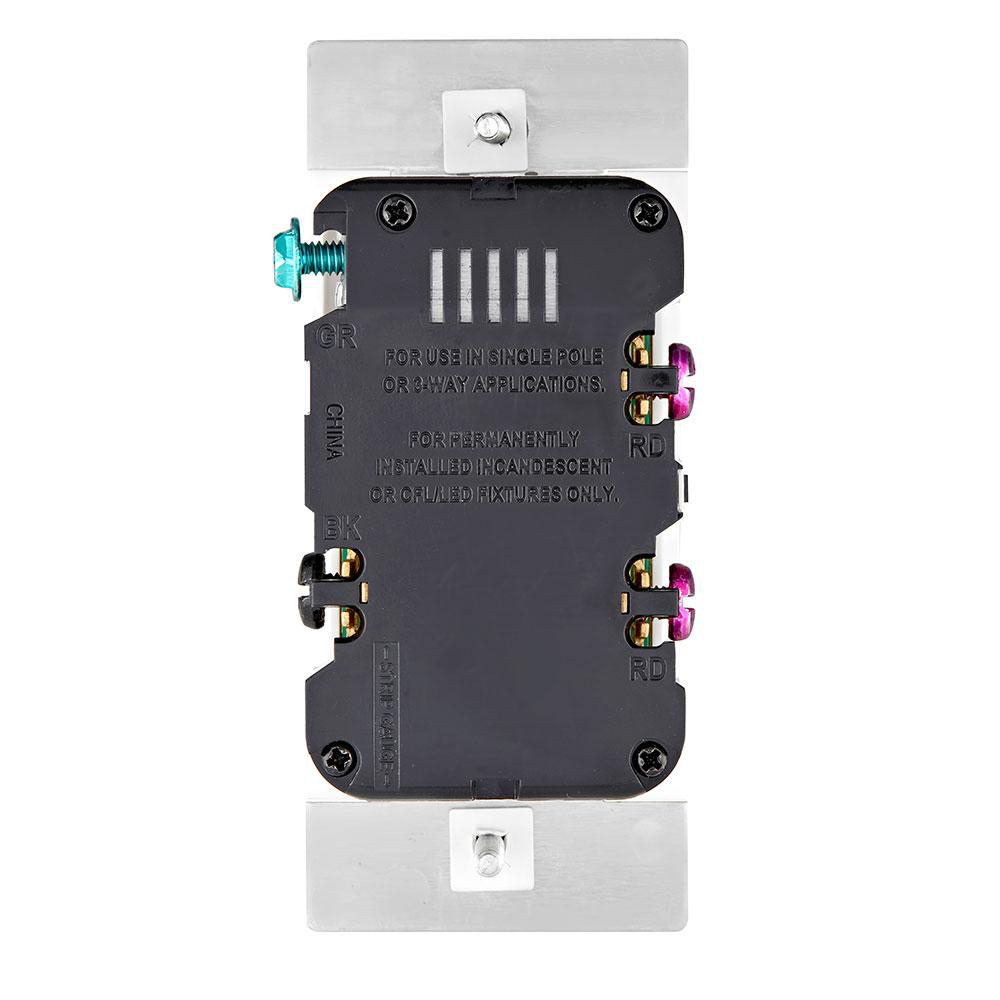

Toggle Slide Dimmer Switch for Dimmable LED, Halogen and Incandescent Bulbs

Manufacturer: Leviton Manufacturing | Catalog # TSL06-1LW | Electrozad South Part # 329956
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Installation / Instruction Manual MSDS | SDS Safety Sheet
Replace a wall light switch with a Toggle Slide dimmer switch. 300W LED, 600W incandescent/halogen, 60Hz, single pole or 3-way installation. Can be installed with or without a neutral wire, use with Toggle Wallplate sold separately ... White

Technical Information

Action
Toggle
Applications
For Residential Use
Frequency
60 Hz
Lamp Type
Incandescent, Halogen, Dimmable LED, Dimmable CFL
Power Rating
300 W (LED and CFL), 600 W (Incandescent and Halogen)
Standard
NOM,cCSAus
Style
Toggle Slide
Switch Type
3-Way,Single-Pole
Temperature Rating
0 - 55 degrees C
Torque
14 lb-in
Type
3-Way/1-Pole, Electromechanical
Voltage
120 V

Manufacturer Information

Brand
Leviton
Sub Brand
TOUCH DIMMERS

General Product Info

12-Digit UPC
078477771723
Color
White
Environmental Conditions
-20 to 90% Non-Condensing Relative Humidity
GTIN
00078477771723

Dimensions

Warranty Length
5 yr

Certifications & Compliance

Country of Origin
China
