Receptacle duplex heavy-duty 20A 125V ivory

Manufacturer: Leviton Manufacturing | Catalog # 16362-I | Electrozad South Part # 32851
*Call For Price*
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page MSDS | SDS Safety Sheet Technical Drawing

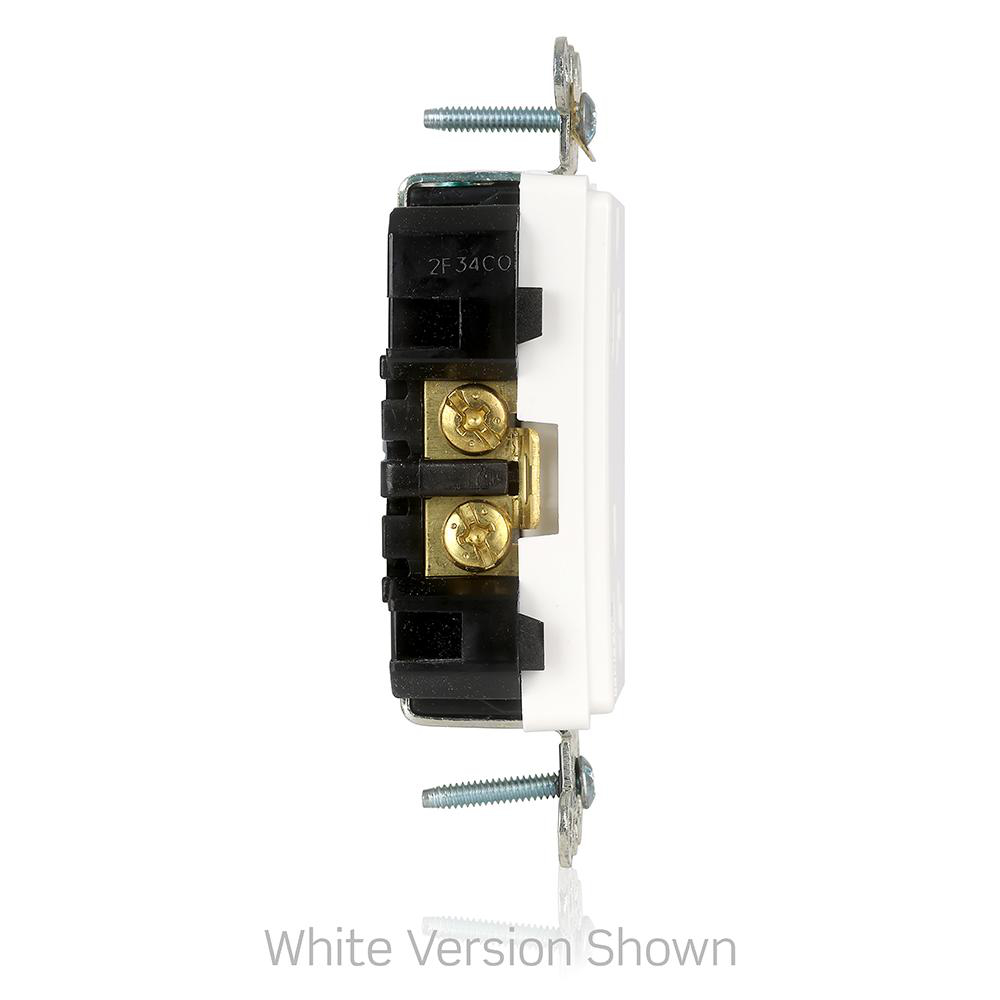

Decora Plus™ Back and side wired receptacle. Brass staked on self-grounding clip. Back and side wiring terminals permit fast installation of up to No.10 solid or stranded conductors. Triple-wipe copper alloy contacts ensure maximum conductivity. Backed by a limited 10-year warranty.

Technical Information

Amperage
20 A
Applications
Commercial
Body Material
Thermoplastic Nylon
Connection Type
Back And Side Wired
Device Type
Duplex Receptacle Outlet
Dielectric
2000 V
Dielectric Strength
2000 (Min.)
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grade
Heavy-Duty Industrial Specification
Grounding
Self-Grounding
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Wall Box
NEMA
WD-6
Number of Phases
1
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
46 H x 1.52 W x 1.14 D IN
Standard
ANSI C-73
TC Connection
Back & Side Wired
Temperature Rating
-40 to 60 degrees C
Temperature Rise
200 %
Termination Type
Back Wire,Side Wire
Type
Duplex Outlet,Straight Blade
Voltage
125 V
Wire Count
3
Wire Size
14 - 10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Decora Plus™

General Product Info

12-Digit UPC
078477819456
Color
Ivory
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTIN
00078477819456

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Please Contact Customer Service
