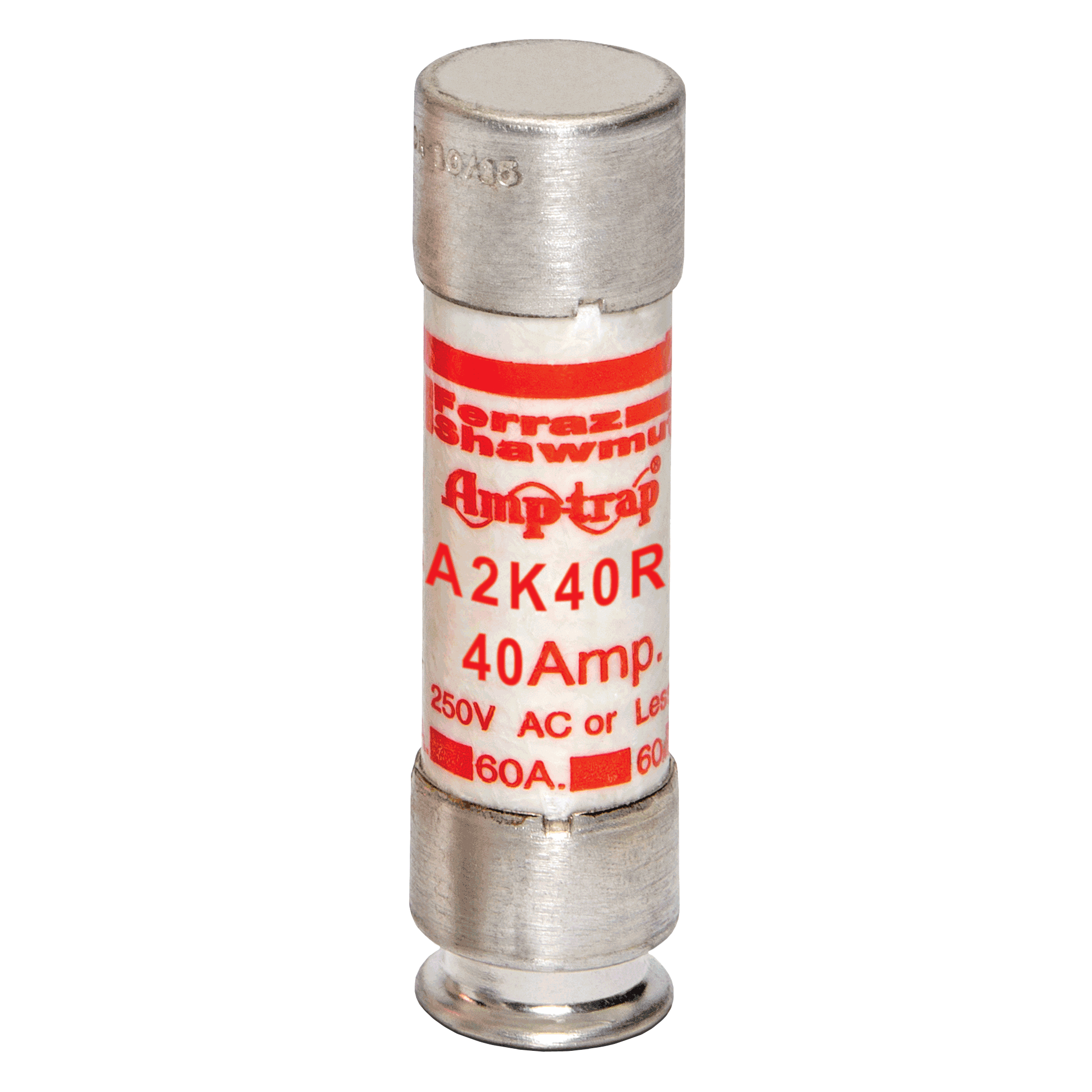

Fuse A2K-R - Class RK1 - Fast-Acting 250VAC 250VDC 40A Ferrule Amp-Trap®

Manufacturer: Ferraz Shawmut Mersen | Catalog # A2K40R | Electrozad South Part # 32847
*Call For Price*
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Technical Drawing
Current-limiting Amp-Trap A2K-R fuses provide excellent protection where high available short-circuit currents exist. These fast-acting fuses are particularly good for branch/feeder circuits and back-up protection.

Technical Information

Amperage
40 A
Applications
For Load Centers, Panelboards, Switchboards, Bus Duct Feeder Circuits, Non-Inductive Loads, Lighting Circuits
Connection Type
Ferrule
Frequency
50/60 Hz
Fuse Class
Class RK-1
Insulation Material
PolyTube
Interrupt Rating
200 kA
Mounting Type
Clip
Rated Voltage AC
250 V
Rated Voltage DC
250 V
TC Connection
Ferrule
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
Fast Acting

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001915131
Class
RK-1
GTIN
30782001915132
Weight
0.121 lb

Dimensions

Diameter
0.81 in
Length
3 in
