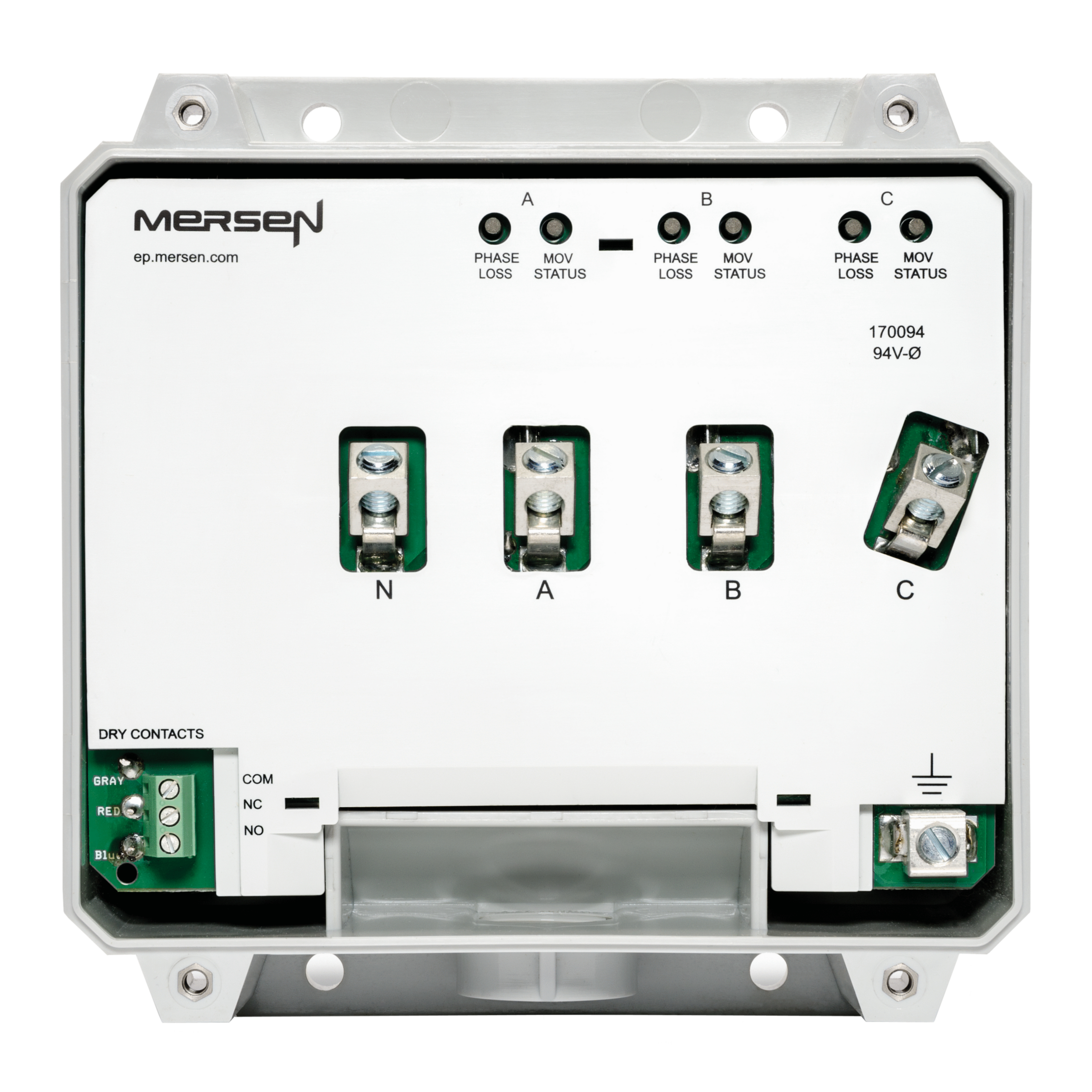

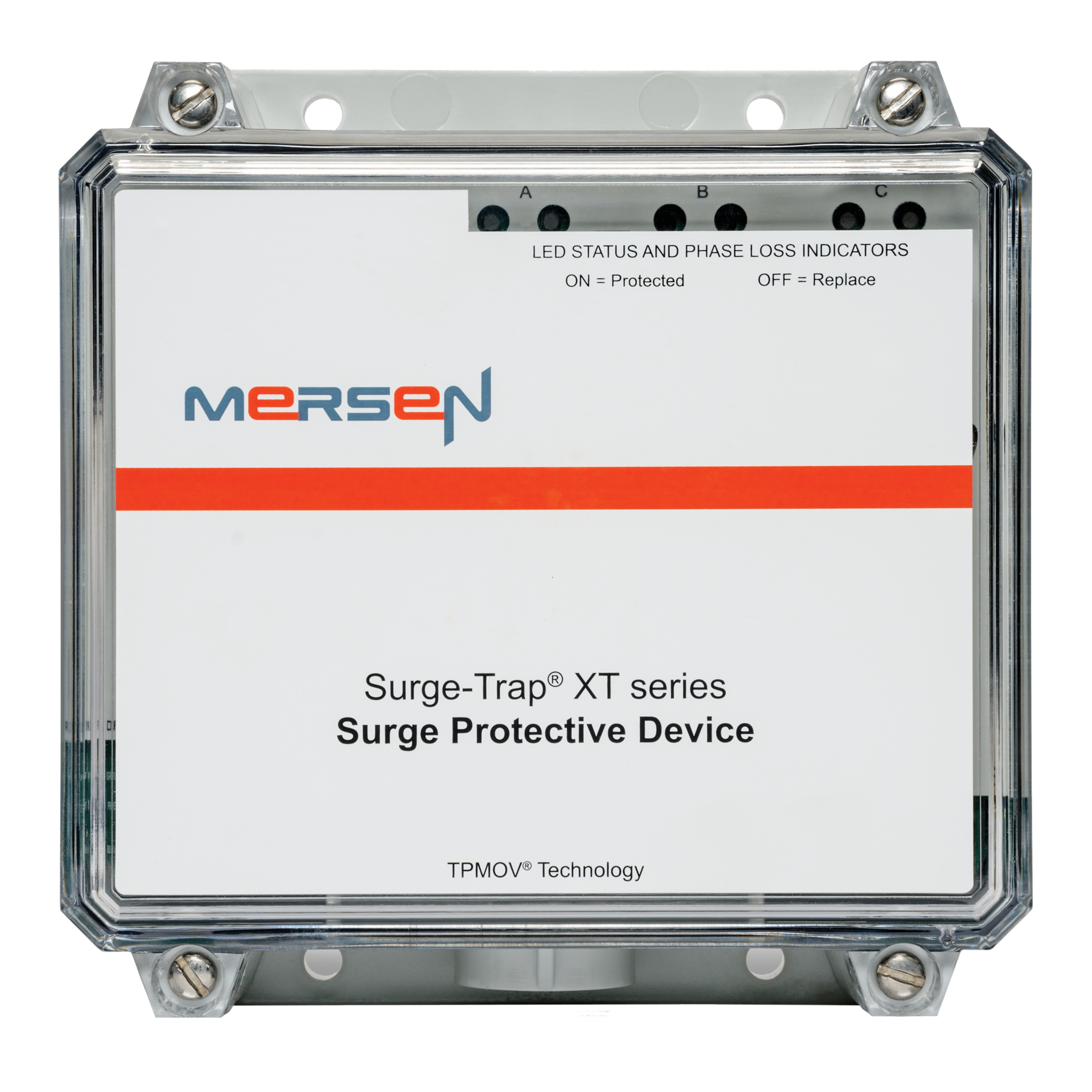

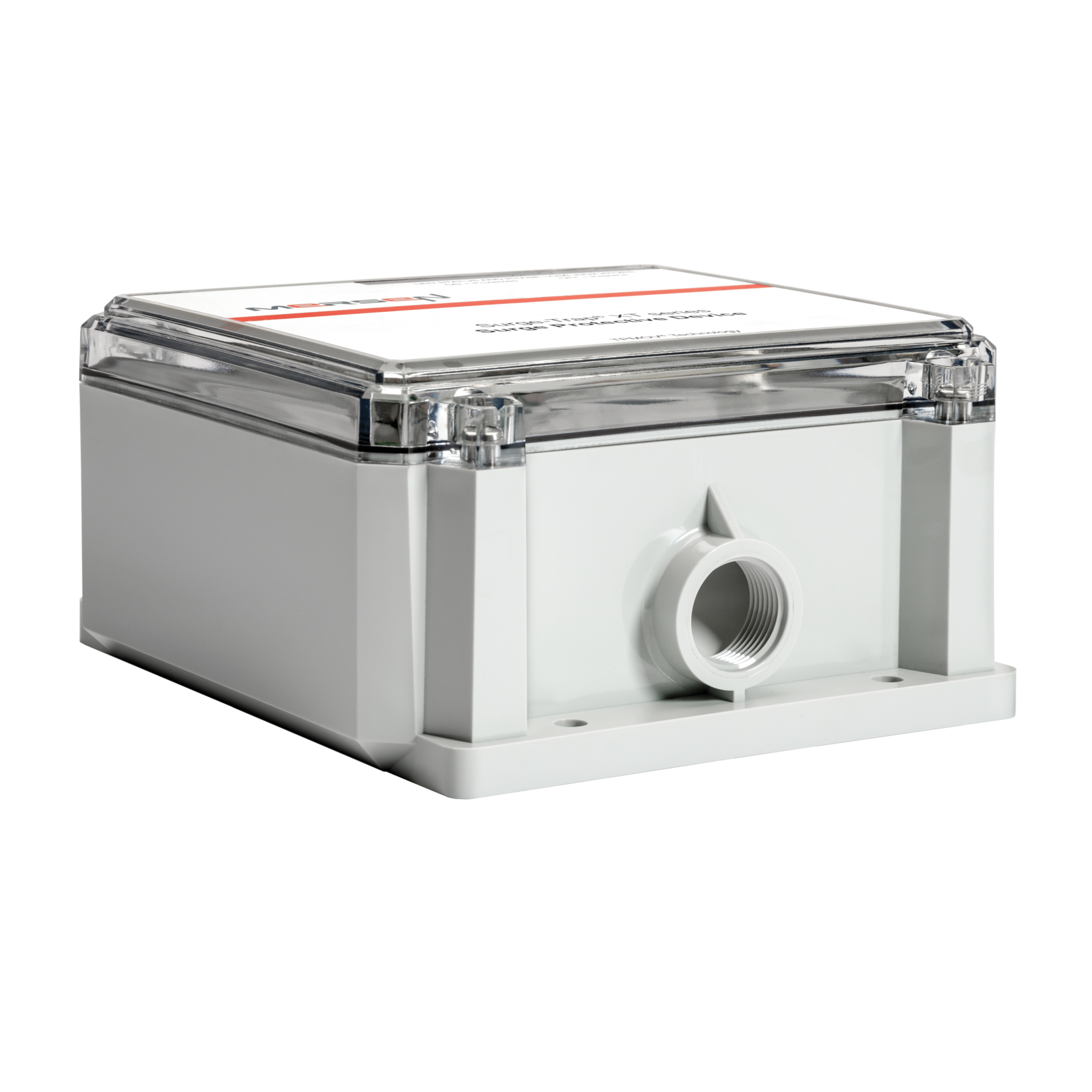

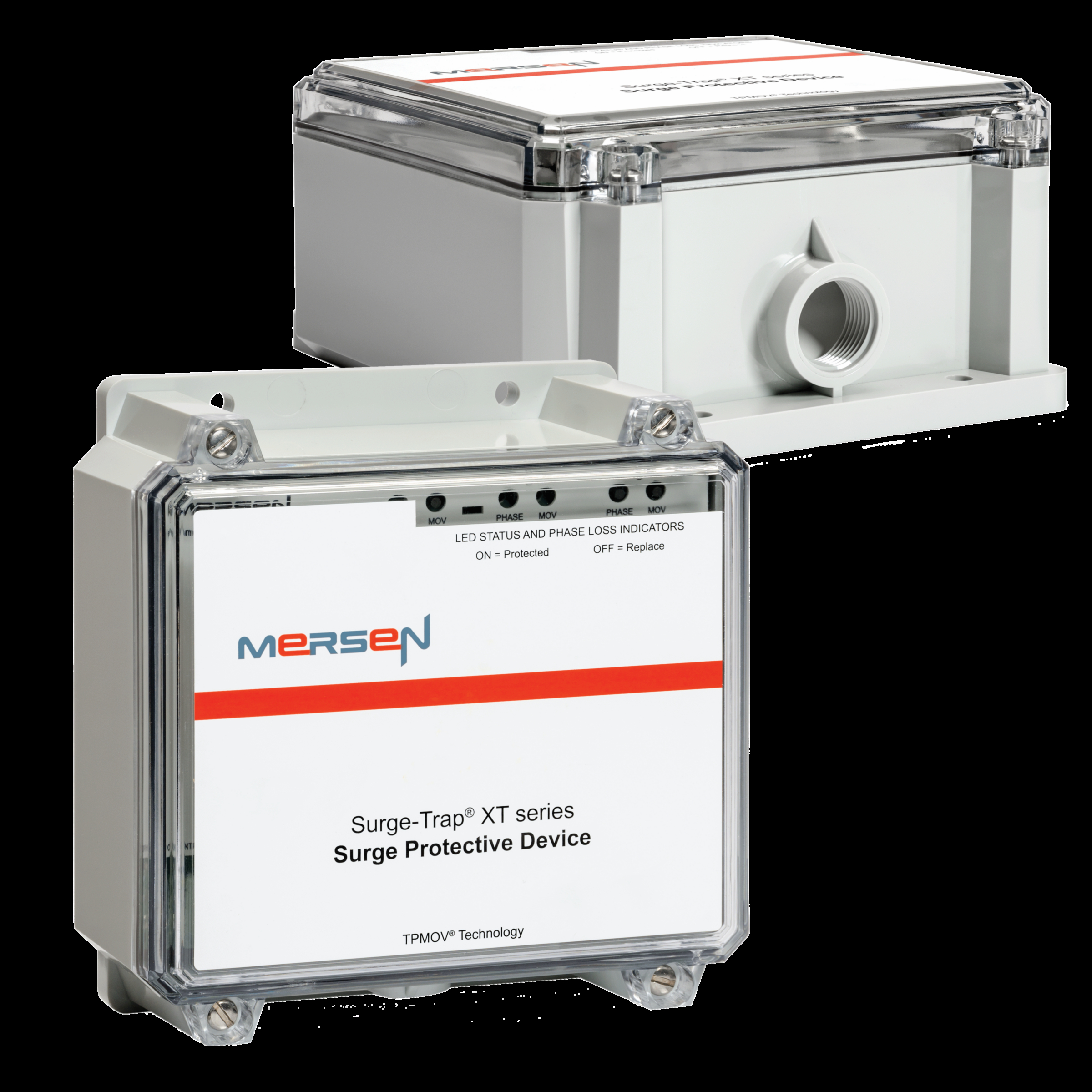

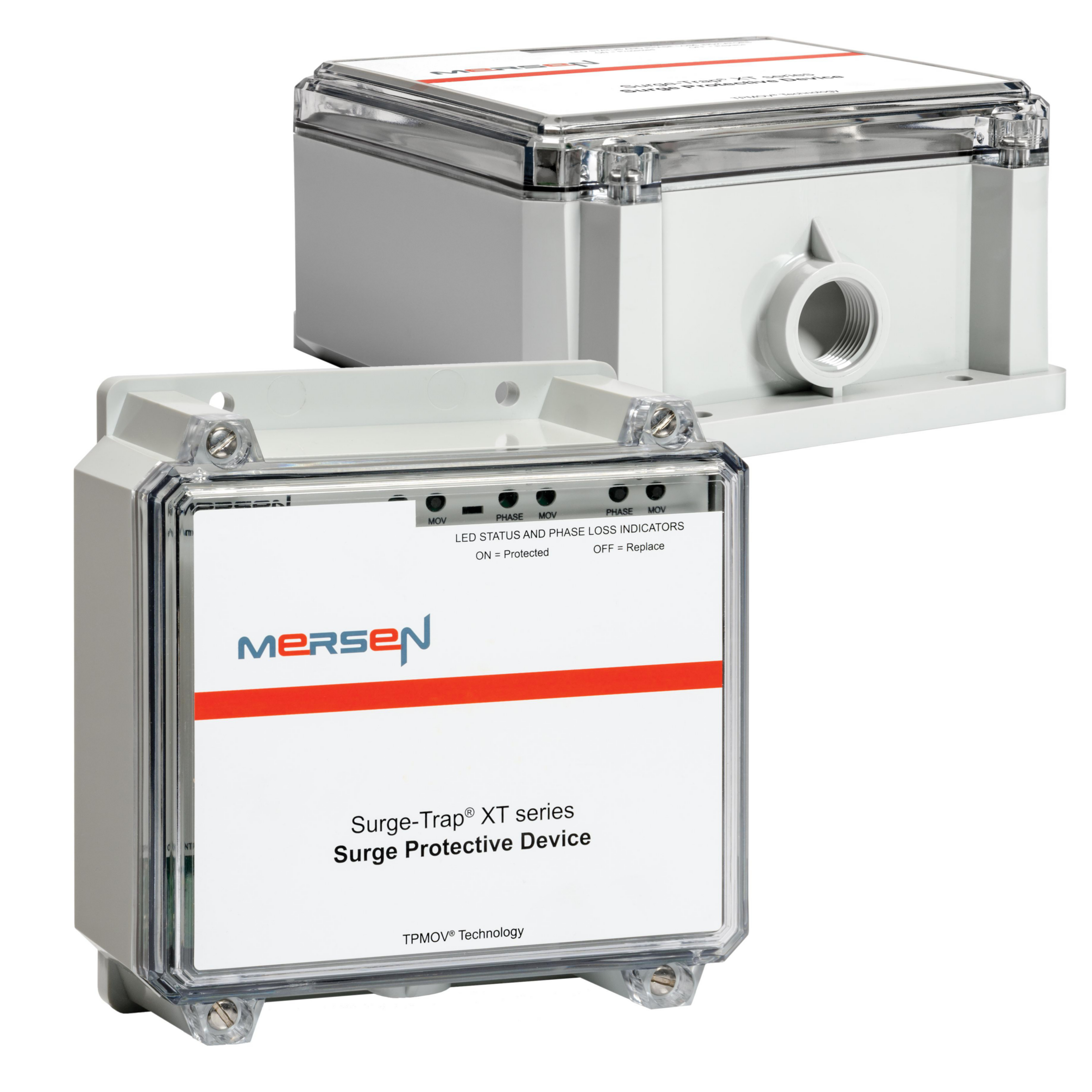

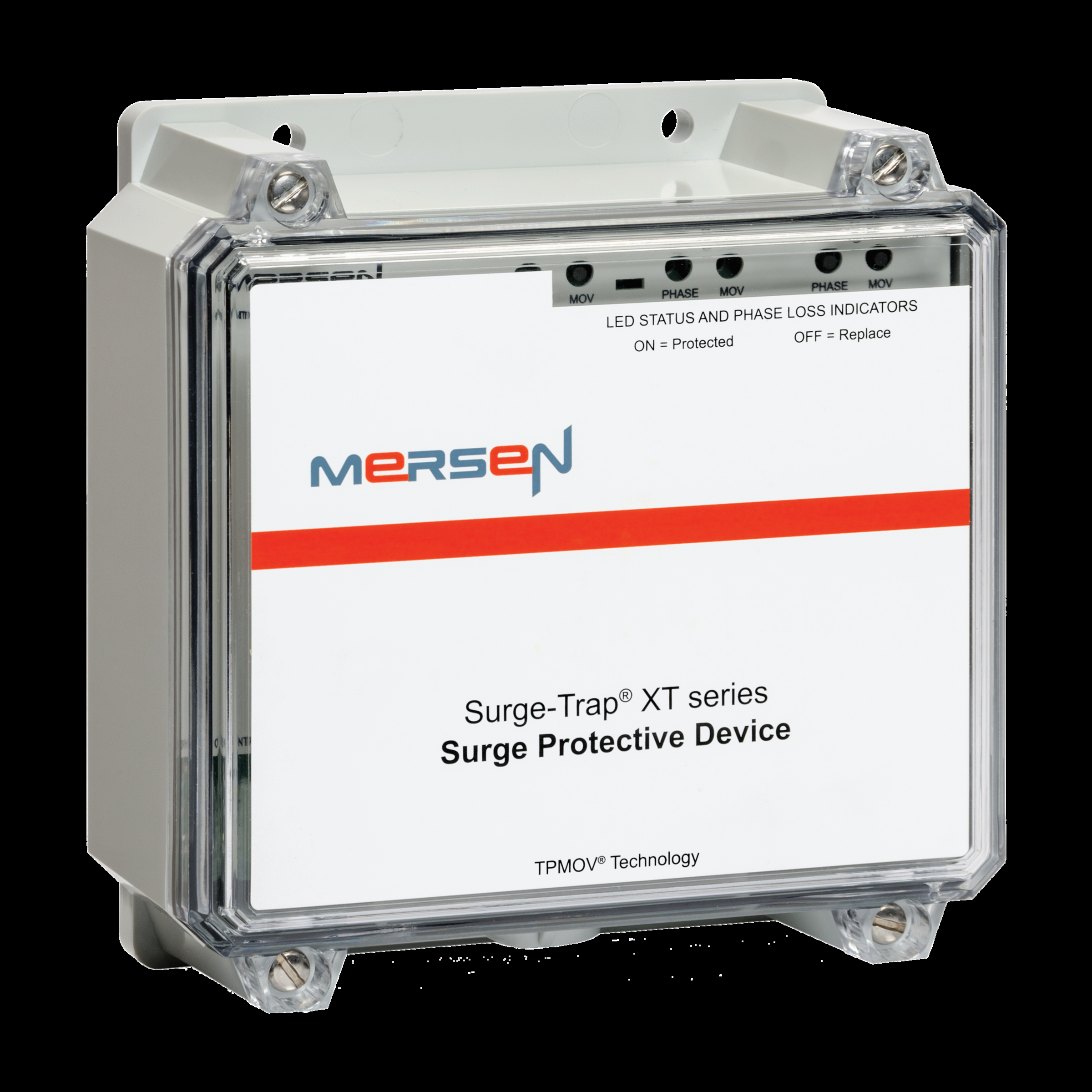

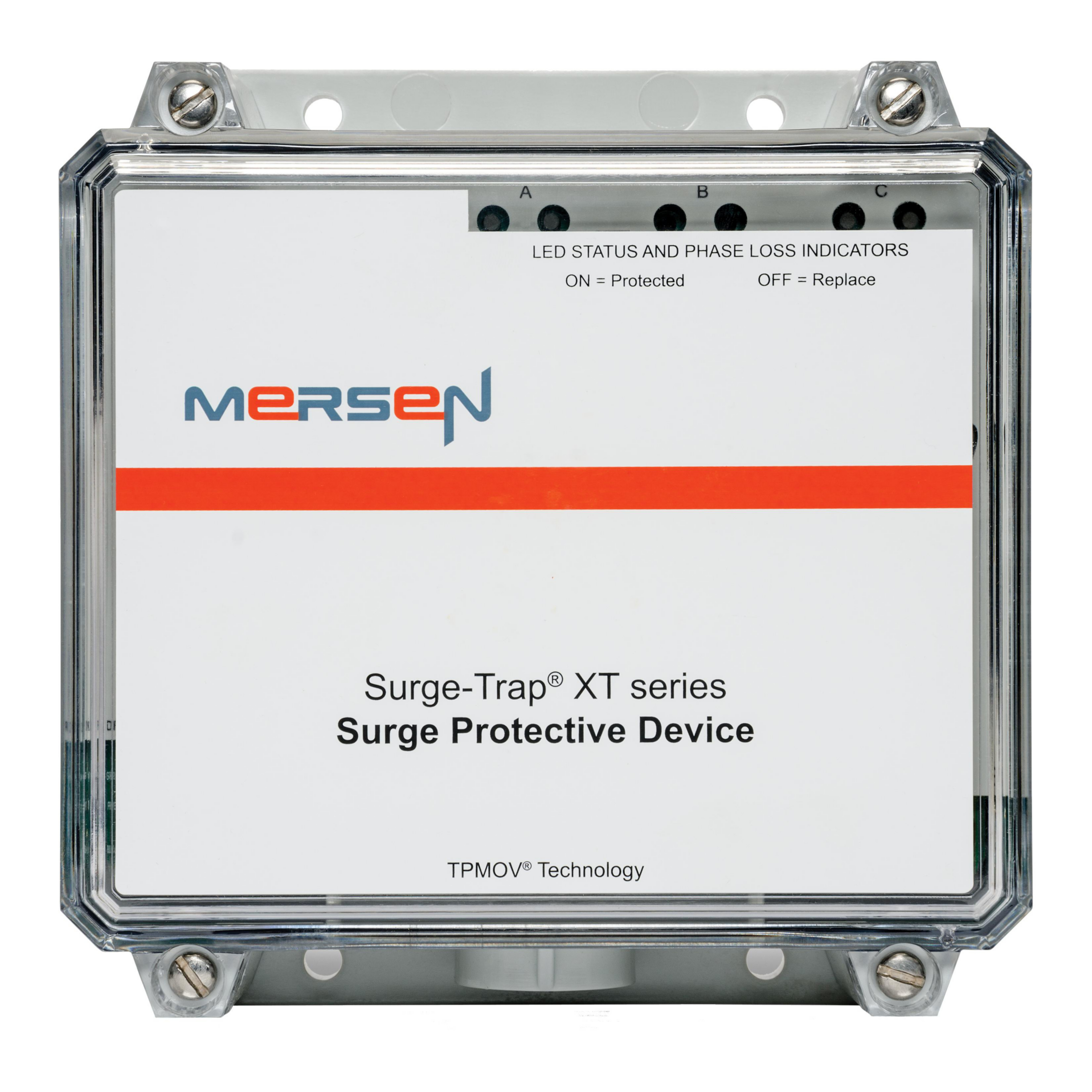

Product image for SPD - Type 1 ST-XT Series 600Y/347V L-L VPR 2500V L-L MCOV 840V 200 kA LED Ind
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
To:
CC:

SPD - Type 1 ST-XT Series 600Y/347V L-L VPR 2500V L-L MCOV 840V 200 kA LED Ind

Manufacturer: Ferraz Shawmut Mersen | Catalog # STXT600Y20 | Electrozad South Part # 328432
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
The most advanced of the STX series, the Surge-Trap® Type 1 STXT Series comes standard with EMI/RFI Filtering and surge capacities up to 200kA. The STXT features TPMOV® technology inside, making it the safest product available. With line or load side installation flexibility, this unit is a great fit from the service entrance all the way down to each distribution and/or branch panel.

Technical Information

Applications
For any Type 1 or 2 SPD Application
Connection Type
Box
Frequency
50 - 60 Hz
Max Discharge Current
200 kA
Max Operating Temperature
85 degrees C
Minimum Operating Temperature
-40 degrees C
Nominal Discharge Current
20 kA
Standard
ANSI/UL1449 3rd Edition,CULus Listed
TC Connection
Box
Terminal Type
Box

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001471194
GTIN
00782001471194
Housing Material
Polycarbonate
Weight
4.1 lb

Dimensions

Height
3.68 in
Length
7.4 in
Width
7.08 in

Certifications & Compliance

Country of Origin
Mexico
