Outdoor Ground Box

Manufacturer: Wiremold | Legrand | Catalog # XB814 | Electrozad South Part # 328324
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual CAD Drawing #1

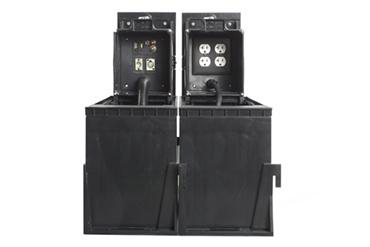

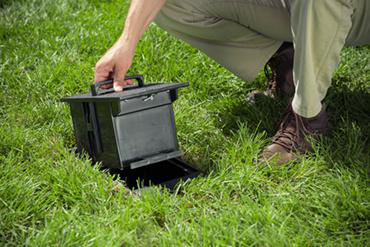

The single service 2-gang Outdoor Ground Box is made from a UV rated nonmetallic material and has been designed to withstand the harsh outdoor environments. The box can accept up to (2) 1 1/4'' trade size PVC conduit feeds. Boxes are designed to be installed separately or ganged together, for greater capacity and flexibility. They work with XB814 cover assemblies (sold separately).

Technical Information

Applications
For Outdoor Open Spaces Grass or Concrete or Pavers
Cable Entry
(2) 1-1/4 in Knockout
Enclosure Material
Type 6P
Load Capacity
5000.0 lb
Material
Non-Metallic
Mounting Type
Bury-In-Ground
Number of Gangs
2
Type
Assembled

Manufacturer Information

Brand
Wiremold
Sub Brand
Wiremold

General Product Info

12-Digit UPC
786776187182
Color
Black
Construction
Assembled
GTIN
00786776187182
Product Series
Outdoor Ground Box
Weight
9.4 lb

Dimensions

Height
10.75 in
Length
10-3/4 in
Warranty Length
1-Year From Installation Or 2-Years From Day Of Sale
Width
16 in

Certifications & Compliance

Certifications
CULUS,ROHS
Country of Origin
China
