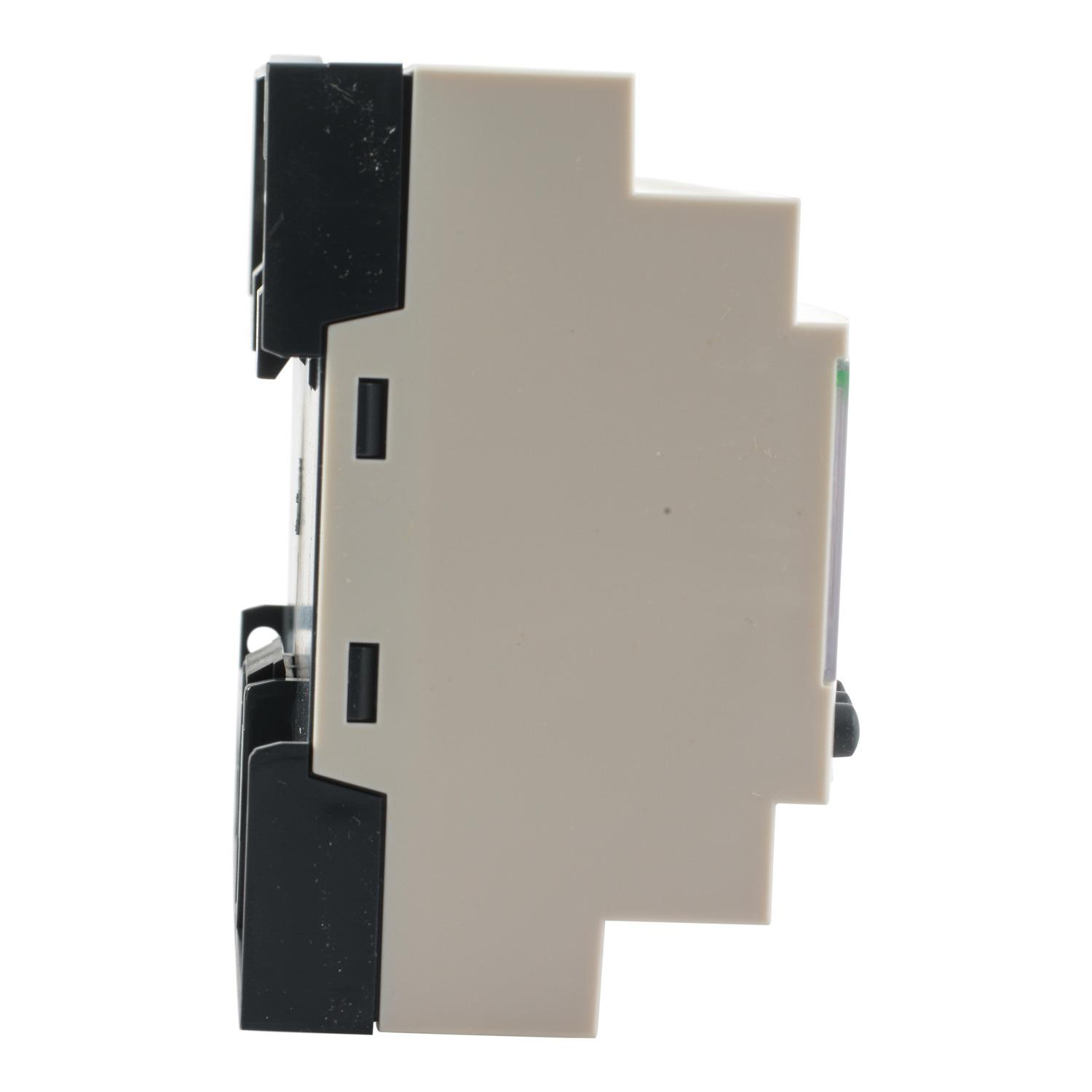

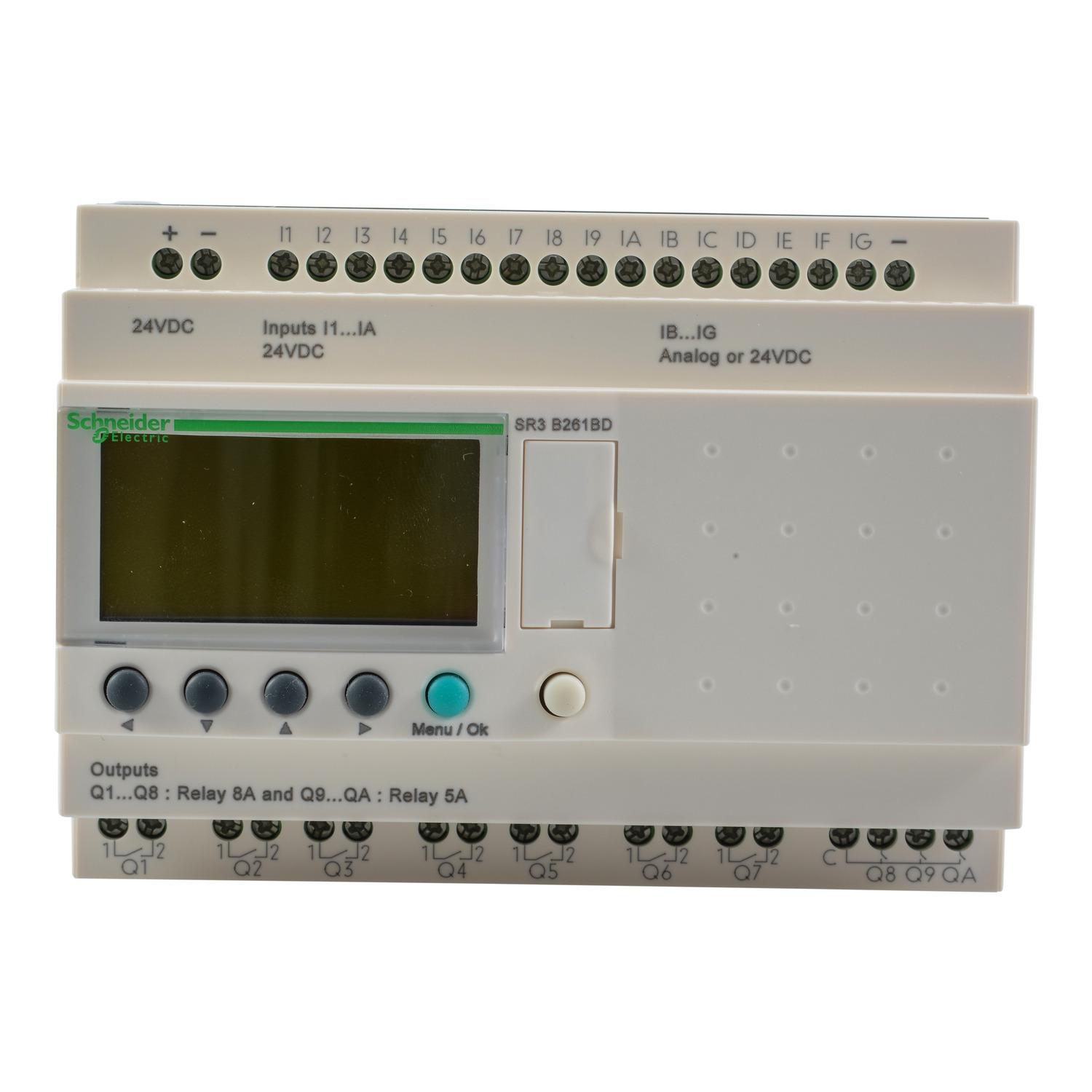

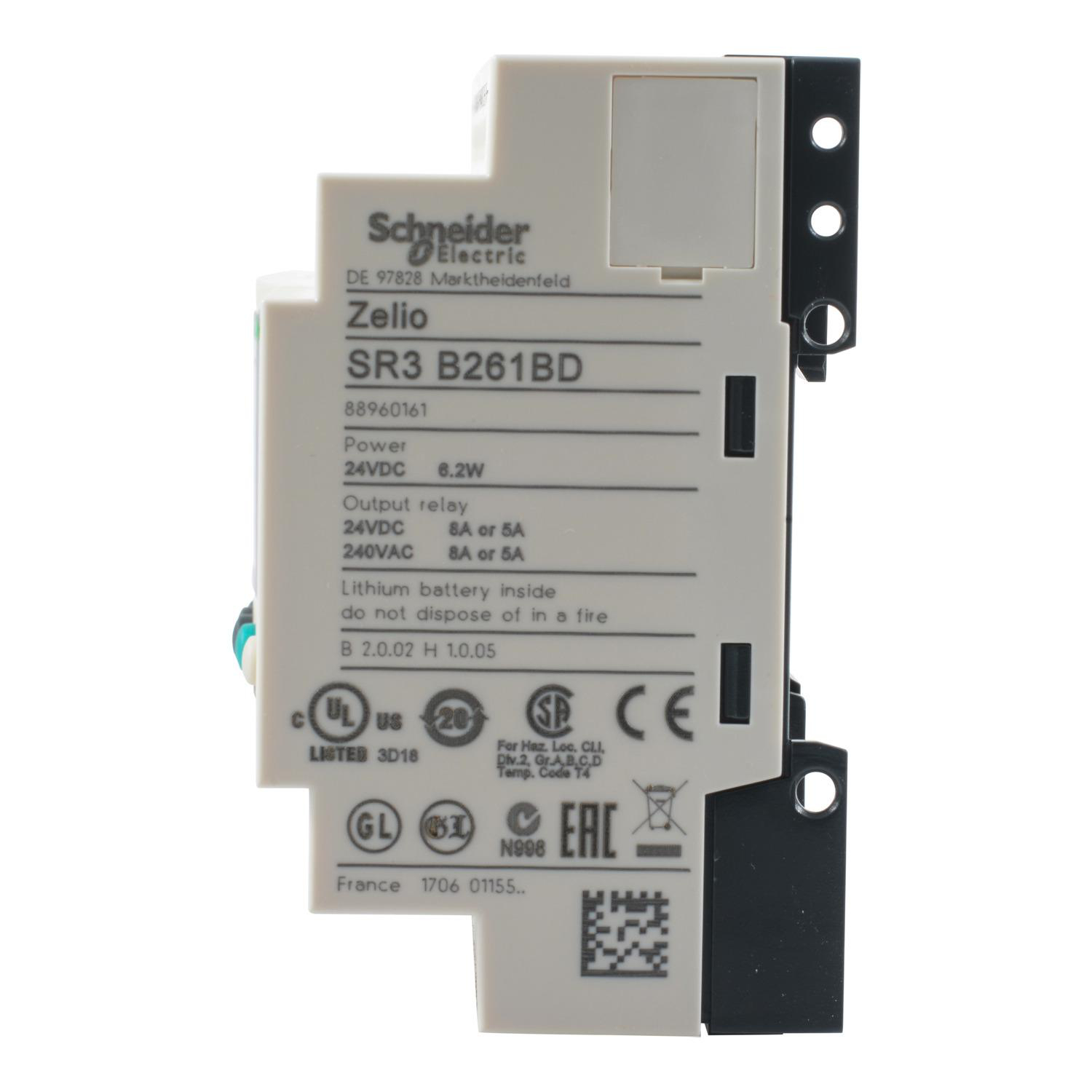

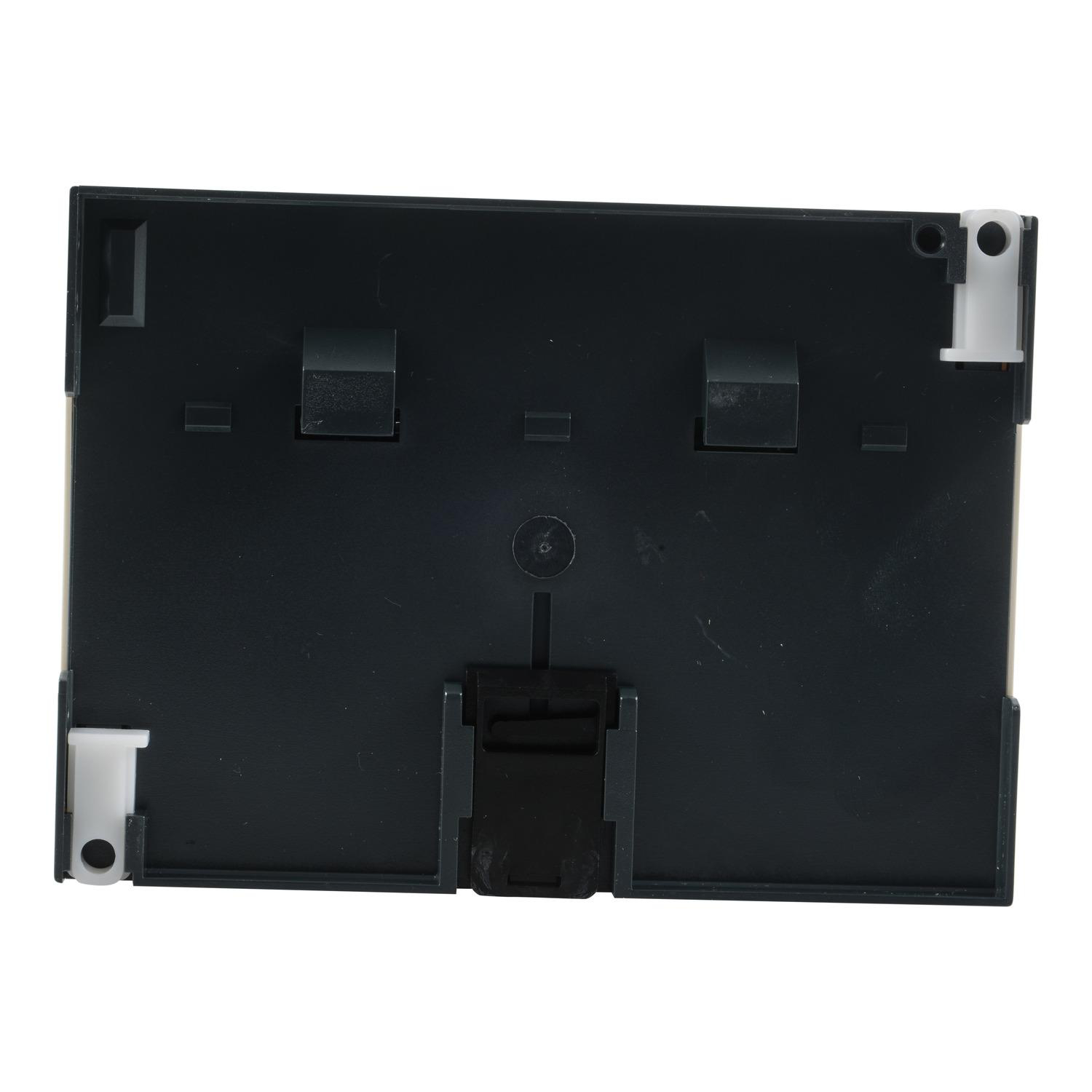

Product image for MODULAR SMART RELAY, ZELIO LOGIC SR2 SR3, 26 IO, 24V DC, CLOCK, DISPLAY, 10 RELAY OUTPUTS
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
To:
CC:

MODULAR SMART RELAY, ZELIO LOGIC SR2 SR3, 26 IO, 24V DC, CLOCK, DISPLAY, 10 RELAY OUTPUTS

Manufacturer: Schneider Kreuznach B & W | Catalog # SR3B261BD | Electrozad South Part # 326233
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 G USERS MANUAL URL
This Zelio Logic SR3 compact smart relay / programmable controller uses a supply voltage of 24V direct current. It has 26 inputs / outputs with screw-clamp terminals. It has compact design, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Its simple ladder programming makes it adapted for non-specialists.

Technical Information

Contact Configuration
NO RELAY OUTPUT
Contact Rating
>= 10 MA 12 V RELAY OUTPUT)
Enclosure
IP20 (TERMINAL BLOCK) CONFORMING TO IEC 60529-IP40 (FRONT PANEL) CONFORMING TO IEC 60529
Net Weight
0.4 kg
Number of Outputs
10 Relay
Operating Cycles
0.1 HZ AT IE)RELAY OUTPUT-10 HZ NO LOAD)RELAY OUTPUT
Operating Temperature
-20-40 degrees C In Non-ventilated Enclosure IEC 60068-2-1 And IEC 60068-2-2 || -20-55 degrees C IEC 60068-2-1 And IEC 60068-2-2
Size
MODULAR
Standard
IEC 60068-2-27 Ea,IEC 60068-2-6 Fc,IEC 61000-4-11,IEC 61000-4-12,IEC 61000-4-2 Level 3,IEC 61000-4-3,IEC 61000-4-4 Level 3,IEC 61000-4-5,IEC 61000-4-6 Level 3
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP
Type
Modular smart relay

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZELIO LOGIC 2

General Product Info

12-Digit UPC
338911054998
Environmental Conditions
EMC DIRECTIVE EN/IEC 61000-6-2-EMC DIRECTIVE EN/IEC 61000-6-3-EMC DIRECTIVE EN/IEC 61000-6-4-EMC DIRECTIVE EN/IEC 61131-2 ZONE B-LOW VOLTAGE DIRECTIVE EN/IEC 61131-2
GTIN
03389110549980
Weight
0.4 kg

Dimensions

Warranty Length
18 mth

Certifications & Compliance

Certifications
C-tick,CSA,GL,GOST,UL
Country of Origin
France
