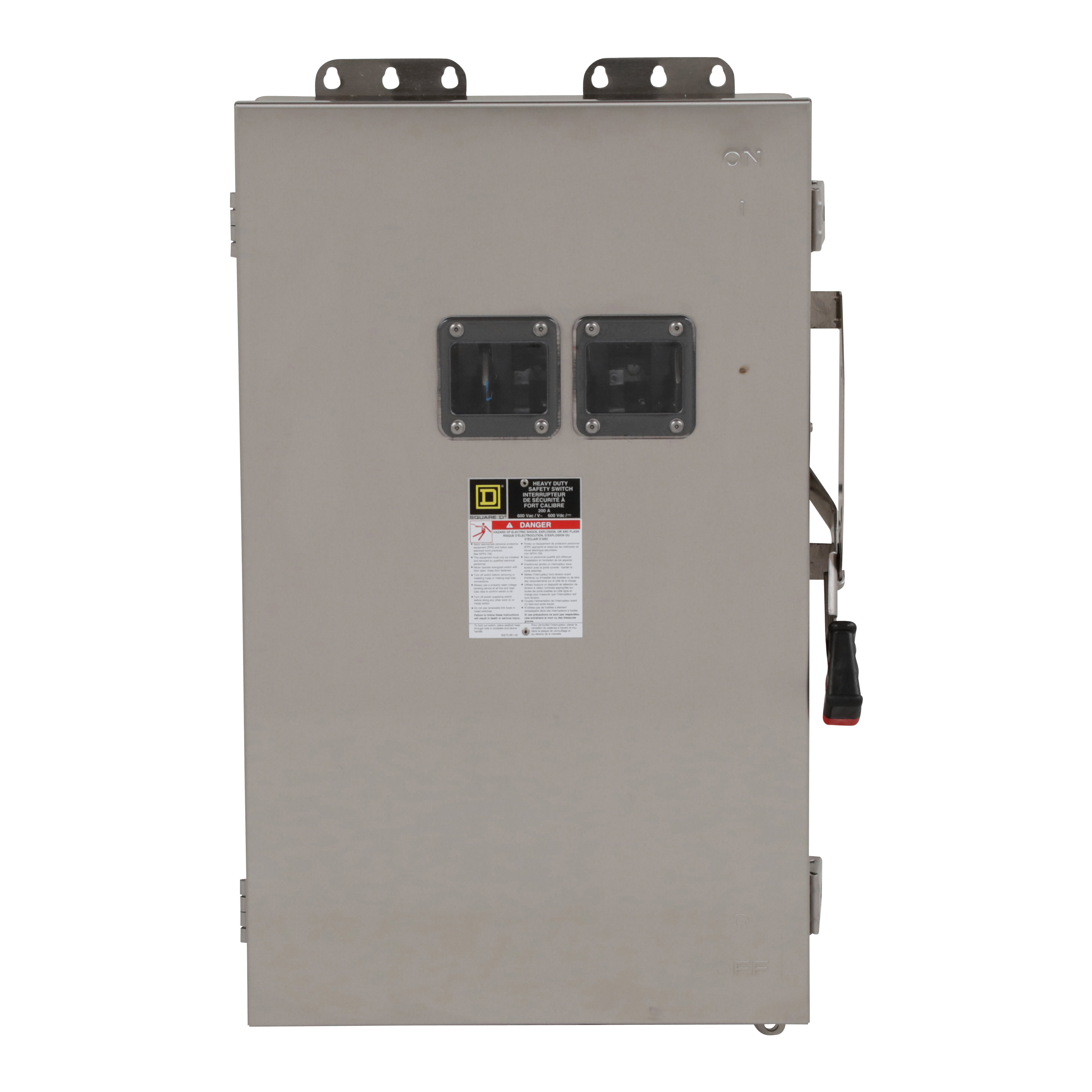

Image thumbnail 1

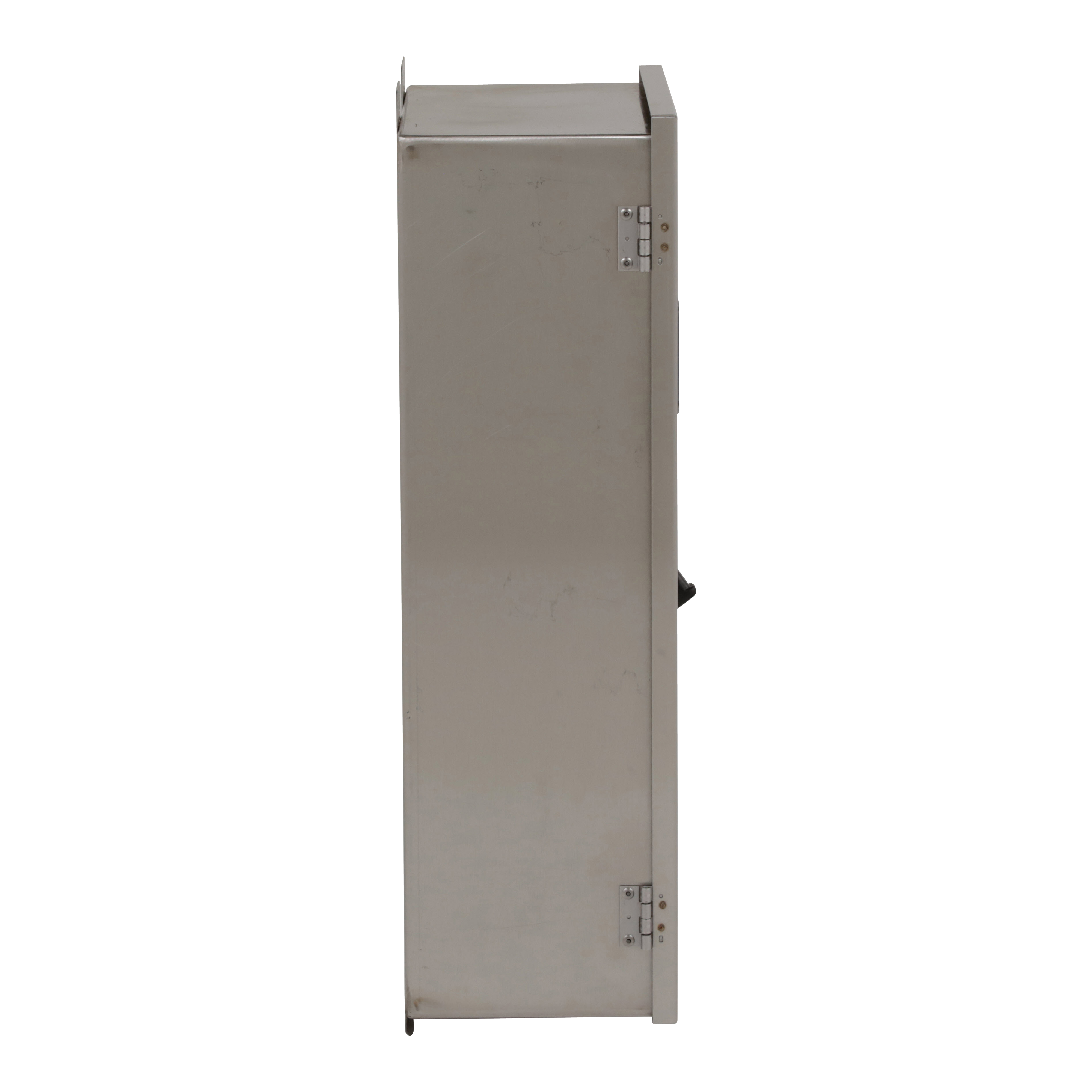

Image thumbnail 2

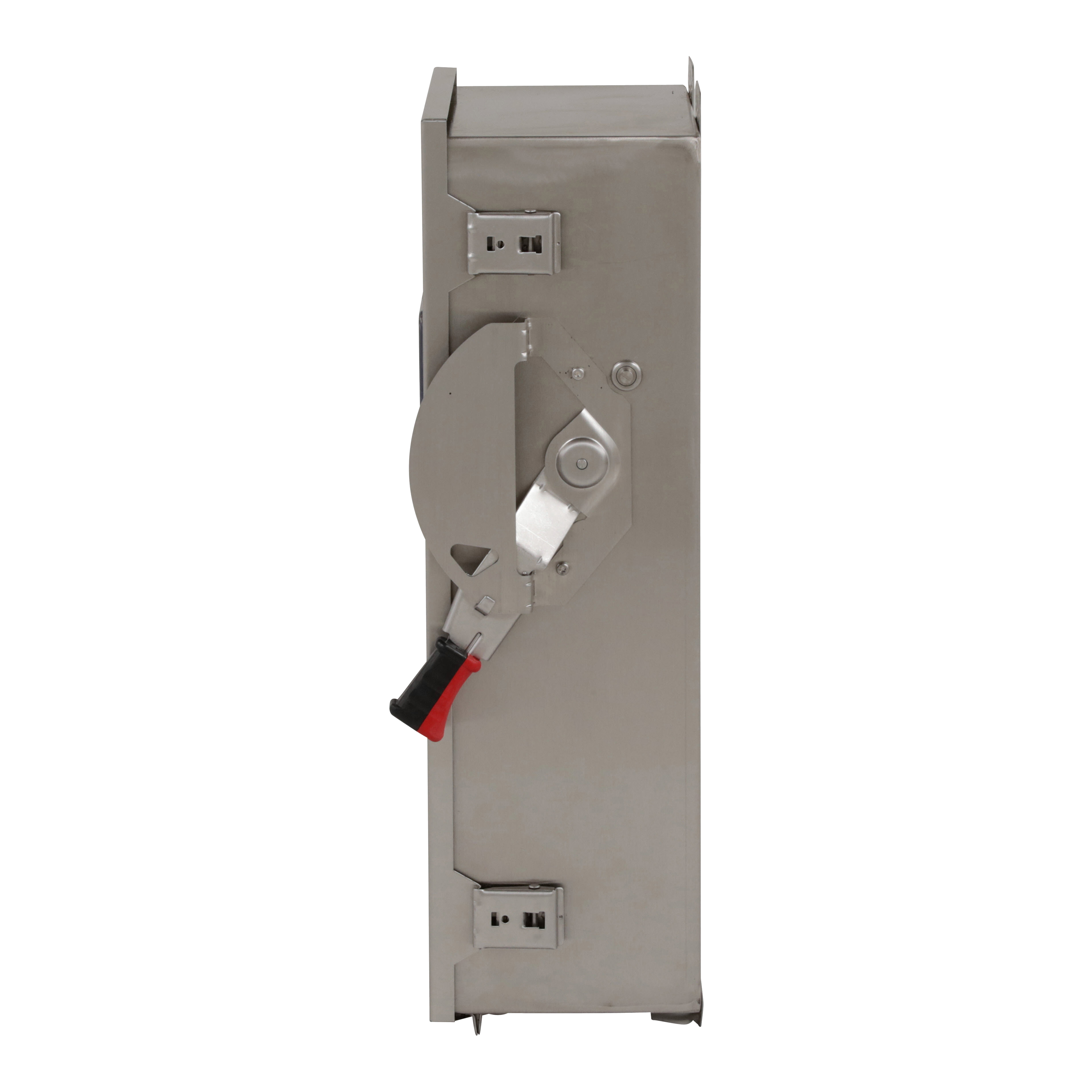

Image thumbnail 3
Image thumbnail 4

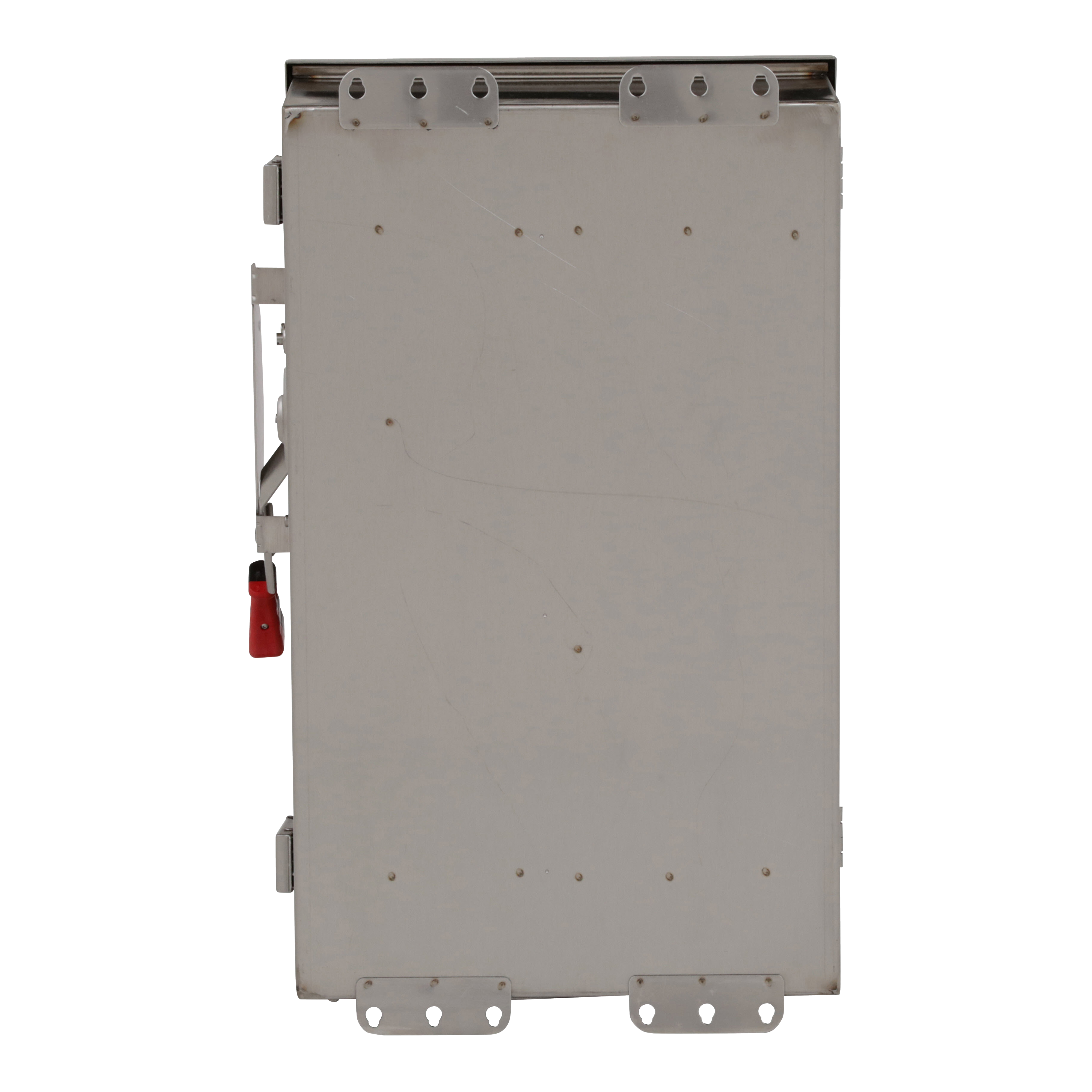

Image thumbnail 5
To:
CC:

SAFETY SWITCH, HEAVY DUTY, FUSIBLE, 200A, 600VAC/VDC, 3 POLES, 150HP, NEMA 4, 4X, 5, 304 STEEL

Manufacturer: Schneider | Square D | Catalog # CH364DS | Electrozad South Part # 325369
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual
Safety switch, heavy duty, fusible, 200A, 600VAC/VDC, 3 poles, 150HP, NEMA 4, 4X, 5, 304 steel

Technical Information

Applications
HEAVY DUTY
Disconnect Type
Fusible disconnect
Duty Rating
Heavy duty
Enclosure
4,4X
Enclosure Material
Stainless Steel
Line Rated Current
200 A
Mounting Type
Surface
Number of Poles
3
Size
19.25 IN,29 IN,8.88 IN
TC Connection
AWG 6...250 KCMIL COPPER OR ALUMINIUM,LUGS
Type
SINGLE THROW SAFETY SWITCH,FUSIBLE DISCONNECT
Voltage
600 V
Wire Size
AWG 6...250 kcmil copper or aluminium

Manufacturer Information

Brand
Square D
Sub Brand
HEAVY DUTY

General Product Info

12-Digit UPC
785901995418
GTIN
00785901995418

Dimensions

Depth
8.88 in
Height
29 in
Width
19.25 in

Certifications & Compliance

Certifications
CSA
Country of Origin
USA
