UL 98 Non-Fusible Switch 600VAC 60A 3-Pole Configuration: Door Mount | Electrozad South

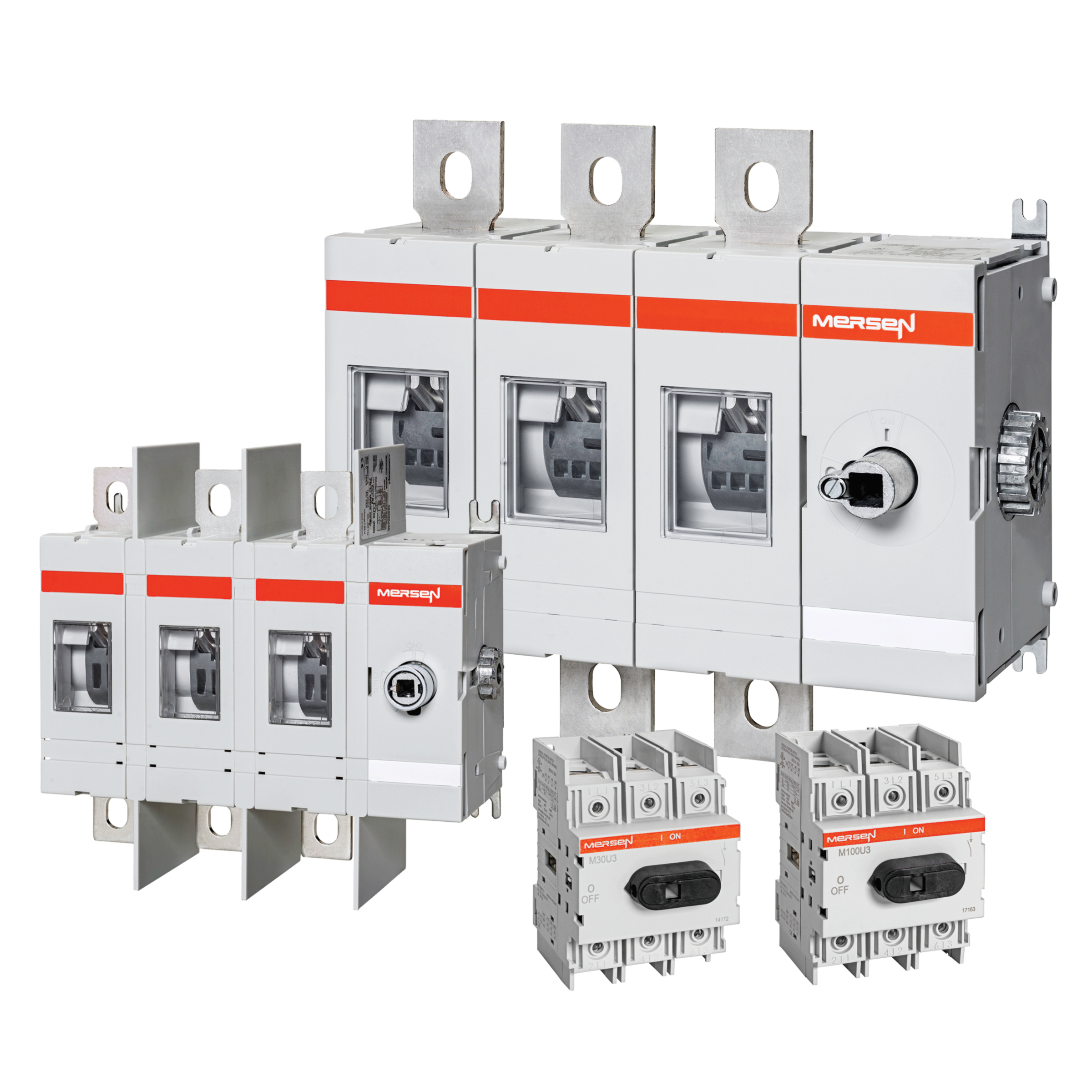

Product image for UL 98 Non-Fusible Switch 600VAC 60A 3-Pole Configuration: Door Mount
Image thumbnail 0
Image thumbnail 1
To:
CC:

UL 98 Non-Fusible Switch 600VAC 60A 3-Pole Configuration: Door Mount

Manufacturer: Ferraz Shawmut Mersen | Catalog # M60U3DM | Electrozad South Part # 325366
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Mersen disconnect switches are extremely durable and versatile. These heavy-duty switches are designed with the most up-to-date disconnect switch technology available. Designed to suit the UL98 standard, the switch gives you a product that makes and breaks power circuits on load. The switches are tested and approved for use in demanding applications, such as Service Entrance.

Technical Information

Amperage
60 A
Connection Type
Box
Max Operating Temperature
40 degrees C
Minimum Operating Temperature
-5 degrees C
Mounting Type
Panel Mount
Number of Poles
3
Rated Insulation Voltage
750 V
Rated Voltage AC
600 V
Rated Voltage DC
0 V
Short Circuit Current Rating
150000 A
Terminal Material
Silver-Plated Copper
Terminal Type
Box
Torque
55 lb-in
Torque Rating
55 lb-in
Voltage
600 V

Packaging

Package Qty
1

General Product Info

12-Digit UPC
3605340557329
GTIN
33605340557320
Weight
0.88 lb

Dimensions

Height
2.62 in
Length
3.94 in
Width
2.76 in

Certifications & Compliance

Country of Origin
Finland
