POWER DISTRIBUTION BLOCK, LINERGY, 3 POLE, 2 LINE, 12 LOAD,760A CU, 600V

Manufacturer: Schneider | Square D | Catalog # 9080LBC365212 | Electrozad South Part # 322721
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Technical Drawing

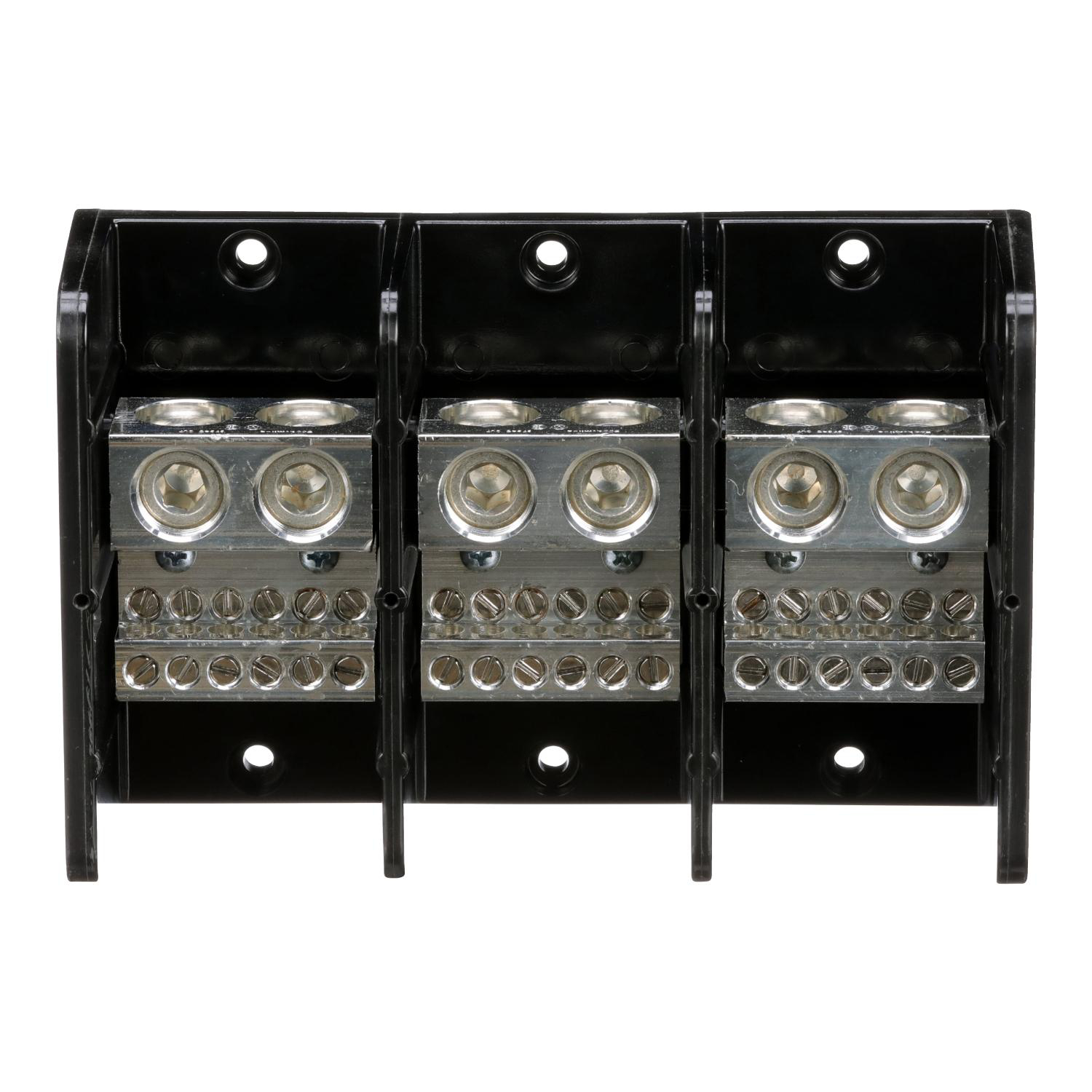

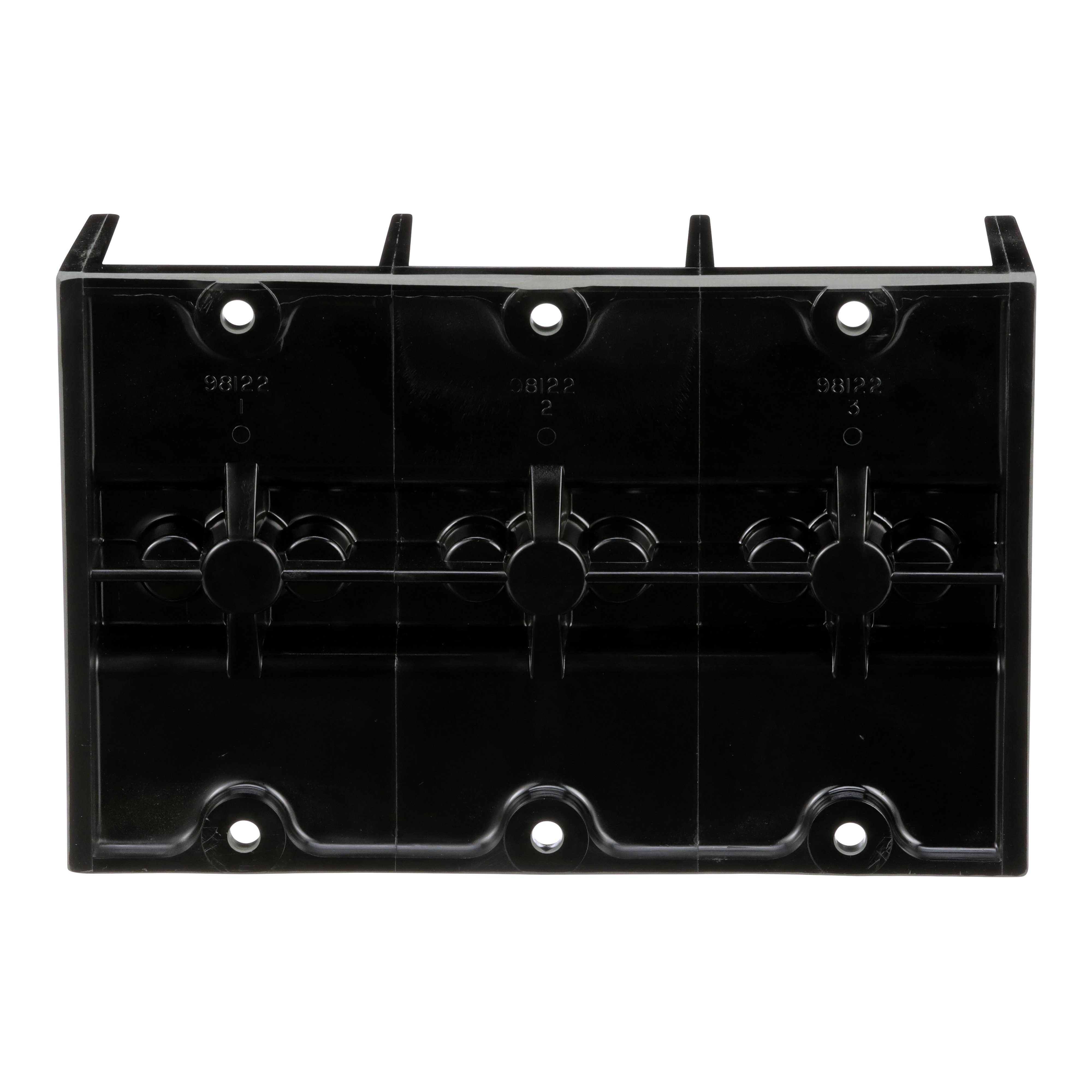

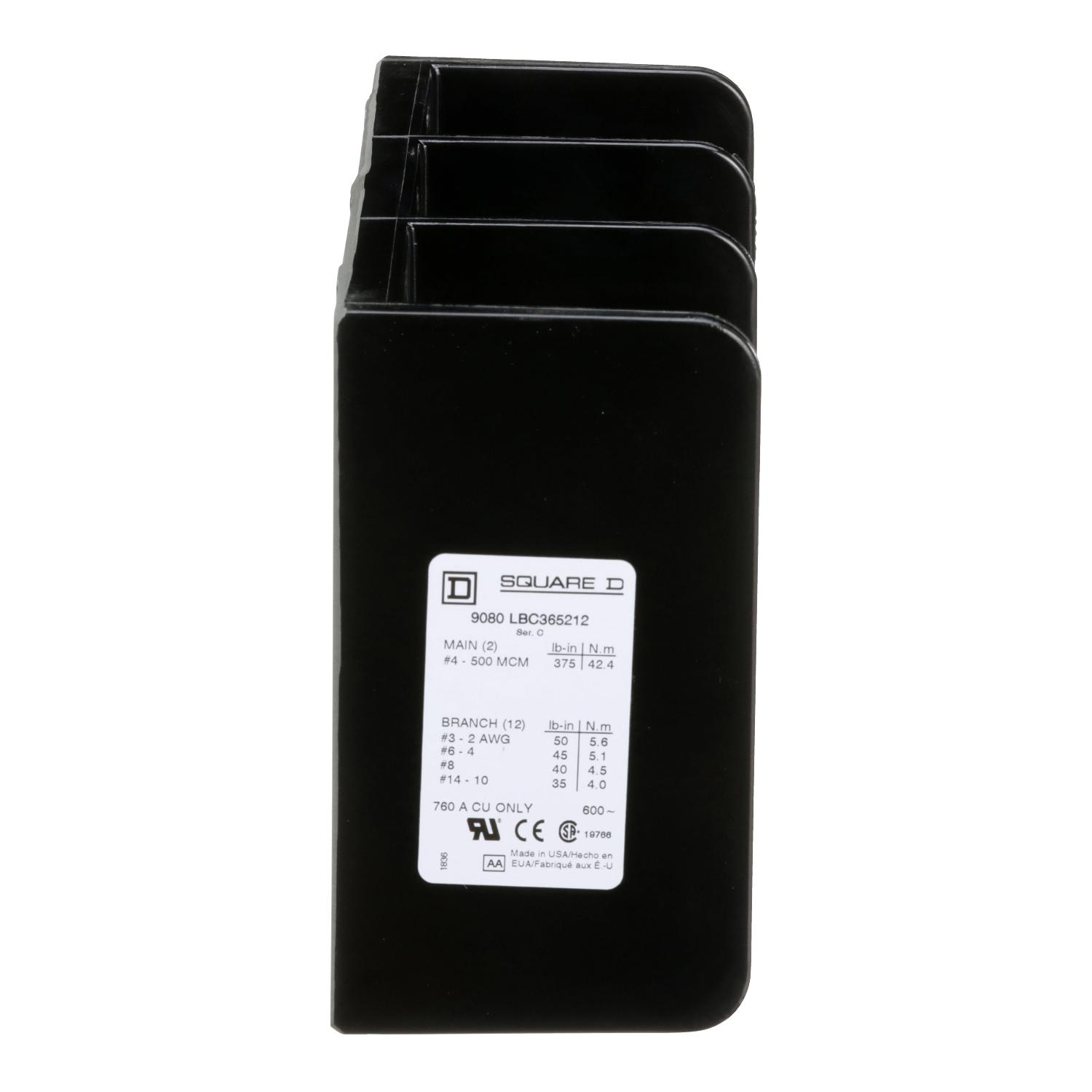

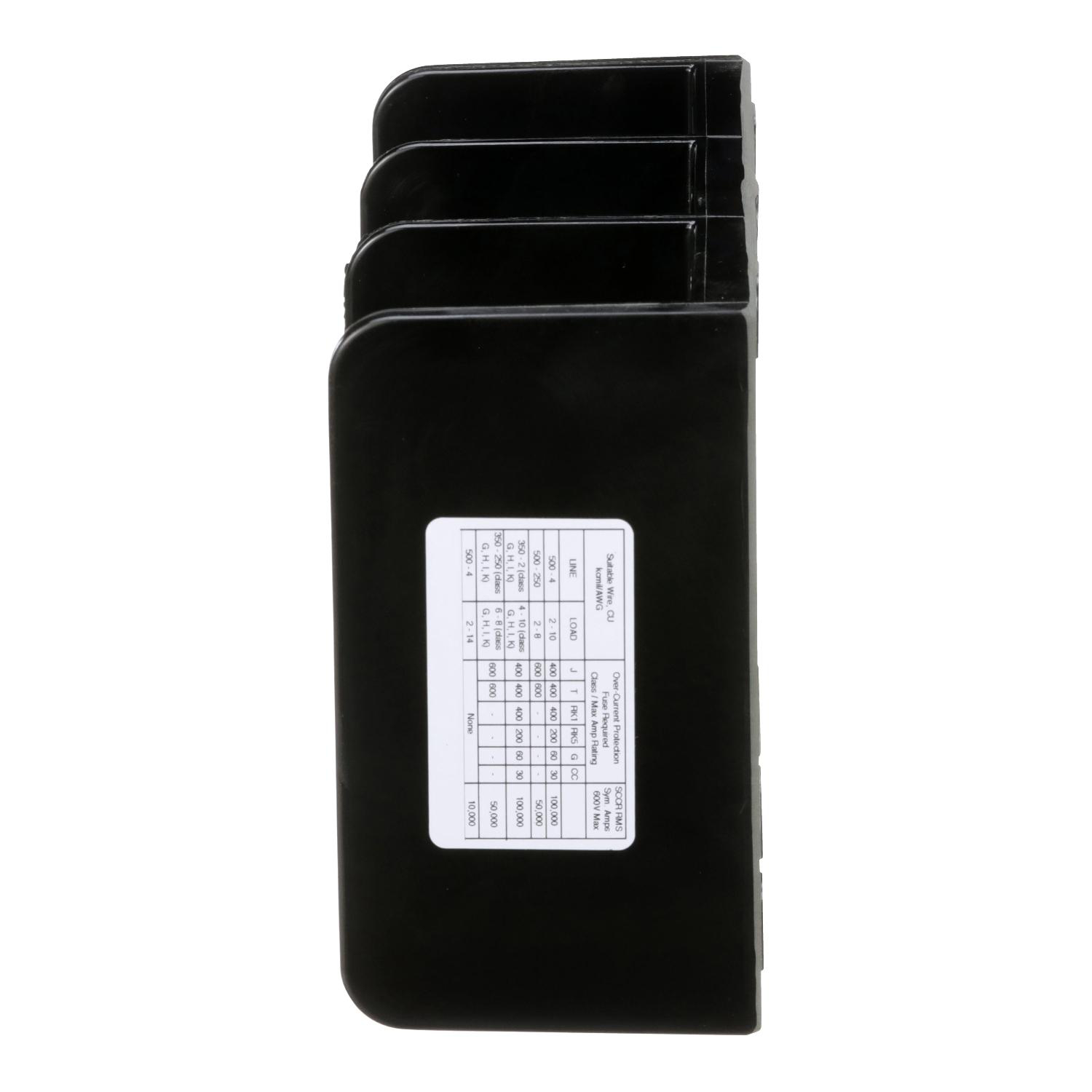

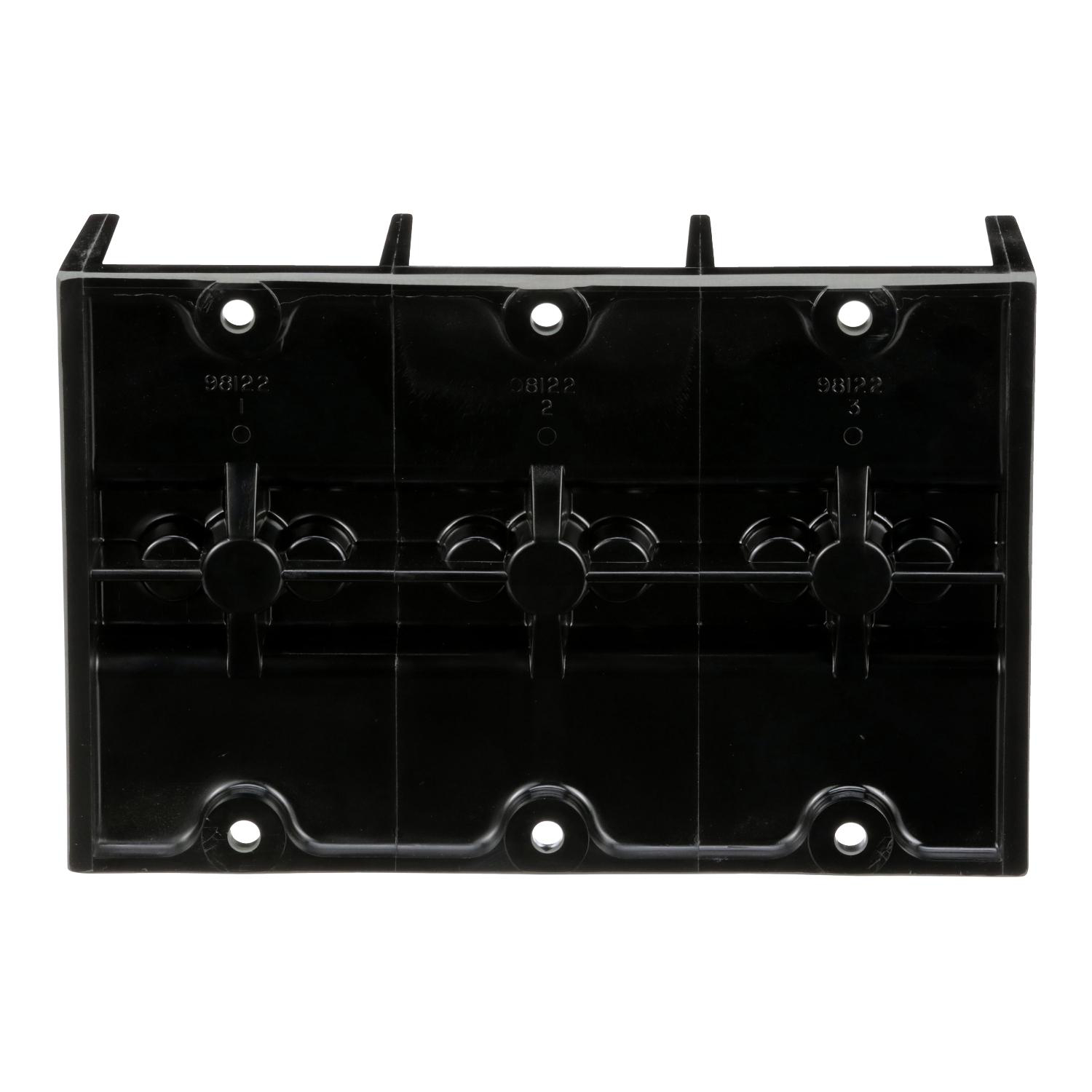

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has two lug openings on the line (main) side and twelve lug openings on the load (branch) side. The line side lug is rated to accept one 6 to 500 kcmil copper wire. The load side lug is rated to accept one 14 to 2 copper wire. The lugs are made of copper. The lugs are rated for 760 amperes with copper wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Technical Information

Applications
9080LB,9080LB53
Current
760 A
Line Rated Current
760-760 A
Material
Phenolic: Block
Mounting Type
Surface Mount
Number of Poles
3
Number of Terminations
12,3
Operating Temperature
-40-302 degrees F
Size
3.13 in
Strip Length
0.63 in
TC Connection
LOAD LUG 40 LBF.IN AWG 8 COPPER-LOAD LUG 35 LBF.IN AWG 14...AWG 10 COPPER-LINE LUG 375 LBF.IN AWG 4...500 KCMIL COPPER-LOAD LUG 50 LBF.IN AWG 2 COPPER-LOAD LUG 45 LBF.IN AWG 6...AWG 4 COPPER,TIN PLATED COPPER LUGS
Type
Power Distribution Block
Voltage
600 V
Wire Size
Line 2, AWG 4...500 kcmil, copper;Load 12, AWG 14...AWG 2, copper

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901097709
GTIN
00785901097709

Dimensions

Depth
3.13 in
Height
5.5 in
Warranty Length
18 mth
Width
3.17 in

Certifications & Compliance

Certifications
CE,CSA File 70361 Class 6228 01,UL Recognized E60616 CCN XCFR2
Country of Origin
USA
