INDICATOR BANK, HARMONY XVB, ILLUMINATED UNIT, PLASTIC, BLUE, 70MM, STEADY, INTEGRAL LED, 24V AC/DC

Manufacturer: Schneider Kreuznach B & W | Catalog # XVBC2B4 | Electrozad South Part # 321973

*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days

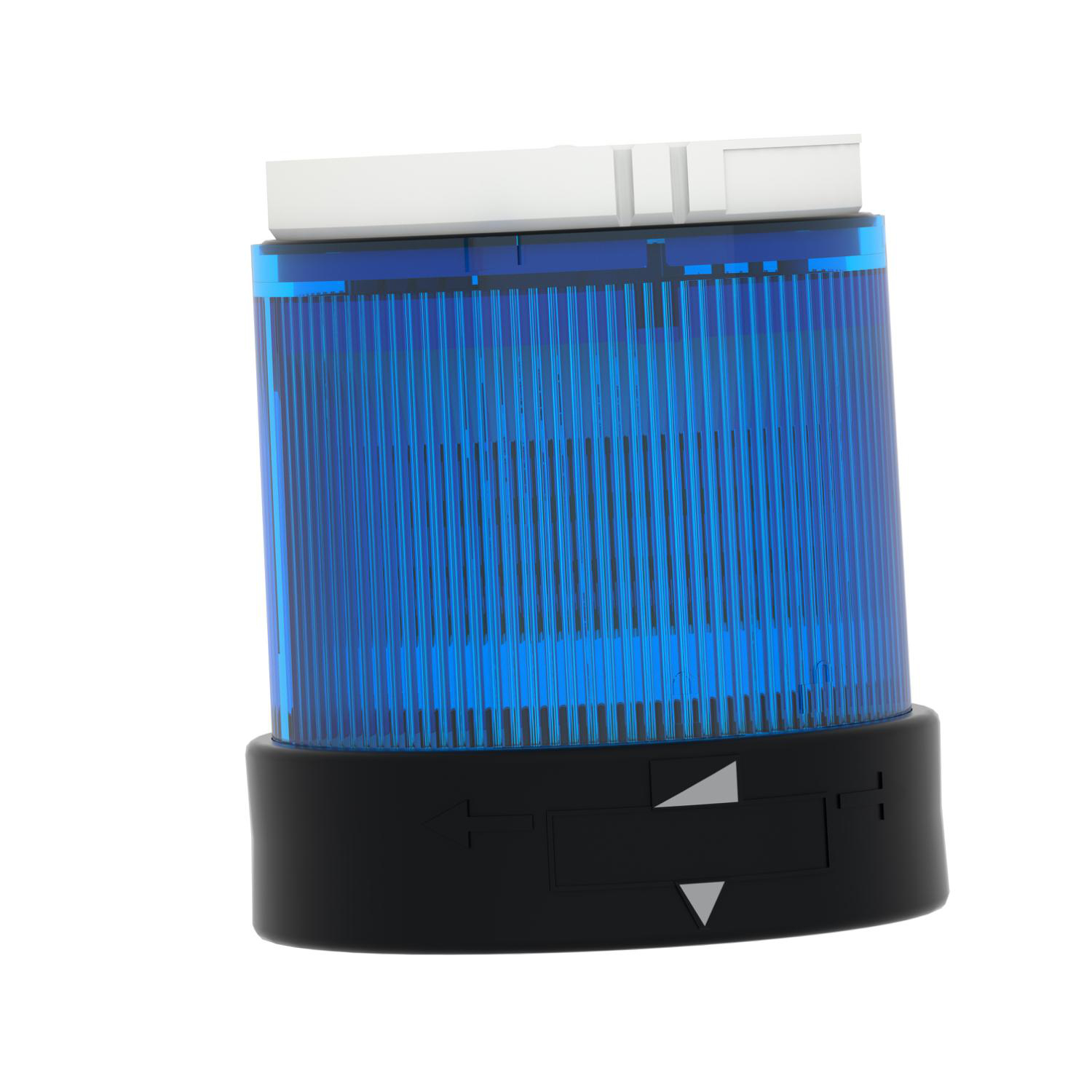

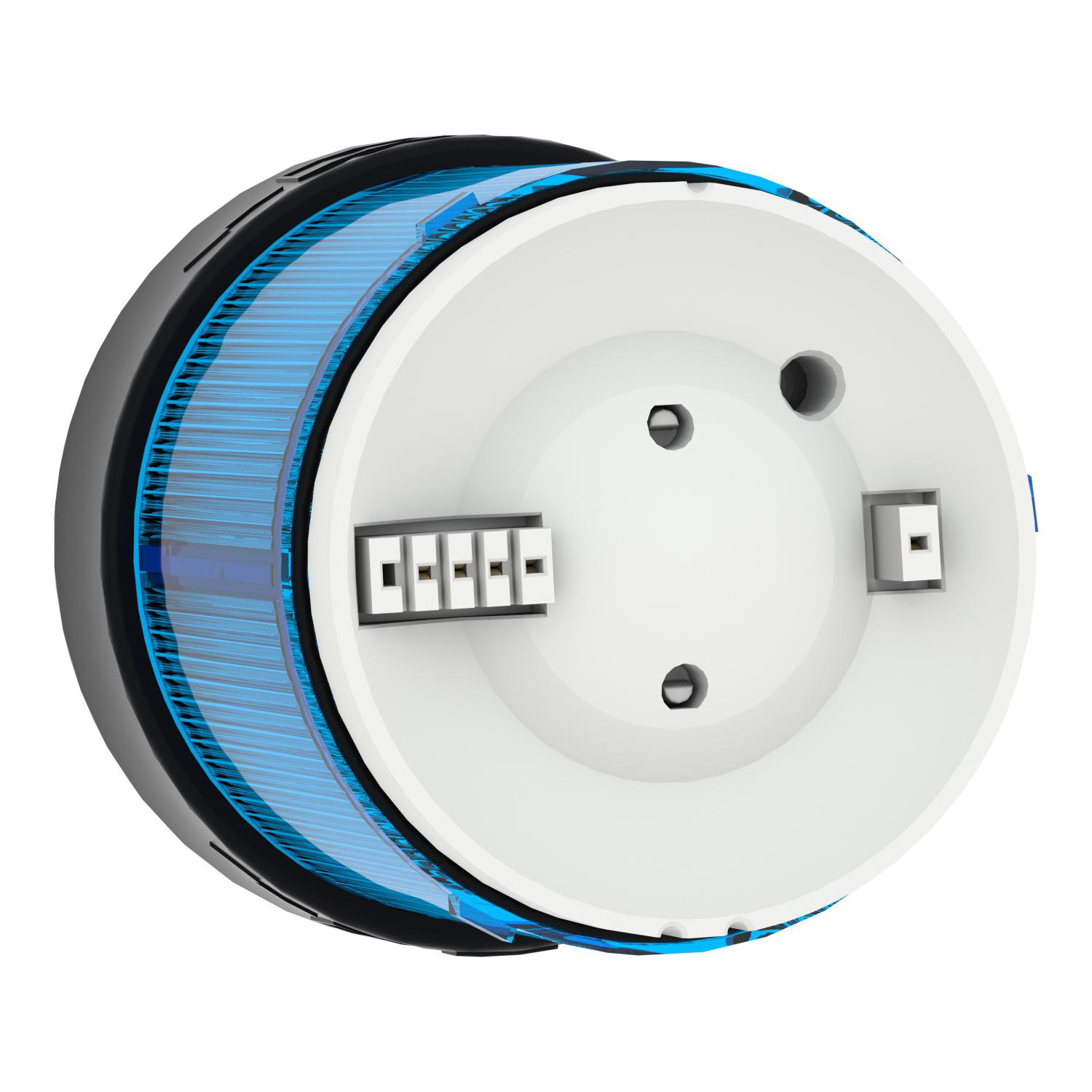

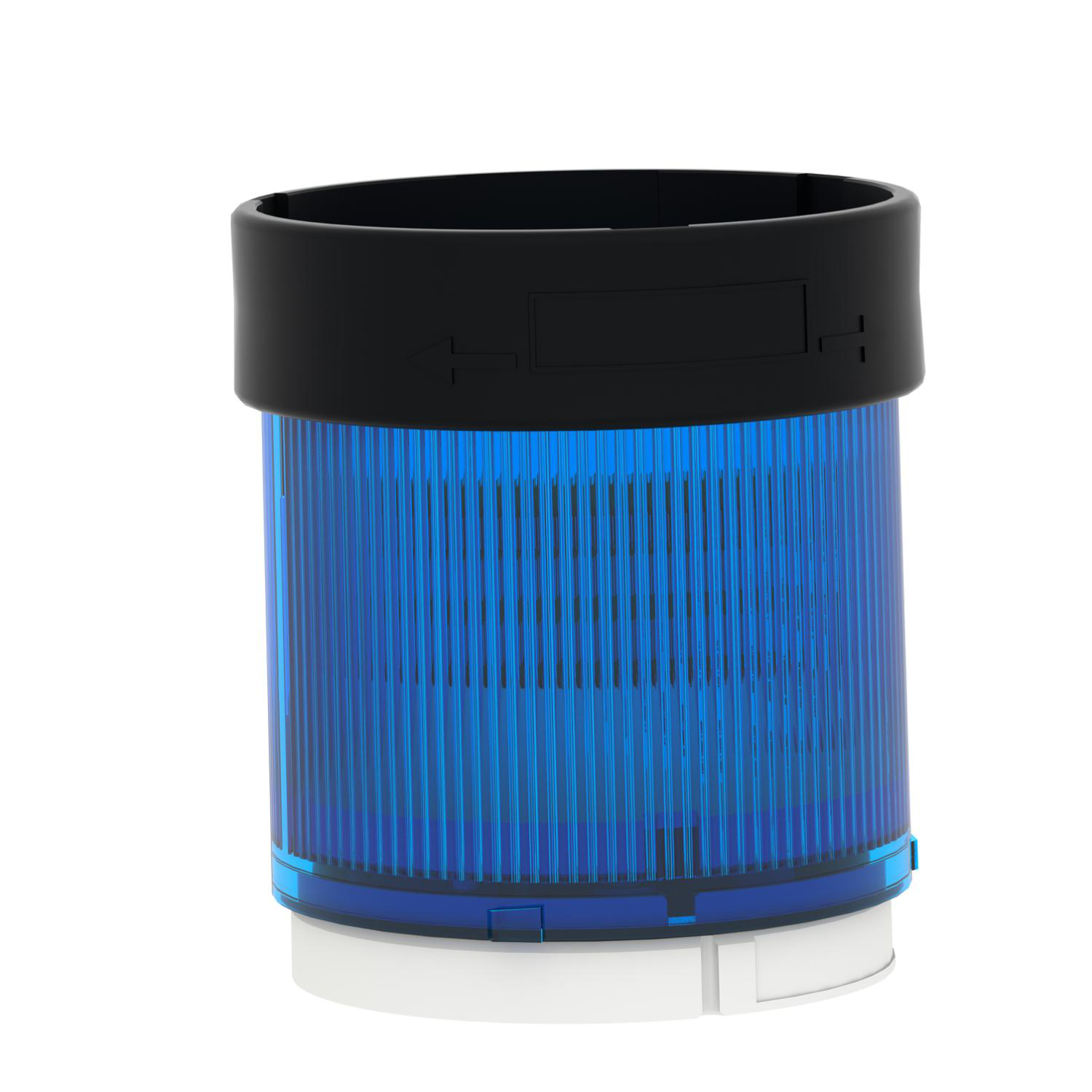

This Harmony XVB illuminated unit is supplied with 24V AC/DC and has a blue LED with a steady light. This blue indicating bank lens is designed as an illuminated unit to be connected with base and create complete tower light. Its integral LED offers a steady light, allowing it to clearly display the status of your machines in applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Simple and modular design to allow for easy installation with base unit and make complete tower light. It complies with international standards and certifications (CCC, CSA C22-2 No.14, EN/IEC 60947-5-1, EAC, UL 508 standards and NEMA 4X).

Technical Information

Applications
SIGNALLING
Current
47 mA
Enclosure
IP65 ON FIXING BASE XVBZ0. IEC 60529-IP66 ON BASE UNIT IEC 60529,NEMA 4X UL 508 INDOOR)
Lamp Type
PROTECTED LED
Lens Color
INTEGRAL LED, BLUE
Lens Material
POLYCARBONATE
Light Source
Integral LED, Blue
Material
Polycarbonate
Net Weight
0.15 kg
Operating Temperature
-25-50 degrees C
Size
70 MM,70 MM,70 MM
Standard
IEC 60947-5-1
Storage Temperature
-40-70 degrees C
Type
ILLUMINATED UNIT,INDICATOR BANK

Manufacturer Information

Brand
Schneider Electric
Sub Brand
XVBC

General Product Info

12-Digit UPC
338911014442
GTIN
03389110144468
Weight
0.15 kg

Dimensions

Height
63 mm
Warranty Length
18 mth
Width
70 mm

Certifications & Compliance

Certifications
CCC,CSA C22-2 No 14,EAC,UL 508
Country of Origin
USA
