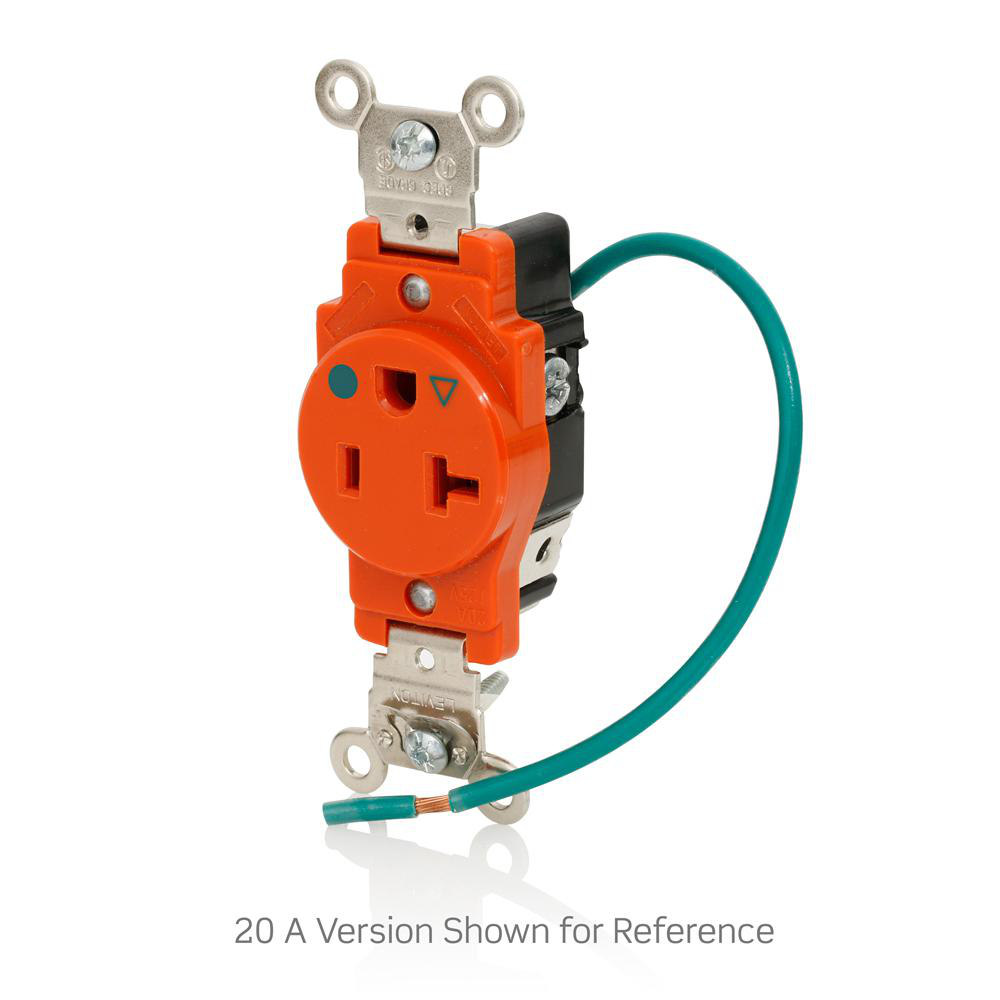

Receptacle straight 2P3W 125V 20A orange

Manufacturer: Leviton Manufacturing | Catalog # 8310-OIG | Electrozad South Part # 32116
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet
Leviton hospital grade receptacle undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high-abuse tolerance, including health care facilities, manufacturing plants and schools. Isolated ground, Back and side wired, Steel strap.

Technical Information

Amperage
20 A
Applications
Hospitals
Body Material
Nylon
Conductor Size
14 - 10 AWG
Connection Type
Back and Side Wired
Device Type
Single Receptacle Outlet
Dielectric
2000 V
Dielectric Strength
2000 V
Face Material
Nylon
Grade
Hospital
Grounding
Isolated
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Box
NEMA
5-20R
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
46 H x 1.31 W x 16 D IN
Standard
ANSI C-73
TC Connection
Back & Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Termination Type
Back Wire,Side Wire
Type
Single
Voltage
125 V
Wire Count
3
Wire Size
14 - 10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Industrial Receptacles

General Product Info

12-Digit UPC
078477029923
Color
Orange
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTIN
00078477029923

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Please Contact Customer Service
