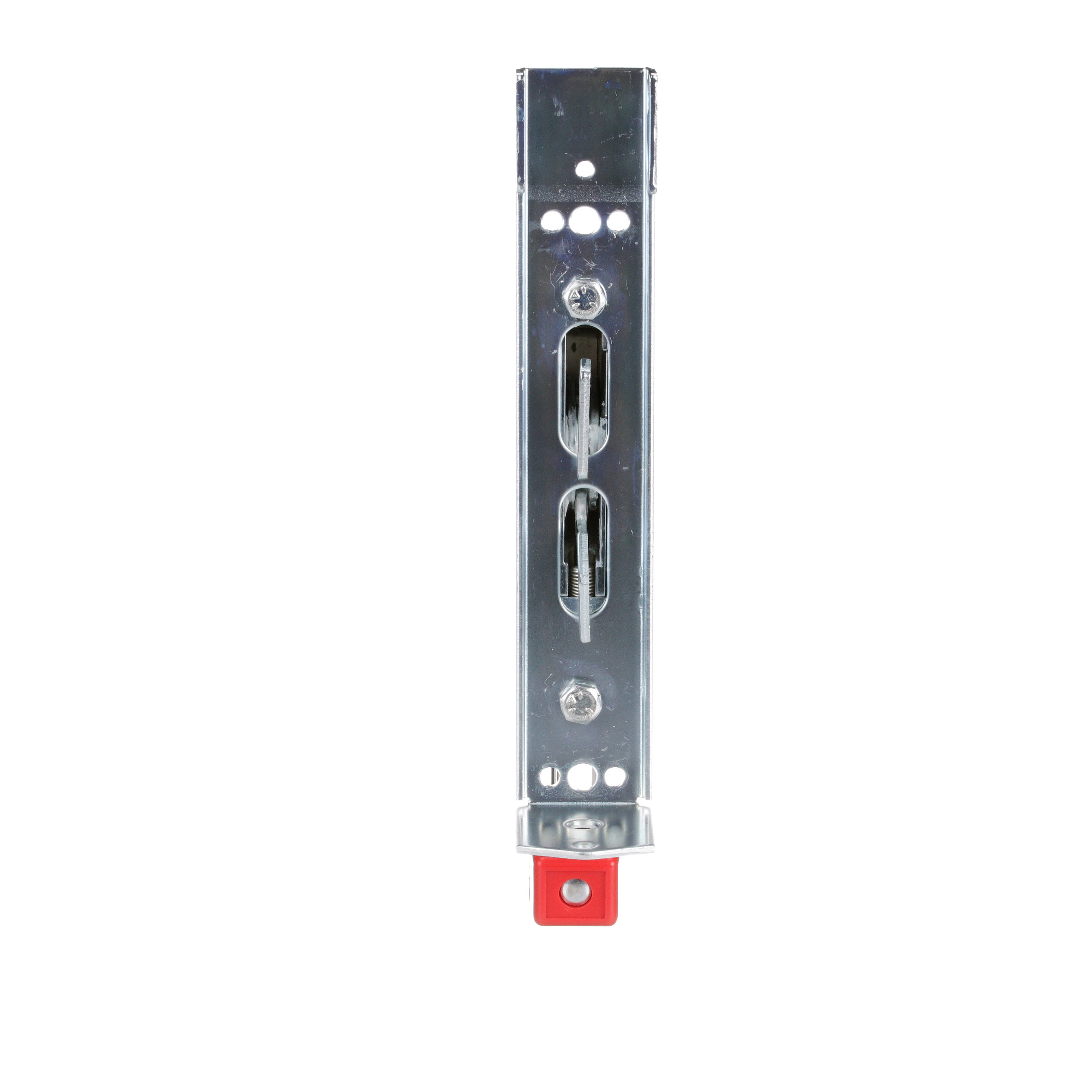

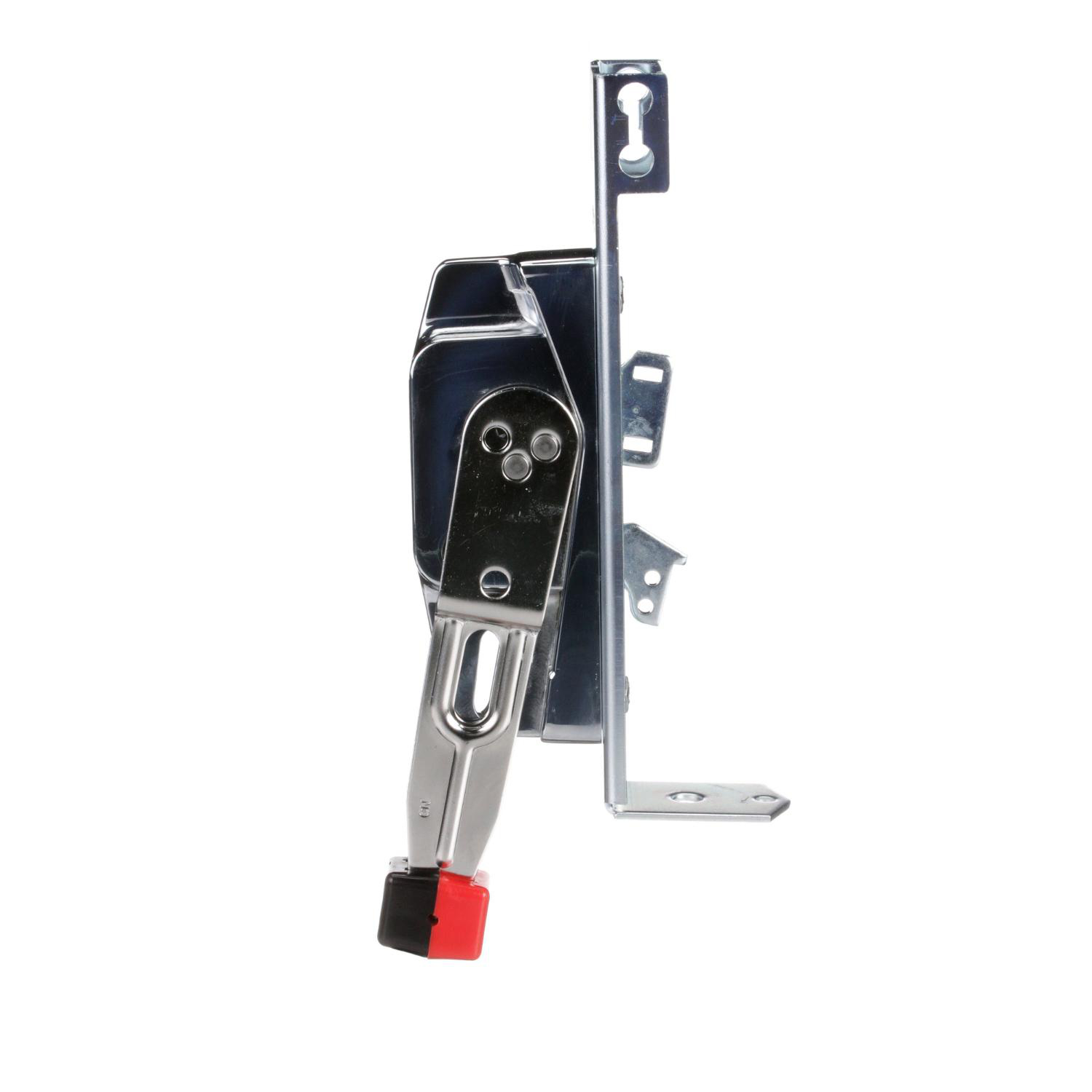

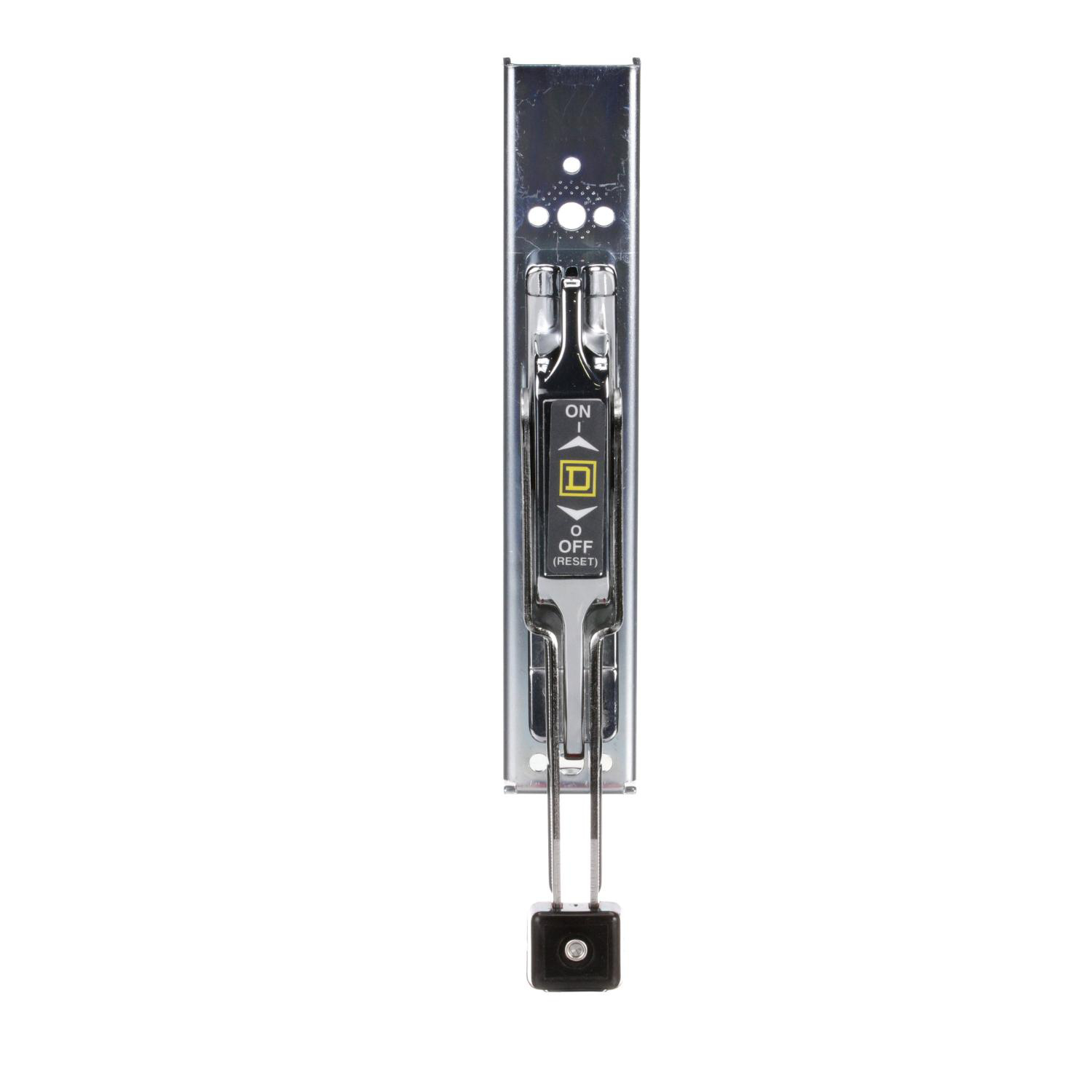

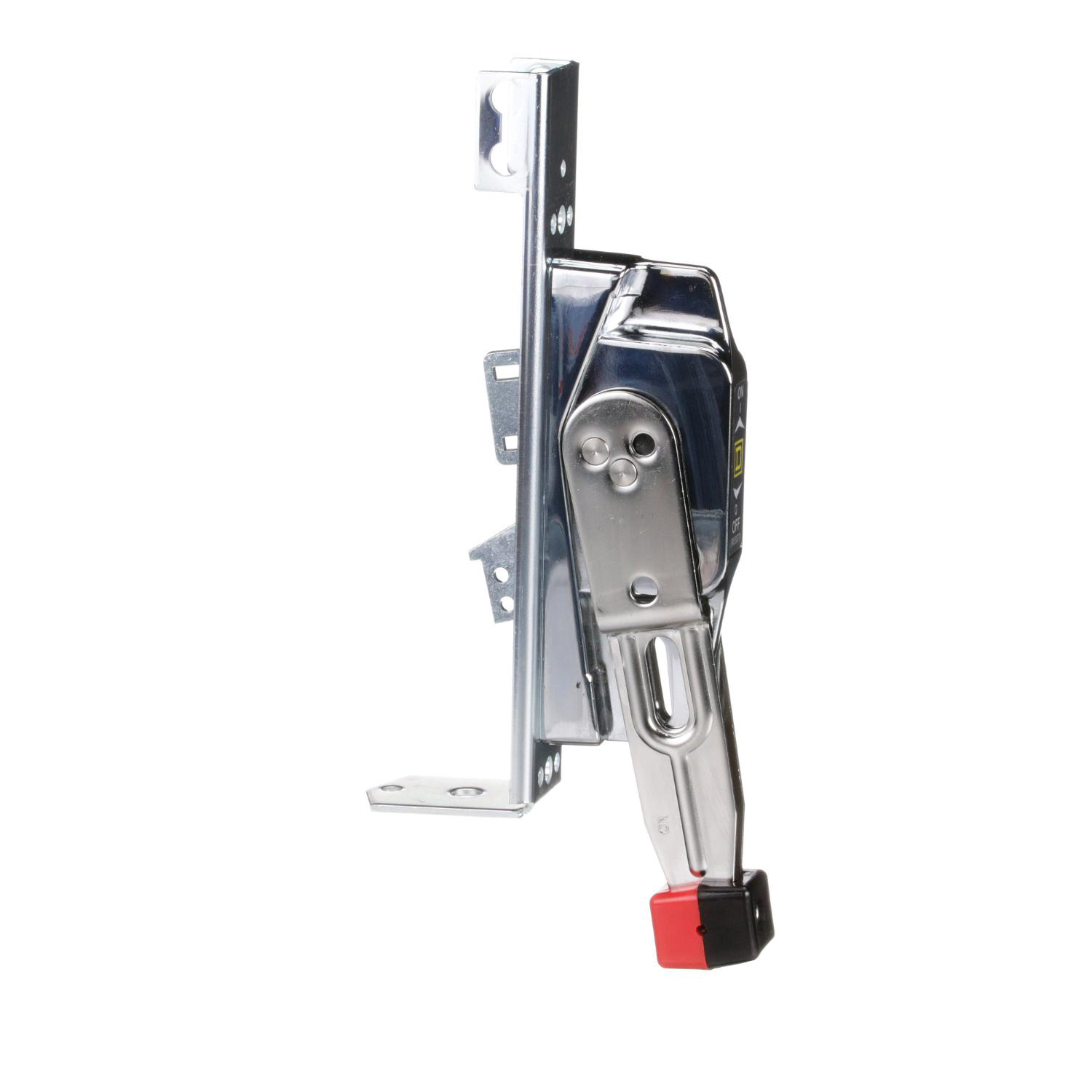

Product image for OPERATING MECHANISM, FLANGE MOUNTED, VARIABLE DEPTH, HANDLE MECHANISM, 6IN HANDLE, NEMA 4X ENCLOSURE
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
To:
CC:

OPERATING MECHANISM, FLANGE MOUNTED, VARIABLE DEPTH, HANDLE MECHANISM, 6IN HANDLE, NEMA 4X ENCLOSURE

Manufacturer: Schneider | Square D | Catalog # 9422-A2 | Electrozad South Part # 321059
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual CAD Drawing #1 CAD Drawing #2 G USERS MANUAL URL
PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This handle mechanism is a 6 inch handle depth for NEMA 4/4X. This handle is for use with 30-200A 9422 switches and all circuit breaker mechanisms. This product complies with UL standards.

Technical Information

Actuator
6 INCH HANDLE
Applications
disconnect switches (30...200 A)
Enclosure
NEMA 4/4X
Indicator
OFF/ON
Size
6 in
TC Connection
FLANGE MOUNT
Type
Handle Mechanism

Manufacturer Information

Brand
Square D
Sub Brand
SCHNEIDER ELECTRIC

General Product Info

12-Digit UPC
785901739807
GTIN
00785901739807

Dimensions

Length
6 in
Warranty Length
18 mth

Certifications & Compliance

Country of Origin
Mexico
