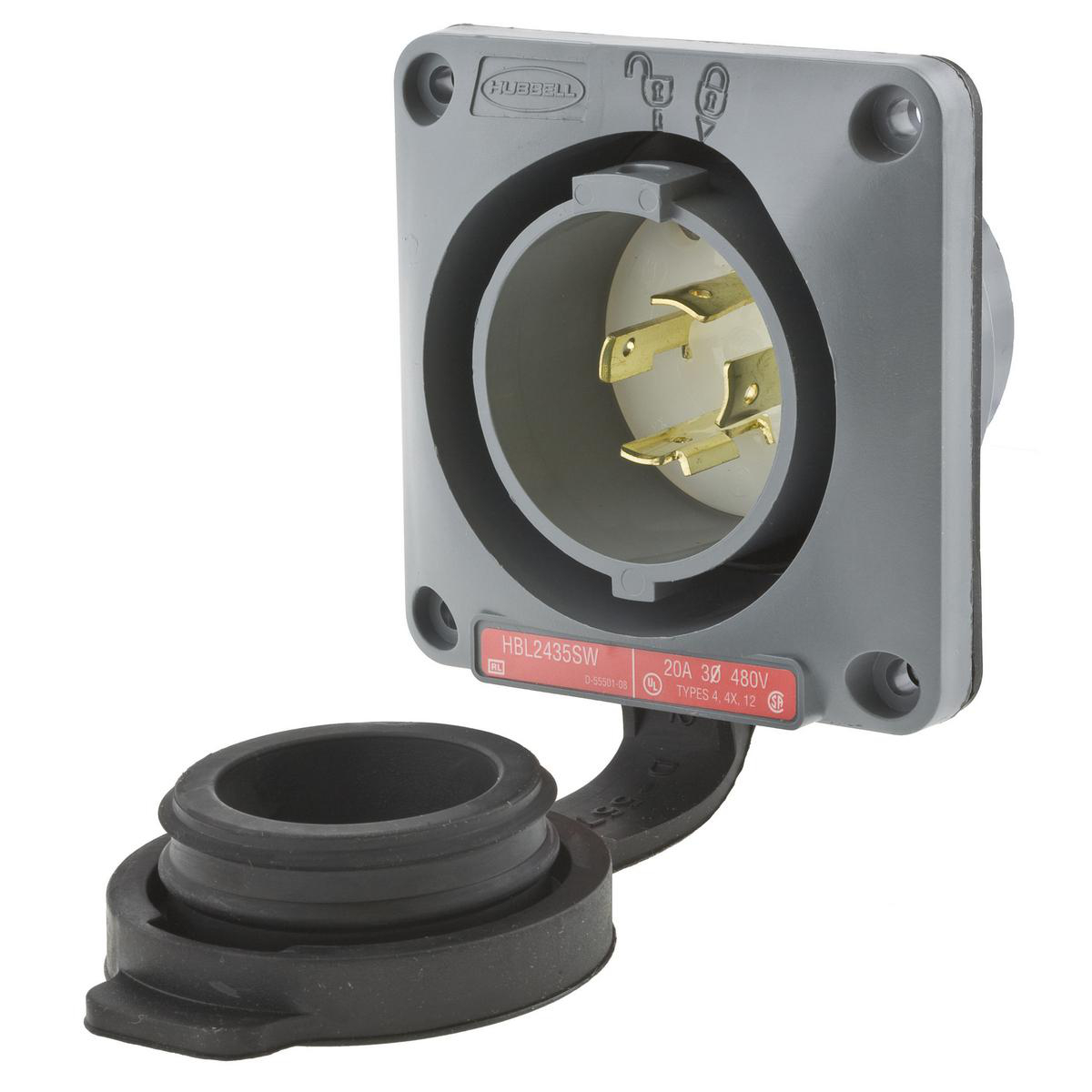

Plug L16-20P inlet twlo+door 3ph 20A 480V gray

Manufacturer: Hubbell Wiring Devices | Catalog # HBL2435SW | Electrozad South Part # 320356
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual Technical Drawing Manufacturer Warranty
Hubbell SAFETY SHROUD come in black cable plugs and connectors with closure cap or grey surface inlet/outlet with door. Made of high impact thermoplastic UV resistant providing a type 4X watertight connection. The cord entrance is sealed through compression of the rubber gland. They come in version twist-lock 2 pole 125-250-277 volts, 3 pole 125/250 volts, 3 phase 250-480-120/208 volts in 20 and 30 amp models.

Technical Information

Amperage
20 A
Applications
Extra Heavy Duty Industrial
Conductor Size
16-8 AWG
Cord Size
0.35 - 1.15 in
Current
20 A
Dielectric Strength
2000 V
Horsepower
5 hp
Material
Thermoplastic
Mounting Type
Surface
NEMA
L16-20P
Number of Phases
3
Number of Poles
3
Number of Wires
3
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
4X,CSA,Type 12,Type 4,UL
TC Connection
Screw Terminals
Temperature Rating
-40 to 75 degrees C
Type
Extra Heavy-Duty, Industrial Grade
Voltage
480 V
Wattage
9600 W
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585231488
Color
Gray,White
Environmental Conditions
Watertight
GTIN
00783585231488
Product UPC
78358523148
Weight
0.65 lb

Dimensions

Height
2.44 in
Length
3.75 in
Width
3.75 in

Certifications & Compliance

Country of Origin
USA
Overview
  • Closure cap is included for environmental seal when device is not in use
  • Alignment arrows and lock and unlock symbols provide a visual indication that devices are properly connected.
  • One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
  • Catalog number and color-coded voltage rating are easily visible even when in use
