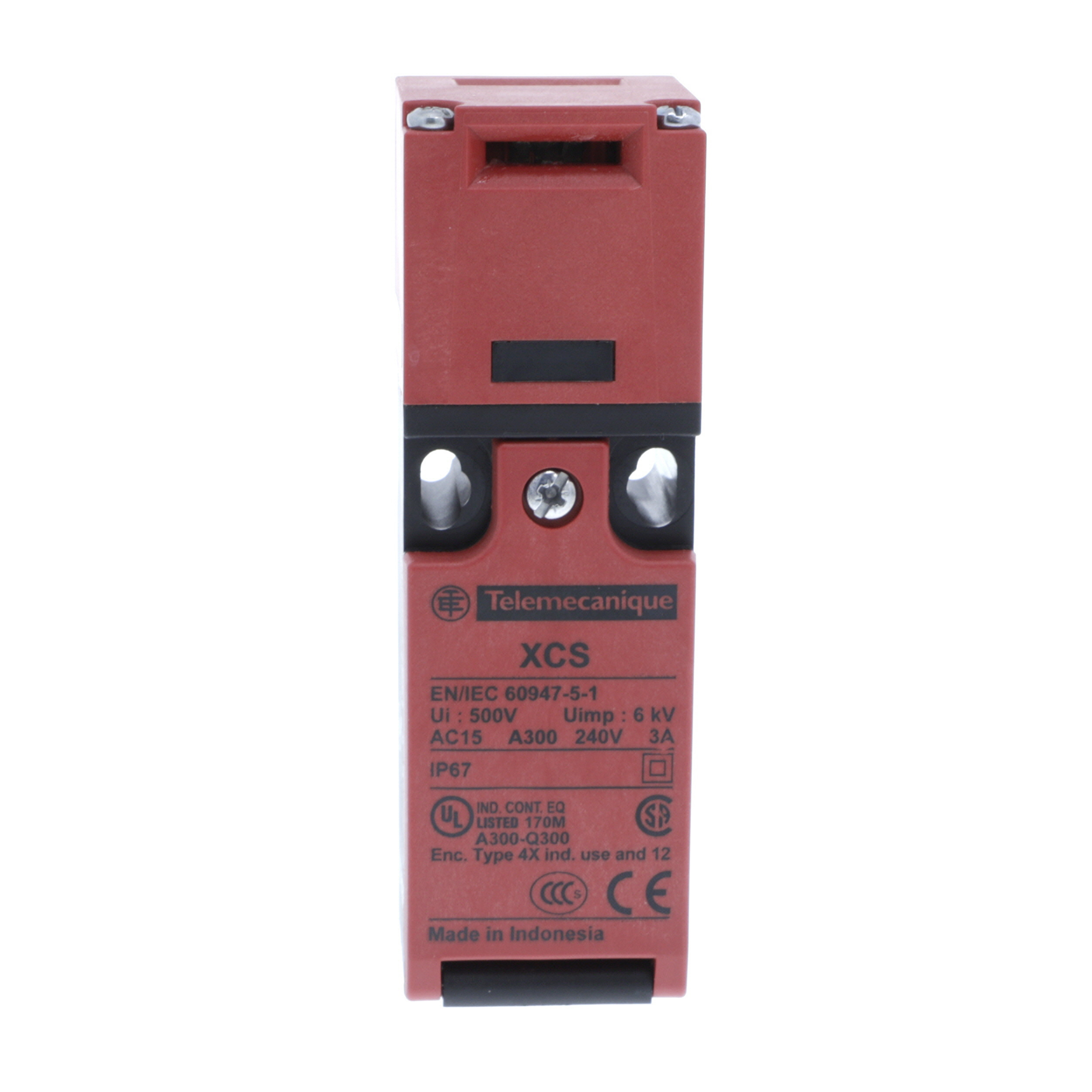

Image thumbnail 1

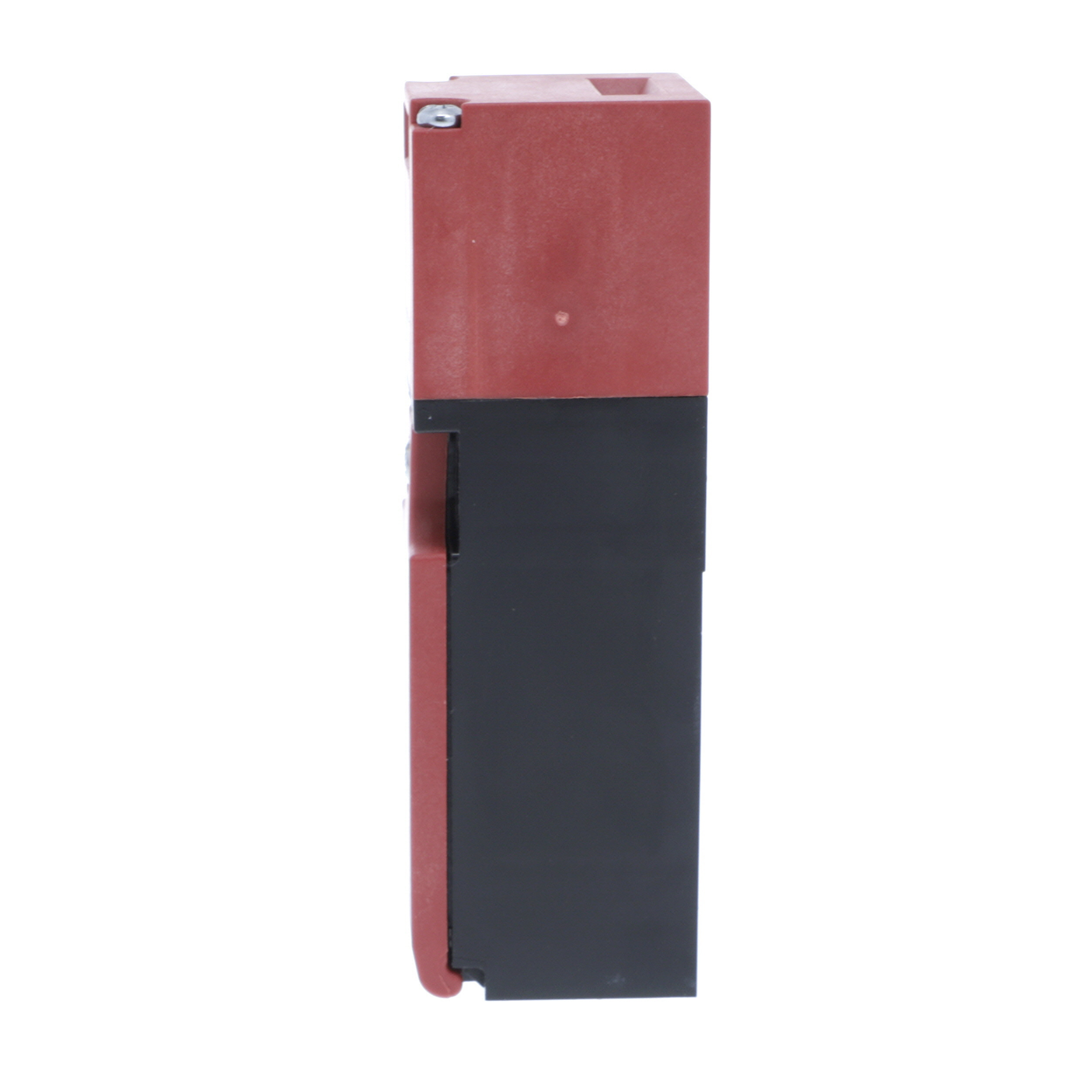

Image thumbnail 2

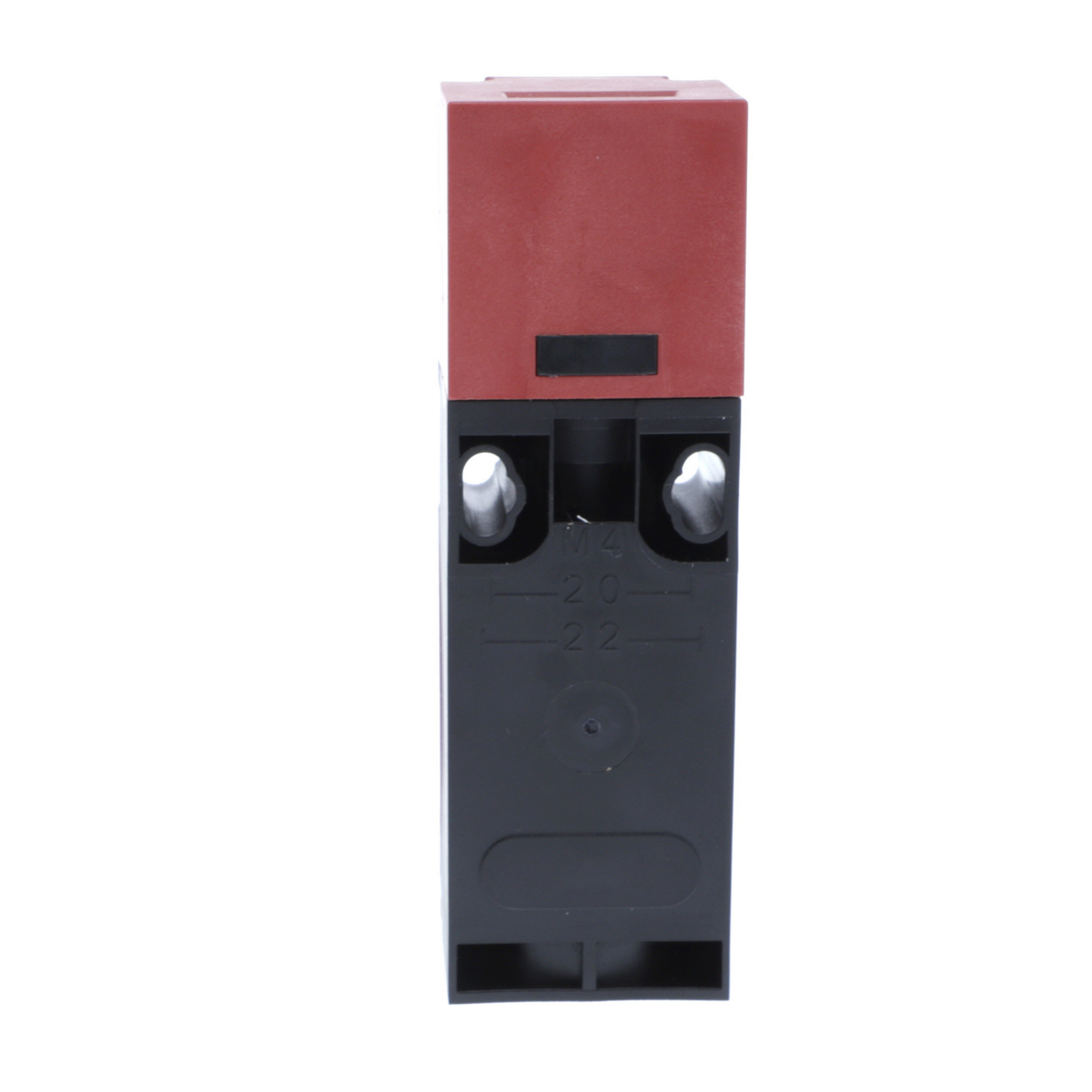

Image thumbnail 3
To:
CC:

SAFETY SWITCH, TELEMECANIQUE SAFETY SWITCHES XCS, PLASTIC XCSPA, 1 NC + 1 NC, SLOW BREAK, 1 ENTRY TAPPED 1/2" NPT

Manufacturer: Telemecanique Controls | Catalog # XCSPA793 | Electrozad South Part # 319970
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This Preventa XCS Key Operated Safety Switch has an adjustable turret head and a plastic body. This key operated safety switch for guard doors, with adjustable turret head switch, has a robust red coated thermoplastic body. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. When wired as recommended in relevant standards, it conforms to category 4, performance level PL e, SIL 3 and complies withEN/ISO 13849-1, EN/IEC 61508. It simply ensures a "door-open machine stop" control on your machine, with maximal reliability. It secures the machine and system operation with a key, only available to authorized operators.

Technical Information

Actuator
KEY
Applications
KEY OPERATED TURRET HEAD
Body Material
PA (polyamide)
Contact Configuration
2 NC
Enclosure
NEMA 4/4X/12 - IP67
Head Type
Key operated turret head
Material
Plastic
Net Weight
0.11 kg
Number of Poles
2
Operating Cycles
10 cyc/mn For Maximum Durability
Operating Temperature
-25-70 Adegrees C
Size
1.18 in
Standard
CSA C22.2 No 14,EN 1088/ISO 14119,EN/IEC 60204-1,EN/IEC 60947-5-1,EN/ISO 12100,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
TERMINAL 1 X 0.5...2 X 1.5 MMA² WITH OR WITHOUT CABLE END
Type
Safety switch

Manufacturer Information

Brand
Telemecanique Sensors

General Product Info

12-Digit UPC
338911072060
Environmental Conditions
WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
Weight
0.24 lb

Dimensions

Depth
30 mm
Height
107-107 mm
Warranty Length
18 mth
Width
30 mm

Certifications & Compliance

Certifications
CSA,UL
Country of Origin
France
