KA25

Manufacturer: Burndy | Catalog # KA25 | Electrozad South Part # 31960
$21.39 /ea
pc
Log in or register to view your price, purchase history, and more!
2 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Brochure Technical Drawing

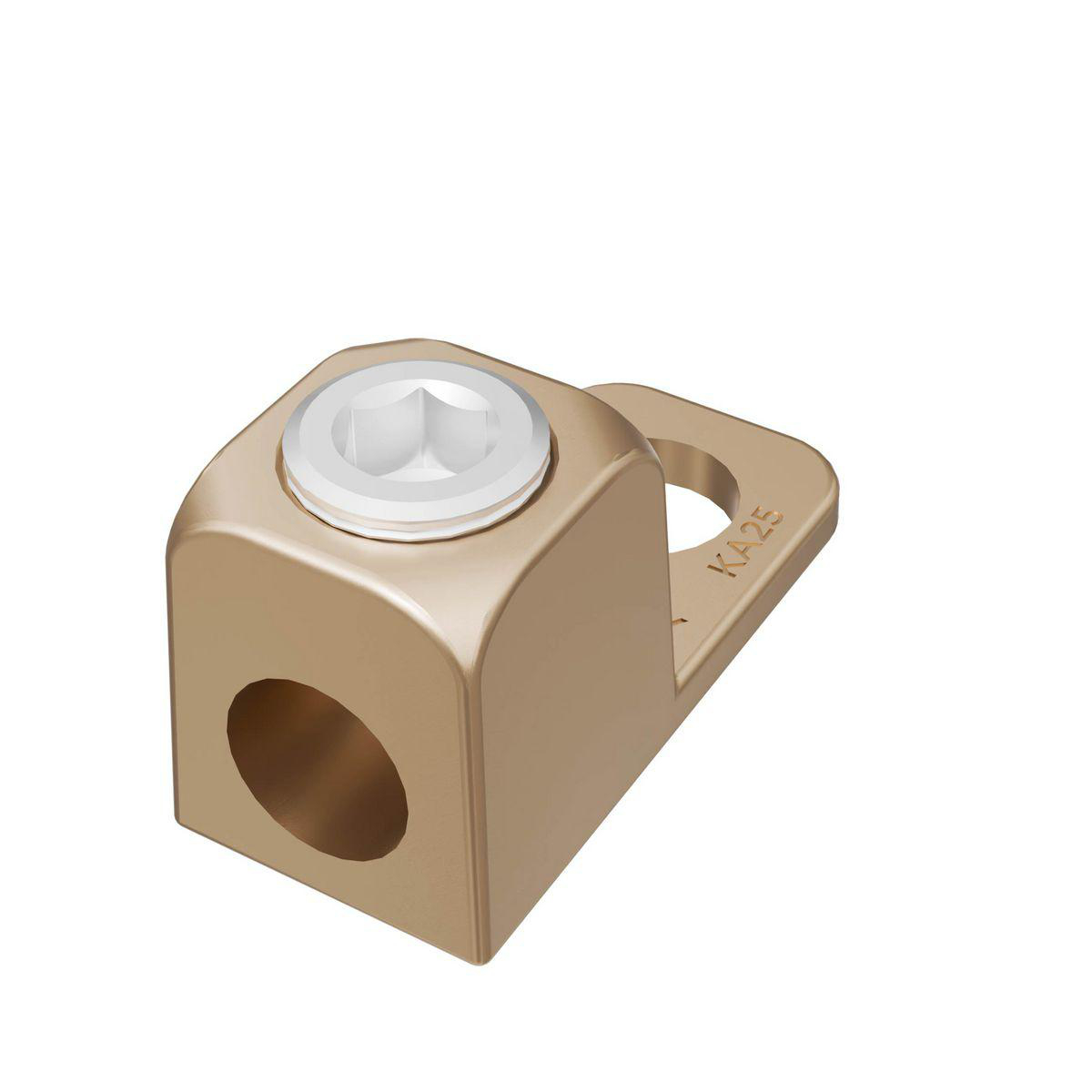

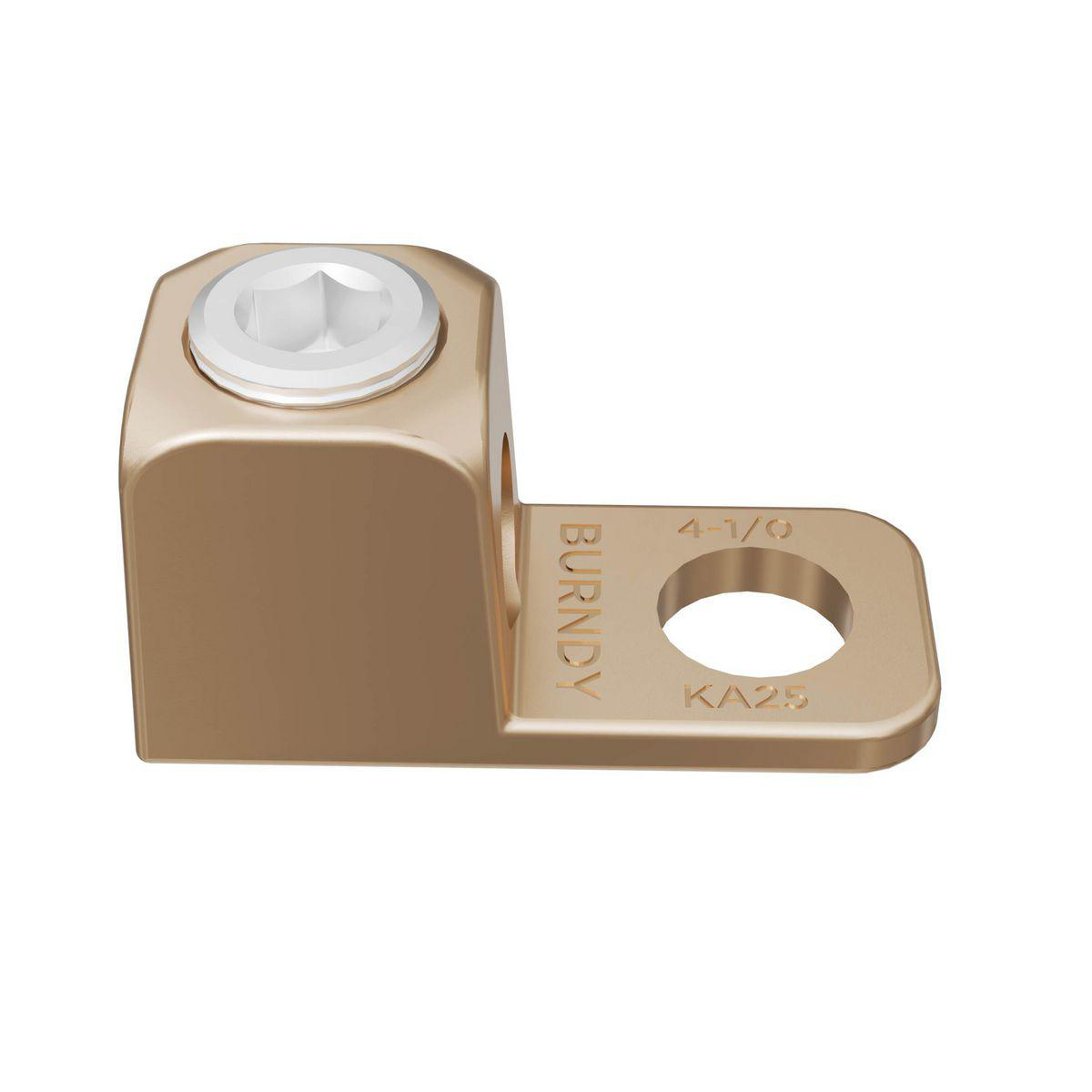

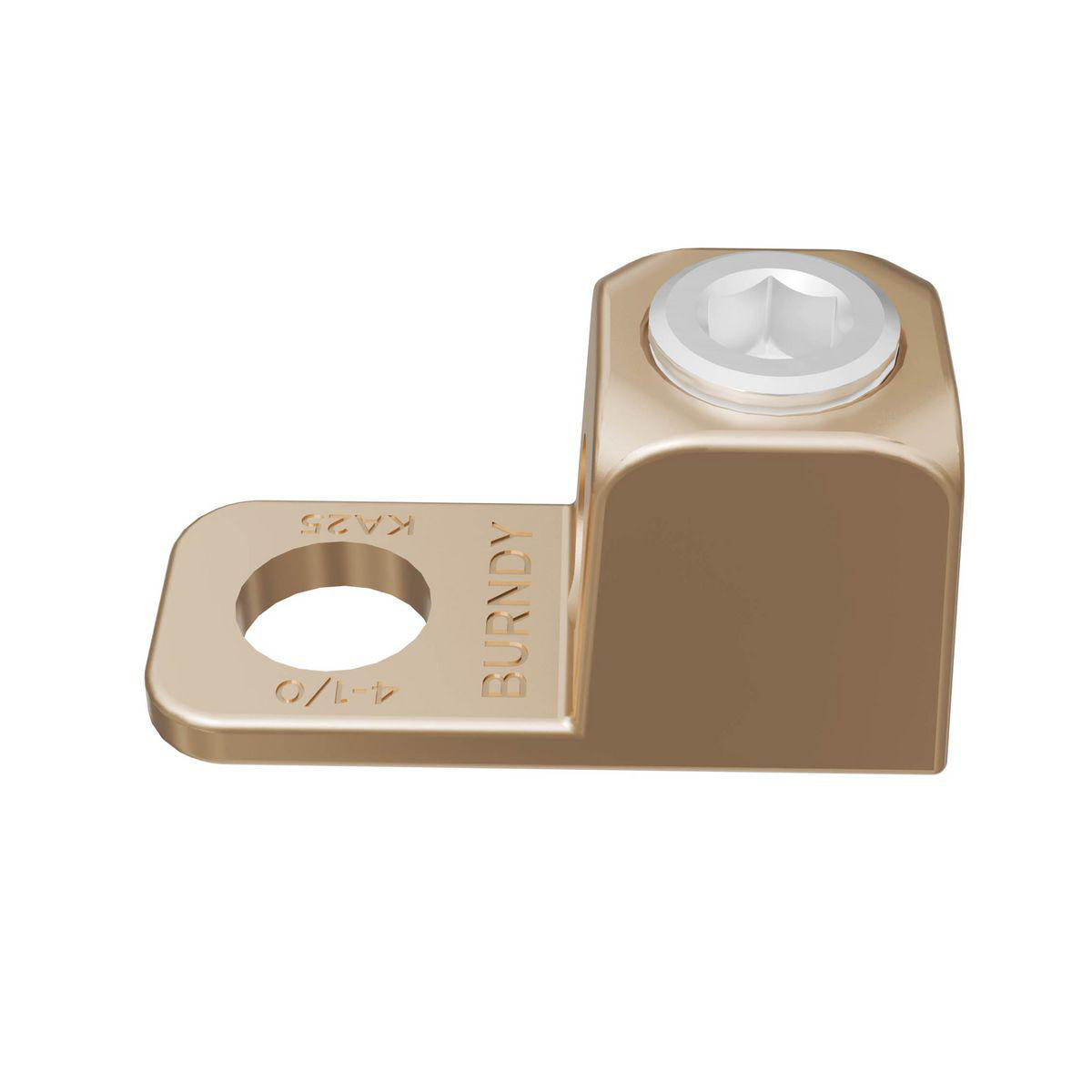

Compact, high copper alloy mechanical terminal. 1-hole, 3/8" Stud, #4-1/0 AWG Str.

Technical Information

Applications
For use with 0.50 inch FM8 conduit bodies. Seals and protects.
Bolt Size
1/2 IN
Conductor Size
1 AWG
Conductor Type
CU C Str-Size
Connection Type
Terminal
Material
Copper
Plated?
No
Plating Type
Unplated
Screw Type
Allen
Standard
CSA,E2186,UL
Stud Size
3/8 in
Temperature Rating
194 degrees F
Type
K2A-U, Universal, Dual-Rated

Manufacturer Information

Brand
Burndy
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810363508
GTIN
00781810363508

Dimensions

Height
0.94 in
Hole Size
0.42 in
Length
1.69 in
Overall Length
43 mm
Pad Width
0.75 in
Thickness
3/23 in
Width
0.75 in

Certifications & Compliance

Country of Origin
Mexico
CSA
No
