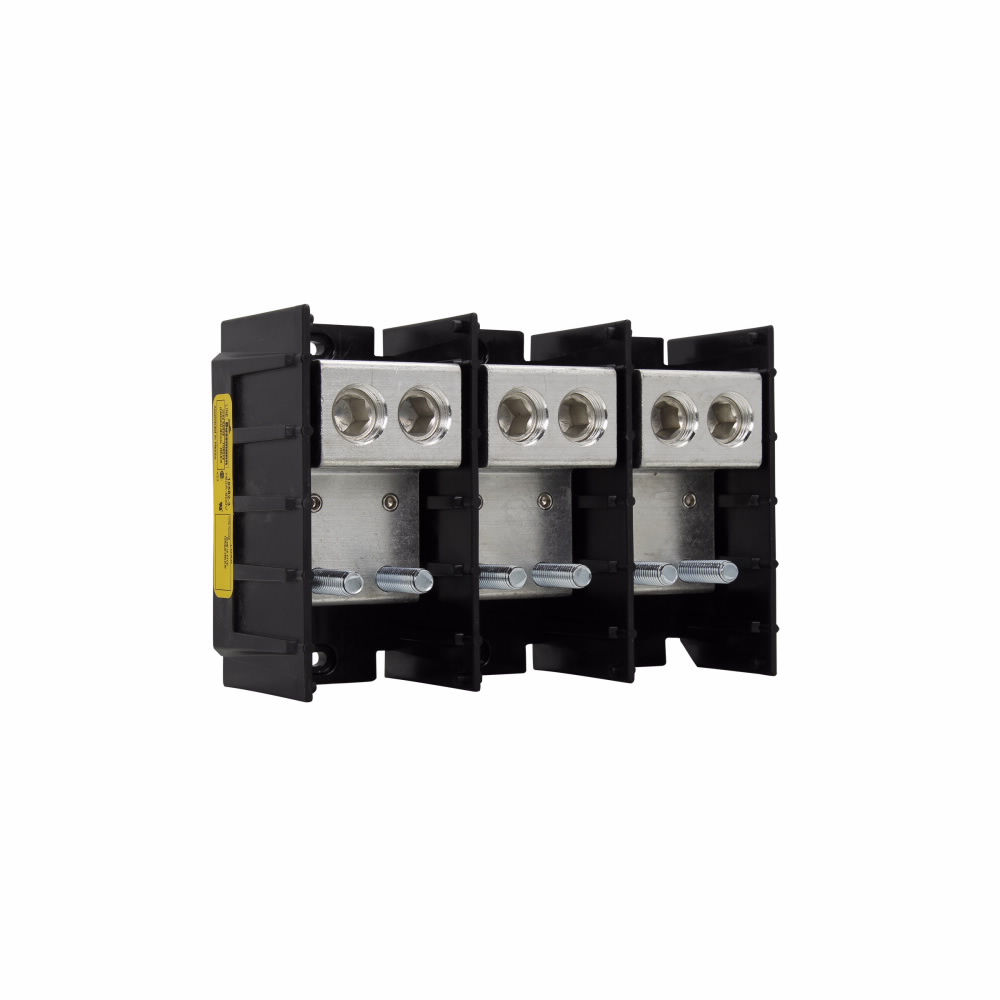

Image thumbnail 1

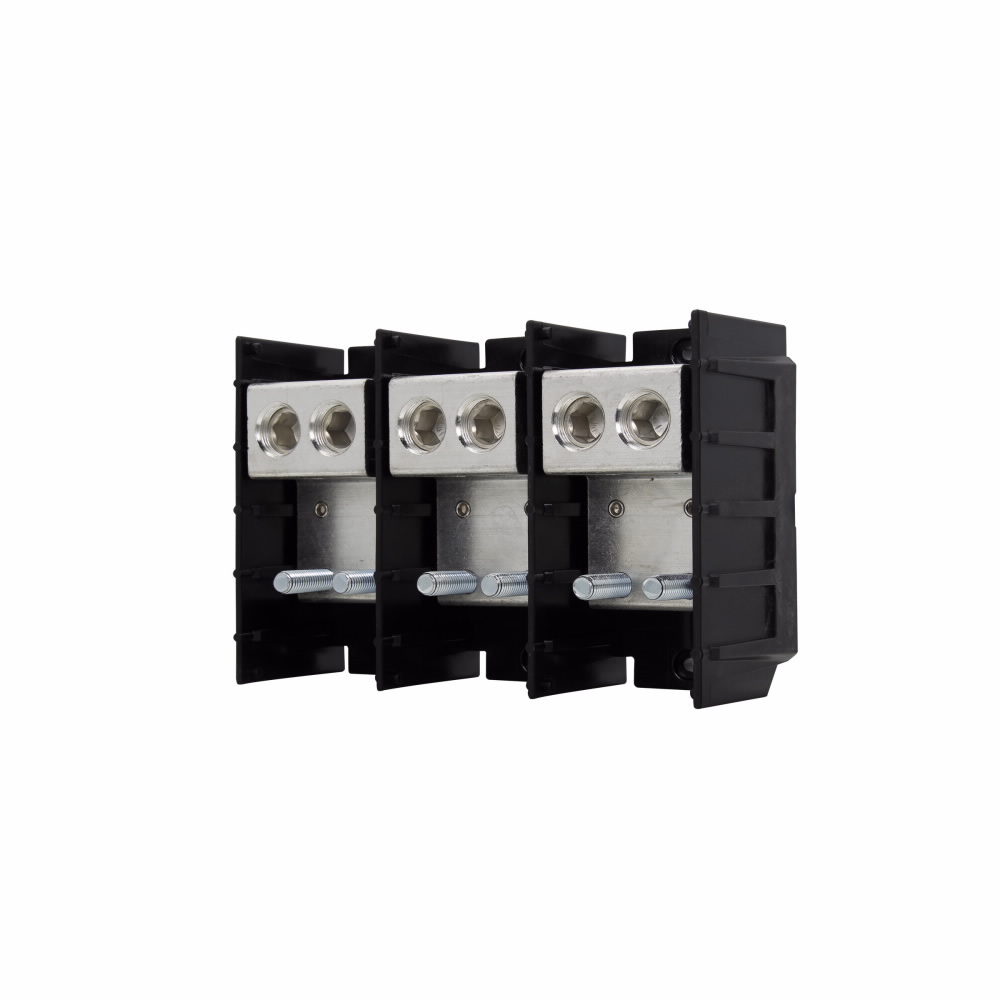

Image thumbnail 2
To:
CC:

TERM. BLOCK ASSY 6PK

Manufacturer: Bussman Cooper Fuses | Catalog # 16582-3 | Electrozad South Part # 318634
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Technical Drawing
Eaton Bussmann series power terminal block, 600 Vac, 600 Vdc, 760 A, Three-pole, (2) 3/8 Inches-16 TPI X 1-5/8 Inches Stud (Load), SCCR: 10 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector

Technical Information

Amperage
760 A
Applications
Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Connection Type
(2) 3/8 In-16 TPI X 1-5/8 In Stud (Load)
Material
Molded Thermoplastic
Size
8.48 In Length X 5.50 In Width X 2.93 In Height
Standard
CSA,UL
TC Connection
(2) 3/8 In-16 TPI X 1-5/8 In Stud (Load)
Type
Power Terminal Block
Voltage
600 V
Wire Size
(2) 6 AWG To 500 KCMIL (Copper/Aluminum) Line

Manufacturer Information

Brand
Edison
Sub Brand
Bussmann Series

General Product Info

12-Digit UPC
051712208482
Color
Black
GTIN
00051712208482
Weight
3.42 lb

Dimensions

Height
6 in
Length
9.5 in
