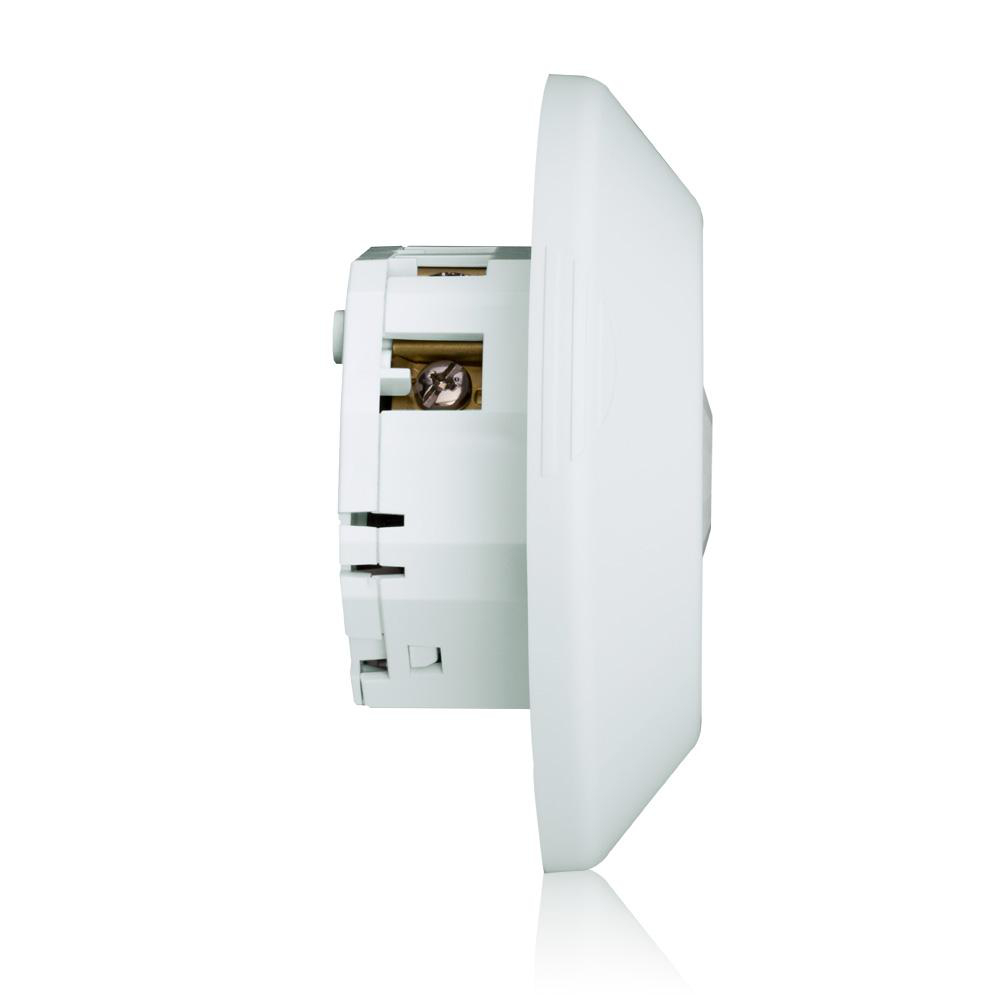

Product image for Sensor occupancy ceiling mount 360.... 450sqft white
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3

To:
CC:

Sensor occupancy ceiling mount 360.... 450sqft white

Manufacturer: Leviton Manufacturing | Catalog # ODC04-IDW | Electrozad South Part # 318345

*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
The Leviton Provolt™ Series of occupancy sensors features self-contained line-voltage occupancy sensors and photocells in one unit. The integrated design alleviates the need for separate power pack, occupancy sensor and photocell wiring, making it a low-cost and efficient energy management solution for new construction and retrofits. For true daylight harvesting applications, integrated photocells provide consistent Daylight Design Levels by actively switching the connected load(s) ON and OFF in response to available natural light to maximize energy savings. Output short circuit protection - protection against low voltage wiring errors. Industry-exclusive self-configuring local manual switch input supports momentary and maintained switches - no special control stations required. Zero-crossing circuitry for extended life of the relay. Easy installation into junction boxes with Leviton exclusive screw guides, coasters and terminal blocks. Passed rigorous NEMA 410 testing for electronic ballast rating.

Technical Information

Applications
For Commercial use
Coverage
450 sq-ft
Frequency
50/60 Hz
Grade
Commercial
Mounting Type
Ceiling
Operating Temperature
0 degrees
Sensor Type
Passive Infrared
Size
2.39 in
Standard
CA Title 20 Complaint,NEMA 410,NOM Certified,NY LLC48 Complaint,RoHS Complaint,UL (773A),UL 924
Temperature Rating
0 - 40 degrees C Operating, -26 to 71 degrees C Storage
Type
Passive Infrared
Voltage
120 To 277 V

Manufacturer Information

Brand
Leviton
Sub Brand
C/I OCCUPANCY SENSORS

General Product Info

12-Digit UPC
078477539965
Color
White
Environmental Conditions
Operating Humidity (0 PCT To 95 PCT),Storage Temperature (-26 DEG C To +71 DEG C )
GTIN
00078477539965

Dimensions

Warranty Length
5 yr

Certifications & Compliance

Country of Origin
China
