30 Amp, 347/600 Volt, Flanged Inlet Locking Receptacle, Industrial Grade

Manufacturer: Leviton Manufacturing | Catalog # 2775 | Electrozad South Part # 317367
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet

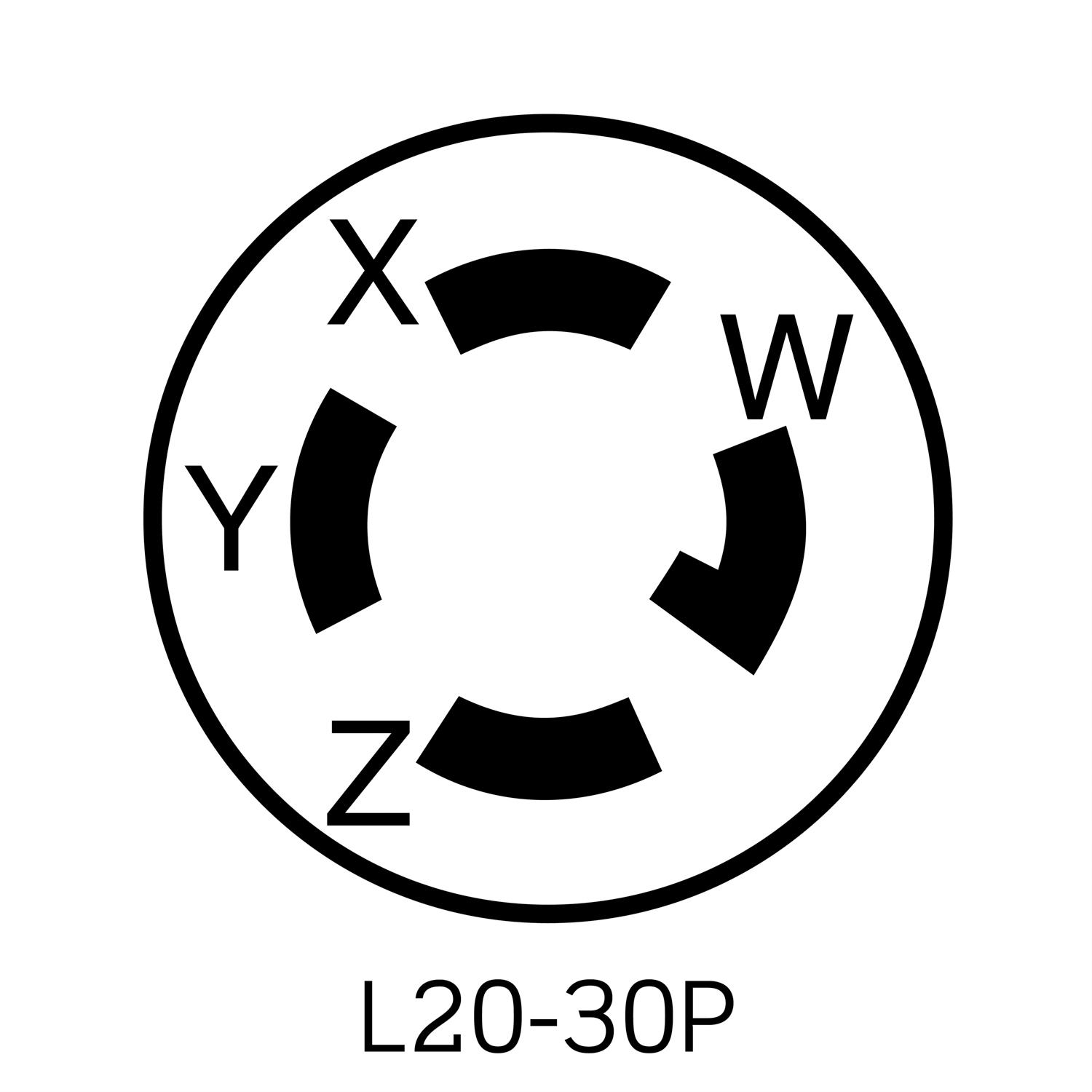

30 Amp, 347/600 Volt 3-Phase Y, NEMA L20-30P, 4P, 4W, Flanged Inlet Locking Receptacle, Industrial Grade, Non-Grounding - WHITE

Technical Information

Amperage
30 A
Applications
Commercial
Body Material
Nylon
Connection Type
Back Wired
Contact Material
Solid Brass
Device Type
Locking Flanged Inlet
Dielectric
2000 V
Dielectric Strength
2000 (Min.)
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grounding
Non-Grounding
Material
Thermoplastic Nylon
Mounting Type
Flange
NEMA
WD-6
Number of Phases
3
Number of Poles
4
Number of Wires
4
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Brass,Brass
Screw Size
10-32,8-32
Size
33 Dia. IN
Standard
ANSI C-73
TC Connection
Back Wired
Temperature Rating
-40 To 60 degrees C
Temperature Rise
200 %
Terminal Size
14-8 AWG
Termination Type
Back Wire
Type
Locking Flanged Inlet
Voltage
347/600 V
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
LOCKING DEVICES

General Product Info

12-Digit UPC
078477806449
Color
White
Environment
Dry
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTIN
00078477806449

Dimensions

Warranty Length
Lifetime Limited

Certifications & Compliance

Country of Origin
Mexico
