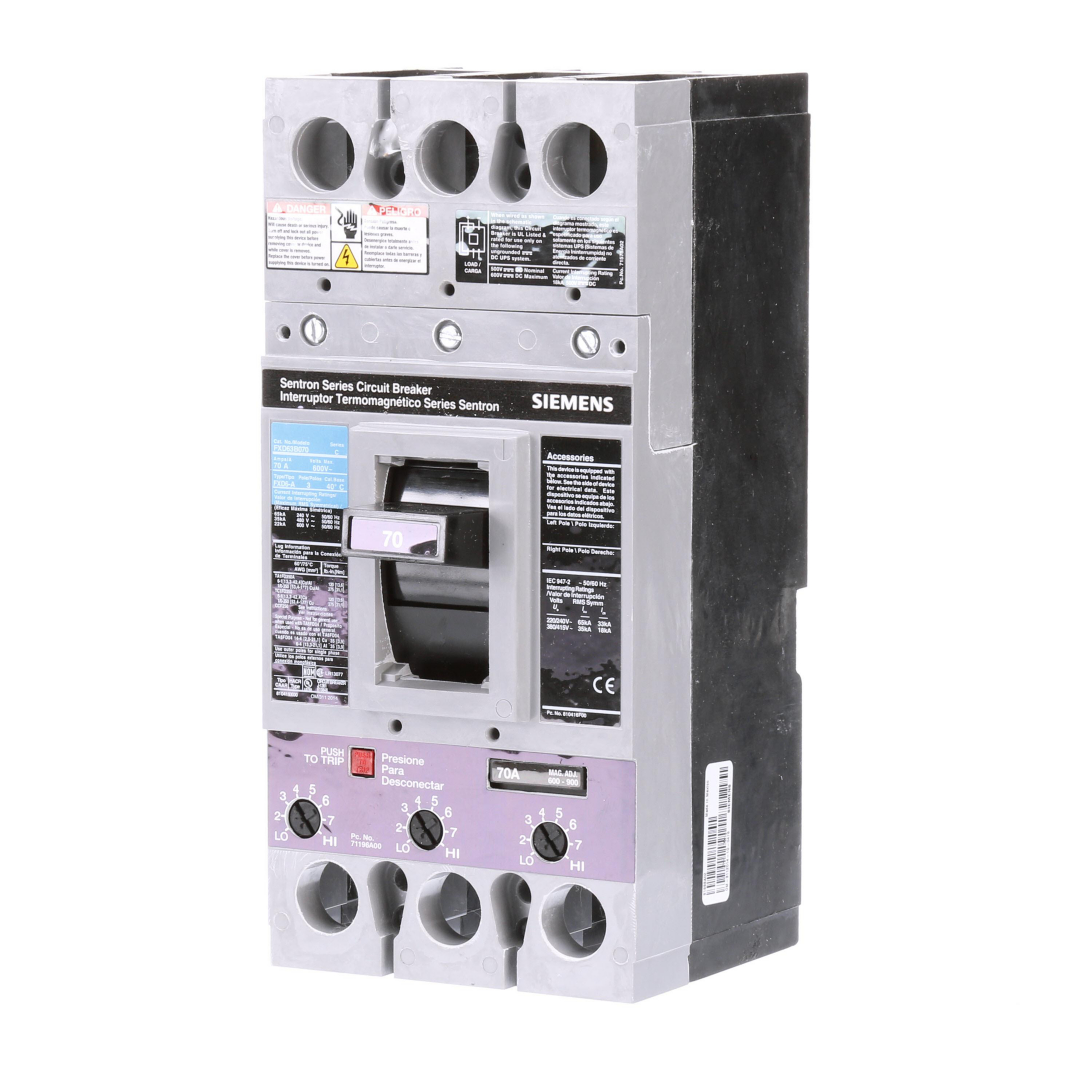

Product image for FD,22kA@600V,3P,70A,NO-INT,STD,TM,STD IC
Image thumbnail 0
Image thumbnail 1
To:
CC:

FD,22kA@600V,3P,70A,NO-INT,STD,TM,STD IC

Manufacturer: Siemens Distribution | Catalog # FXD63B070 | Electrozad South Part # 316934
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page G USERS MANUAL URL
Type FD Molded Case Circuit Breaker, 22kA @ 600V, 3 Poles, 70A, Non-interchangeable, Standard 40 Degree Celsius Breaker, Thermal Magnetic, Standard IC Rating

Technical Information

Actuator
Varying
Applications
For Motor Starting Without Overload Protection
Enclosure
Varying
Frame
FD
Interrupt Rating
22 kAIC
Load Rating
N/A
Number of Poles
3
Operating Temperature
40 degrees C
TC Connection
N/A
Trip Range
600-900
Trip Type
Thermal Magnetic
Type
FXD6, Standard

Manufacturer Information

Brand
Siemens
Sub Brand
Sentron

General Product Info

12-Digit UPC
783643211193
GTIN
00783643211193
Weight
8.950 lb

Dimensions

Height
11.3 in
Length
11.250 in
Width
5.500 in

Certifications & Compliance

Country of Origin
Mexico
