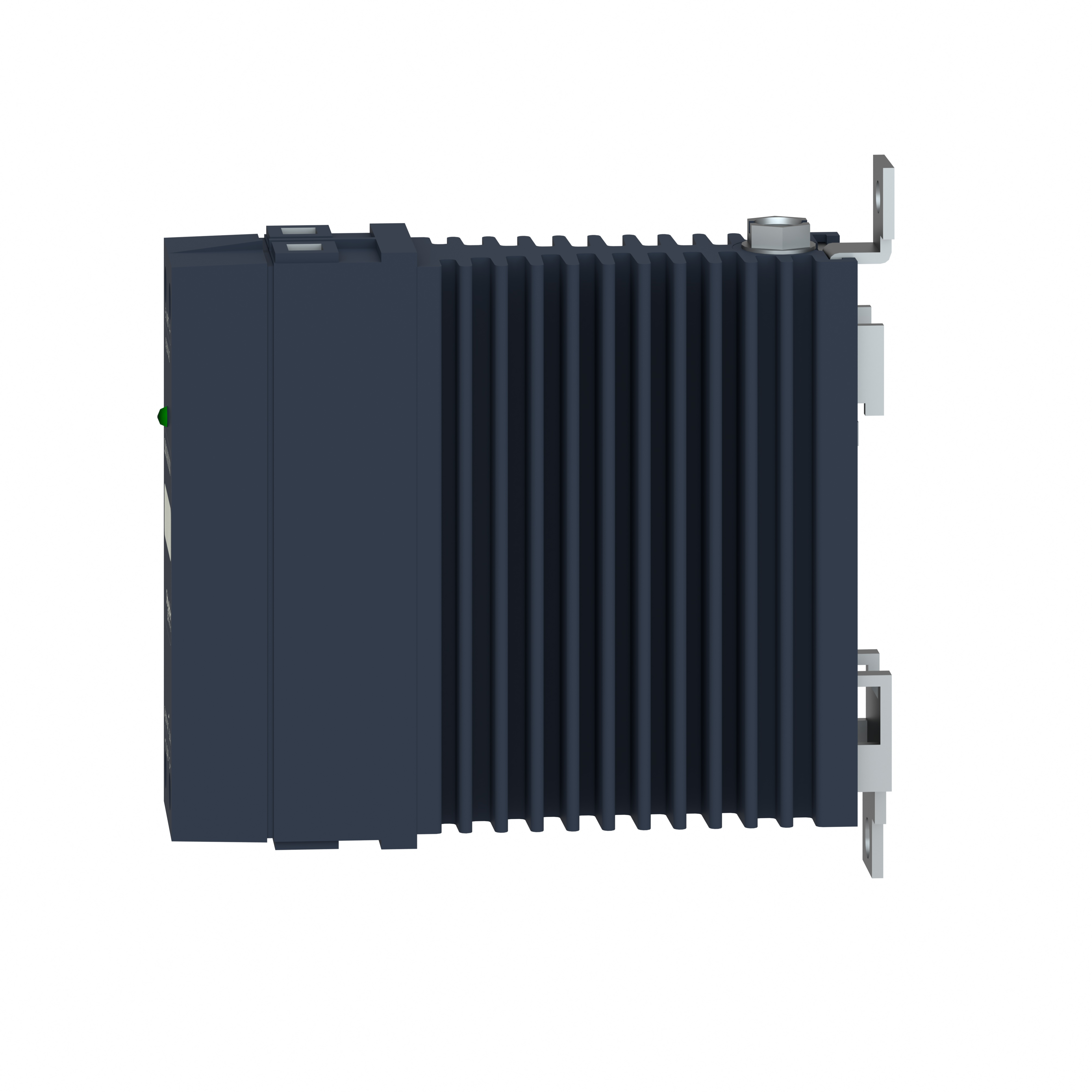

Image thumbnail 2

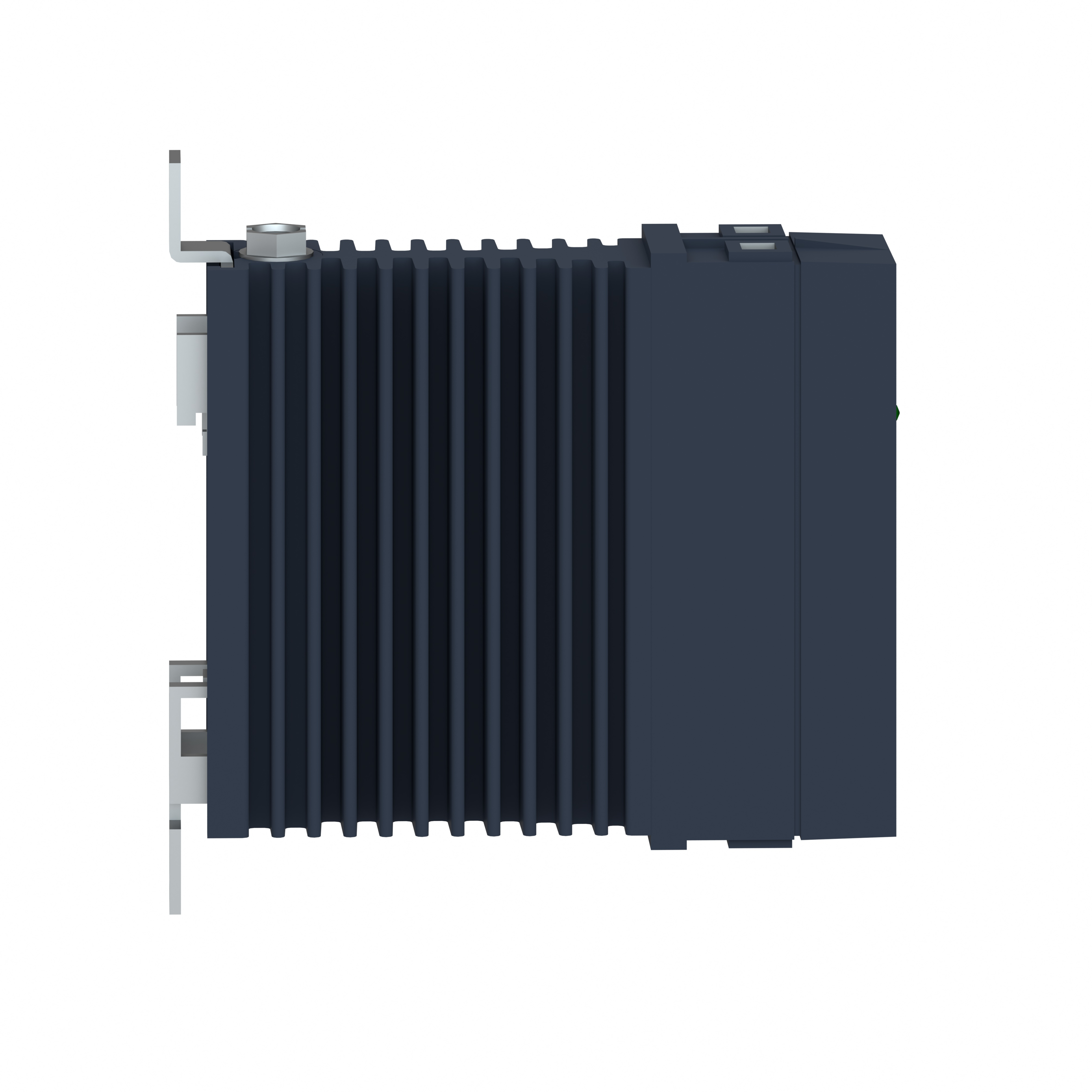

Image thumbnail 3
To:
CC:

HARMONY, SOLID STATE MODULAR, HARMONY SOLID STATE RELAYS,RELAY, 30 A, DIN RAIL MOUNT, ZERO VOLTAGE SWITCHING, INPUT 4...32 V DC, OUTPUT 48...660 V AC

Manufacturer: Schneider Kreuznach B & W | Catalog # SSM1A430BD | Electrozad South Part # 316841
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure CAD Drawing #1
Solid State Relay

Technical Information

Amperage
30 A
Applications
ZELIO RELAY
Input Current
812 mA
IP Rating
IP20
Line Rated Current
30 A
Maximum Load Current
0.1530 A
Mounting Type
DIN-Rail
Net Weight
0.28 kg
Number of Phases
1
Operating Temperature
-40-80 Adegrees C
Output Voltage
48-660 V
Response Time
0.5 cycle (turn-on);0.5 cycle (turn-off)
Standard
CSA C22.2 No 14,IEC 60950-1,UL 508
Storage Temperature
-40-125 degrees C
TC Connection
SCREW TERMINALS 1 X 0.2...1 X 5.3 MMA², AWG 24...AWG 10) INPUT-SCREW TERMINALS 1 X 0.2...1 X 5.3 MMA², AWG 24...AWG 10) OUTPUT
Type
Solid state relay

Manufacturer Information

Brand
Schneider Electric
Sub Brand
SSM1

General Product Info

12-Digit UPC
785901292128
Weight
0.28 kg

Certifications & Compliance

Certifications
CSA,EAC,UL
Country of Origin
Mexico
