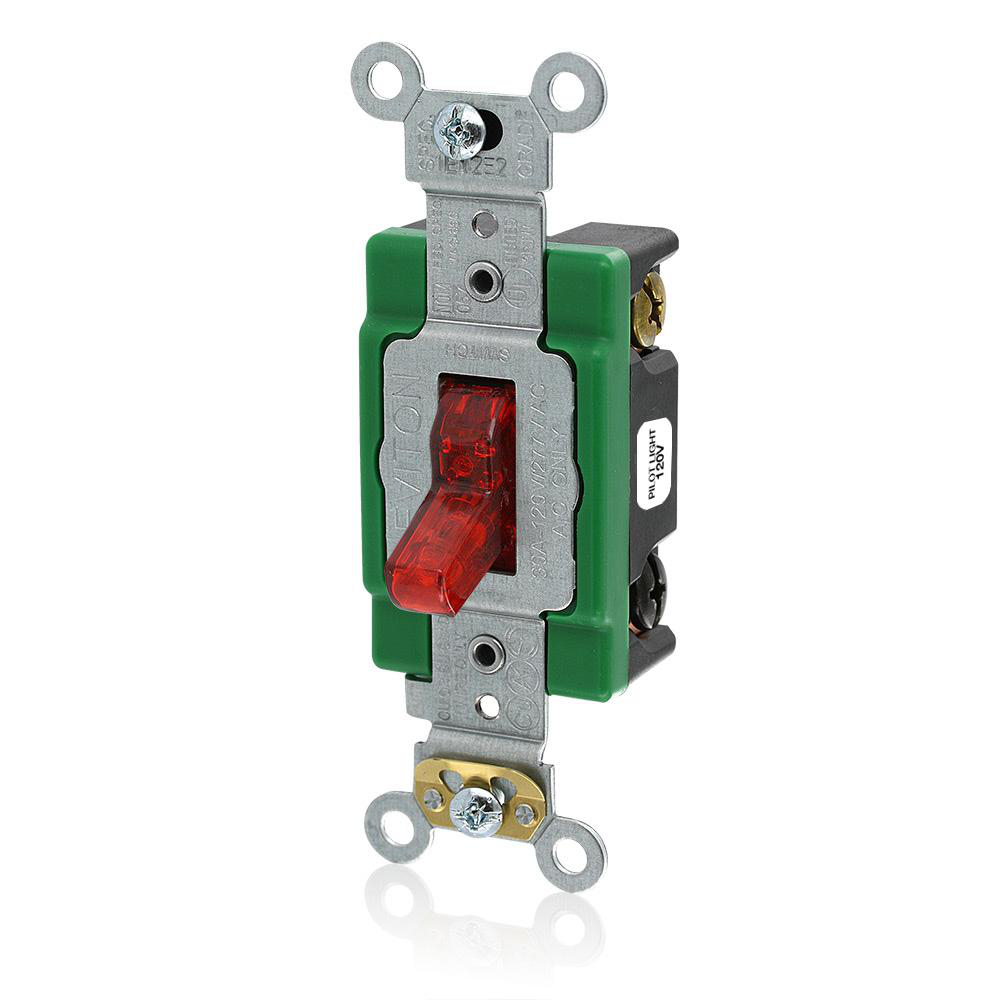

Switch toggle 1-pole pilot light 30A 120V red

Manufacturer: Leviton Manufacturing | Catalog # 3031-PLR | Electrozad South Part # 316634
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Installation / Instruction Manual MSDS | SDS Safety Sheet
Extra heavy duty specification grade AC toggle switch. Single-pole, pilot light. Self grounding. Back and side wired. Provide top performance in punishing industrial applications. Lighted handle illuminated when load is OFF. Fully enclosed switch mechanism in rugged housing for strength, track and arc resistance.

Technical Information

Action
SP
Actuator
Toggle
Amperage
24 A
Applications
Commercial
Base Material
Thermoplastic
Body Material
Thermoplastic
Connection Type
Back Wired,Side Wired
Contact Material
Silver Alloy
Cover Material
Thermoplastic
Device Type
Toggle Switch
Dielectric
1500 V
Enclosure
WD-6
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial
Grounding
Self-Grounding Clip And Terminal
Horsepower
120 V
Max Current
24 A
Mounting Type
Box
NEMA
WD-1
Number of Poles
1
Operating Temperature
-40 degrees C
Size
46 H x 1.31 W x 1.6 D IN
Standard
ANSI C-73
Storage Temperature
-40 degrees C
TC Connection
Back Wired;Side Wired
Temperature Rise
30 degrees C
Termination Type
Back Wire,Side Wire
Toggle Material
Polycarbonate
Torque
12 lb-in
Type
Toggle Switch
Voltage
120 V

Manufacturer Information

Brand
Leviton
Sub Brand
Industrial Switches

General Product Info

12-Digit UPC
078477781456
Color
Red
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTIN
00078477781456

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
