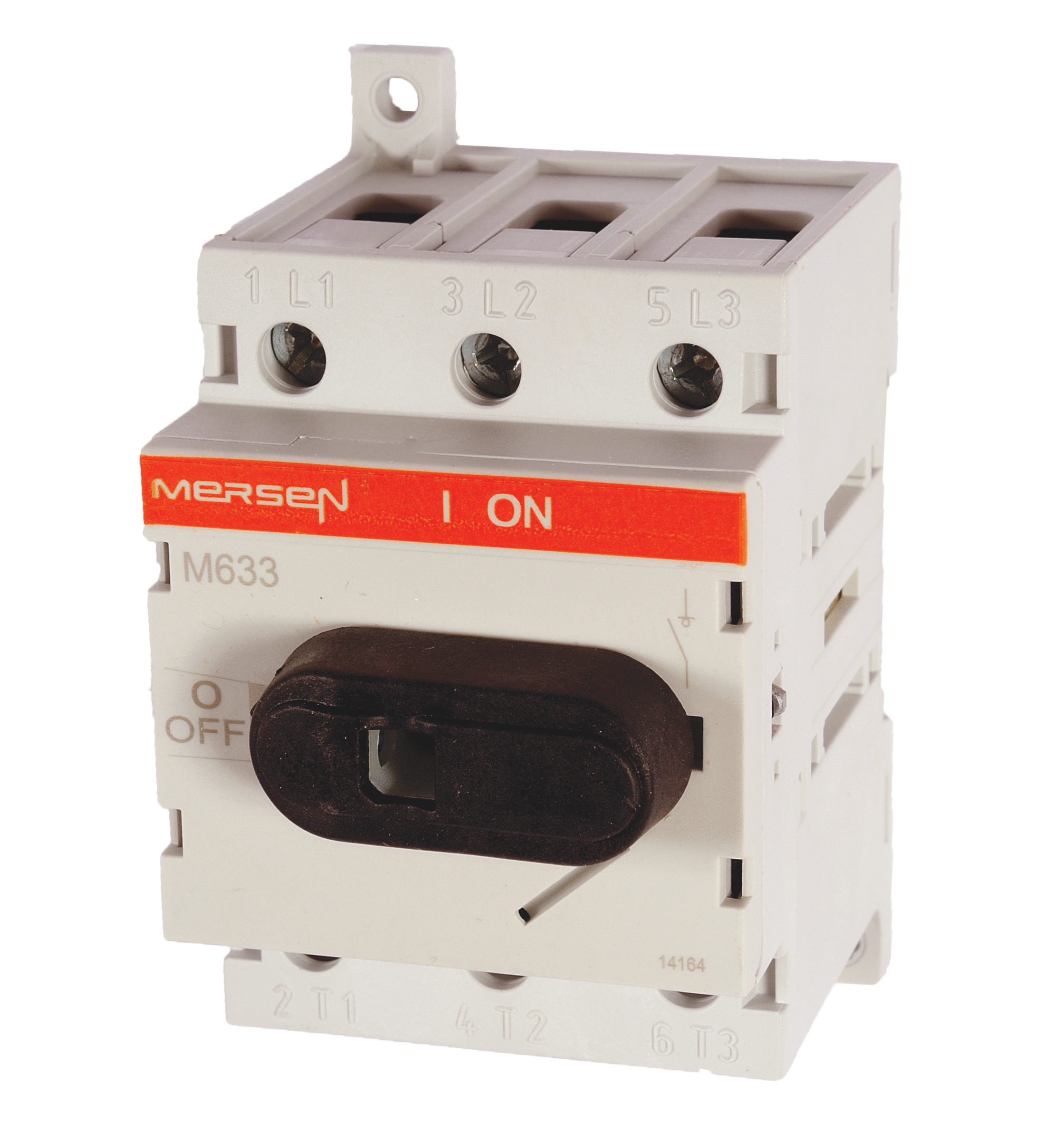

UL508 Switch 600VAC Non-Fused 63A 3-Pole Direct Screw Mount

Manufacturer: Ferraz Shawmut Mersen | Catalog # M633 | Electrozad South Part # 316176
*Call For Price*
Log in or register to view your price, purchase history, and more!
2 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet
The M-series Load Break Switch is the most compact industrial-grade switch on the market. Capable of making or breaking loads up to 600V (UL), it is suitable as a motor disconnect. Extremely compact and robust, these switches have a variety of mounting options including DIN-rail, base, or door-mounting. A wide assortment of handles, shafts and accessories is available to accommodate any installation requirement.

Technical Information

Amperage
63 A
Applications
Line of sight disconnect
Connection Type
Box
Max Operating Temperature
40 degrees C
Minimum Operating Temperature
-5 degrees C
Mounting Type
Direct Screw Mount
Number of Poles
3
Rated Insulation Voltage
750 V
Rated Voltage AC
600 V
Rated Voltage DC
0 V
Short Circuit Current Rating
10000 A
TC Connection
Tunnel Terminal
Terminal Type
Box
Torque
18 lb-in
Type
UL/CSA Switches
Voltage
600 V

Packaging

Package Qty
1

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
3605340557442
GTIN
33605340557443
Weight
0.6 lb

Dimensions

Height
2.42 in
Length
2.83 in
Width
2.07 in

Certifications & Compliance

Country of Origin
Finland
