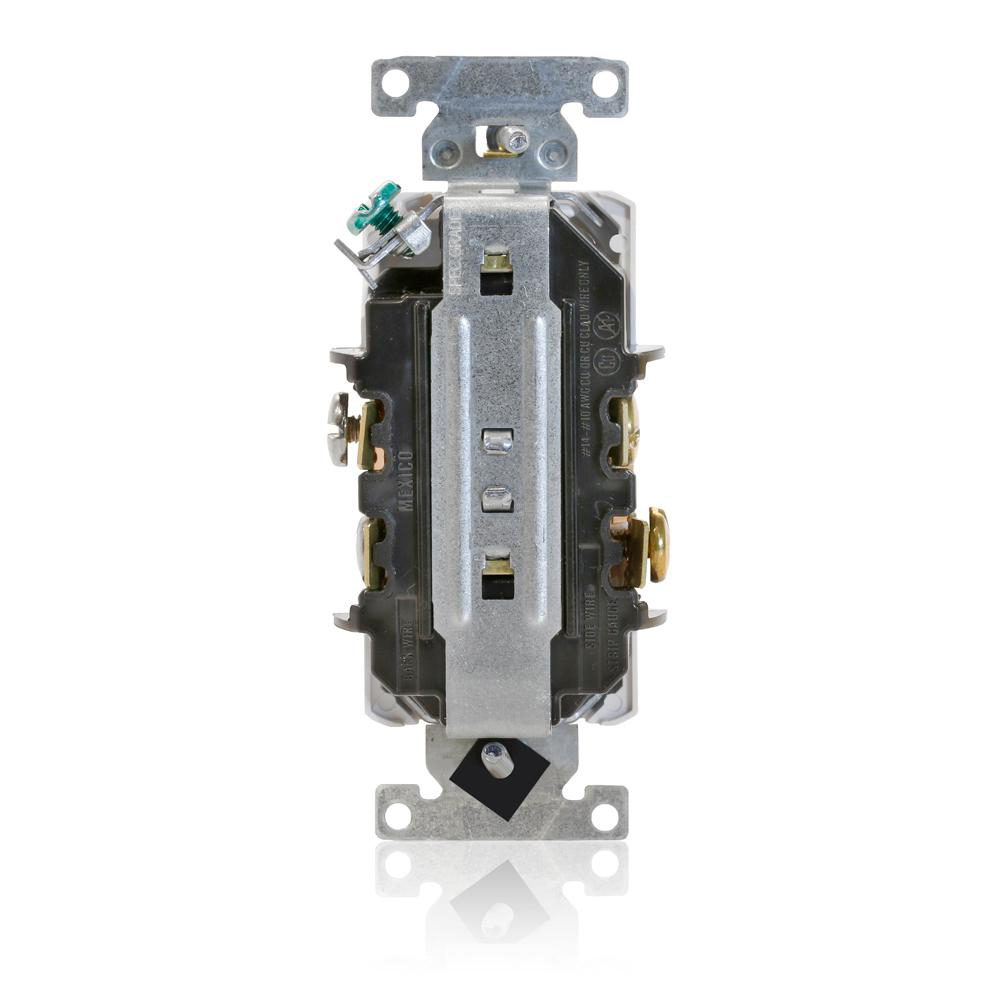

15 Amp Decora Plus Duplex Receptacle/Outlet, Industrial Grade, Self-Grounding

Manufacturer: Leviton Manufacturing | Catalog # 16252-R | Electrozad South Part # 316060
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page Installation / Instruction Manual MSDS | SDS Safety Sheet Technical Drawing
Decora Plus Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Red

Technical Information

Amperage
15 A
Applications
Industrial/Commercial
Body Material
PBT,PBT,Polyester Blend,Polyester Blend
Conductor Size
14-10 AWG
Connection Type
Back and Side Wired
Contact Material
Brass
Contact Type
Triple-Wipe
Device Type
Duplex Receptacle Outlet
Dielectric
3000 V
Dielectric Strength
2000 V
Face Material
PBT,PBT,Polyester Blend,Polyester Blend
Flamability Class
Rated V-2 Per UL 94,Rated V-2 Per UL 94
Grade
Industrial, Commercial
Grounding
Self-Grounding,Self-Grounding
Horsepower
1/2 hp
Insulation Material
Brass-Plated
Material
Zinc-Plated Steel
Mounting Type
Wallplate
NEMA
5-15R
Number of Poles
2,2
Number of Wires
3,3
Operating Temperature
60 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Brass,Brass
Screw Size
10-32,8-32
Size
46 H x 1.52 W x 1.14 D IN
Standard
ANSI C-73,ANSI C-73,CSA C22.2 No.42,Fed Spec W-C-596,UL 498
TC Connection
Back & Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
30 degrees C
Terminal Size
14-10 AWG
Termination Type
Back Wire,Back Wire,Side Wire,Side Wire
Type
Duplex Outlet
Voltage
125 V
Wire Count
3,3
Wire Size
14 - 10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Decora Plus™

General Product Info

12-Digit UPC
078477663110
Color
Red
Environmental Conditions
Flammability (Rated V-2 per UL94)
GTIN
00078477663110

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Certifications
CULus,NON-ANCE
Country of Origin
Mexico
