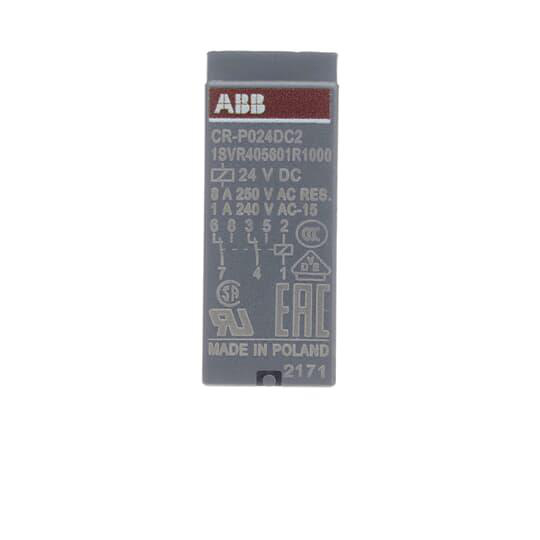

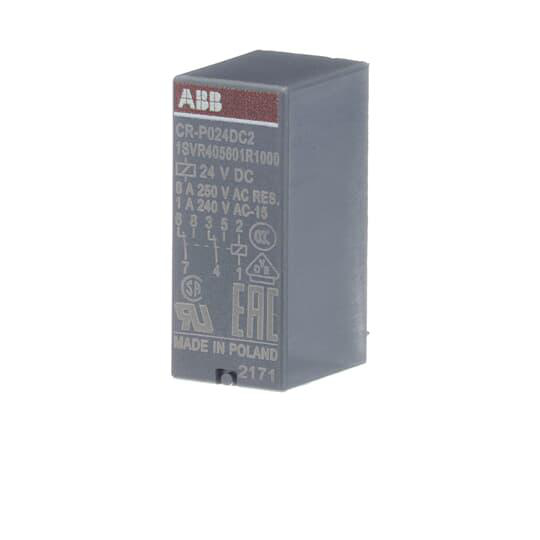

CR-P024DC2 PLUGGABLE INTERFACE REL.

Manufacturer: ABB Inc | Catalog # 1SVR405601R1000 | Electrozad South Part # 314465
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure
Plugin control relay with 24 VDC rated control supply voltage, DPDT (2 c/o) contacts, output and 250 V, 8 A contact rating

Technical Information

Applications
For Electronic Controlling PLC, PC or Field Bus System to the Sensor/Actuator Level
Contact Configuration
2 Changeover Contact, SPDT
Contact Material
Cadmium-Free/Gold
Number of Poles
1
Size
12.7x15.7x29mm
Temperature Rating
-40 to 70 degrees C
Type
General Purpose, Interface

Manufacturer Information

Brand
ABB
Sub Brand
CR-P

General Product Info

12-Digit UPC
662019209746
GTIN
04013614498237
