PLUG IN RELAY, TYPE N, RELAY SOCKET, 14 BLADE, FOR 8510R RELAYS

Manufacturer: Schneider | Square D | Catalog # 8501NR45 | Electrozad South Part # 313925
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

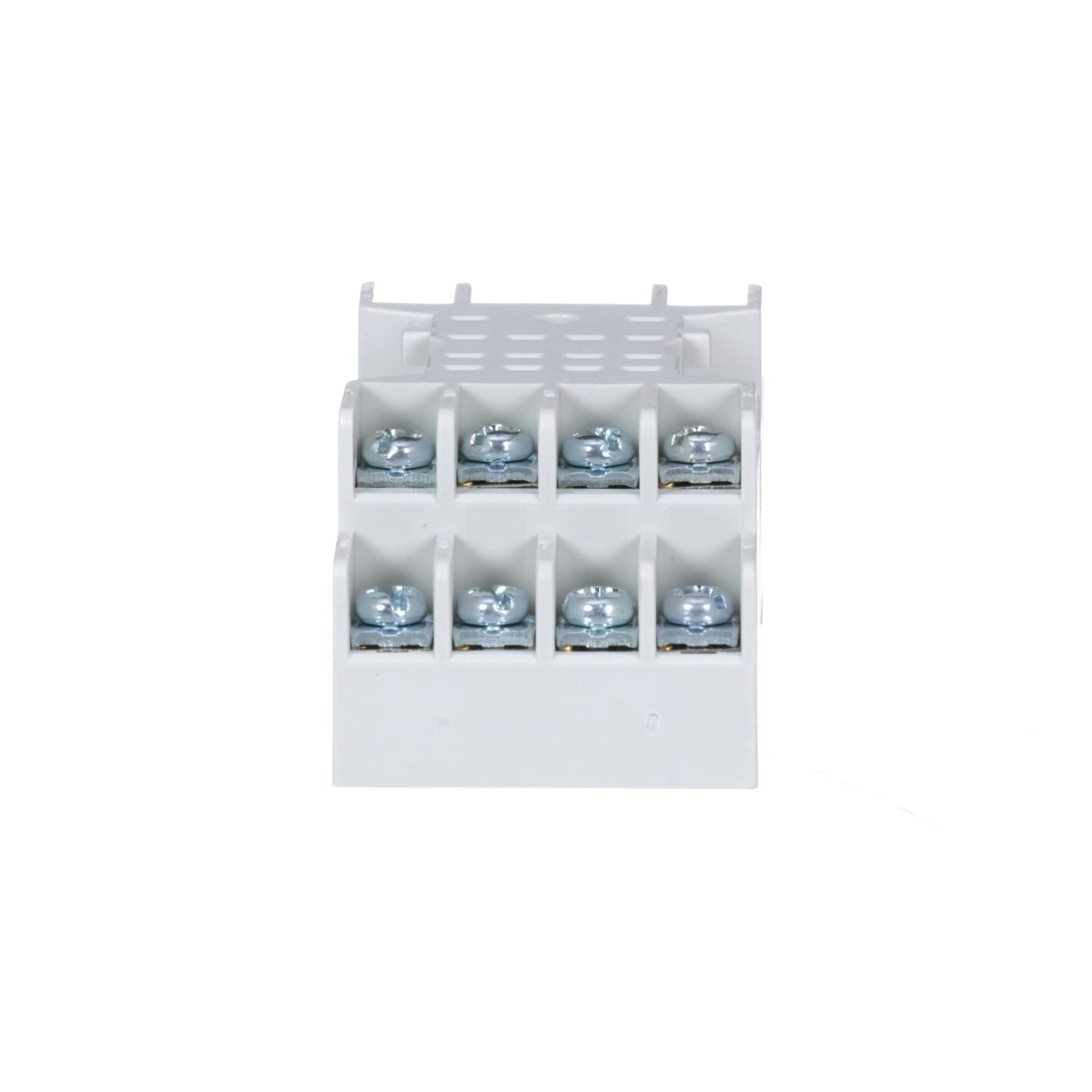

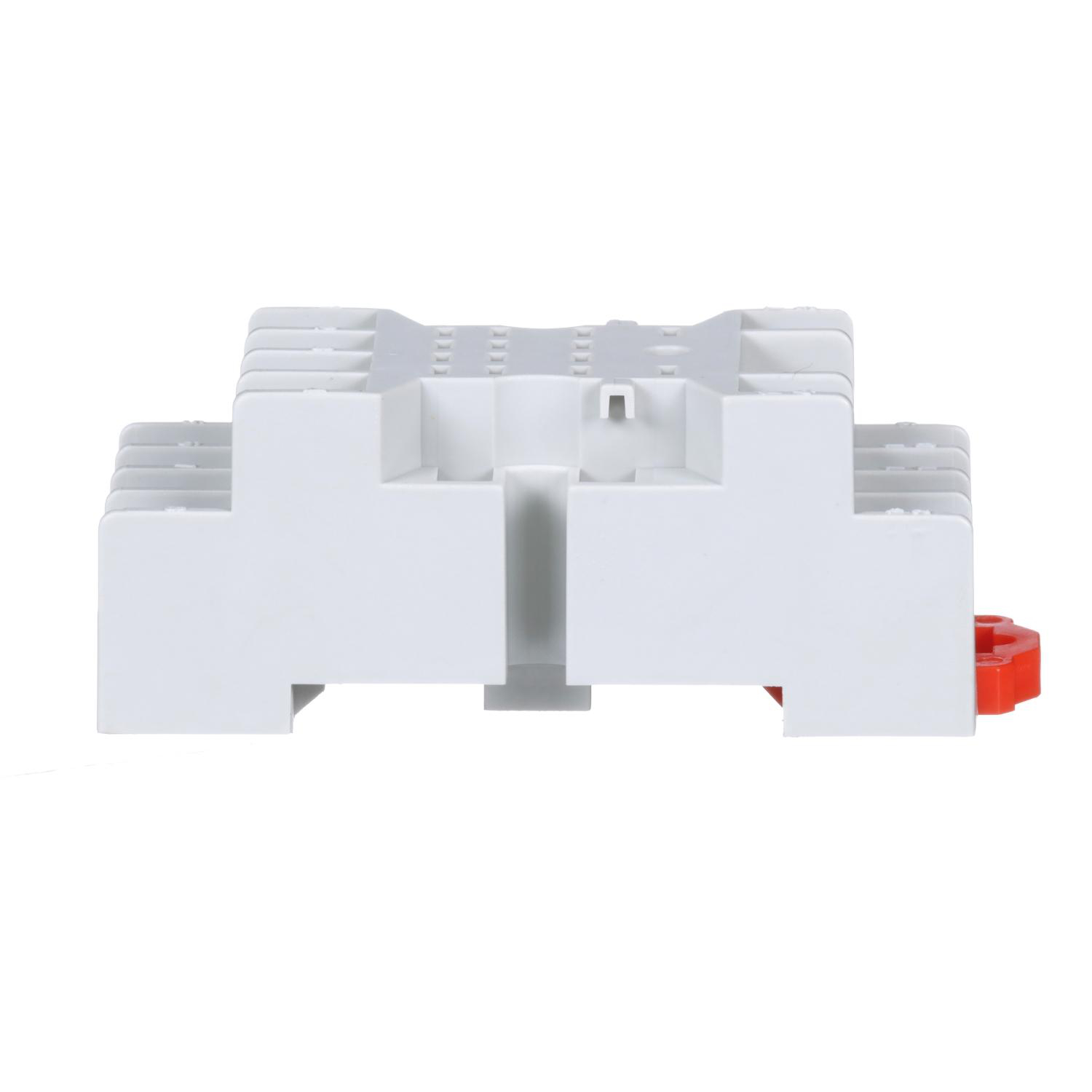

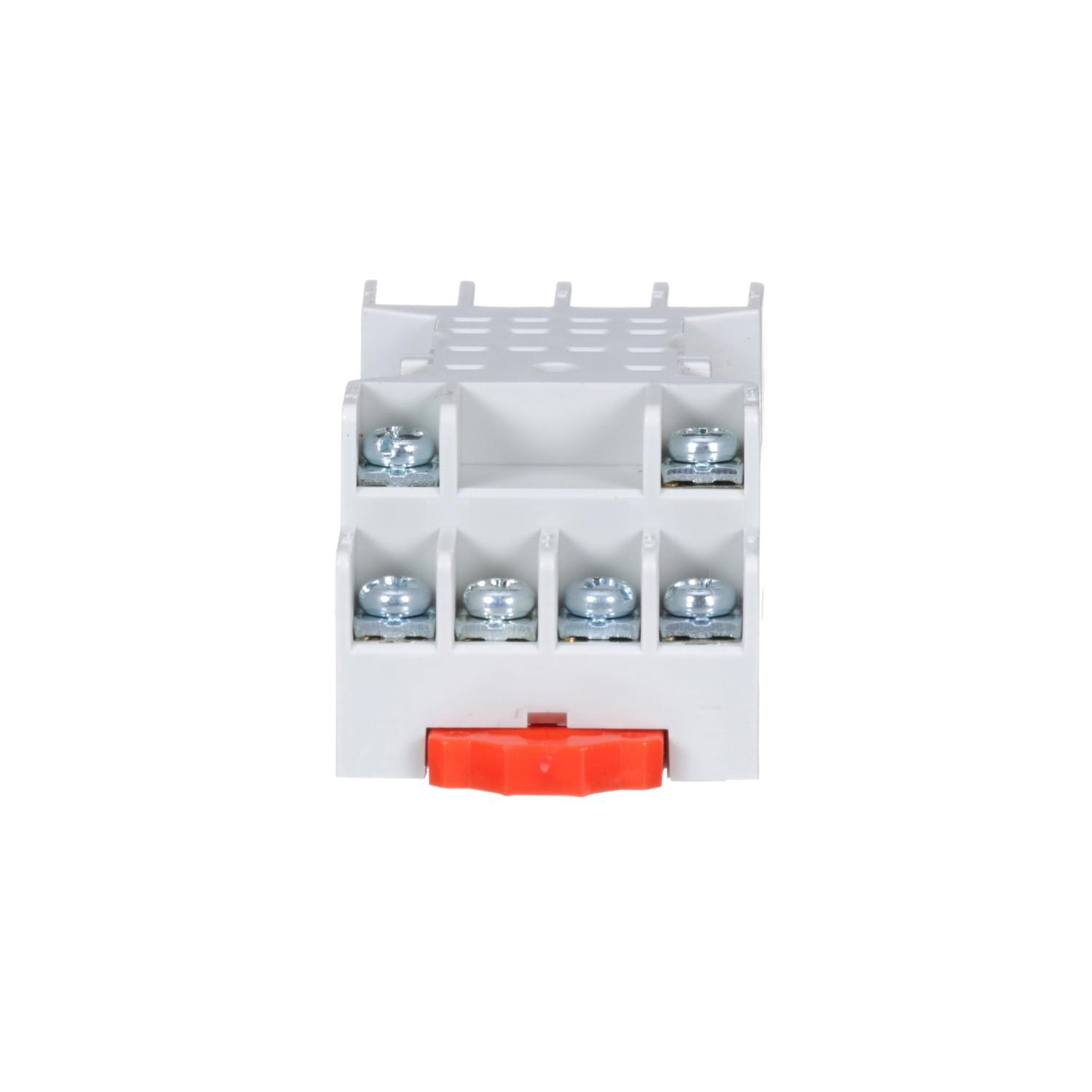

8501NR plug in relay sockets are designed for the proper wiring of 8501R plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501RS14, 8501RS24 or 8501RS34 relays will plug into this relay socket which is designed for 14 blade pins. The socket terminals have pressure wire clamps for a good secure connection. To save panel space this socket has stacked terminals. 8501NR plug in relay sockets are UL component recognized and CSA certified.

Technical Information

Line Rated Current
10 A
Mounting Type
DIN Rail,Panel
Number of Pins
14
Type
Relay Socket

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901583660
GTIN
00785901583660

Dimensions

Depth
25.4 mm
Height
2.72 in
Warranty Length
18 mth
Width
1.21 in

Certifications & Compliance

Certifications
CE,CSA,UL Recognized
Country of Origin
USA
