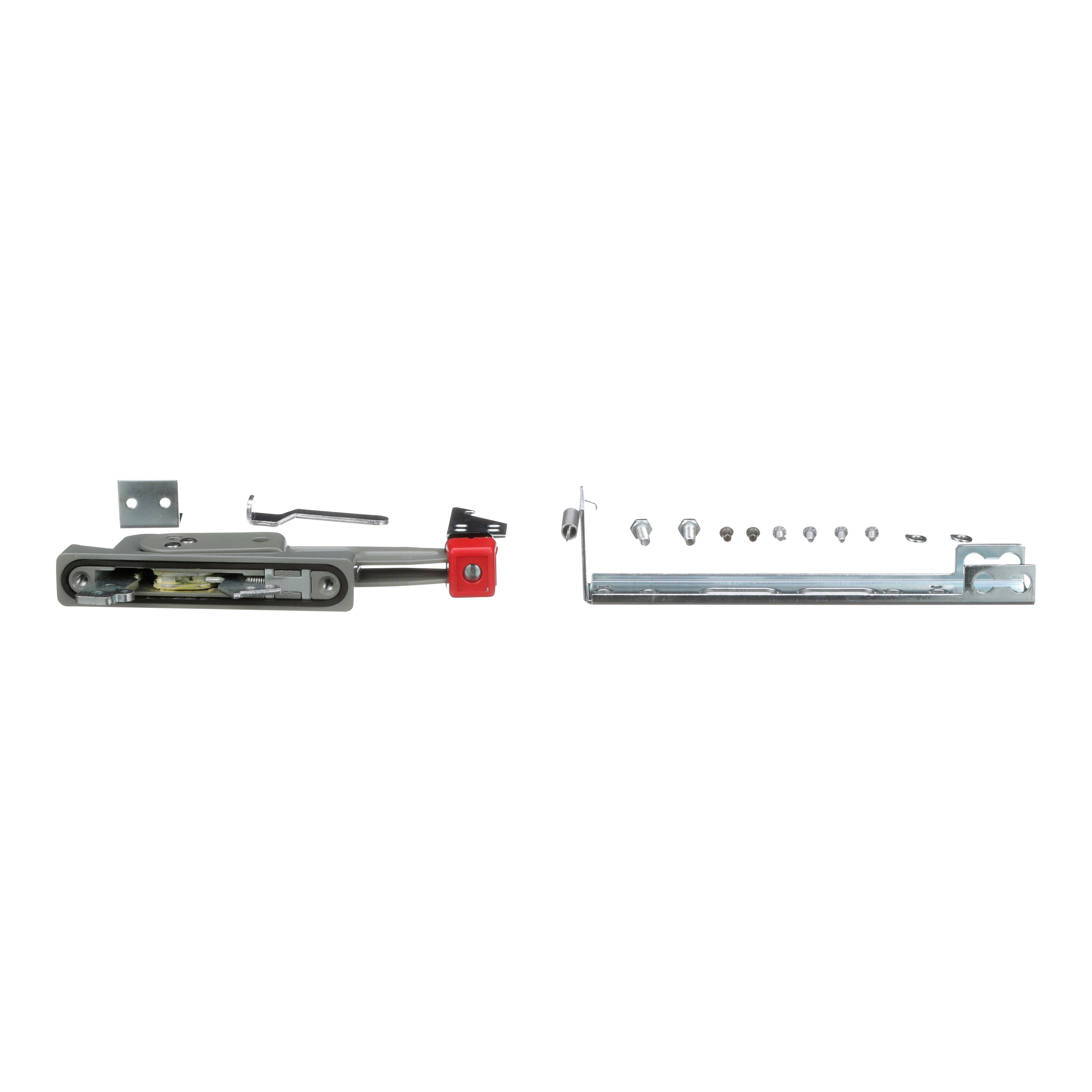

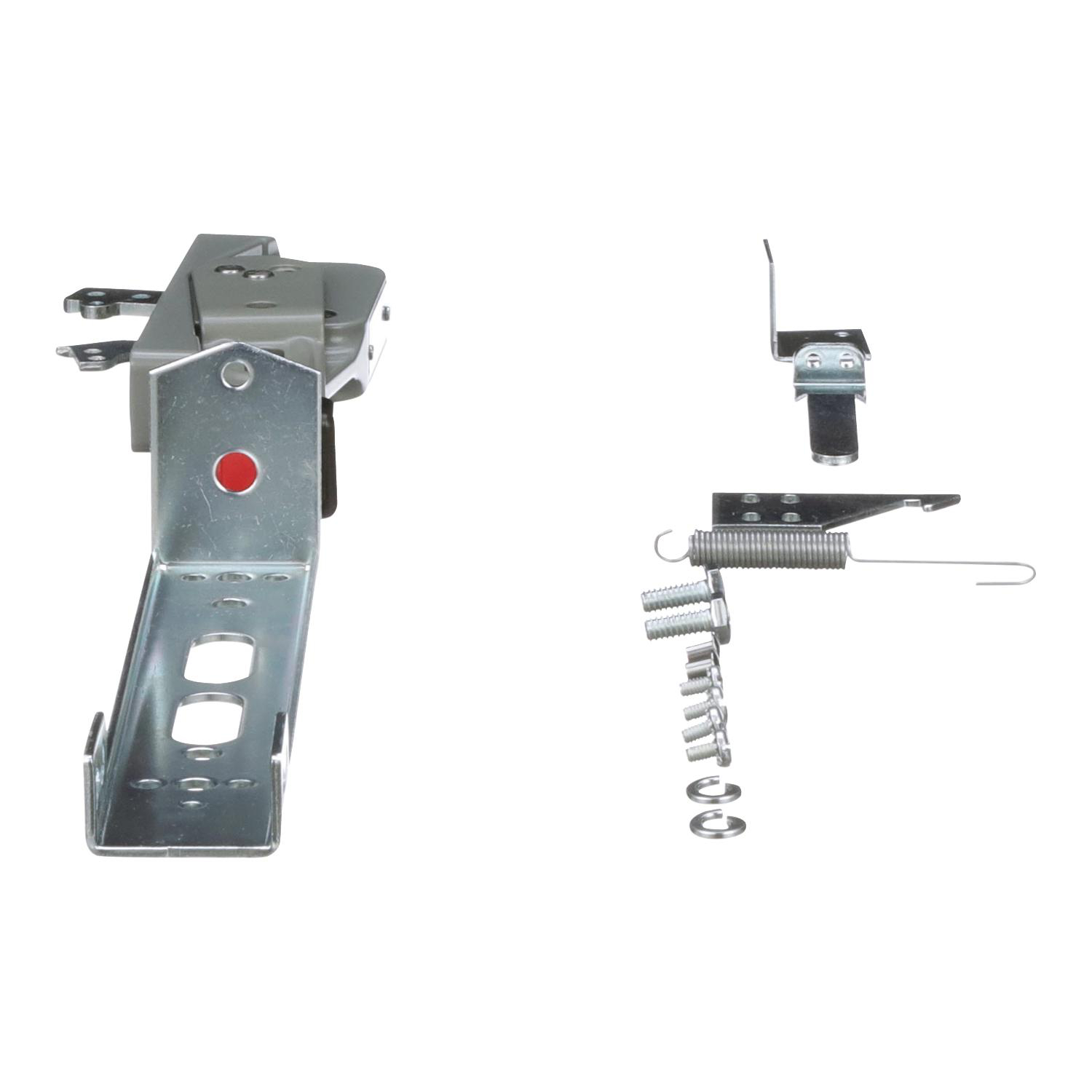

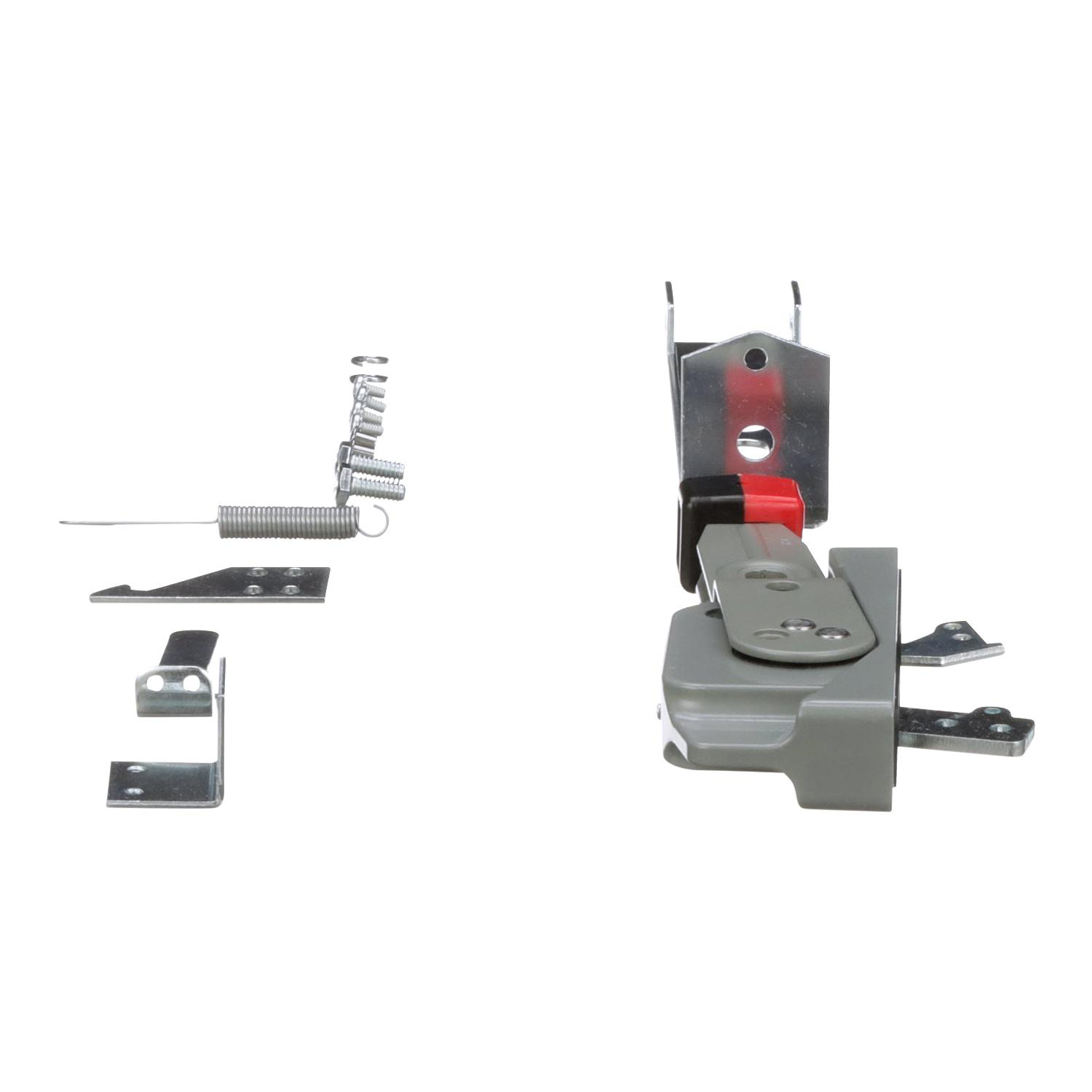

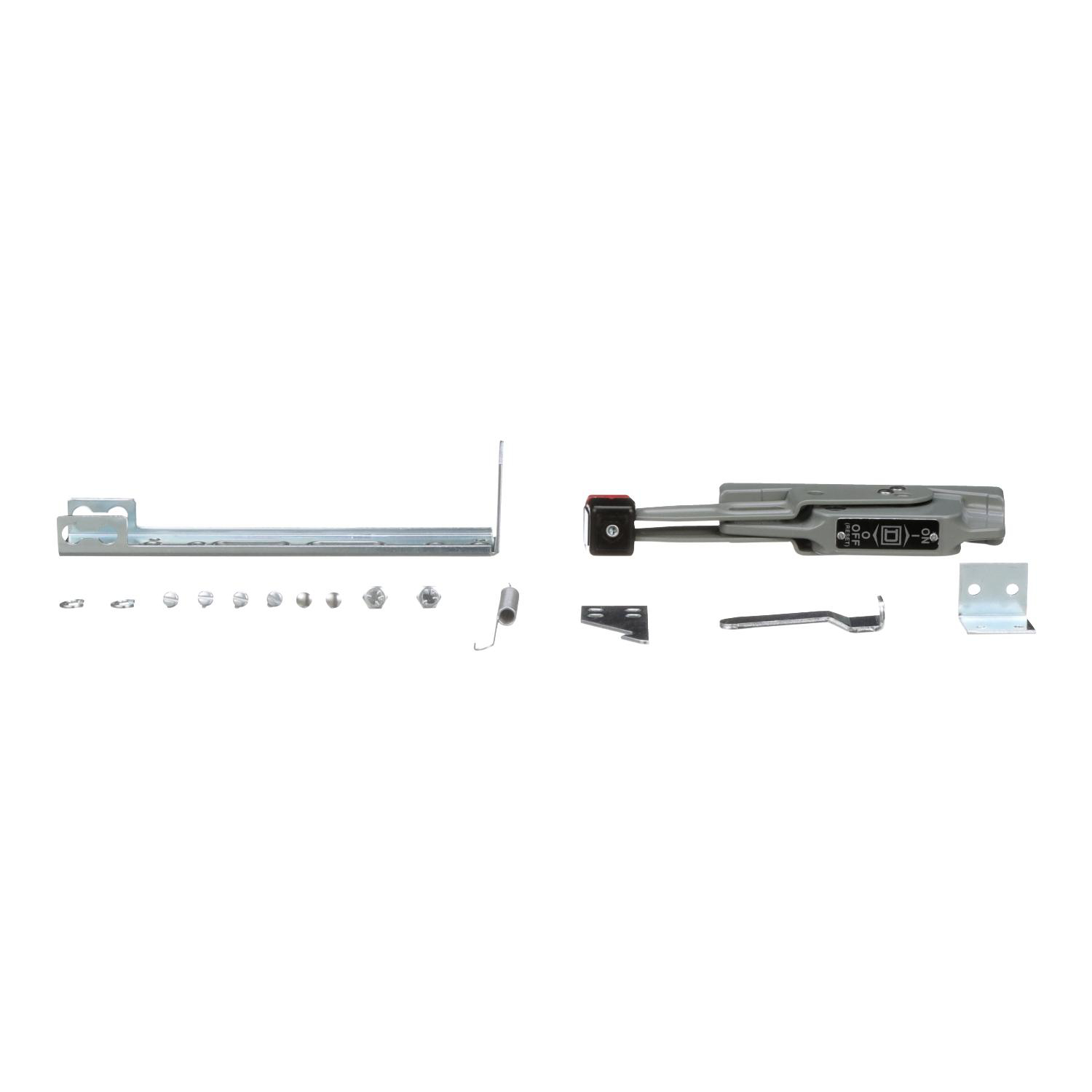

Product image for OPERATING MECHANISM, FLANGE MOUNTED, VARIABLE DEPTH, 6IN DUAL CABLE HANDLE MECHANISM, NEMA 1, 3R, 4, 12 ENCLOSURE
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
To:
CC:

OPERATING MECHANISM, FLANGE MOUNTED, VARIABLE DEPTH, 6IN DUAL CABLE HANDLE MECHANISM, NEMA 1, 3R, 4, 12 ENCLOSURE

Manufacturer: Schneider | Square D | Catalog # 9422AP1 | Electrozad South Part # 313020
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This handle mechanism is a 6 inch handle depth for NEMA 1/3/3R/4/12. This handle is for use with 9422RM1, 9422CMP, and PowerPacT M and P operating mechanisms. This product complies with UL standards.

Technical Information

Actuator
6 INCH HANDLE
Applications
9422CMP circuit breaker mechanism;9422RM1 circuit breaker mechanism
Enclosure
NEMA 1/3/3R/4
Indicator
OFF/ON
Size
6 in
TC Connection
FLANGE MOUNT
Type
Handle Mechanism

Manufacturer Information

Brand
Square D
Sub Brand
SCHNEIDER ELECTRIC

General Product Info

12-Digit UPC
785901834045
GTIN
00785901834045

Dimensions

Length
6 in
Warranty Length
18 mth

Certifications & Compliance

Country of Origin
Mexico
