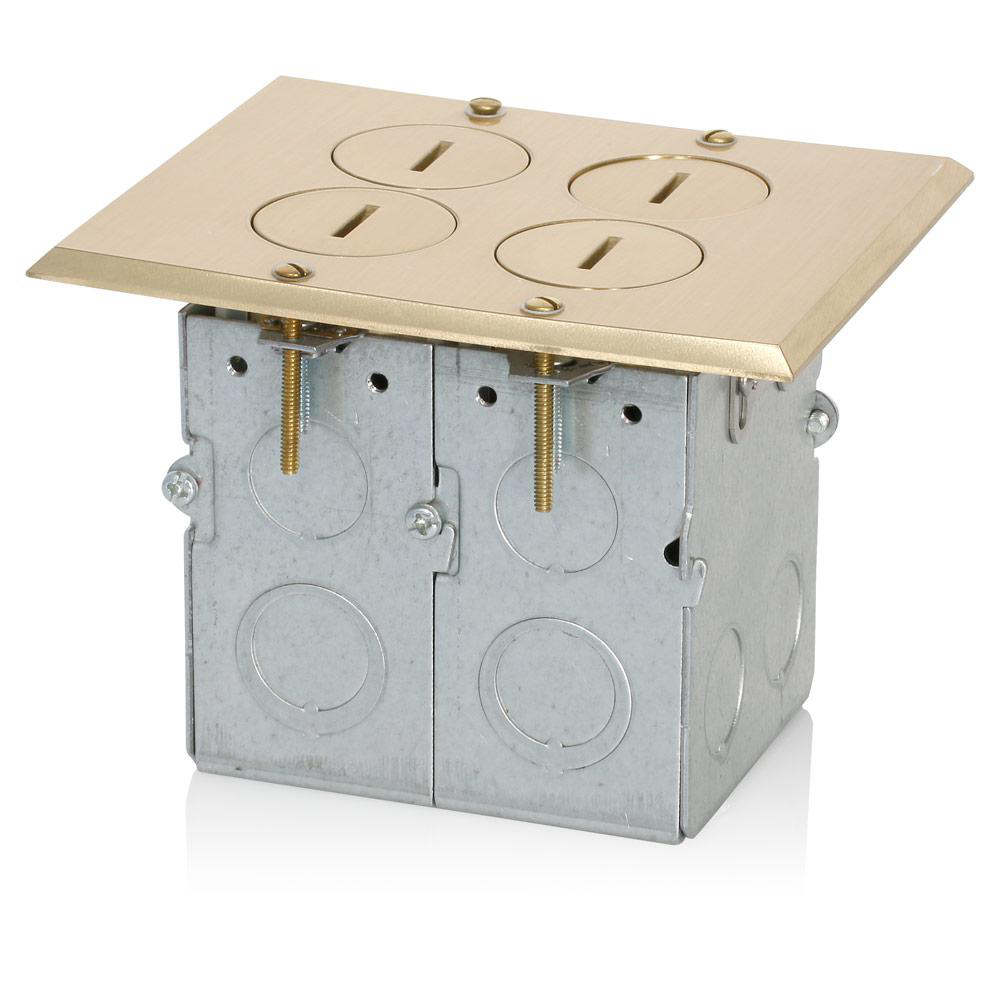

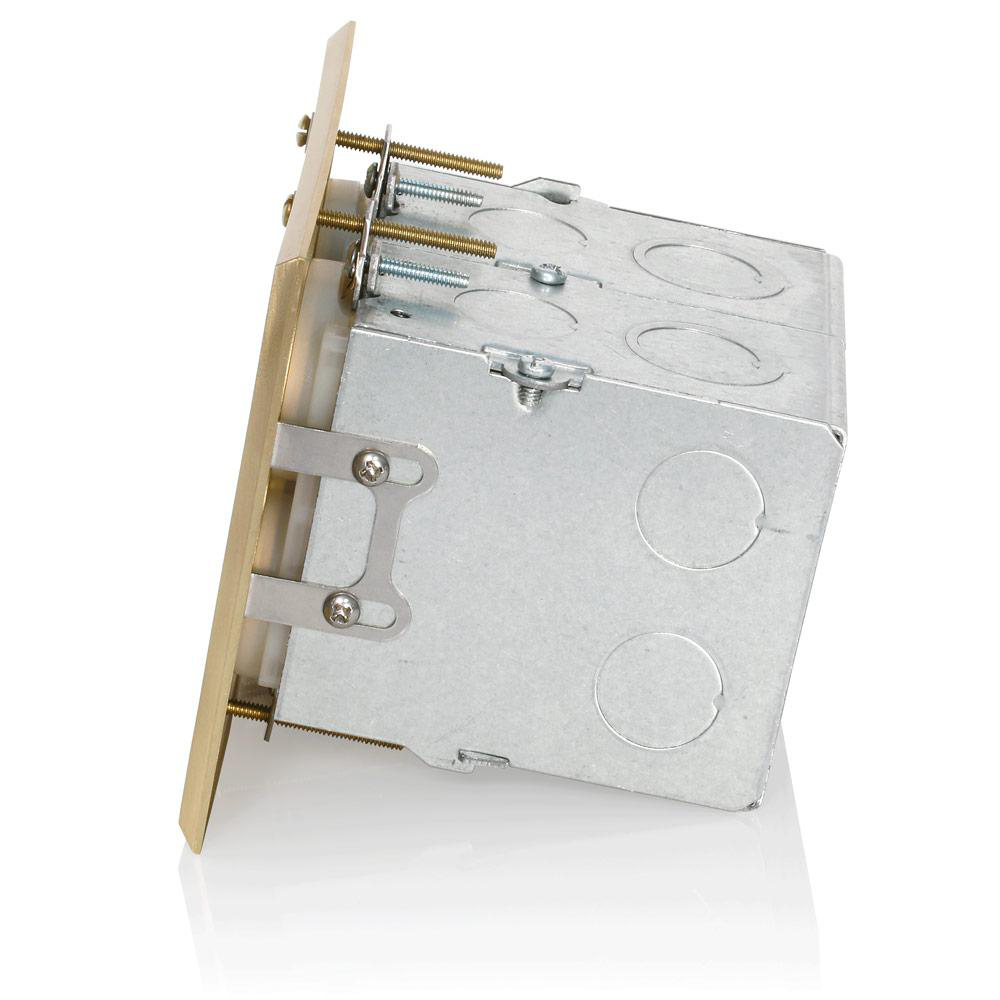

2-Gang 15 Amp Low Voltage Tamper-Resistant Receptacle Floor Box Assembly, 1

Manufacturer: Leviton Manufacturing | Catalog # 35249-TLB | Electrozad South Part # 312473
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure MSDS | SDS Safety Sheet Technical Drawing
2-Gang Low Voltage Floor Box, (1) Duplex 15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W Tamper-Resistant Receptacle, Straight Blade, (1) QuickPort Insert, Commercial Grade, Self Grounding, Steel Strap, Brass-Finish Plate - IVORY

Technical Information

Amperage
15 A
Applications
Commercial
Body Material
Nylon
Dielectric
2000 V
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grounding
Self-Grounding
Horsepower
1/2 hp
NEMA
WD-6
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Standard
ANSI C-73
Temperature Rise
150 %
Termination Type
Back Wire,Side Wire
Type
Floor Box
Voltage
125 V
Wire Count
3

Manufacturer Information

Brand
Leviton
Sub Brand
FLOOR BOXES and POKE THROUGHS

General Product Info

12-Digit UPC
078477760093
Color
Ivory
GTIN
00078477760093

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Country of Origin
Mexico
